RIGGING HARDWARE

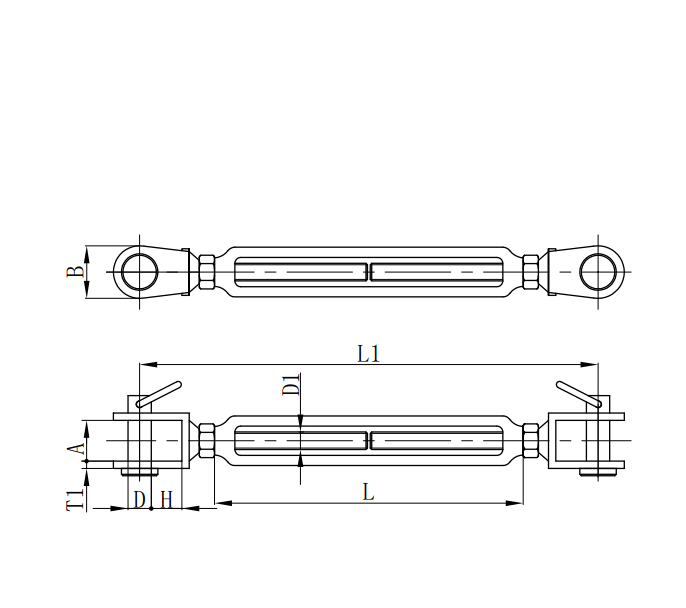

European Type Turnbuckle with Jaw ＆ Jaw
欧式开体花兰-叉&叉
European Type Turnbuckle with Jaw ＆ Jaw
ITEM NO D1 L1 L A D H B T1 WT
mm mm mm mm mm mm mm mm KGS
HF-3001-0005 M5 120 70 6.5 5 10 13 3 0.06
HF-3001-0006 M6 140 90 7.5 6 10 14 3 0.09
HF-3001-0008 M8 180 120 11 8 11 18.5 3 0.18
HF-3001-0010 M10 220 150 12 9 14 21 4 0.32
HF-3001-0012 M12 300 200 14 12 20 26 5 0.59
HF-3001-0014 M14 325 220 15 12 22 26.5 5 0.79
HF-3001-0016 M16 375 250 17 16 26 36 6 1.27
HF-3001-0020 M20 450 300 20 19 30 45.5 6 2.27

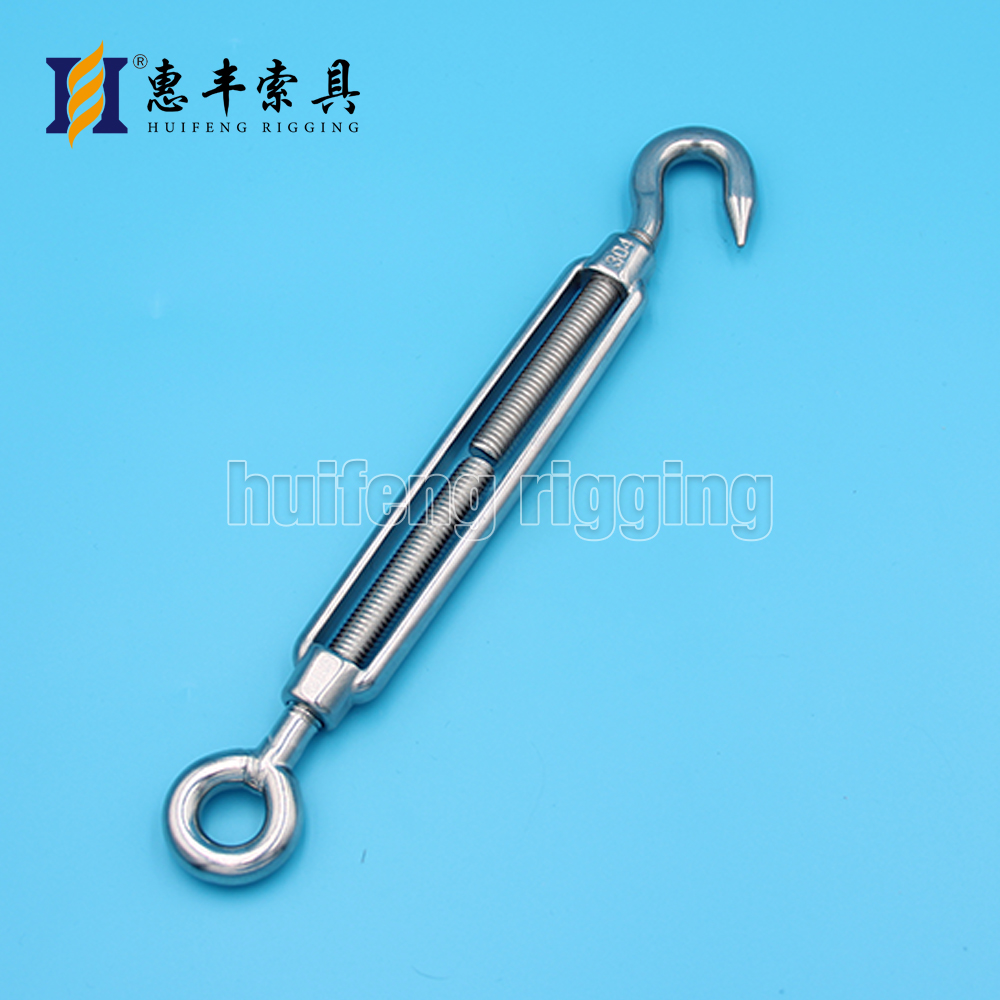

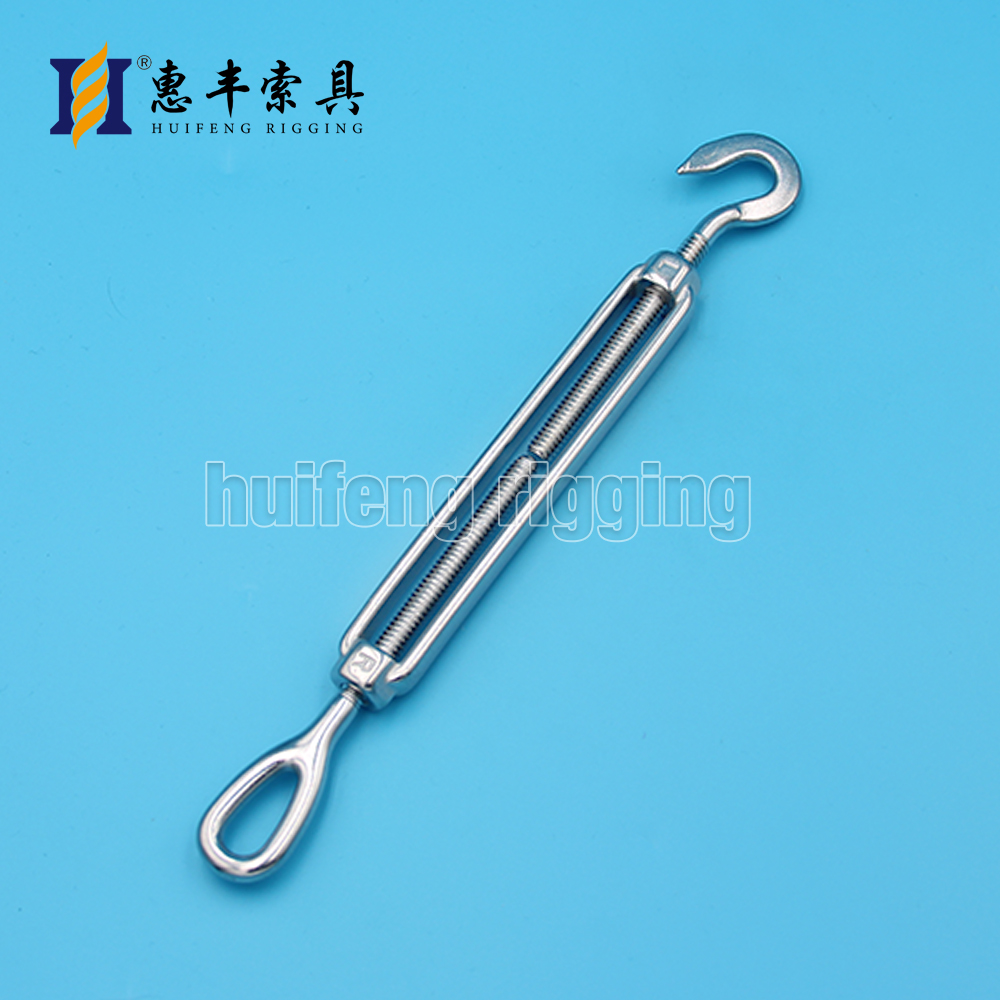

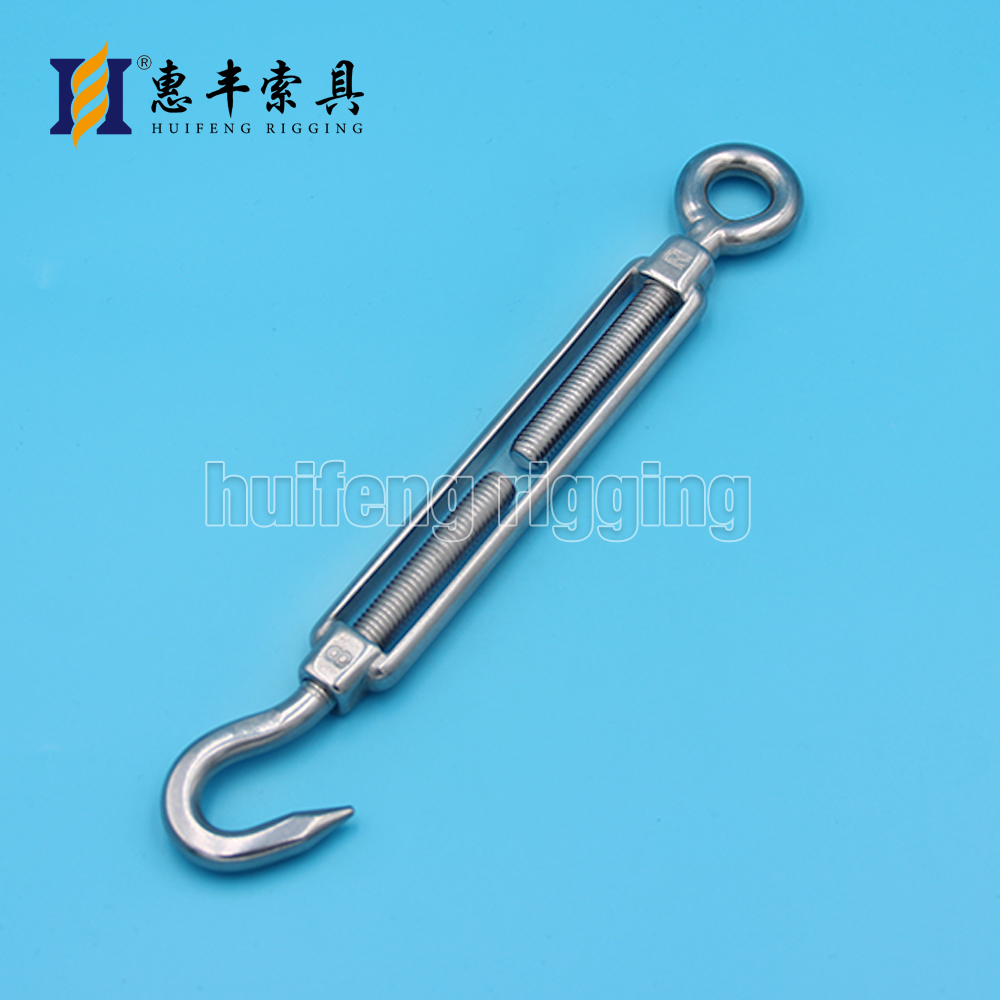

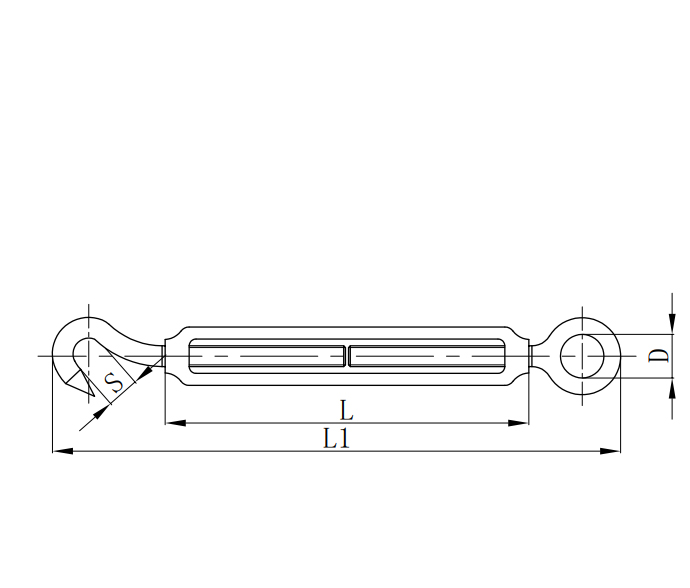

European Type Turnbuckle with Eye ＆ Hook
欧式开体花兰-眼&钩
European Type Turnbuckle with Eye ＆ Hook
ITEM NO Size L(mm) L1(mm) D(mm) S(mm) WLL(kg)
HF-3002-0004 M4 58 90 8 6 30
HF-3002-0005 M5 70 120 10 8 40
HF-3002-0006 M6 90 150 10 9 80
HF-3002-0008 M8 120 200 12 11 140
HF-3002-0010 M10 150 240 14 12 220
HF-3002-0012 M12 200 310 18 14 300
HF-3002-0016 M16 250 390 25 16 600
HF-3002-0020 M20 300 440 30 18 900

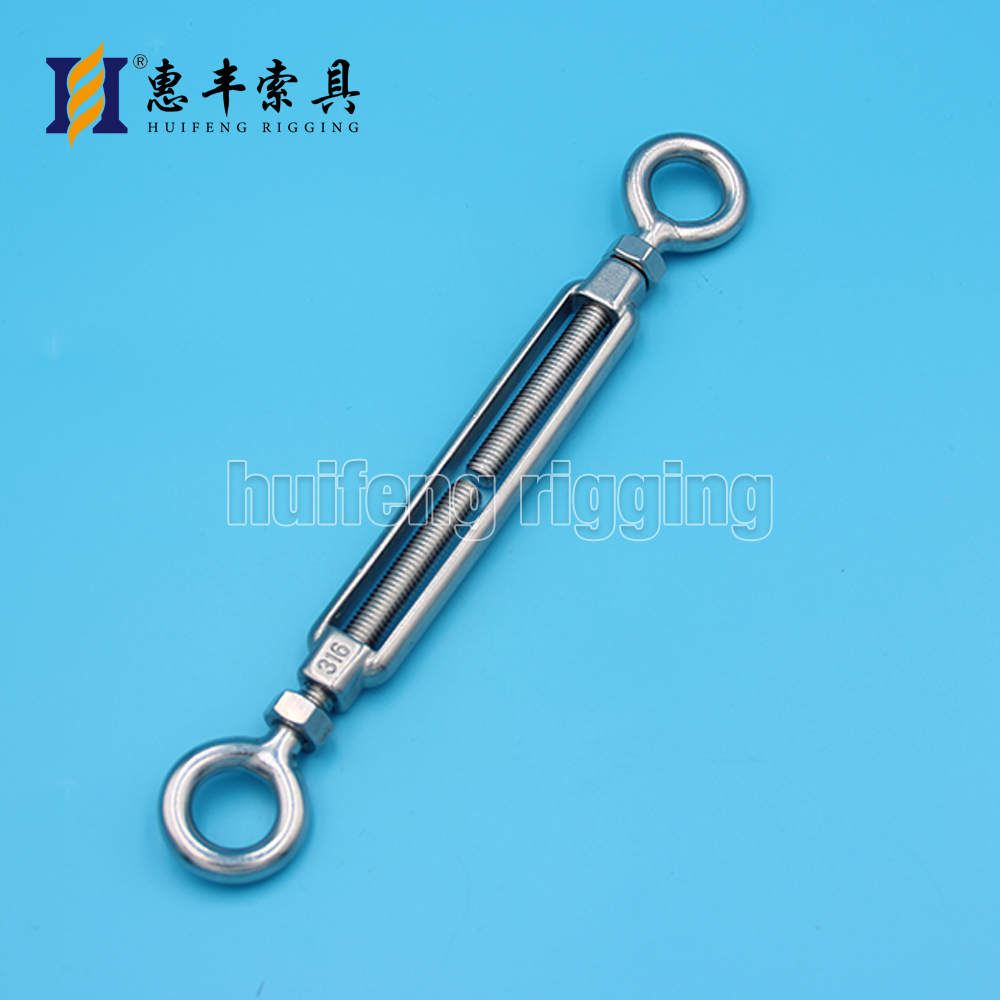

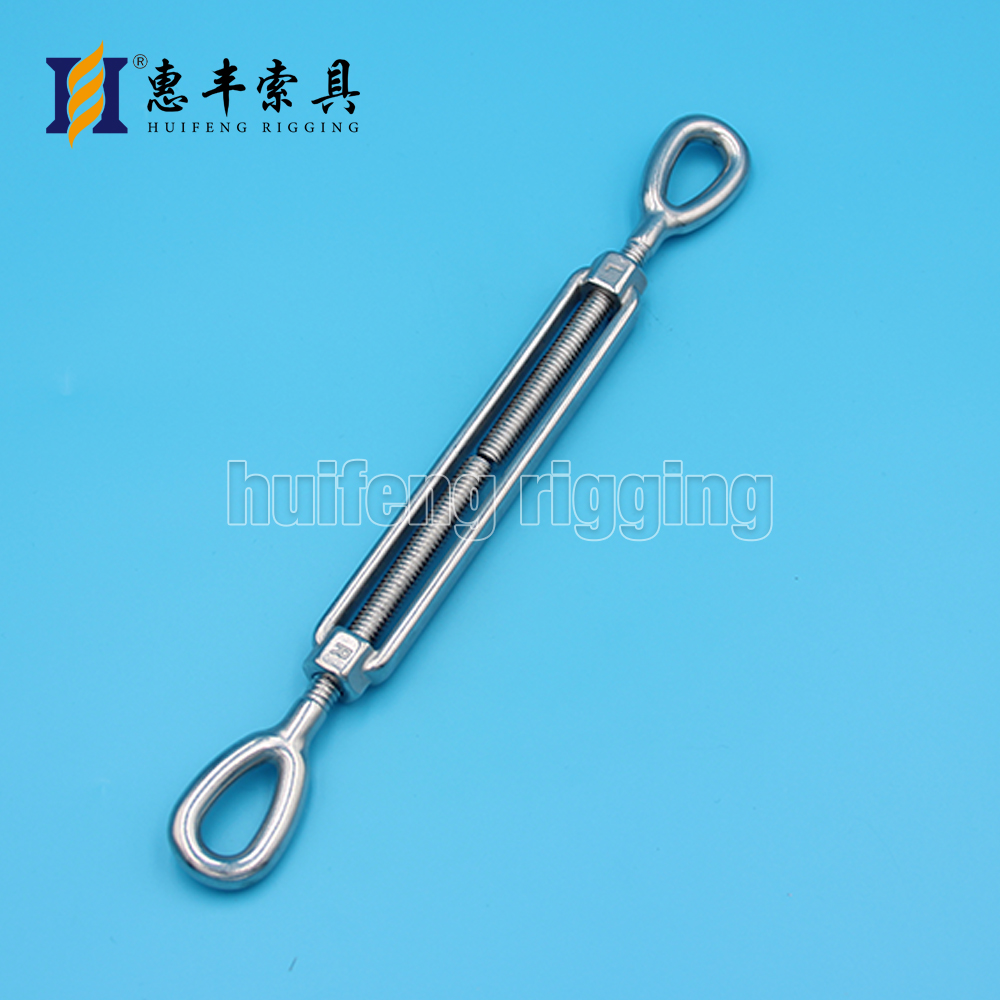

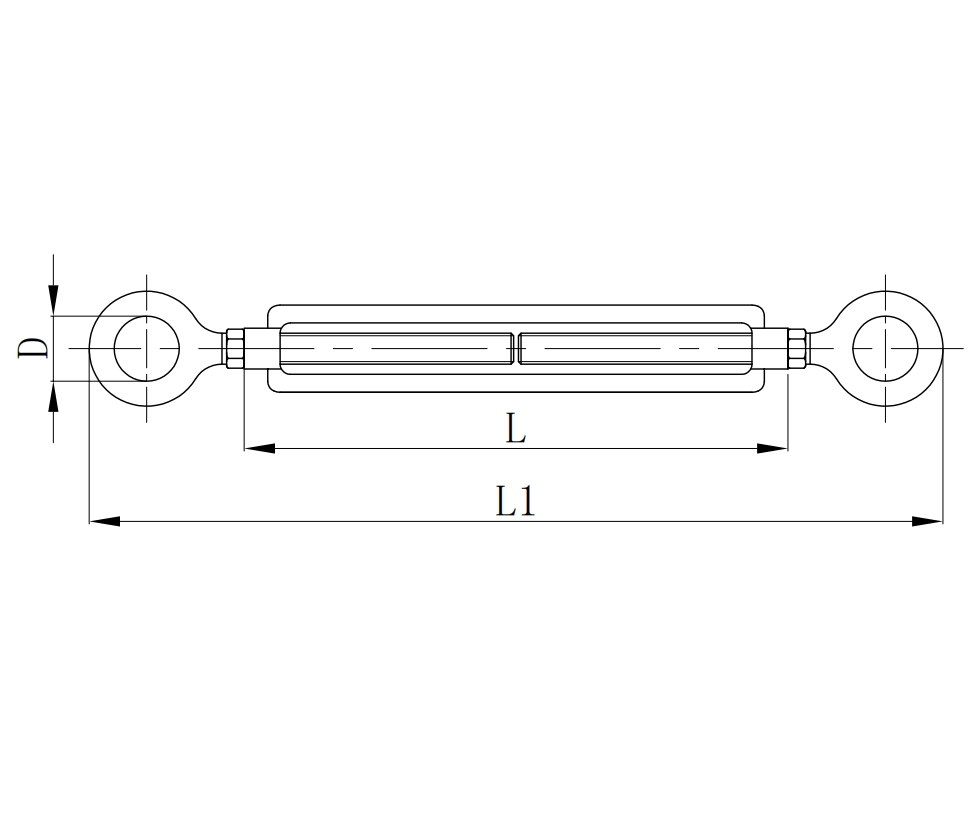

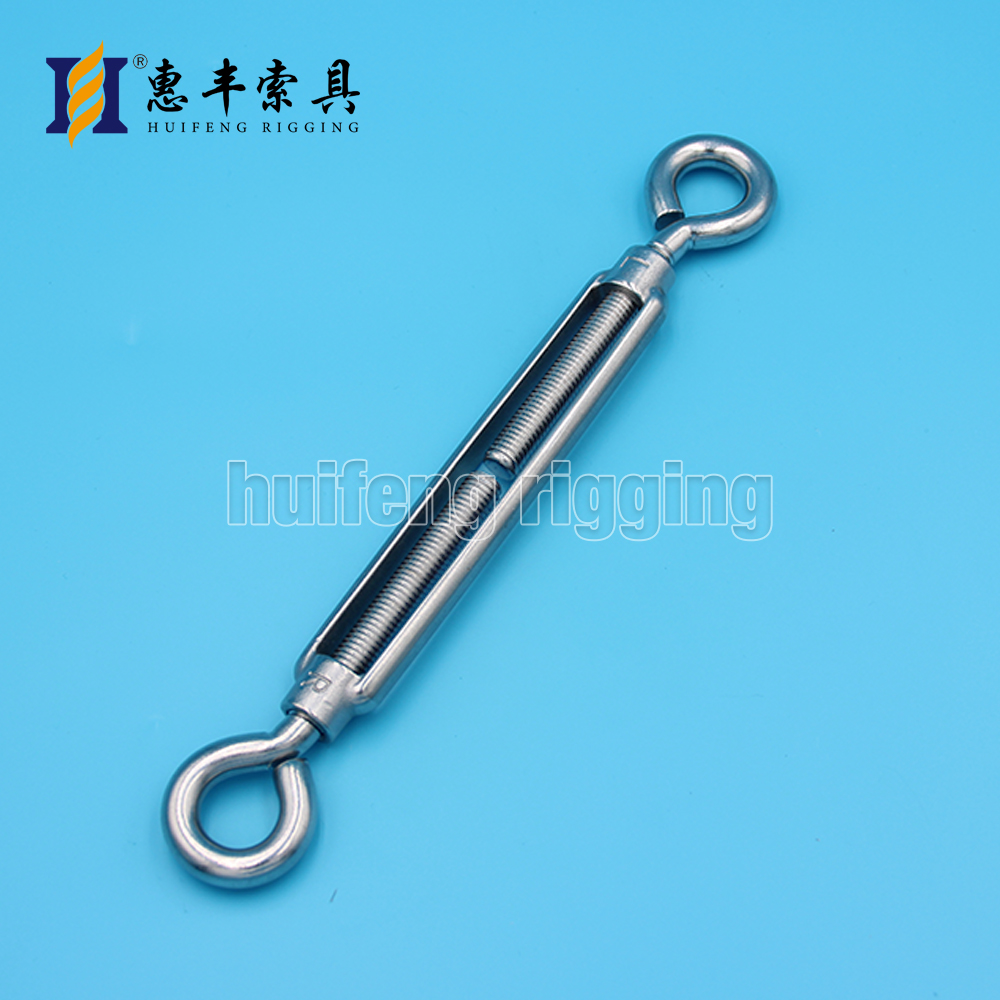

European Type Turnbuckle with Eye & Eye
欧式开体花兰-眼&眼
European Type Turnbuckle with Eye & Eye
ITEM NO SIZE L（mm） L1（mm） D（mm） WT（KGS）
HF-3003-0004 M4 58 90 6 0.12
HF-3003-0005 M5 70 120 8 0.17
HF-3003-0006 M6 90 150 10 0.375
HF-3003-0008 M8 120 200 14 0.575
HF-3003-0010 M10 150 240 16 0.775
HF-3003-0012 M12 200 310 18 0.11
HF-3003-0016 M16 250 390 25 0.2025
HF-3003-0020 M20 300 440 30 0.275

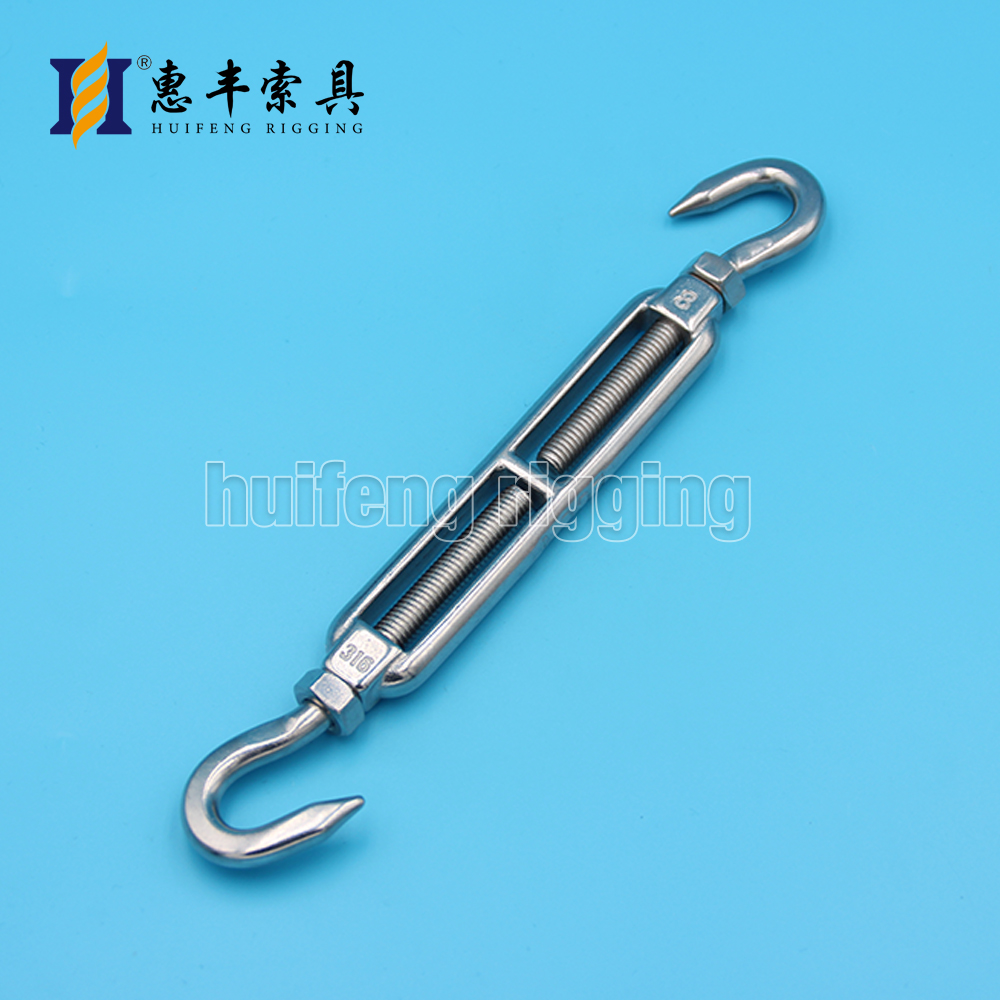

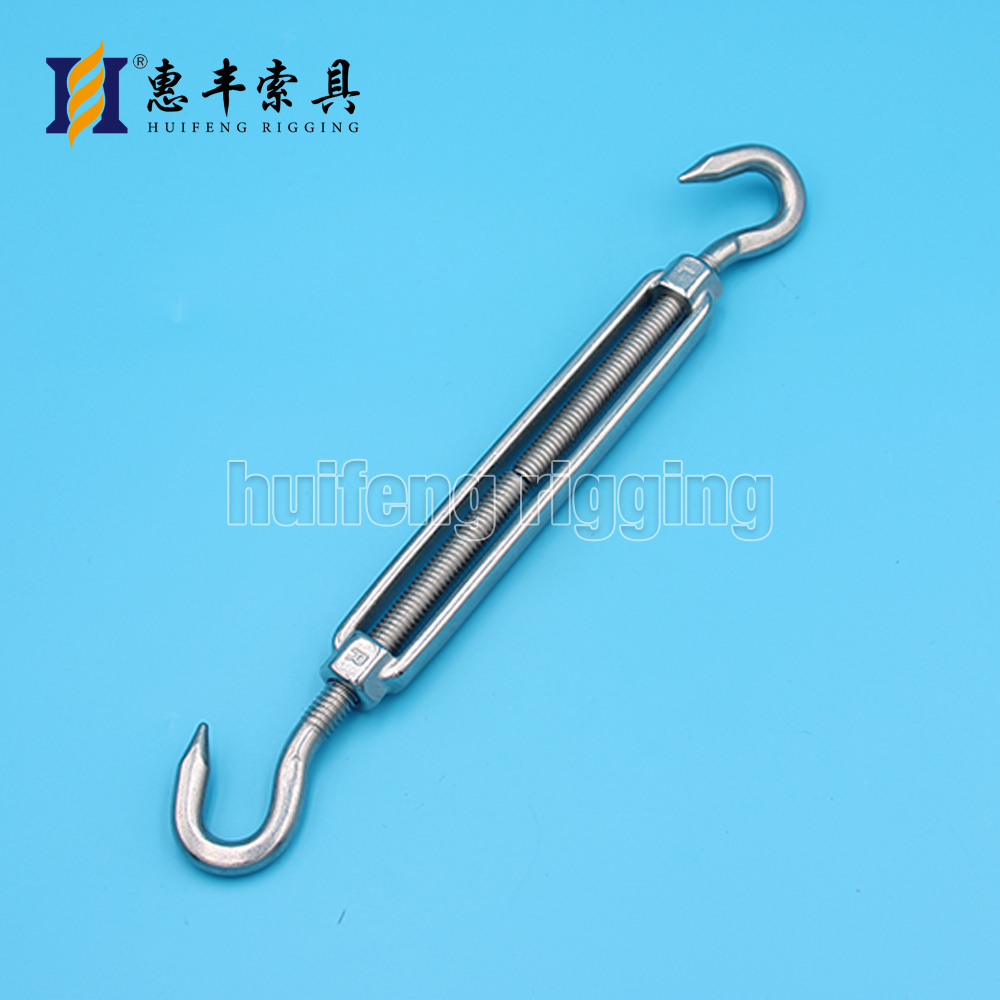

European Type Turnbuckle with Hook & Hook
欧式开体花兰-钩＆钩
European Type Turnbuckle with Hook & Hook
ITEM NO SIZE L（mm） L1（mm） S（mm） KGS
HF-3004-0004 M4 58 90 6 0.014
HF-3004-0005 M5 70 120 8 0.024
HF-3004-0006 M6 90 150 9 0.04
HF-3004-0008 M8 120 200 11 0.07
HF-3004-0010 M10 150 240 12 0.13
HF-3004-0012 M12 200 310 14 0.26
HF-3004-0016 M16 250 390 16 0.48
HF-3004-0020 M20 300 440 18 0.622

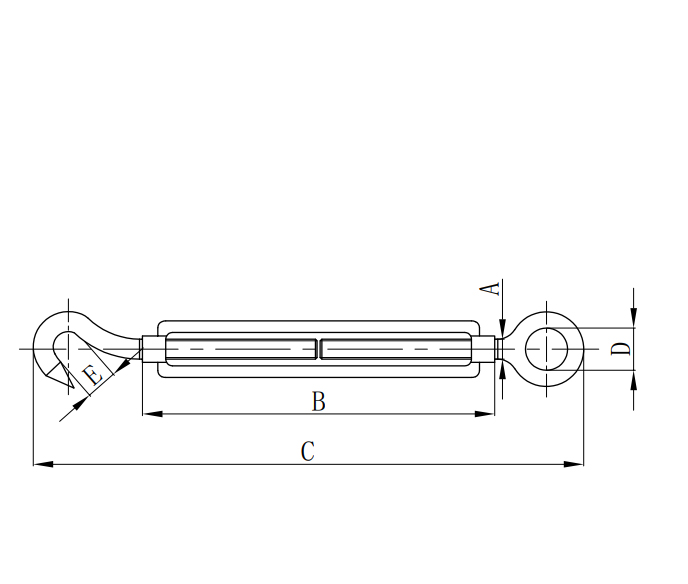

JIS Type Frame Turnbuckle with Eye & Hook
日式开体花兰-眼&钩
JIS Type Frame Turnbuckle with Eye & Hook
ITEM NO SIZE A B C D E WLL WT
mm mm mm mm mm mm TONE KGS
HF-3005-0005 M5 5 70 130 8 9 0.1 0.038
HF-3005-0006 M6 6 100 160 10 9 0.25 0.063
HF-3005-0008 M8 8 125 200 12 10 0.35 0.137
HF-3005-0010 M10 10 150 245 16 11 0.5 0.247
HF-3005-0012 M12 12 200 300 20 14 1 0.459
HF-3005-0016 M16 16 250 400 22 18 1.5 1.038
HF-3005-0020 M20 20 300 480 28 20 2.3 1.811

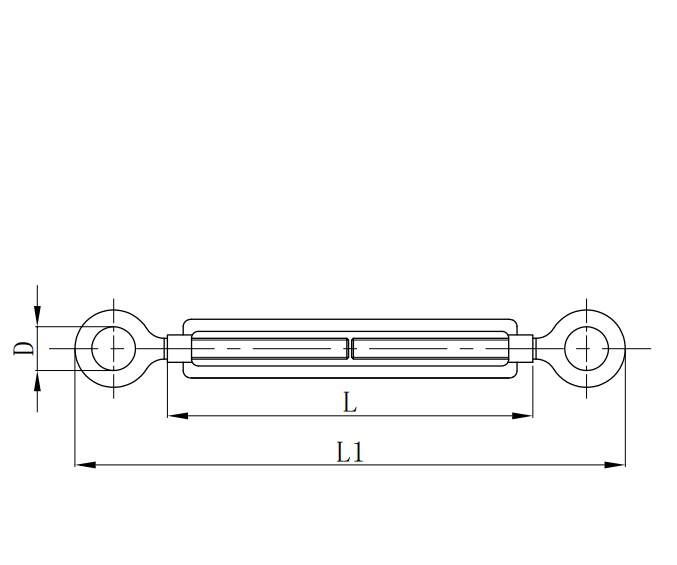

JIS Type Frame Turnbuckle with Eye & Eye
日式开体花兰-眼＆眼
JIS Type Frame Turnbuckle with Eye & Eye
ITEM NO SIZE L（mm） L1（mm） D（mm）
HF-3006-0005 M5 70 120 8
HF-3006-0006 M6 100 160 10
HF-3006-0008 M8 120 200 12
HF-3006-0010 M10 150 240 14
HF-3006-0012 M12 200 310 18
HF-3006-0016 M16 250 390 22
HF-3006-0020 M20 300 470 25

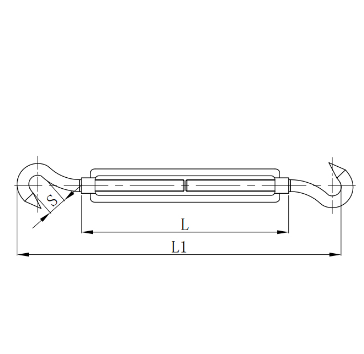

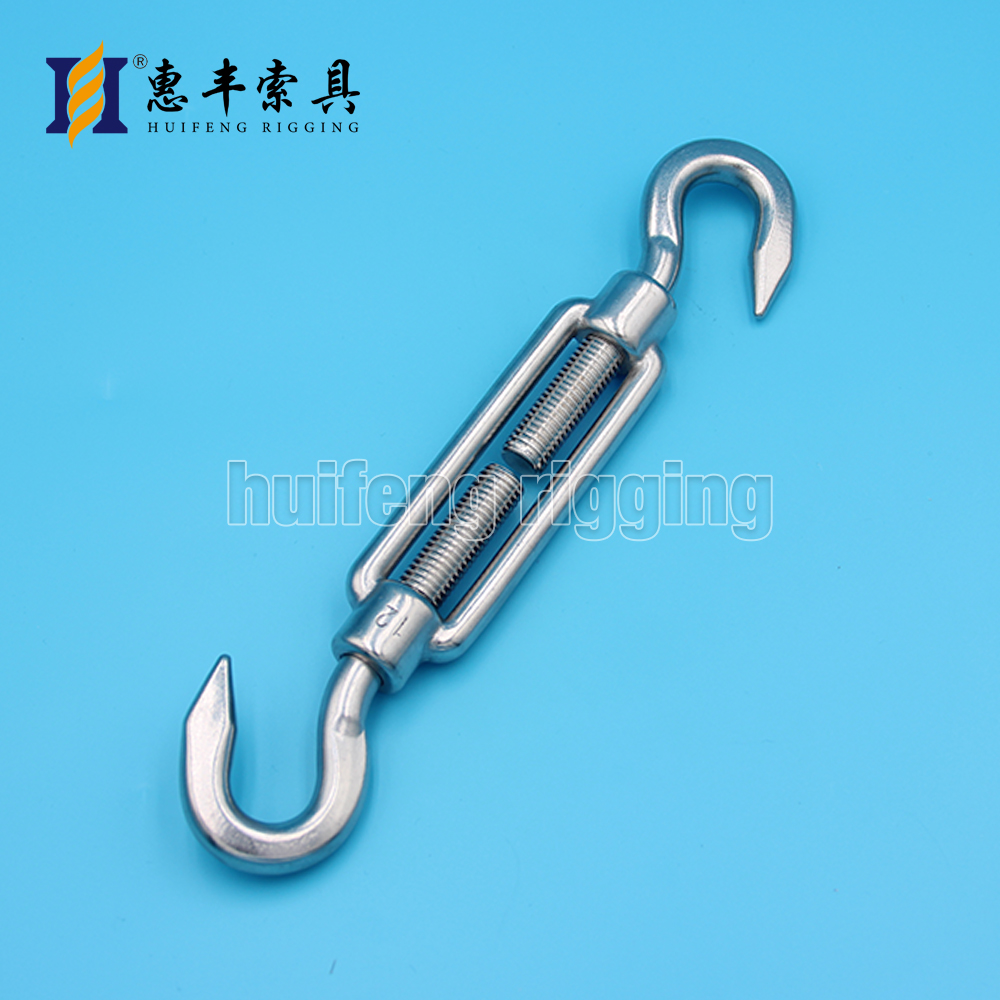

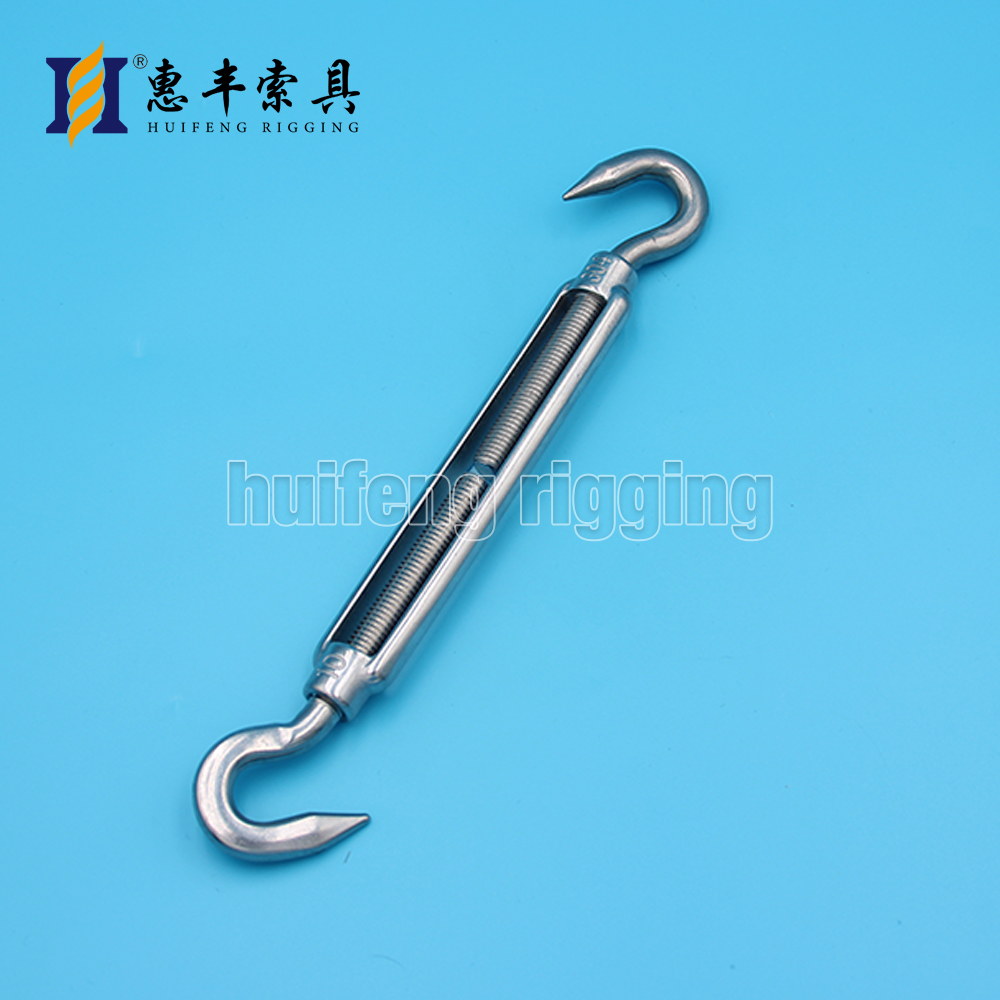

JIS Type Frame Turnbuckle with Hook & Hook
日式开体花兰-钩＆钩
JIS Type Frame Turnbuckle with Hook & Hook
ITEM NO SIZE L（mm） L1（mm） S（mm） WT（KGS）
HF-3007-0005 M5 70 120 7 0.04
HF-3007-0006 M6 100 160 9 0.08
HF-3007-0008 M8 120 200 10 0.14
HF-3007-0010 M10 150 240 12 0.22
HF-3007-0012 M12 200 310 14 0.3
HF-3007-0016 M16 250 390 18 0.6
HF-3007-0020 M20 300 470 20 0.9

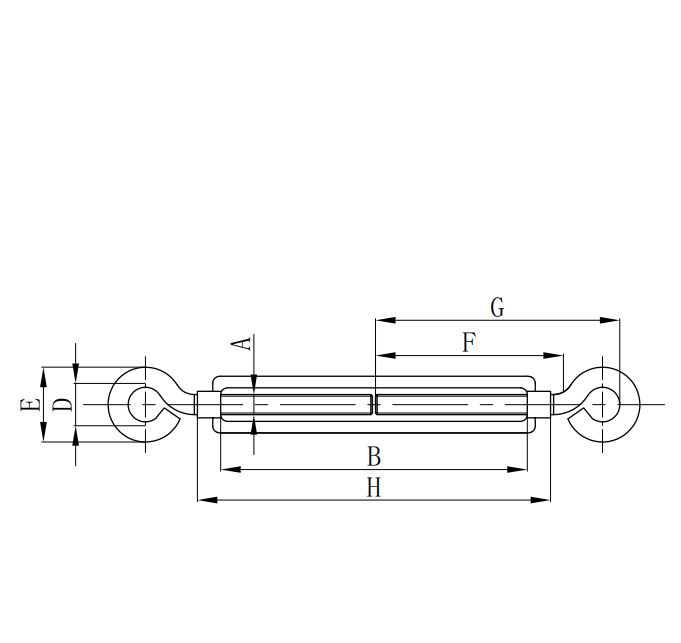

Korean Type Turnbuckle with Eye & Eye
韩式开体花兰-眼＆眼
Korean Type Turnbuckle with Eye & Eye
ITEM NO SIZE H B A D E F G WT
inch mm mm mm mm mm mm mm KGS
HF-3008-3/16 3/16 70 57 4.4 10 18.8 40 60 0.04
HF-3008-1/4 1/4 90 70 5.3 10 20.6 50 71 0.063
HF-3008-5/16 5/16 120 95 7.1 12 26.5 64 91 0.137
HF-3008-3/8 3/8 150 121 8.9 18 35 83 120 0.254
HF-3008-1/2 1/2 200 169 10.8 20 41 105 146 0.464
HF-3008-5/8 5/8 250 210 14.6 25 54.2 138 190 1.041
HF-3008-3/4 3/4 300 250 18.3 25 61.6 165 230 1.834
HF-3008-7/8 7/8 320 262 22 31 74 170 241 2.870
HF-3008-1" 1" 345 280 24 32 80 205 280 3.92

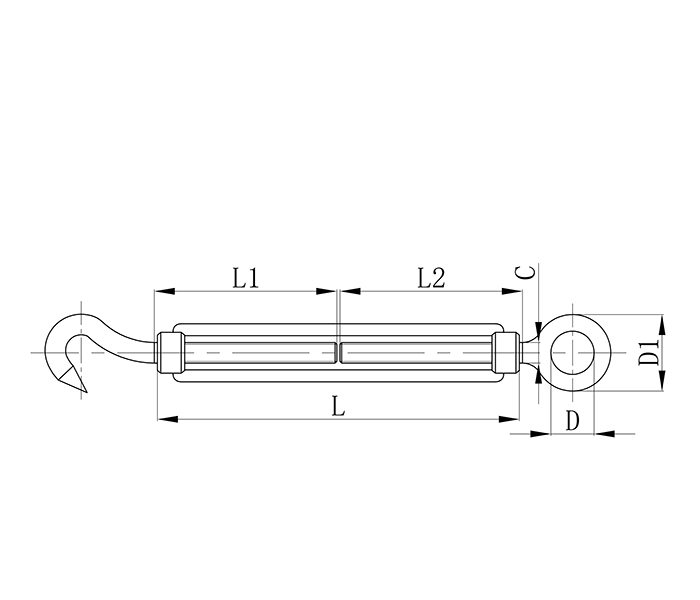

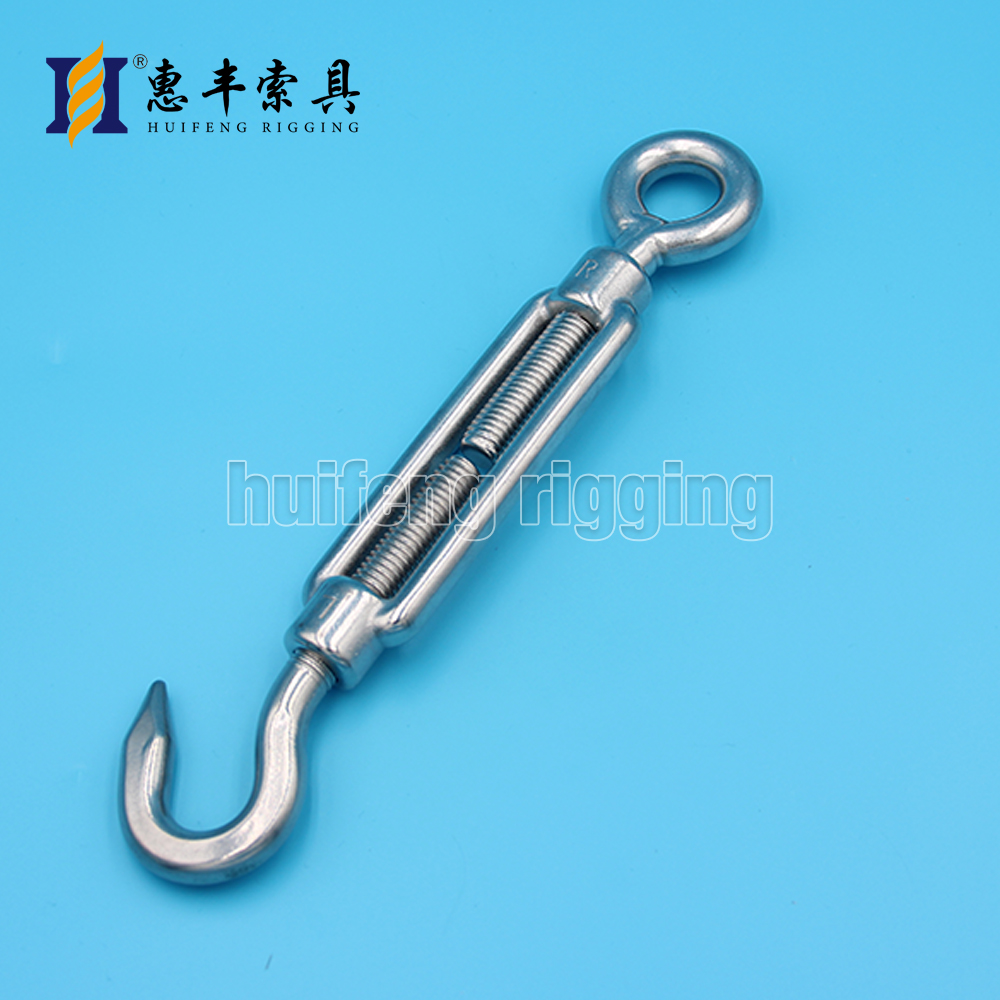

DIN1480 Turnbuckle with Eye ＆ Hook
DIN1480 开体花兰-眼&钩
DIN1480 Turnbuckle with Eye ＆ Hook
ITEM NO SIZE L L1 L2 D C D1 WT
mm mm mm mm mm mm mm KGS
HF-3009-0005 M5 90 55 46 9.5 4.5 18.5 0.044
HF-3009-0006 M6 110 60 53 10 4.5 19 0.078
HF-3009-0008 M8 110 60 55 12 6.5 25 0.148
HF-3009-0010 M10 125 65 60 14 8 30 0.243
HF-3009-0012 M12 125 75 70 18 10.5 39 0.391
HF-3009-0016 M16 170 100 90 22 13 48 0.909
HF-3009-0020 M20 200 115 100 25 20 65 1.592

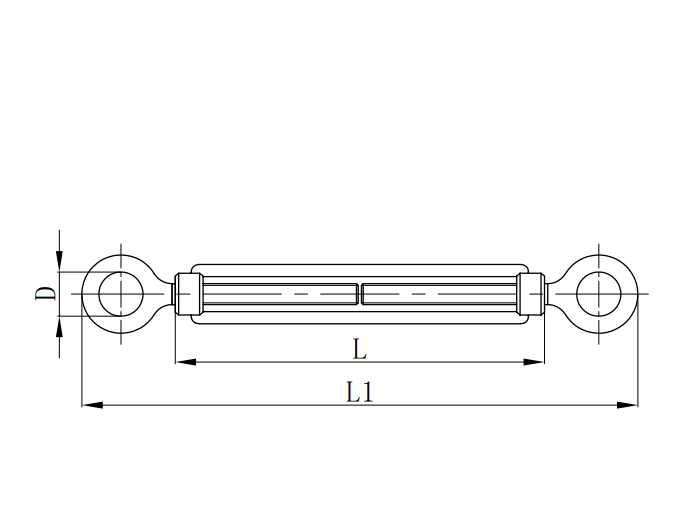

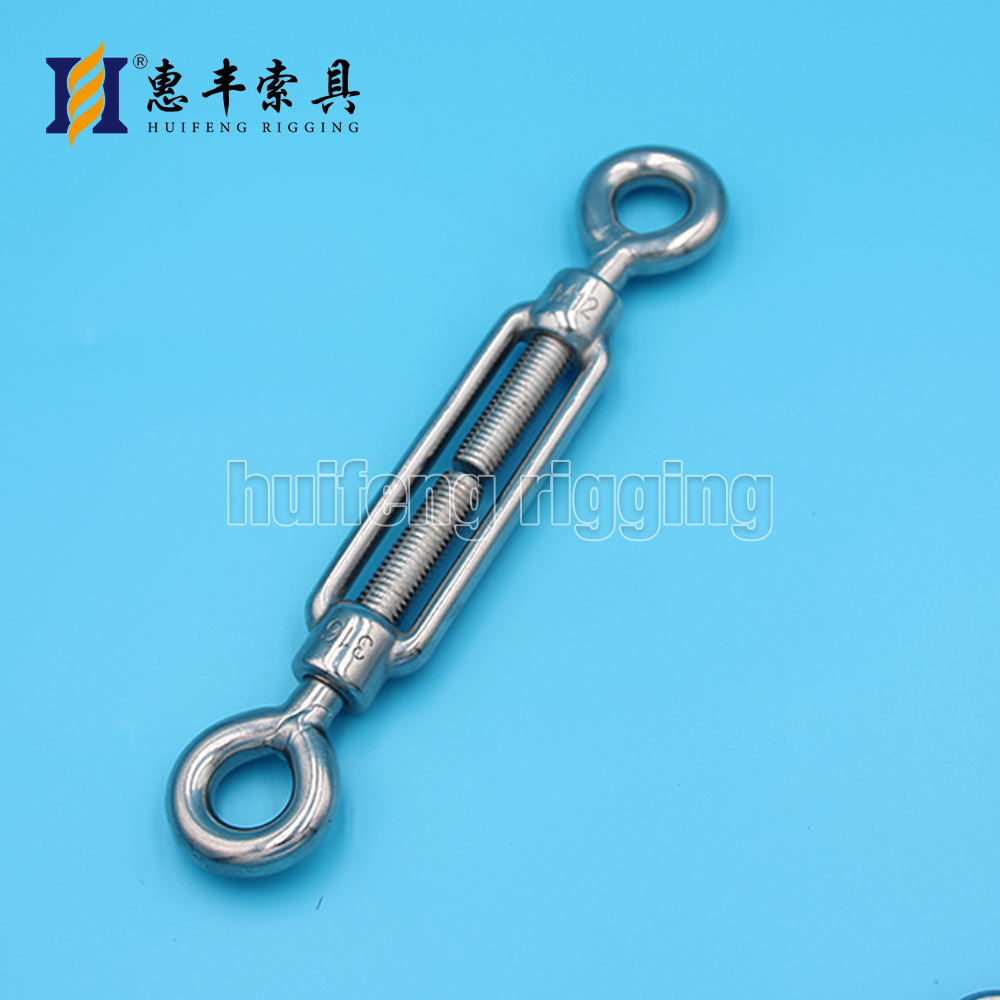

DIN1480 Turnbuckle with Eye ＆ Eye
DIN1480 开体花兰-眼&眼
DIN1480 Turnbuckle with Eye ＆ Eye
ITEM NO SIZE L（mm） L1（mm） D（mm） WT（kgs）
HF-3010-0005 M5 90 140 10 40
HF-3010-0006 M6 110 170 10.5 80
HF-3010-0008 M8 110 180 12.5 140
HF-3010-0010 M10 125 210 14.5 220
HF-3010-0012 M12 125 240 18 300
HF-3010-0016 M16 170 320 25 600
HF-3010-0020 M20 200 370 25 900

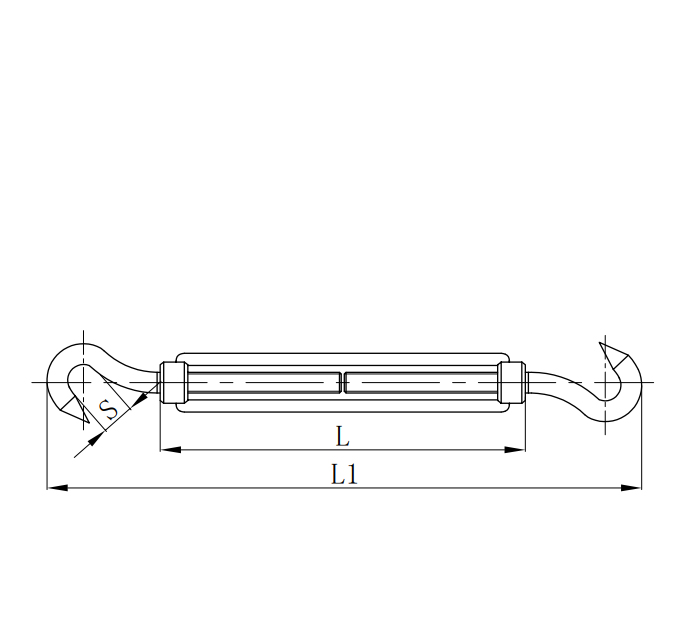

DIN1480 Turnbuckle with Hook & Hook
DIN1480 开体花兰-钩&钩
DIN1480 Turnbuckle with Hook & Hook
ITEM NO SIZE L（mm） L1（mm） S（mm） WT（kgs）
HF-3011-0005 M5 90 140 7 0.04
HF-3011-0006 M6 110 170 9 0.08
HF-3011-0008 M8 110 180 10 0.14
HF-3011-0010 M10 125 210 11 0.22
HF-3011-0012 M12 125 240 14 0.3
HF-3011-0016 M16 170 320 18 0.6
HF-3011-0020 M20 200 370 20 0.9

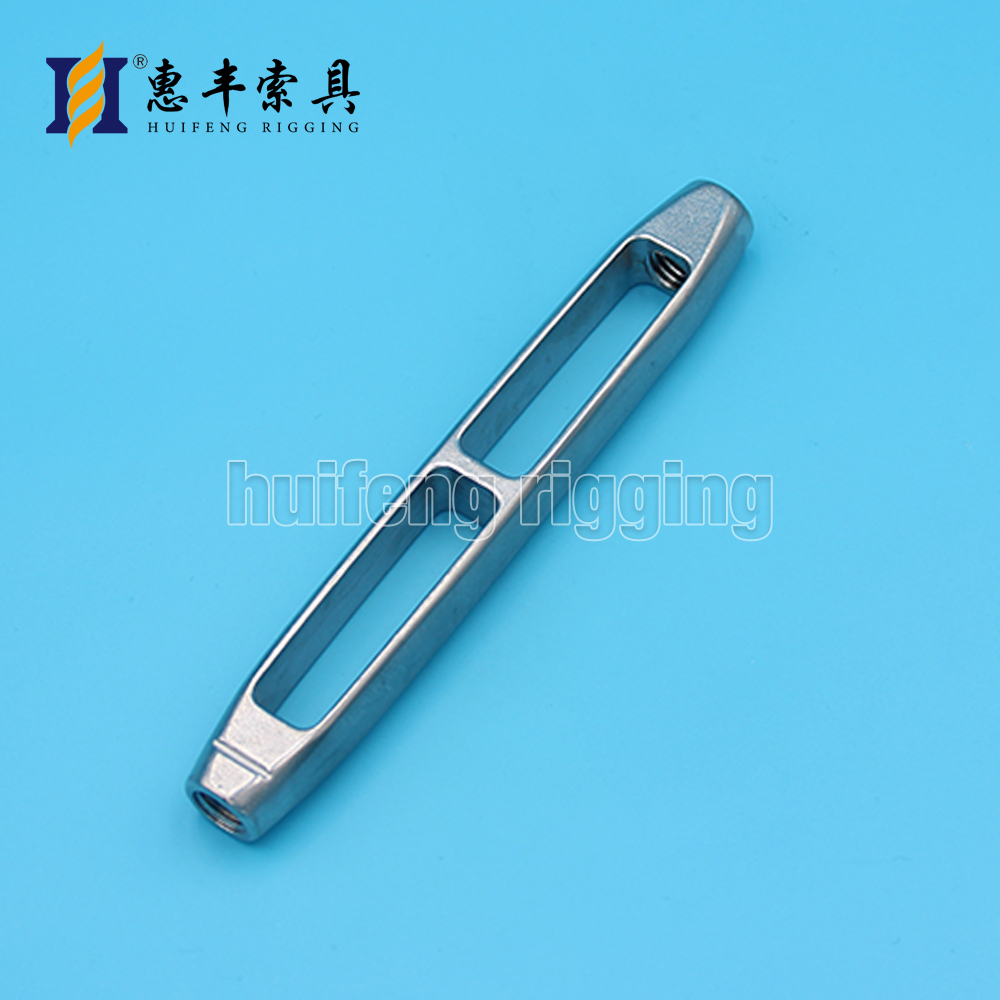

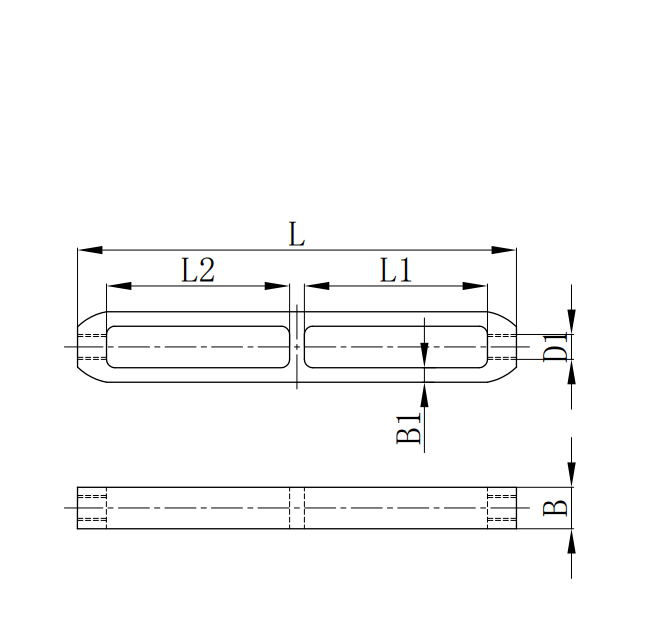

Turnbuckle Body, Italian Type
意式体
Turnbuckle Body, Italian Type
ITEM NO D1 B B1 L L1 L2
in-UNF in in in in in
HF-3012-0006 1/4"-28 0.35" 0.13" 4.00" 1.92" 1.51"
HF-3012-0008 5/16"-24 0.43" 0.16" 4.75" 2.23" 1.80"
HF-3012-0010 3/8"-24 0.51" 0.16" 5.3" 2.57" 1.95"
HF-3012-0012 1/2"-20 0.67" 0.23" 6.7" 3.2" 2.43"
HF-3012-0016 5/8"-18 0.81" 0.25" 8.2" 3.97" 3.05"

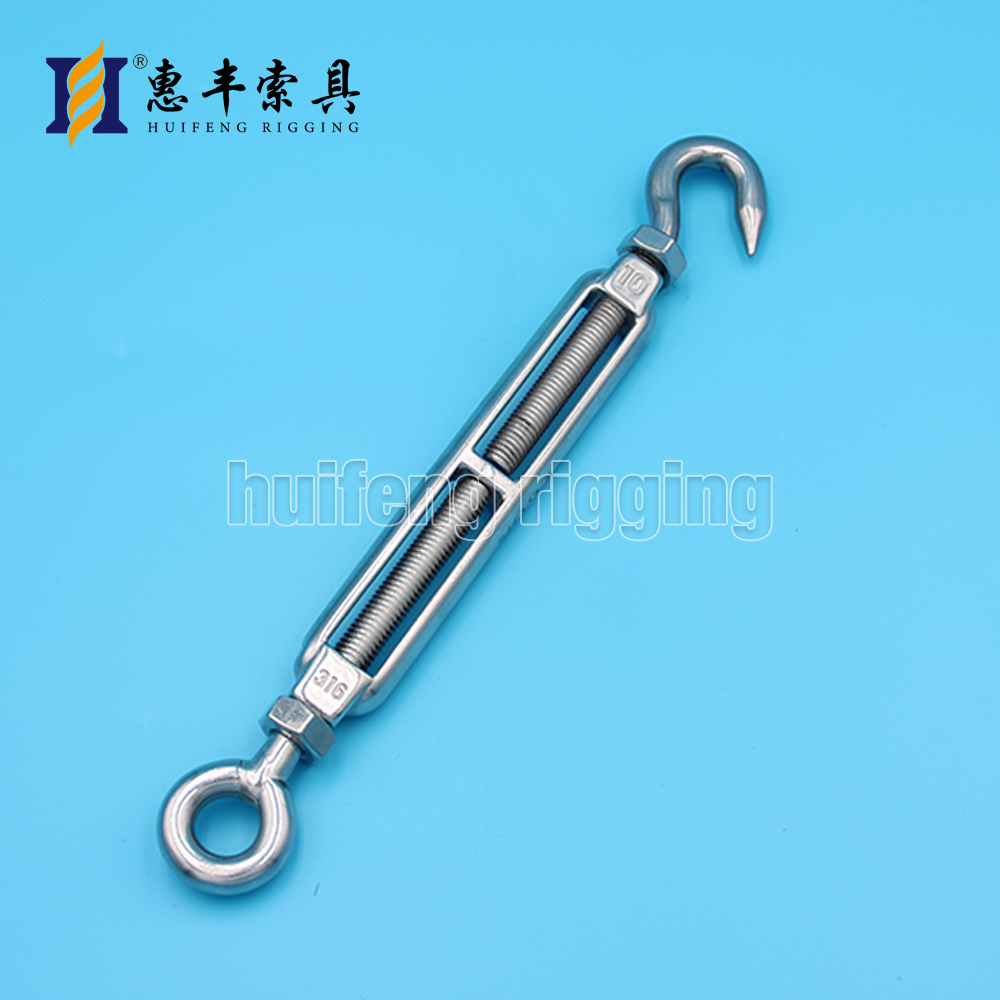

European Type Turnbuckle with Bar, Eye & Hook
带横档开体花兰-眼&钩
European Type Turnbuckle with Bar, Eye & Hook
ITEM NO Size
HF-3013 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

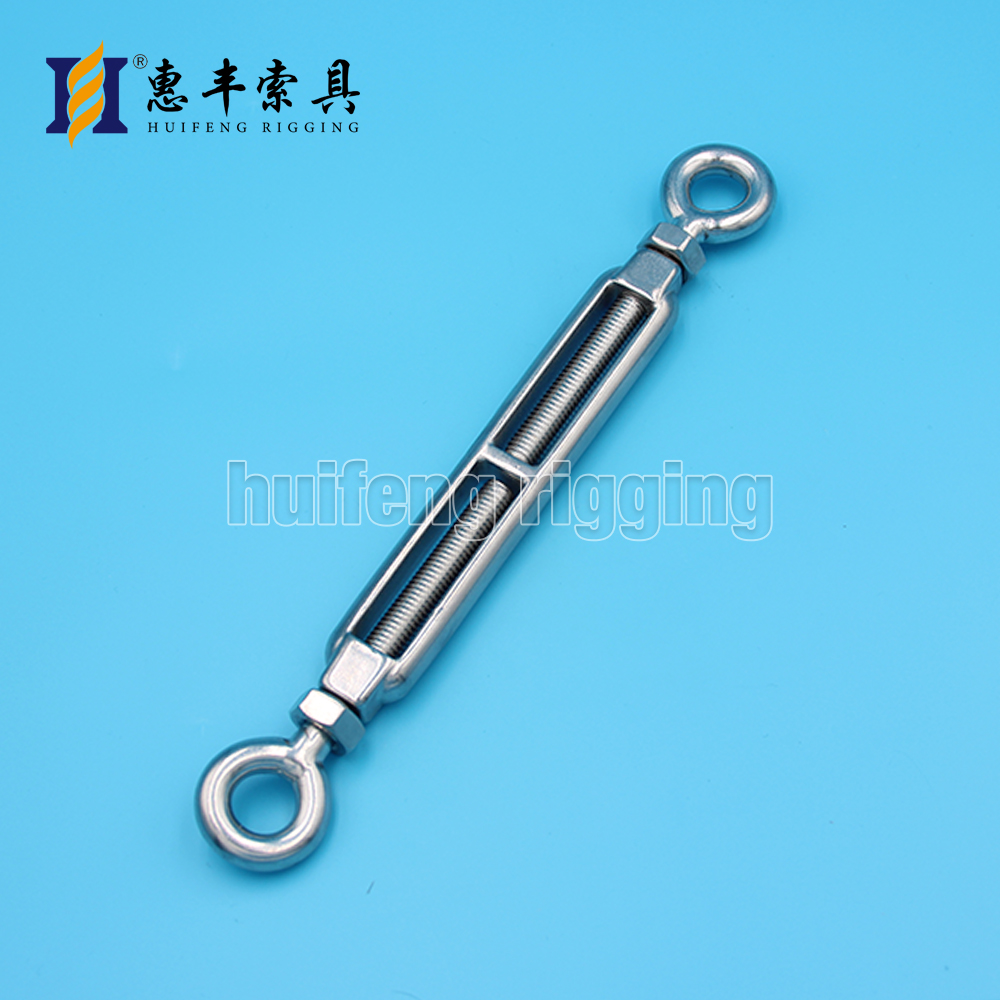

European Type Turnbuckle with Bar, Eye & Eye
带横档开体花兰-眼&眼
European Type Turnbuckle with Bar, Eye & Eye
ITEM NO Size
HF-3014 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

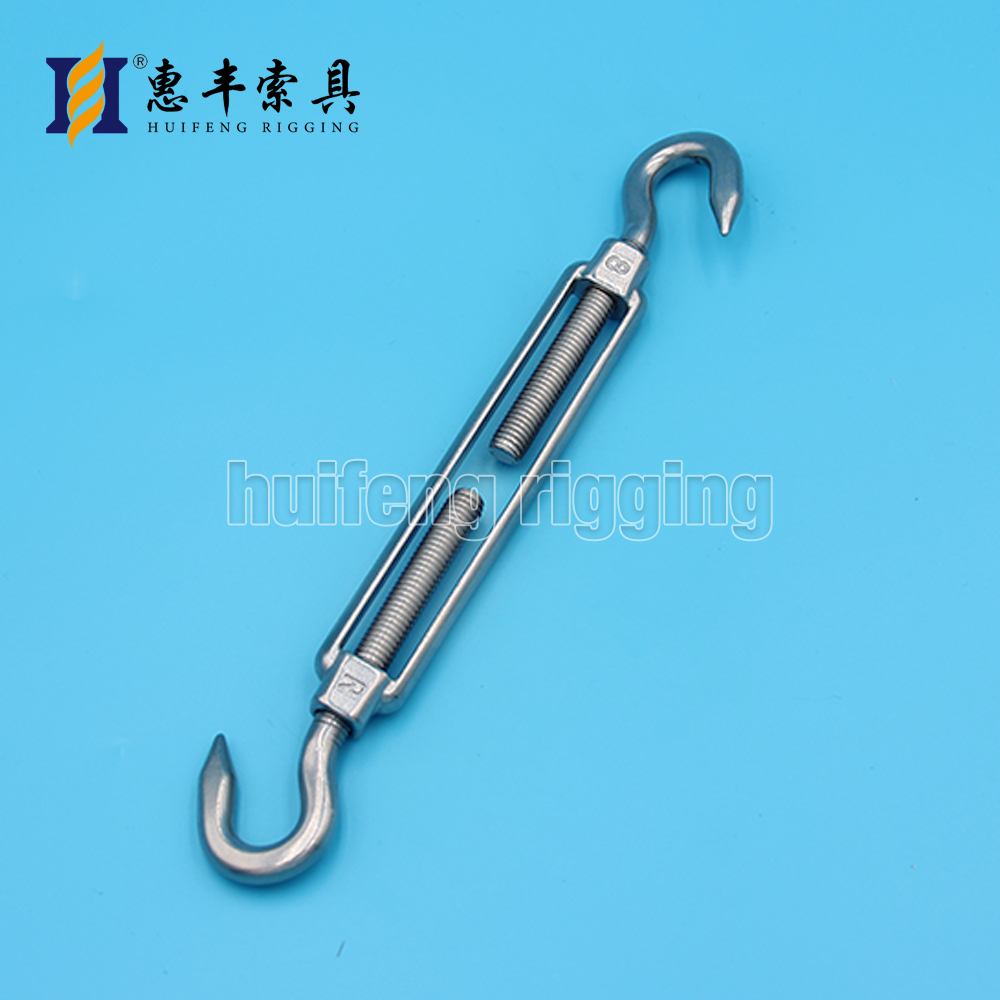

European Type Turnbuckle with Bar, Hook & Hook
带横档开体花兰-钩&钩
European Type Turnbuckle with Bar, Hook & Hook
ITEM NO Size
HF-3015 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

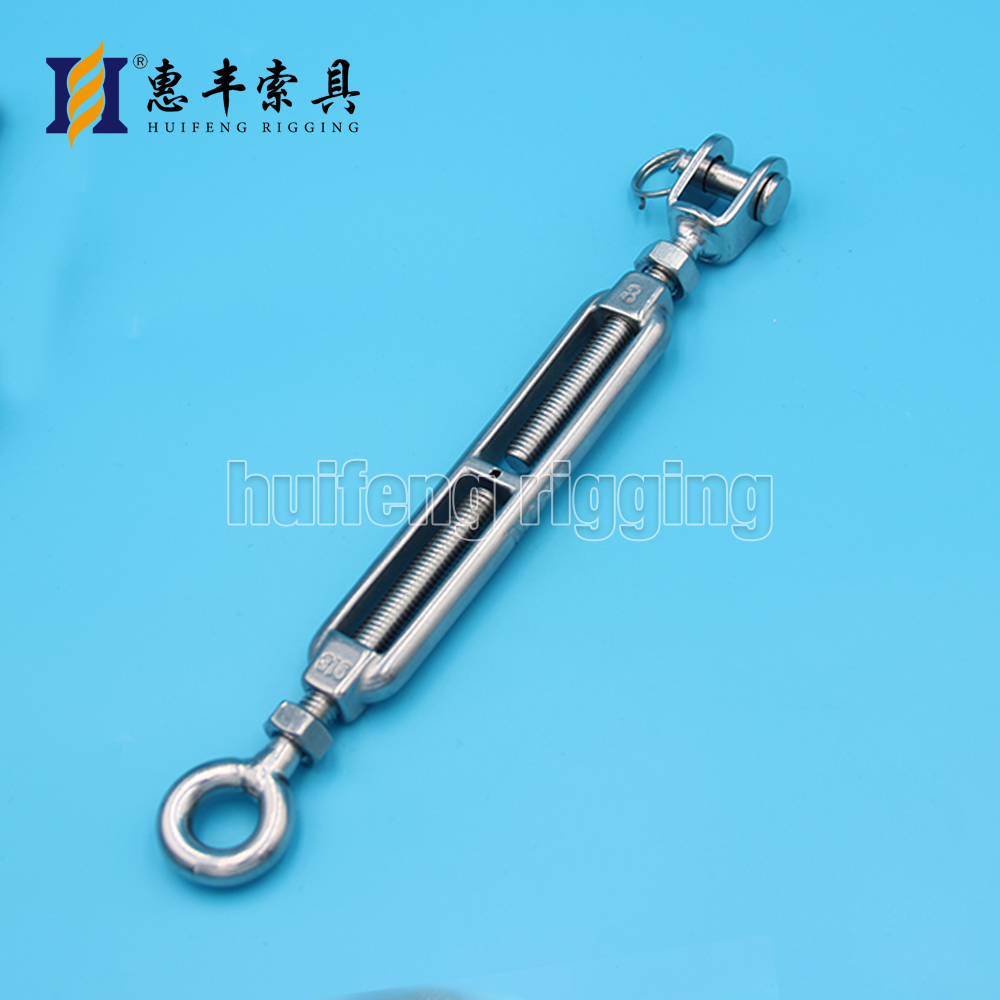

European Type Turnbuckle with Bar, Eye & Jaw
带横档开体花兰-叉&眼
European Type Turnbuckle with Bar, Eye & Jaw
ITEM NO Size
HF-3016 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm
European Type Turnbuckle with Bar, Jaw & Jaw
带横档开体花兰-叉&叉
European Type Turnbuckle with Bar, Jaw & Jaw
ITEM NO Size
HF-3017 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

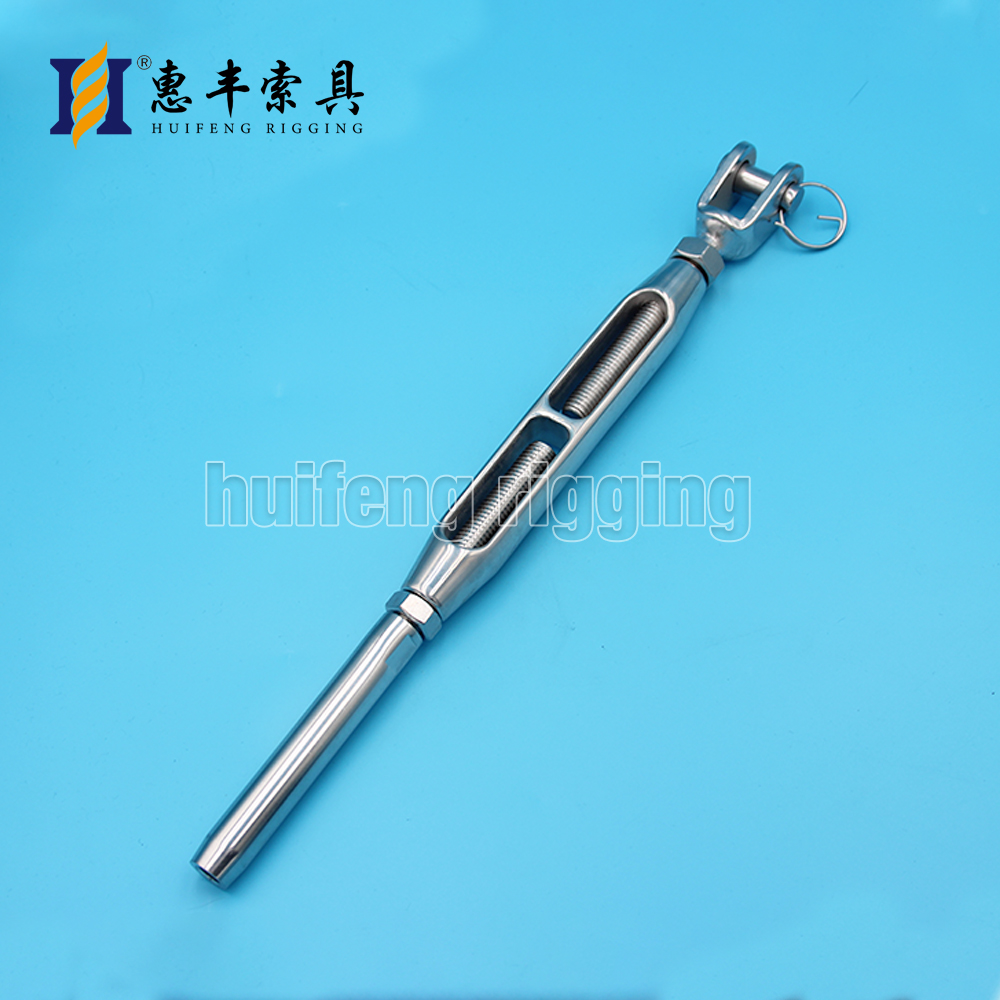

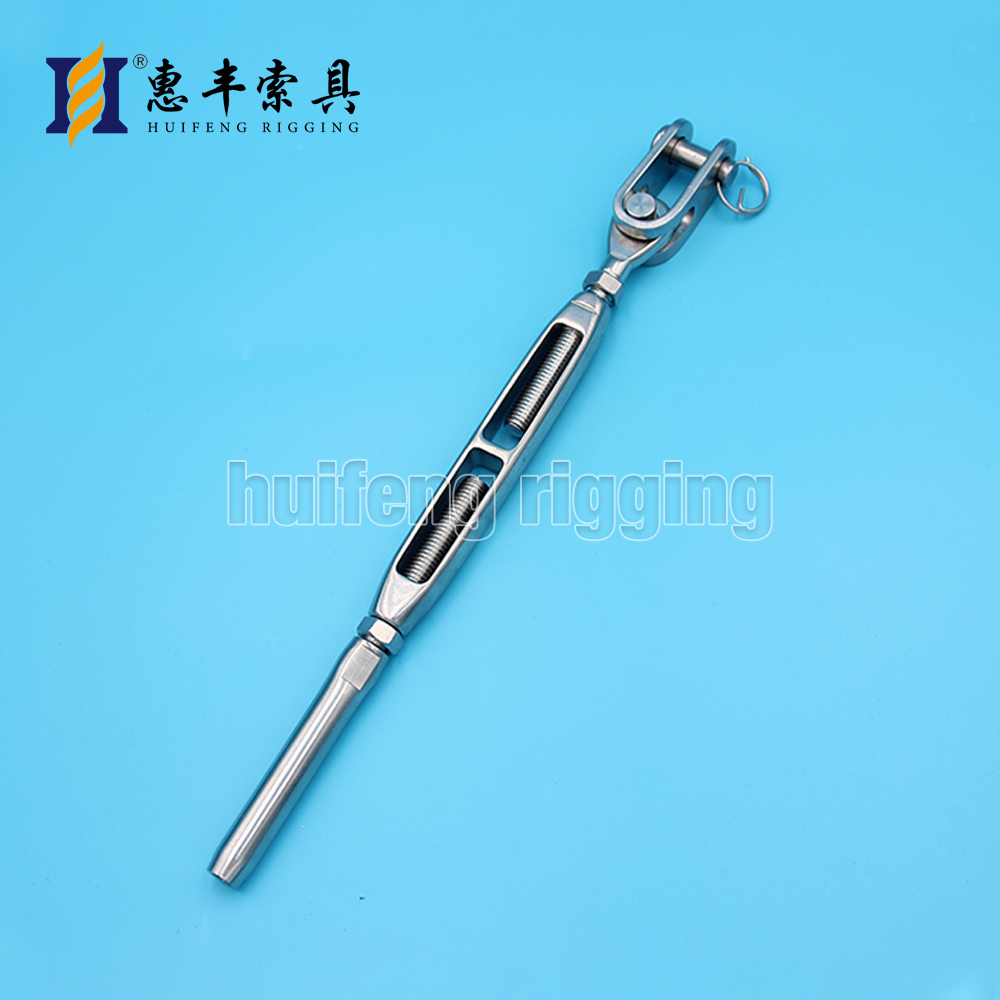

Open Body Turnbuckle with Jaw & Swage
带横档开体花兰-叉&杆
Open Body Turnbuckle with Jaw & Swage
ITEM NO Size
HF-3018 1/4”, 5/16”, 3/8”, 1/2”, 5/8”

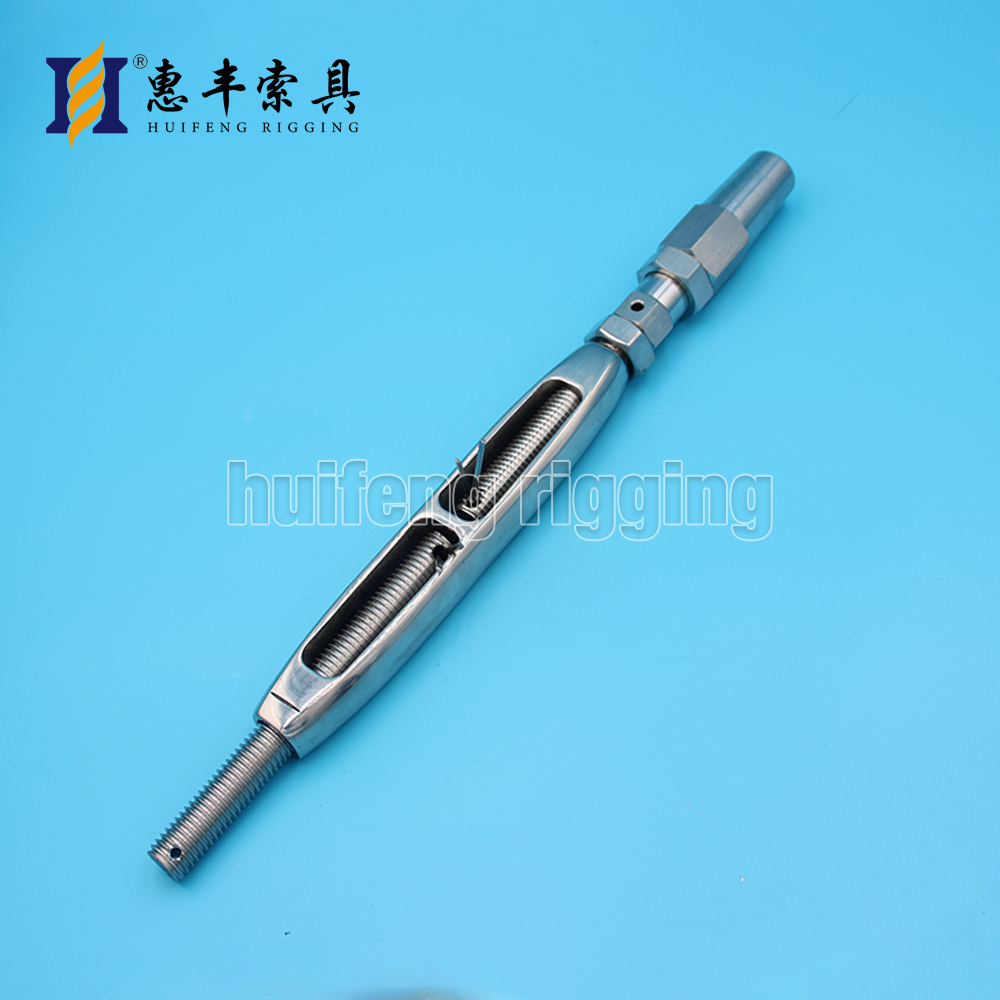

Open Body Turnbuckle with Thread Bar & Swageless
带横档开体花兰-丝杆&快速接头
Open Body Turnbuckle with Thread Bar & Swageless
ITEM NO Size(inch)
HF-3019A 1/4", 5/16", 3/8", 1/2", 5/8"
Open Body Turnbuckle with Toggle & Swage
带横档开体花兰-摆&杆
Open Body Turnbuckle with Toggle & Swage
ITEM NO Size
HF-3019 1/4”, 5/16”, 3/8”, 1/2”, 5/8”

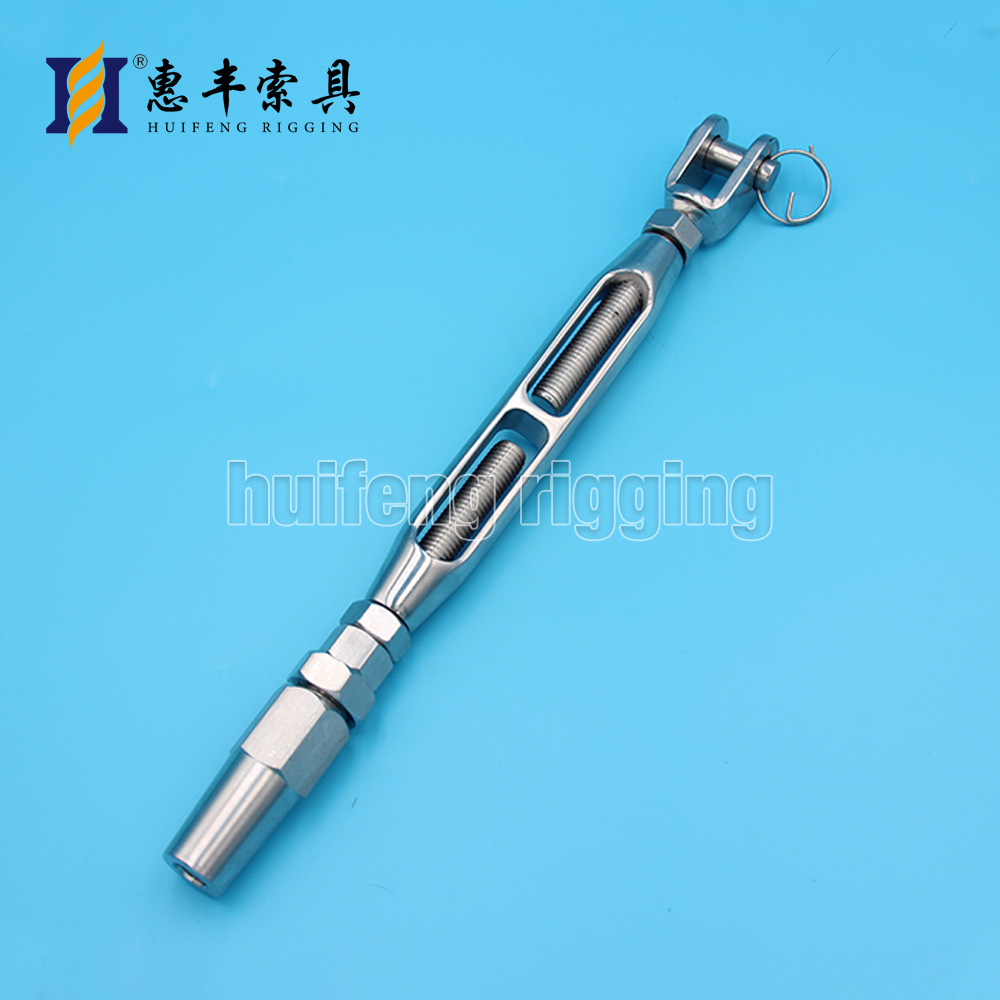

European Type Turnbuckle with Bar, Jaw & Swageless
带横档开体花兰-叉式&快速接头
European Type Turnbuckle with Bar, Jaw & Swageless
ITEM NO Size(inch)
HF-3020 1/4”, 5/16”, 3/8”, 1/2”, 5/8”

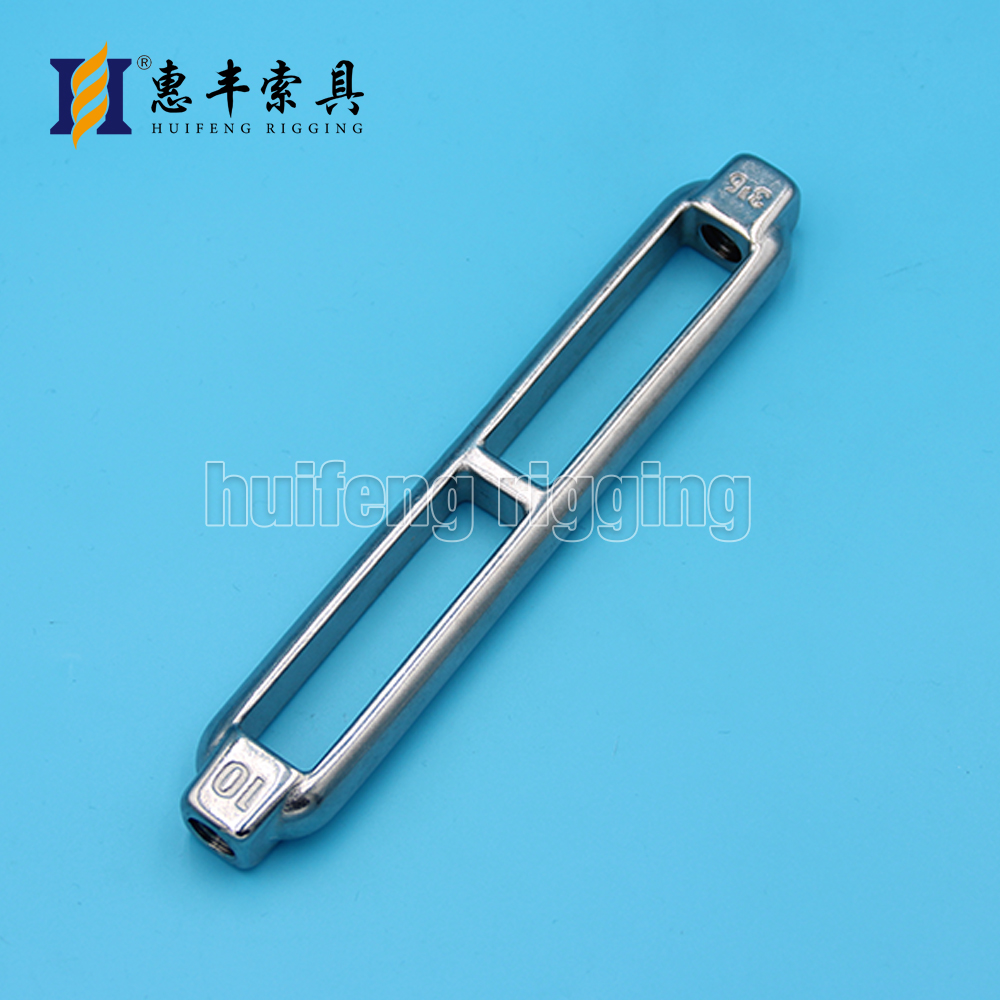

European Type Turnbuckle Body with Bar
欧式加档开体花兰体
European Type Turnbuckle Body with Bar
ITEM NO Size(mm)
HF-3021 5mm-20mm
Turnbuckle Closed Eye & Eye
封闭花兰-眼&眼
Turnbuckle Closed Eye & Eye
ITEM NO Size
HF-3022 10mm

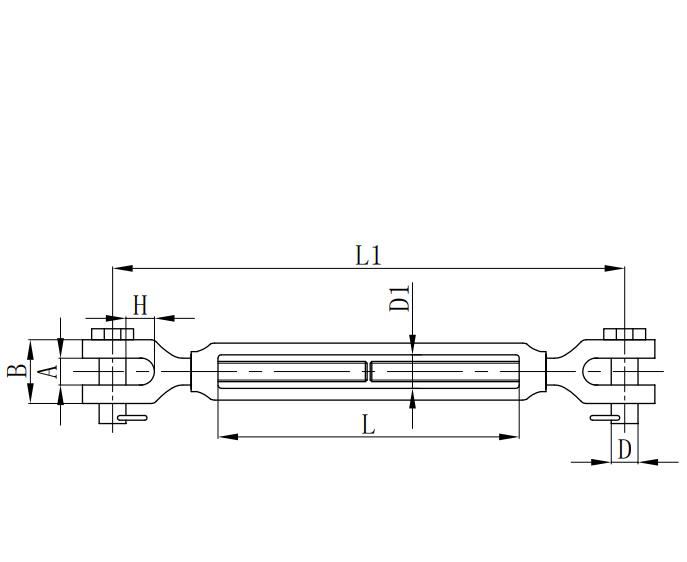

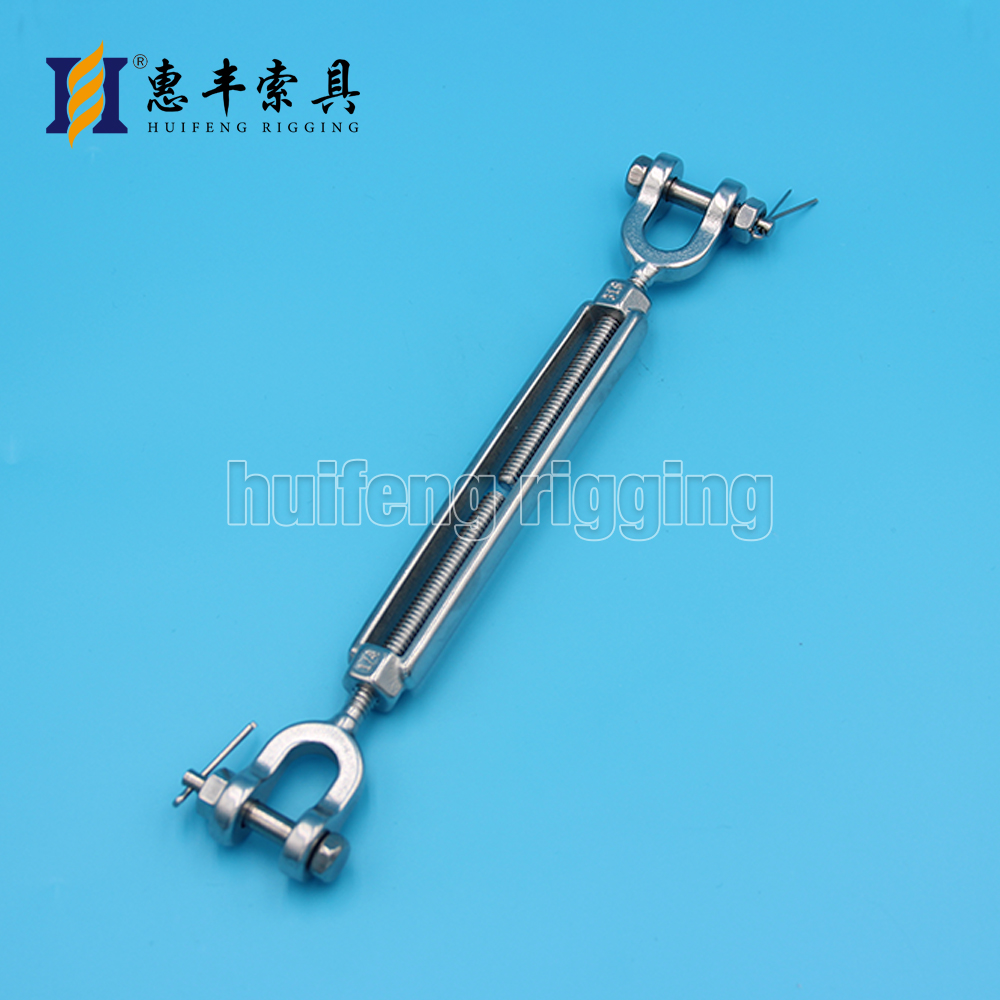

U.S. Type Turnbuckle with Jaw & Jaw
美式开体花兰-叉&叉
U.S. Type Turnbuckle with Jaw & Jaw
ITEM NO SIZE D1 L L1 A D B H
in in in in in in in in
HF-4001-1/4-4 1/4 1/4 4 7.15 0.45 0.24 0.9 0.62
HF-4001-5/16-4 5/16 5/16 4.5 8.61 0.49 0.24 1 0.87
HF-4001-3/8-6 3/8 3/8 6 10.45 0.53 0.31 1.08 0.87
HF-4001-1/2-6 1/2 1/2 6 11.88 0.67 0.39 1.36 1.06
HF-4001-1/2-9 1/2 1/2 9 14.88 0.67 0.39 1.36 1.06
HF-4001-1/2-12 1/2 1/2 12 17.88 0.67 0.39 1.36 1.06
HF-4001-5/8-6 5/8 5/8 6 13.3 0.81 0.47 1.68 1.31
HF-4001-5/8-9 5/8 5/8 9 16.3 0.81 0.47 1.68 1.31
HF-4001-5/8-12 5/8 5/8 12 19.3 0.81 0.47 1.68 1.31
HF-4001-3/4-6 3/4 3/4 6 14.62 1.02 0.63 1.97 1.5
HF-4001-3/4-9 3/4 3/4 9 17.62 1.02 0.63 1.97 1.5
HF-4001-3/4-12 3/4 3/4 12 20.62 1.02 0.63 1.97 1.5
HF-4001-7/8-6 7/8 7/8 6 16 1.18 0.79 2.43 1.75
HF-4001-7/8-12 7/8 7/8 12 22 1.18 0.79 2.43 1.75
HF-4001-1"-6 1 1 6 17.6 1.3 0.87 2.63 2.06
HF-4001-1"-12 1 1 12 23.6 1.3 0.87 1.3 2.06
HF-4001-1-1/4-12 1-1/4 1-1/4 12 26.46 1.83 1.12 3.6 2.81
HF-4001-1-1/2-12 1-1/2 1-1/2 12 27.88 2.05 1.38 3.96 2.81

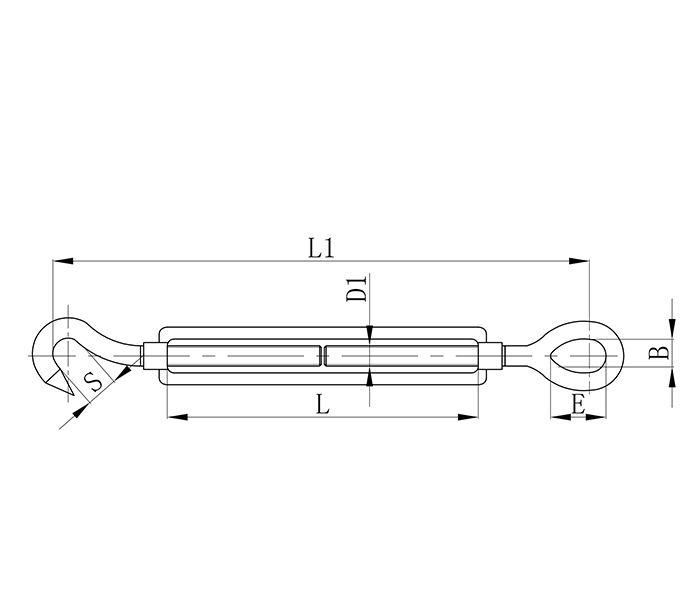

US Type Turnbuckle with Eye & Hook
美式开体花兰-眼&钩
US Type Turnbuckle with Eye & Hook
ITEM NO SIZE D1 L L1 S B E
in in in in in in in
HF-4002-1/4-4 1/4 1/4 4 7.43 0.37 0.32 0.78
HF-4002-5/16-4 5/16 5/16 4.5 8.24 0.4 0.43 0.94
HF-4002-3/8-6 3/8 3/8 6 10.63 0.48 0.51 1.12
HF-4002-1/2-6 1/2 1/2 6 11.55 0.55 0.71 1.44
HF-4002-1/2-9 1/2 1/2 9 14.55 0.55 0.71 1.44
HF-4002-1/2-12 1/2 1/2 12 17.55 0.55 0.71 1.44
HF-4002-5/8-6 5/8 5/8 6 12.77 0.74 0.87 1.75
HF-4002-5/8-9 5/8 5/8 9 15.77 0.74 0.87 1.75
HF-4002-5/8-12 5/8 5/8 12 18.77 0.74 0.87 1.75
HF-4002-3/4-6 3/4 3/4 6 14.19 0.9 0.99 2.09
HF-4002-3/4-9 3/4 3/4 9 17.19 0.9 0.99 2.09
HF-4002-3/4-12 3/4 3/4 12 20.19 0.9 0.99 2.09

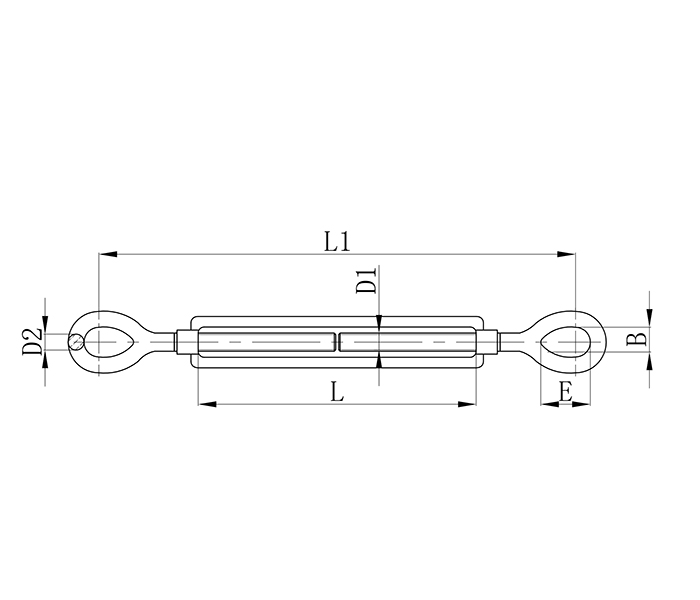

US Type Turnbuckle with Eye＆Eye
美式开体花兰-眼&眼
US Type Turnbuckle with Eye＆Eye
ITEM NO SIZE D1 L L1 B E D2
in in in in in in in
HF-4003-1/4-4 1/4 1/4 4 8 0.32 0.78 0.24
HF-4003-5/16-4 5/16 5/16 4.5 8.6 0.43 0.94 0.3
HF-4003-3/8-6 3/8 3/8 6 10.94 0.51 1.12 0.35
HF-4003-1/2-6 1/2 1/2 6 12 0.71 1.44 0.45
HF-4003-1/2-9 1/2 1/2 9 15 0.71 1.44 0.45
HF-4003-1/2-12 1/2 1/2 12 18 0.71 1.44 0.45
HF-4003-5/8-6 5/8 5/8 6 13.8 0.87 1.75 0.51
HF-4003-5/8-9 5/8 5/8 9 16.8 0.87 1.75 0.51
HF-4003-5/8-12 5/8 5/8 12 19.8 0.87 1.75 0.51
HF-4003-3/4-6 3/4 3/4 6 15.38 0.99 2.09 0.67
HF-4003-3/4-9 3/4 3/4 9 18.38 0.99 2.09 0.67
HF-4003-3/4-12 3/4 3/4 12 21.38 0.99 2.09 0.67
HF-4003-7/8-6 7/8 7/8 6 16.5 1.21 2.38 0.75
HF-4003-7/8-12 7/8 7/8 12 22.5 1.21 2.38 0.75
HF-4003-1"-6 1 1 6 18.8 1.37 3 0.91
HF-4003-1"-12 1 1 12 24.8 1.37 3 0.91
HF-4003-1-1/4-12 1-1/4 1-1/4 12 26.5 1.37 3.56 1.14

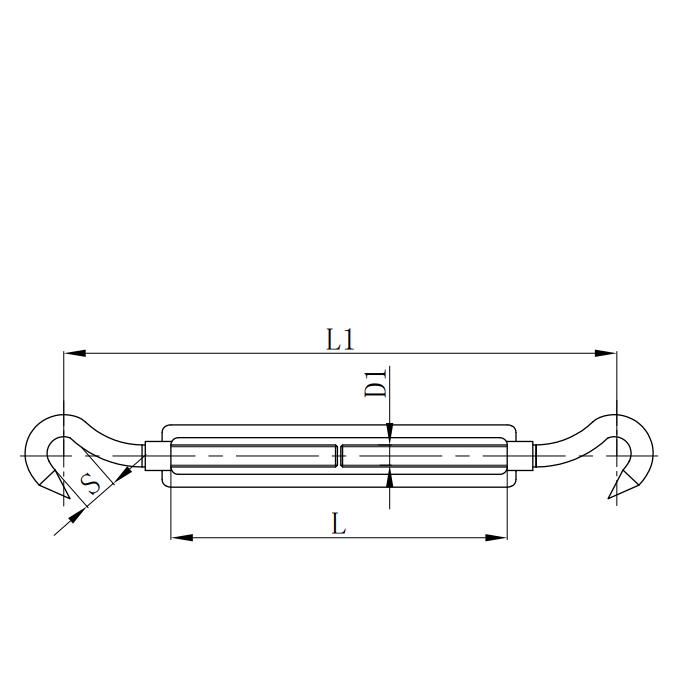

US Type Turnbuckle with Hook＆Hook
美式开体花兰-钩&钩
US Type Turnbuckle with Hook＆Hook
ITEM NO SIZE D1 L L1 S
in in in in in
HF-4004-1/4-4 1/4 1/4 4 7.43 0.37
HF-4004-5/16-4 5/16 5/16 4.5 8.24 0.4
HF-4004-3/8-6 3/8 3/8 6 10.63 0.48
HF-4004-1/2-6 1/2 1/2 6 11.55 0.55
HF-4004-1/2-9 1/2 1/2 9 14.55 0.55
HF-4004-1/2-12 1/2 1/2 12 17.55 0.55
HF-4004-5/8-6 5/8 5/8 6 12.77 0.74
HF-4004-5/8-9 5/8 5/8 9 15.77 0.74
HF-4004-5/8-12 5/8 5/8 12 18.77 0.74
HF-4004-3/4-6 3/4 3/4 6 14.19 0.9
HF-4004-3/4-9 3/4 3/4 9 17.19 0.9
HF-4004-3/4-12 3/4 3/4 12 20.19 0.9

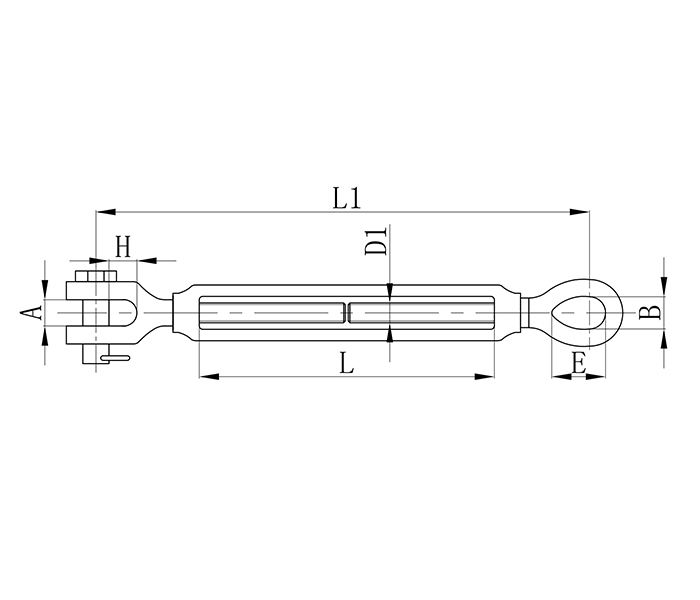

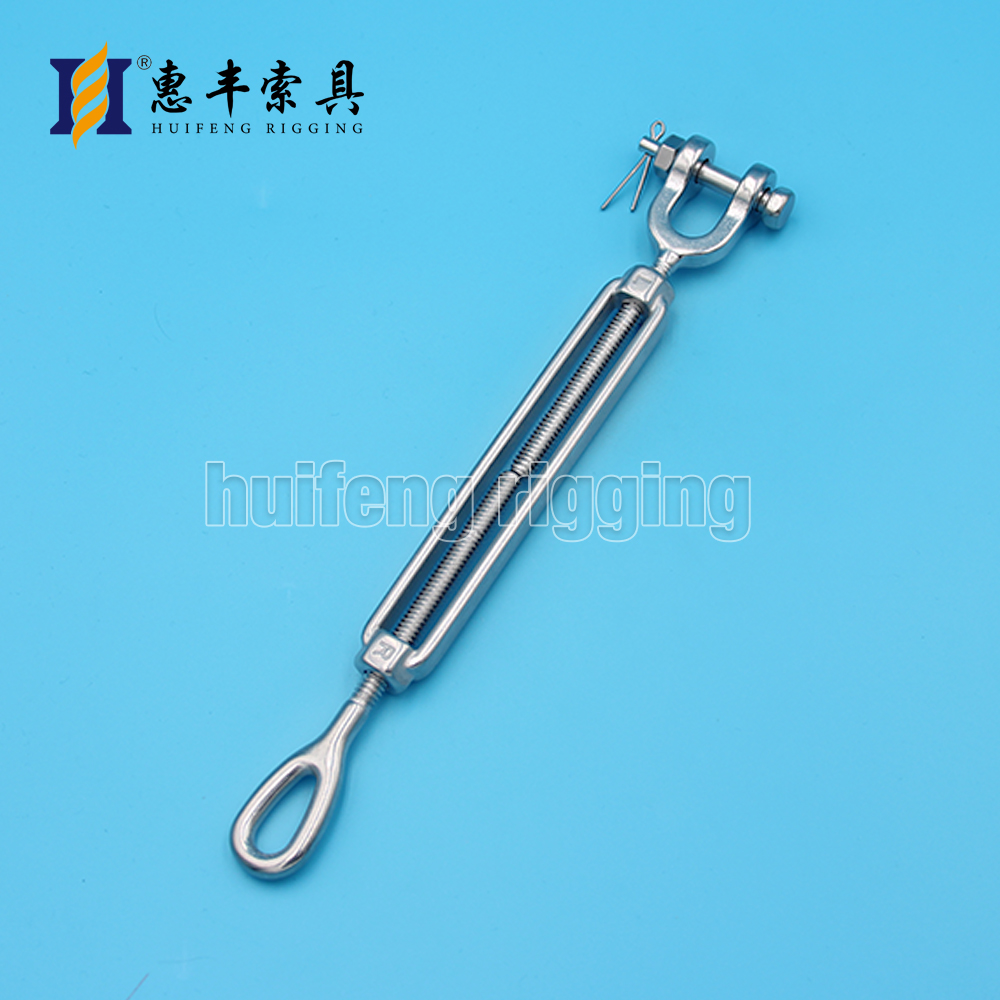

US Type Turnbuckle with Eye ＆ Jaw
美式开体花兰-眼&叉
US Type Turnbuckle with Eye ＆ Jaw
ITEM NO SIZE D1 L L1 A B E H
in in in in in in in in
HF-4005-1/4-4 1/4 1/4 4 7.58 0.45 0.32 0.78 0.62
HF-4005-5/16-4 5/16 5/16 4.5 8.38 0.49 0.43 0.94 0.87
HF-4005-3/8-6 3/8 3/8 6 10.7 0.53 0.51 1.12 0.87
HF-4005-1/2-6 1/2 1/2 6 11.94 0.67 0.71 1.44 1.06
HF-4005-1/2-9 1/2 1/2 9 14.94 0.67 0.71 1.44 1.06
HF-4005-1/2-12 1/2 1/2 12 17.94 0.67 0.71 1.44 1.06
HF-4005-5/8-6 5/8 5/8 6 13.55 0.81 0.87 1.75 1.31
HF-4005-5/8-9 5/8 5/8 9 16.55 0.81 0.87 1.75 1.31
HF-4005-5/8-12 5/8 5/8 12 19.55 0.81 0.87 1.75 1.31
HF-4005-3/4-6 3/4 3/4 6 15 1.02 0.99 2.09 1.5
HF-4005-3-4-9 3/4 3/4 9 18 1.02 0.99 2.09 1.5
HF-4005-3-4-12 3/4 3/4 12 21 1.02 0.99 2.09 1.5
HF-4005-7/8-6 7/8 7/8 6 16.25 1.18 1.21 2.38 1.75
HF-4005-7/8-12 7/8 7/8 12 22.25 1.18 1.21 2.38 1.75
HF-4005-1"-6 1 1 6 18.2 1.3 1.37 3 2.06
HF-4005-1"-12 1 1 12 24.2 1.3 1.37 3 2.06
HF-4005-1-1/4-12 1-1/4 1-1/4 12 26.48 1.83 1.37 3.56 2.81

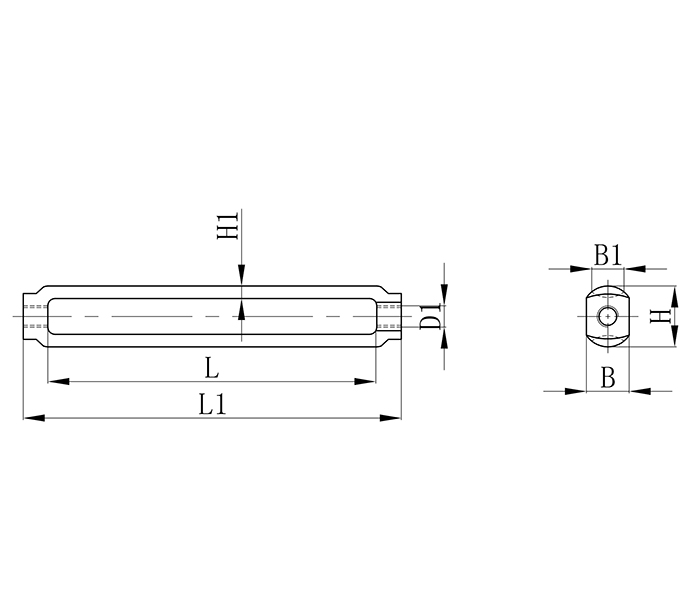

US Type Turnbuckle Body
美式花兰体
US Type Turnbuckle Body
ITEM NO SIZE D1 L L1 B B1 H H1
in in in in in in in in
HF-4006-1/4-4 1/4 1/4 4 4.75 0.5 0.34 0.72 0.17
HF-4006-5/16-4 5/16 5/16 4.5 5.44 0.56 0.38 0.81 0.19
HF-4006-3/8-6 3/8 3/8 6 7.12 0.62 0.38 0.88 0.19
HF-4006-1/2-6 1/2 1/2 6 7.5 0.81 0.5 1.12 0.25
HF-4006-1/2-9 1/2 1/2 9 10.5 0.81 0.5 1.12 0.25
HF-4006-1/2-12 1/2 1/2 12 13.5 0.81 0.5 1.12 0.25
HF-4006-5/8-6 5/8 5/8 6 7.88 1 0.62 1.38 0.31
HF-4006-3/4-6 3/4 3/4 6 8.25 1.12 0.75 1.69 0.38
HF-4006-3/4-9 3/4 3/4 9 11.25 1.12 0.75 1.69 0.38
HF-4006-3/4-12 3/4 3/4 12 14.25 1.12 0.75 1.69 0.38
HF-4006-7/8-6 7/8 7/8 6 8.62 1.31 0.88 1.94 0.44
HF-4006-7/8-12 7/8 7/8 12 14.62 1.31 0.88 1.94 0.44
HF-4006-1"-6 1 1 6 9 1.5 1 2.25 0.5
HF-4006-1"-12 1 1 12 15 1.5 1 2.25 0.5
HF-4006-1-1/4-12 1-1/4 1-1/4 12 15.12 1.88 1.25 2.62 0.56
HF-4006-1-1/2-12 1-1/2 1-1/2 12 15.75 2.25 1.5 3 0.62
