RIGGING HARDWARE

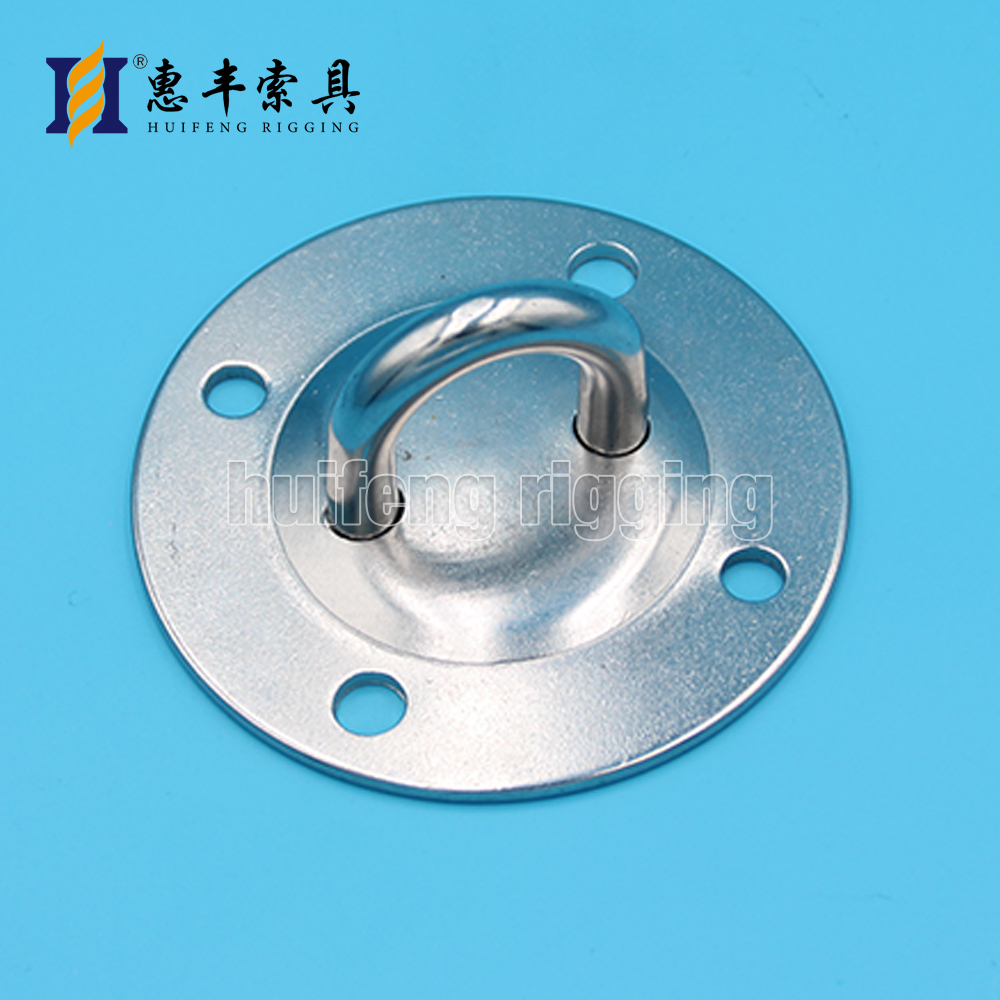

Big Round Pad Eye
起鼓圆形固定扣
Big Round Pad Eye
ITEM NO Size(Dia*Based mm)
HF-5998 9*90mm

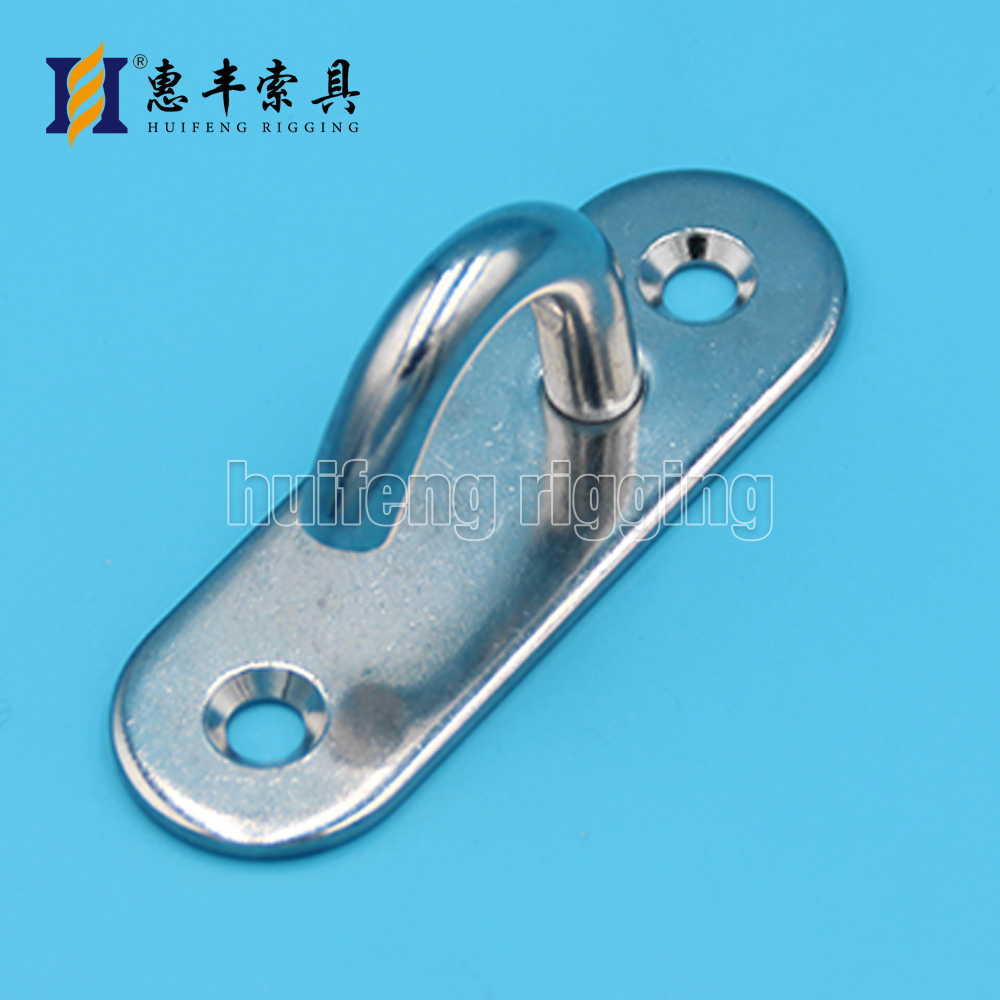

Oblong Pad Eye with Hook
开口椭圆形固定扣
Oblong Pad Eye with Hook
ITEM NO Size(mm)
HF-5999 5mm, 6mm, 8mm

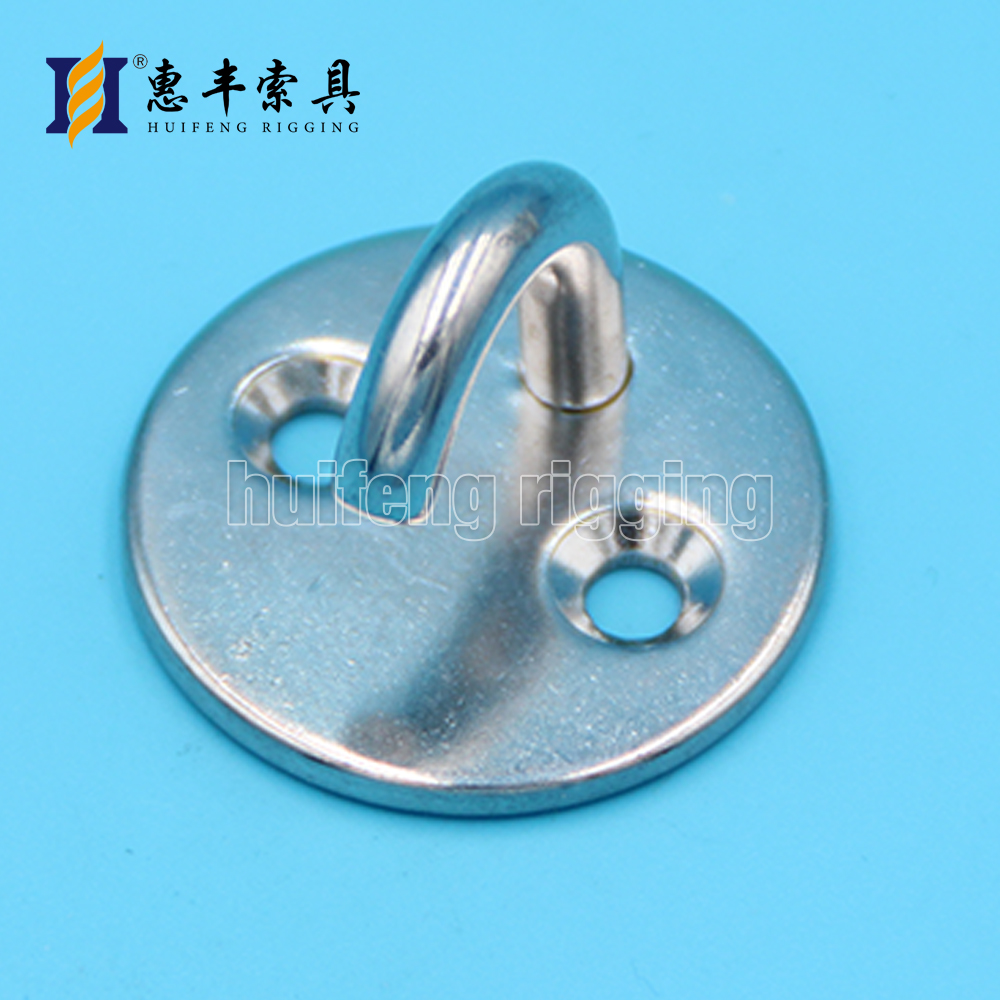

Round Pad Eye with Hook
开口圆形固定扣
Round Pad Eye with Hook
ITEM NO Size(mm)
HF-6000 5mm, 6mm, 8mm

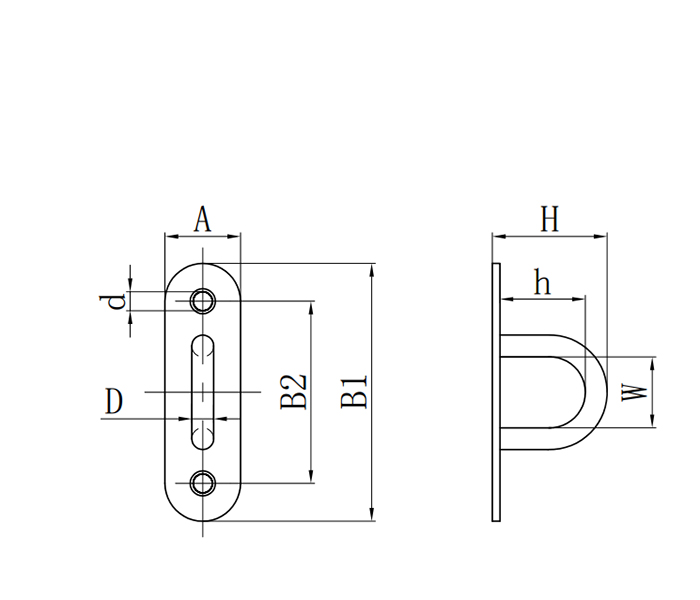

Oblong Pad Eye
椭圆形固定扣
Oblong Pad Eye
ITEM NO D B1 B2 H h A d W WT
mm mm mm mm mm mm mm mm KGS
HF-6001-0005 5 45 31 20 12 15 4.5 10 0.019
HF-6001-0006 6 60 43 26 17 20 4.5 17 0.035
HF-6001-0008 8 80 56 32 21 26 6.2 21 0.067
HF-6001-0009 9 100 70 39 27 36 6.2 26 0.109

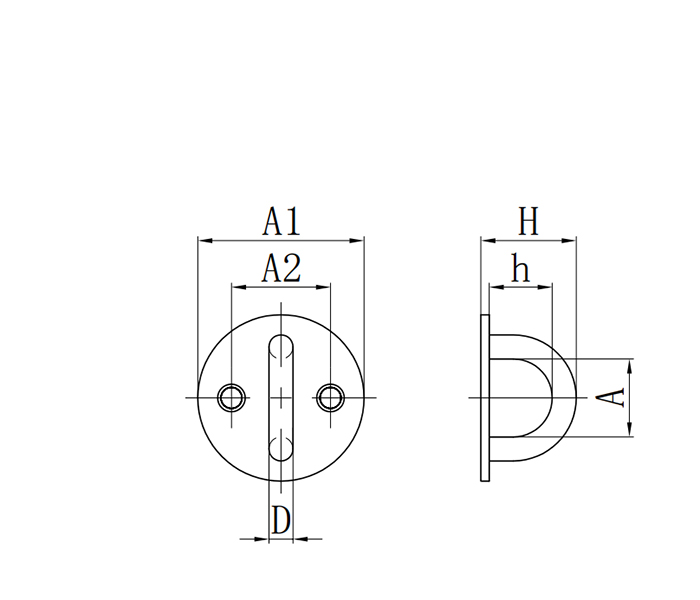

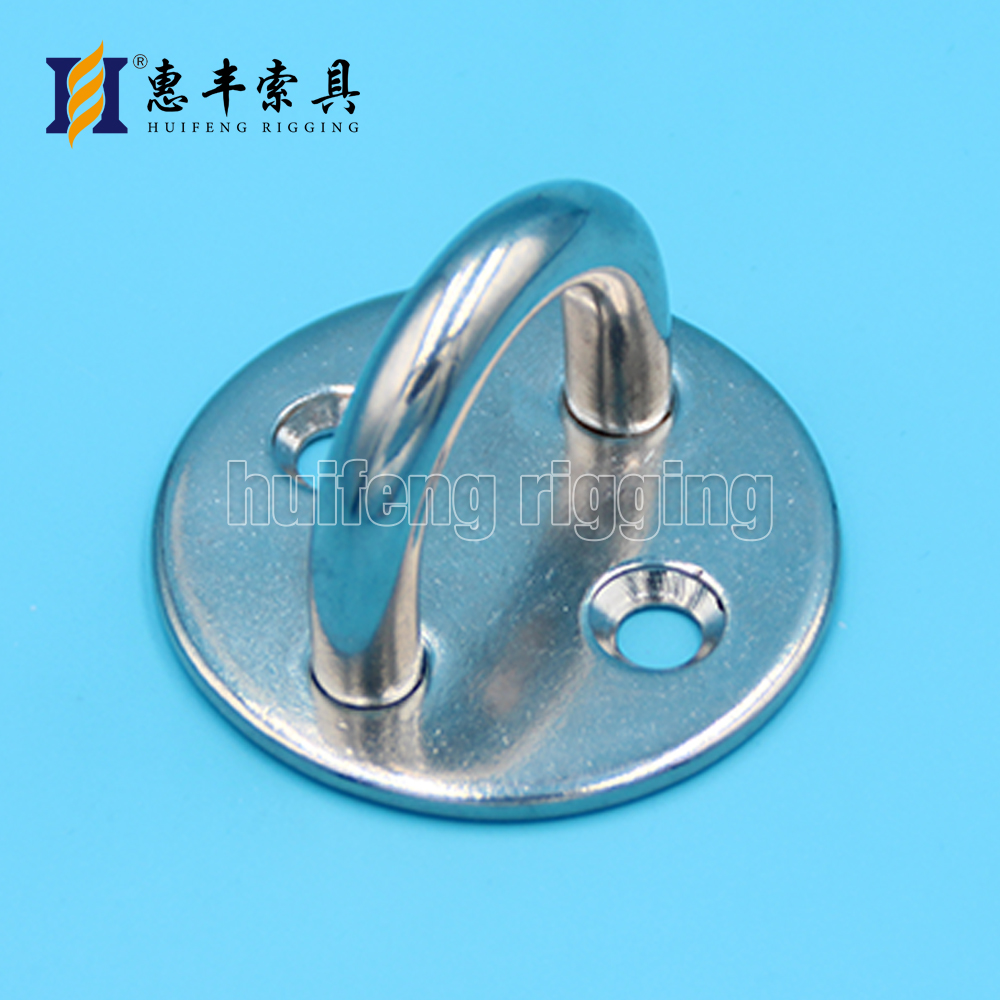

Round Pad Eye
圆形固定扣
Round Pad Eye
ITEM NO D A1 A2 H h A WT
mm mm mm mm mm mm KGS
HF-6002-0005 5 33 18 20 12 13 0.023
HF-6002-0006 6 40 23 26 17 17 0.038
HF-6002-0008 8 50 29 32 21 21 0.067

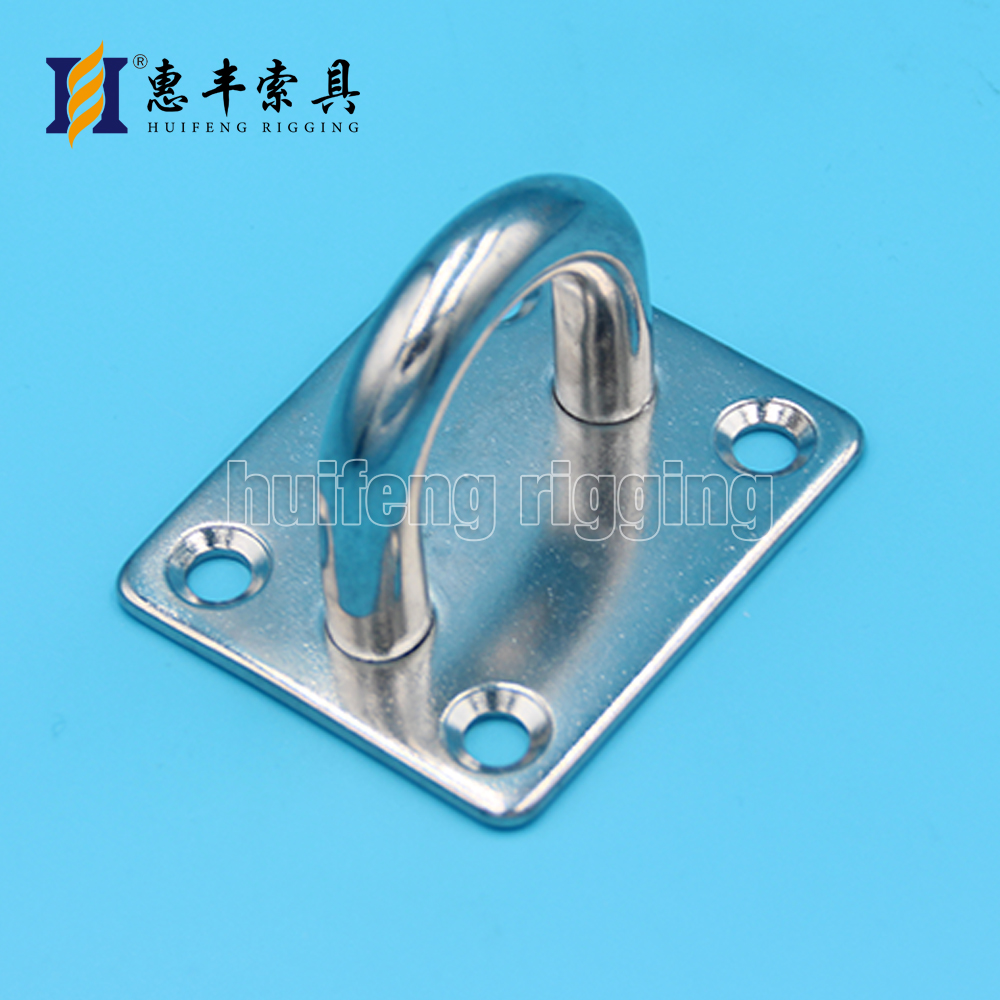

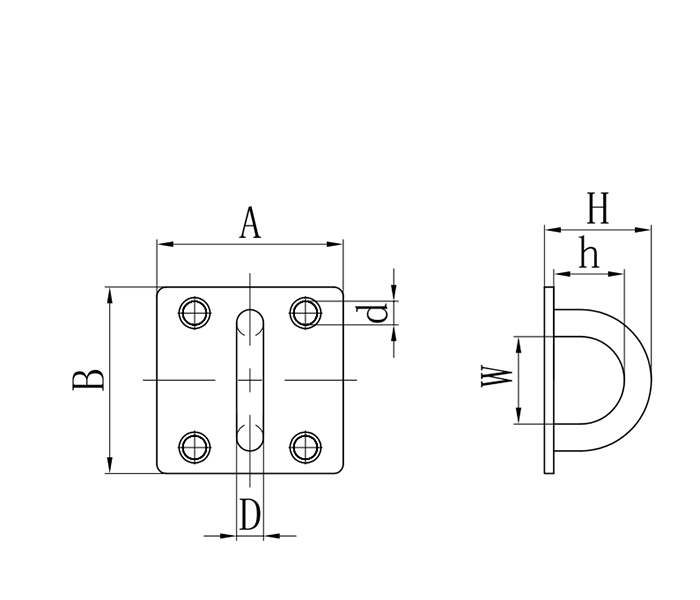

Square Pad Eye
方形固定扣
Square Pad Eye
ITEM NO D A B H h W d WT
mm mm mm mm mm mm mm KGS
HF-6003-0005 5 30 35 20 12 13 4.5 0.025
HF-6003-0006 6 35 40 26 17 17 4.5 0.041
HF-6003-0008 8 40 50 32 21 21 6.2 0.068
HF-6003-0010 10 48 60 39 26 26 6.2 0.11
HF-6003-0012 12 56 70 53 37 31 6 0.21
HF-6003-0016 16 76 90 66 46 39 6.5 0.41

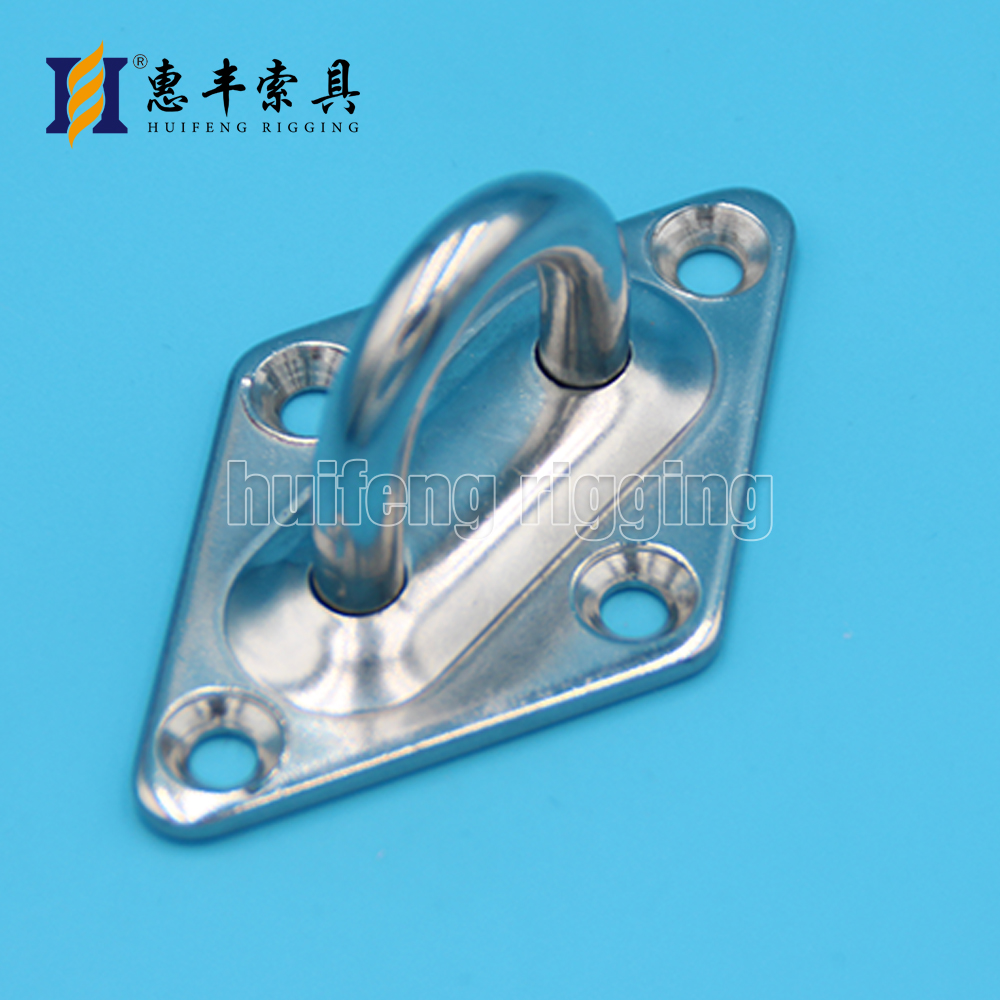

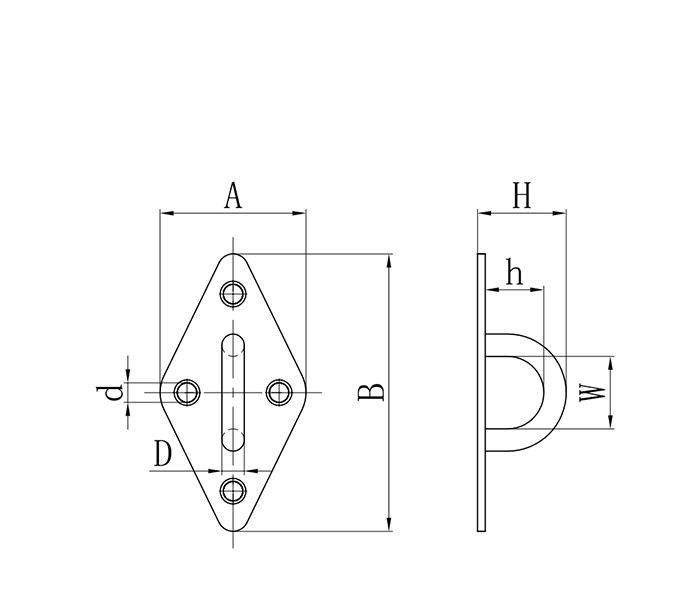

Diamond Pad Eye
菱形固定扣
Diamond Pad Eye
ITEM NO D A B H h W D WT
mm mm mm mm mm mm mm KGS
HF-6004-0005 5 36 60 23 15 16 4.5 0.031
HF-6004-0006 6 40 65 26 17 17 4.5 0.043
HF-6004-0008 8 50 80 32 21 21 6.2 0.077
HF-6004-0010 10 60 100 36 26 26 6.2 0.136
HF-6004-0012 12 80 120 50 38 32 6.5 0.251

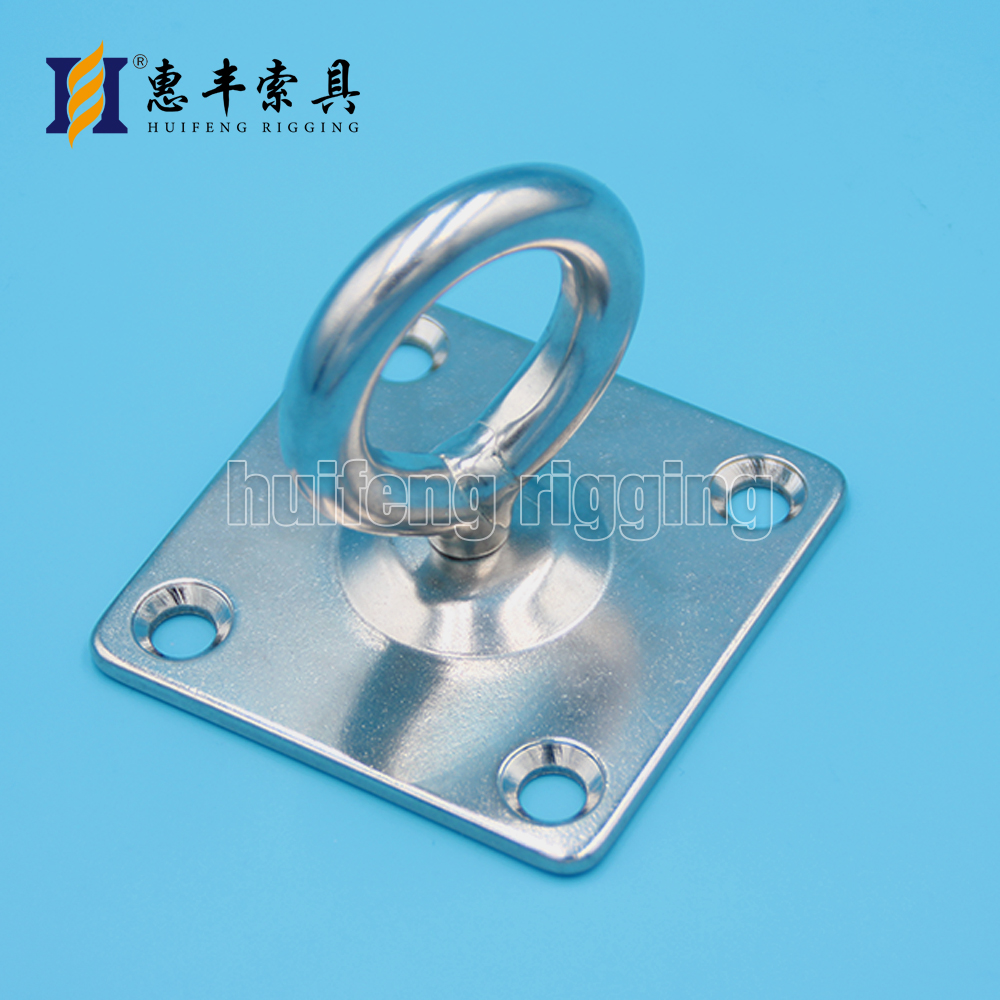

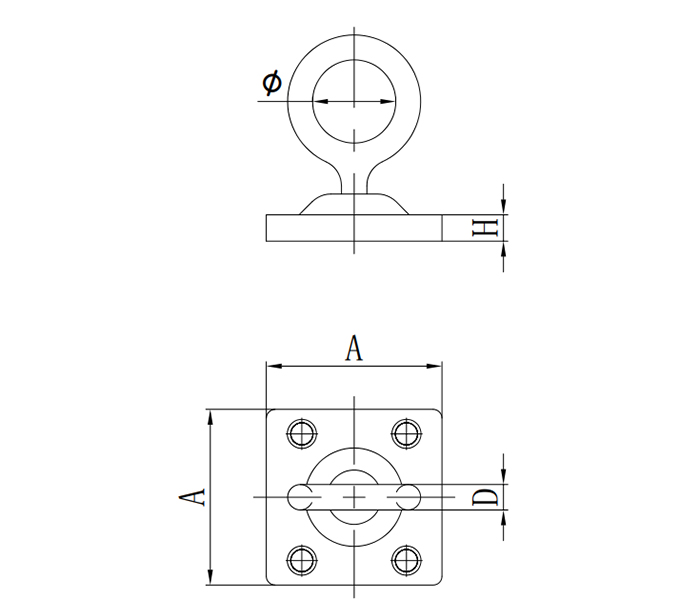

Square Pad Eye with Swivel Ring
方扣可旋转
Square Pad Eye with Swivel Ring
ITEM NO D A Φ H WT
mm mm mm mm KGS
HF-6005-0005 5 35 15 3 0.035
HF-6005-0006 6 40 18 3 0.077
HF-6005-0008 8 50 19 3 0.148

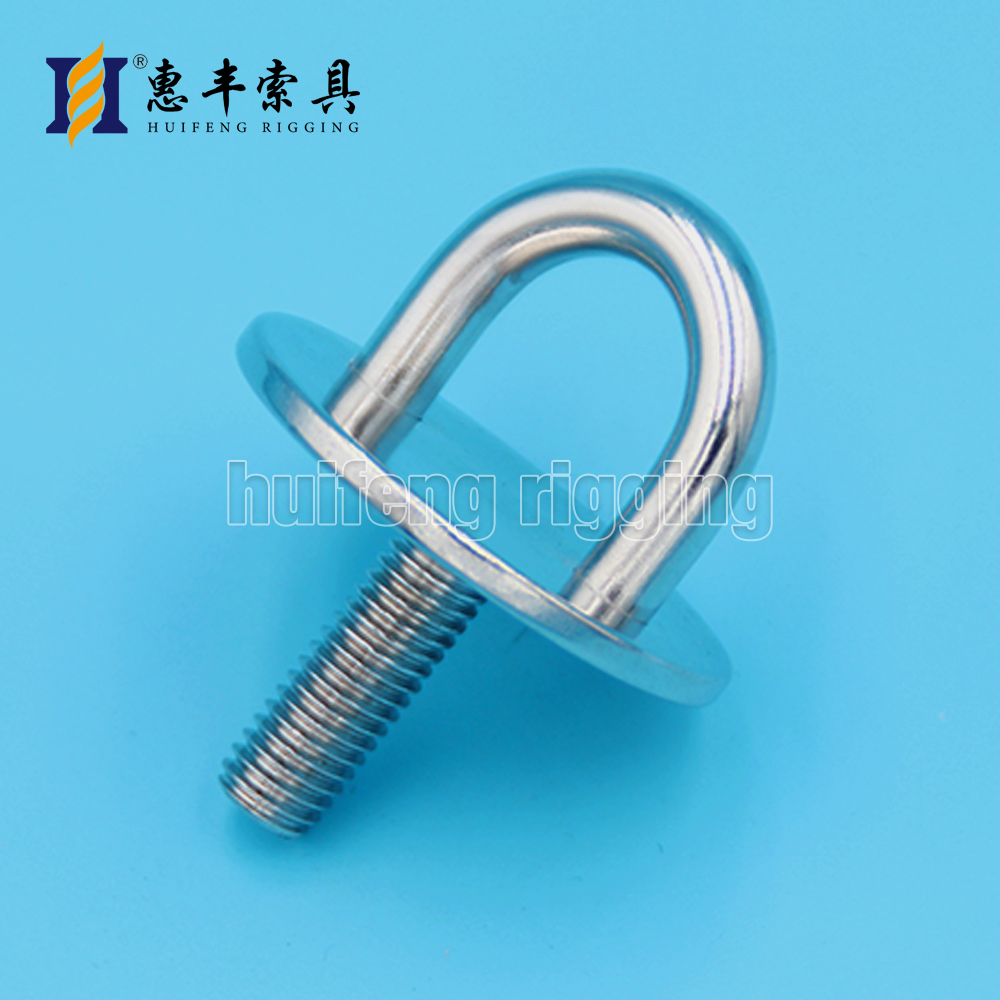

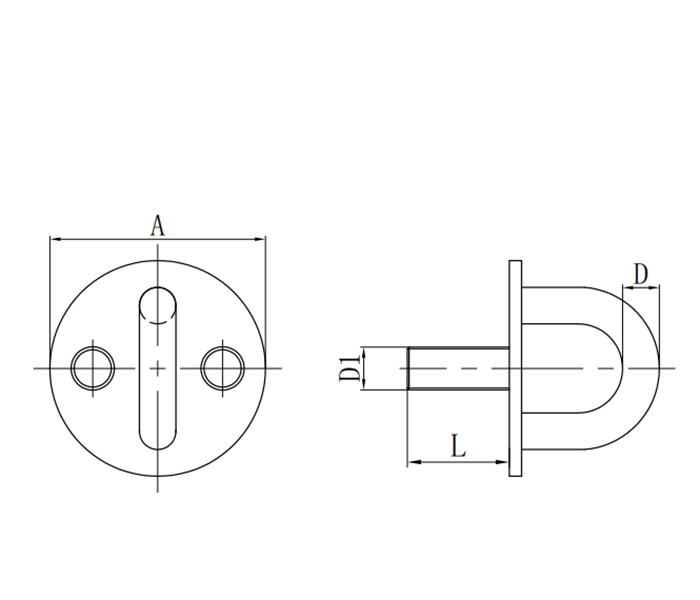

Round Pad Eye with Stud
圆形固定扣带丝
Round Pad Eye with Stud
ITEM NO D1 D A L WT
mm mm mm mm KGS
HF-6006-0506 6 5 33 20 0.028
HF-6006-0608 8 6 40 23 0.047
HF-6006-0810 10 8 50 25 0.082

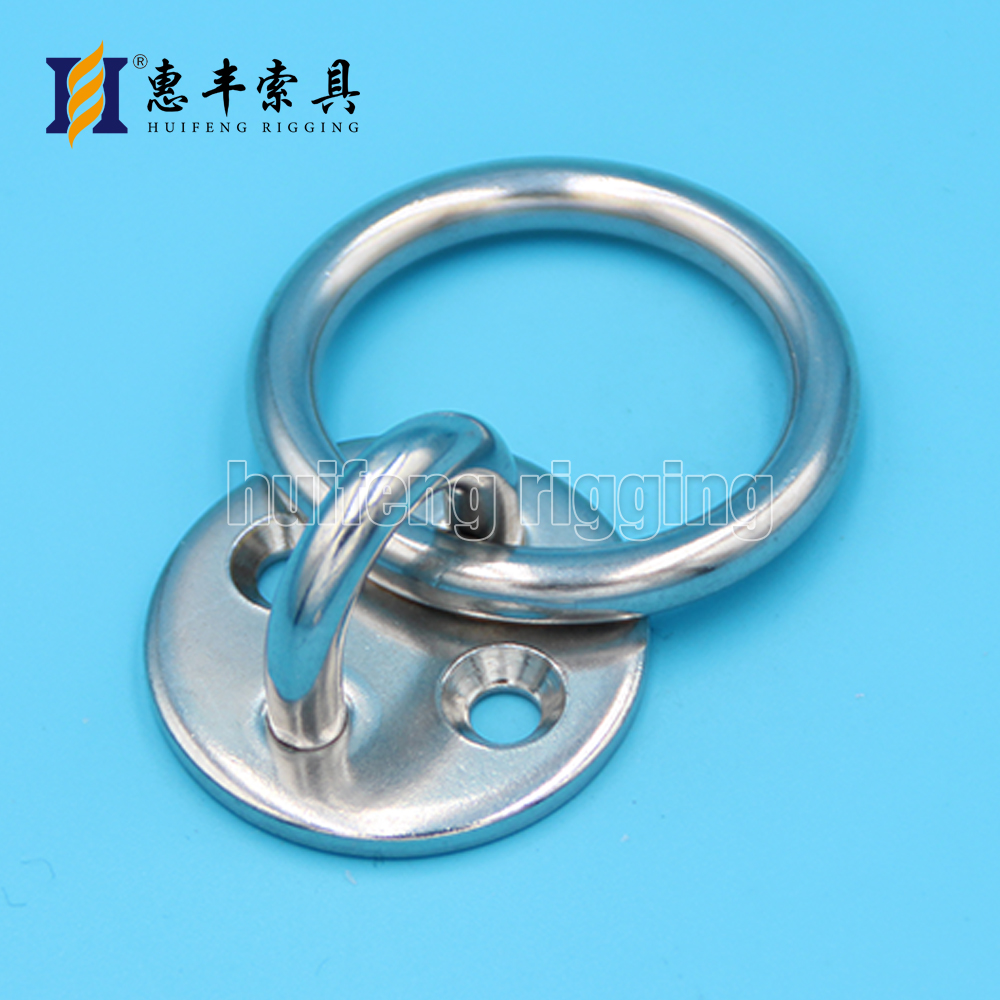

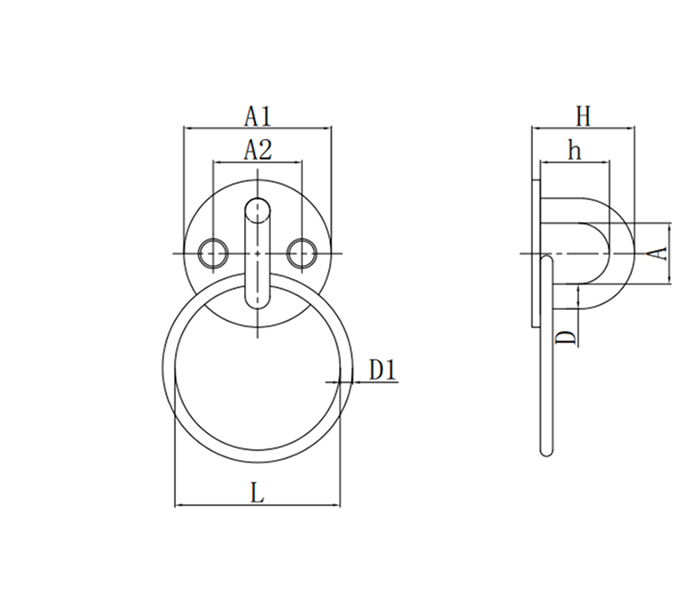

Round Pad Eye with Ring
圆形固定扣带圆环
Round Pad Eye with Ring
ITEM NO D A1 A2 H h A D1 L WT
mm mm mm mm mm mm mm mm KGS
HF-6007-0005 5 33 18 20 12 13 5 30 0.039
HF-6007-0006 6 40 23 26 17 17 6 35 0.066
HF-6007-0008 8 50 29 32 21 21 8 45 0.136

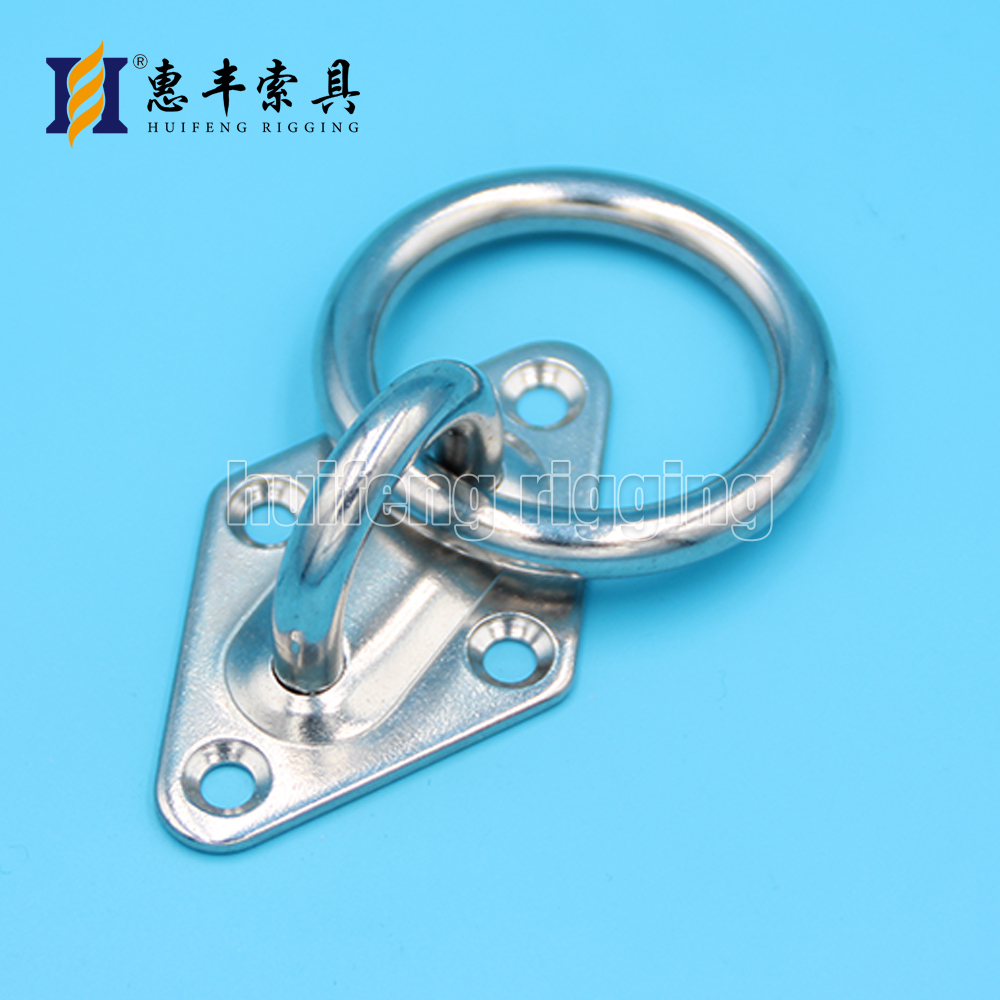

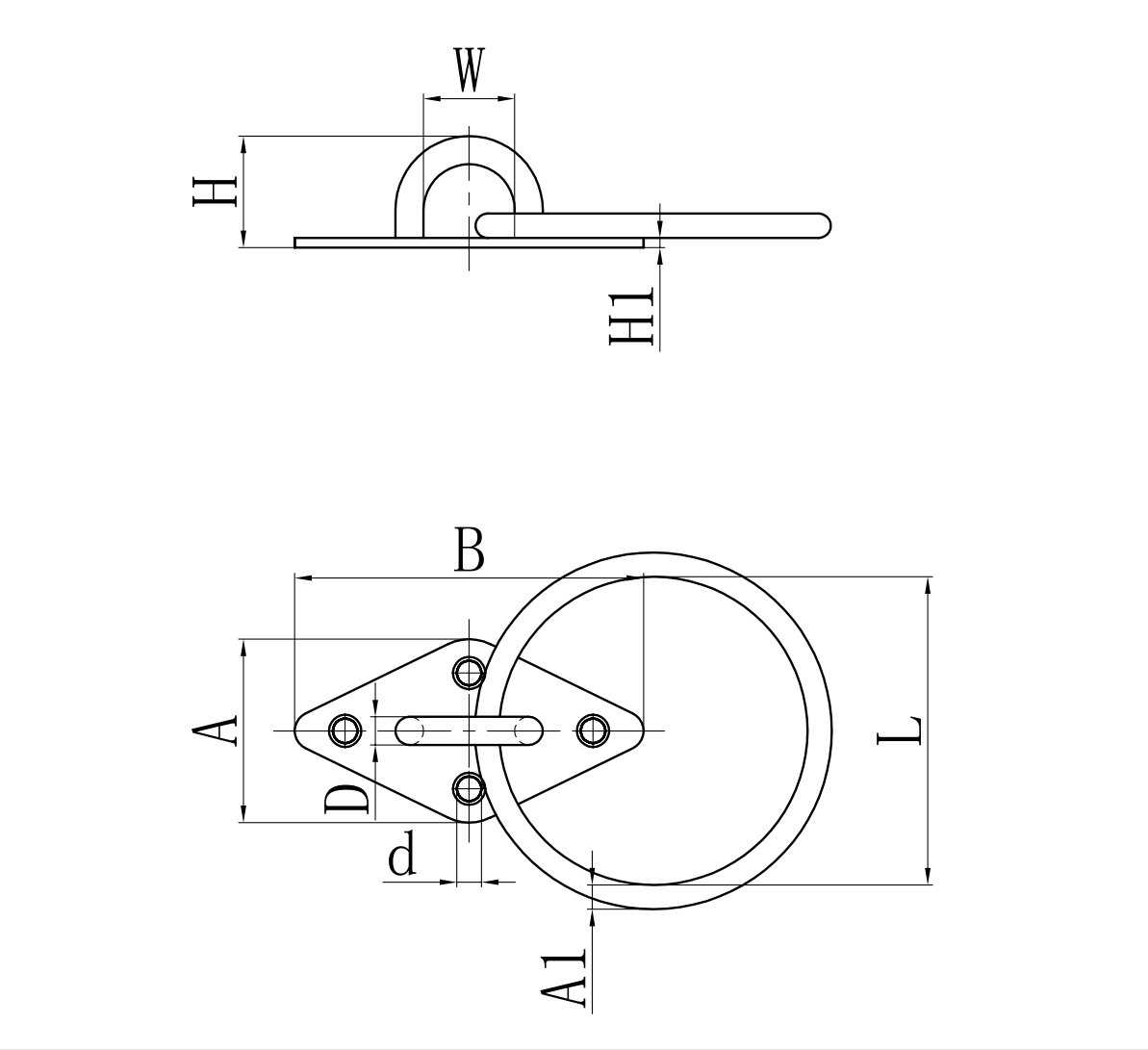

Stainless Steel Diamond Pad Eye With Ring Welded
菱形固定扣带圆环
Stainless Steel Diamond Pad Eye With Ring Welded
ITEM NO D A B H H1 W d A1 L WT
mm mm mm mm mm mm mm mm mm KGS
HF-6008-0005 5 36 60 23 3 16 4.5 5 30 0.047
HF-6008-0006 6 40 65 26 3 17 4.5 6 35 0.071
HF-6008-0008 8 50 80 32 3 21 6.2 8 45 0.146
HF-6008-0010 10 60 100 36 4 26 6.2 10 50 0.244
HF-6008-0012 12 80 120 50 4 32 6.5 12 60 0.444

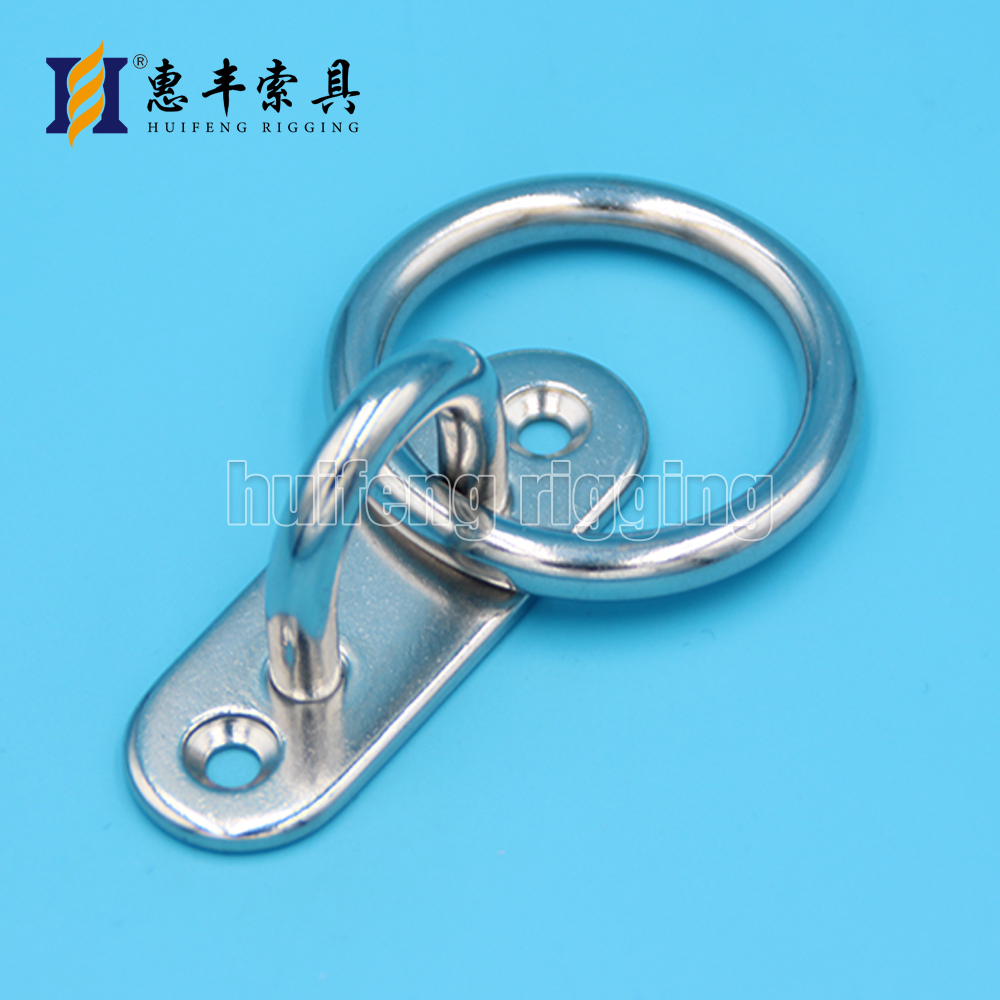

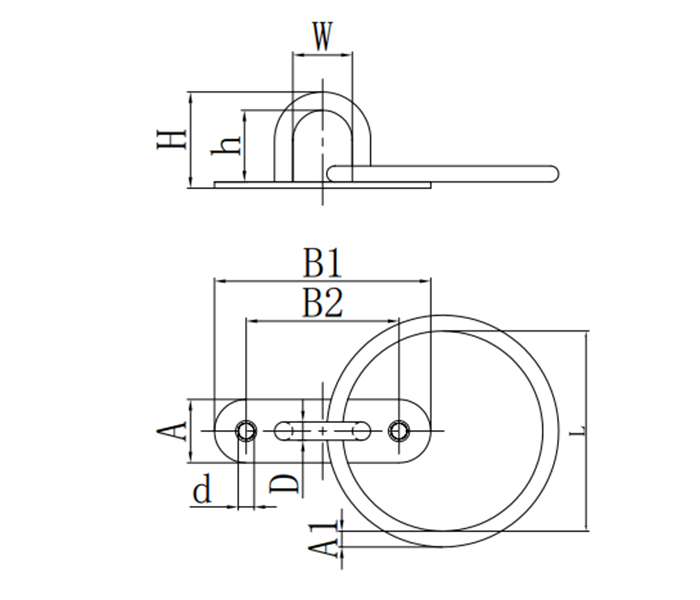

Stainless Steel. Oblong Pad Eye With Ring Welded
椭圆形固定扣带圆环
Stainless Steel. Oblong Pad Eye With Ring Welded
ITEM NO D B1 B2 H h A d W A1 L WT
mm mm mm mm mm mm mm mm mm mm KGS
HF-6009-0005 5 45 31 20 12 15 4.5 10 5 30 0.035
HF-6009-0006 6 60 43 26 17 20 4.5 17 6 35 0.063
HF-6009-0008 8 80 56 32 21 26 6.2 21 8 45 0.136
HF-6009-0010 10 100 70 39 27 36 6.2 26 10 50 0.217

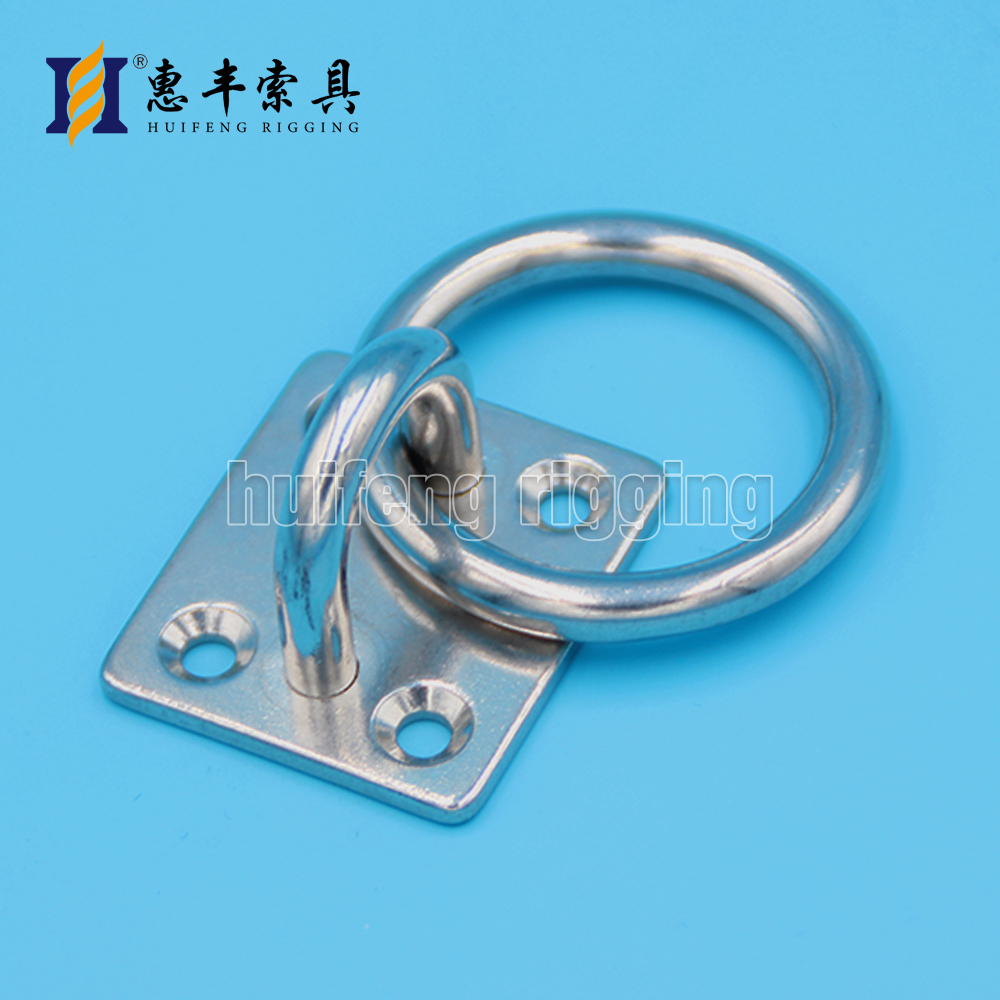

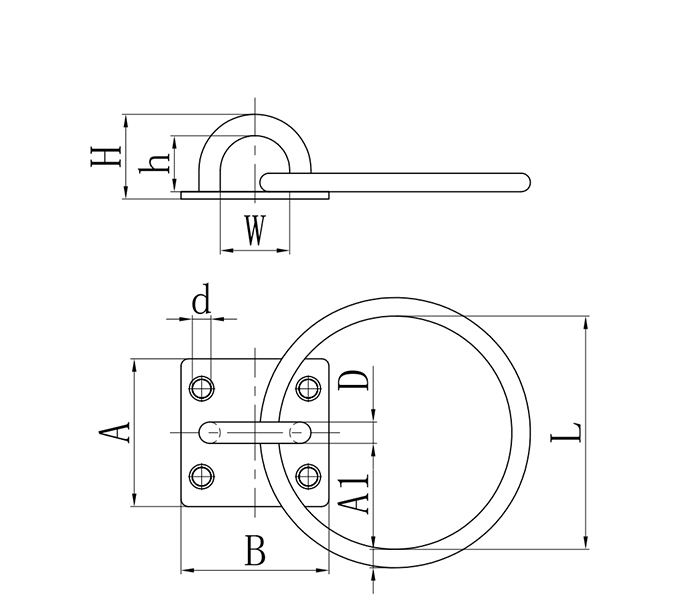

Stainless Steel Square Pad Eye With Ring
方形固定扣带圆环
Stainless Steel Square Pad Eye With Ring
ITEM NO D A B H h W d A1 L WT
mm mm mm mm mm mm mm mm mm KGS
HF-6010-0005 5 30 35 20 12 13 4.5 5 30 0.041
HF-6010-0006 6 35 40 26 17 17 4.5 6 35 0.069
HF-6010-0008 8 40 50 32 21 21 6.2 8 45 0.137
HF-6010-0010 10 48 60 39 26 26 6.2 10 50 0.218

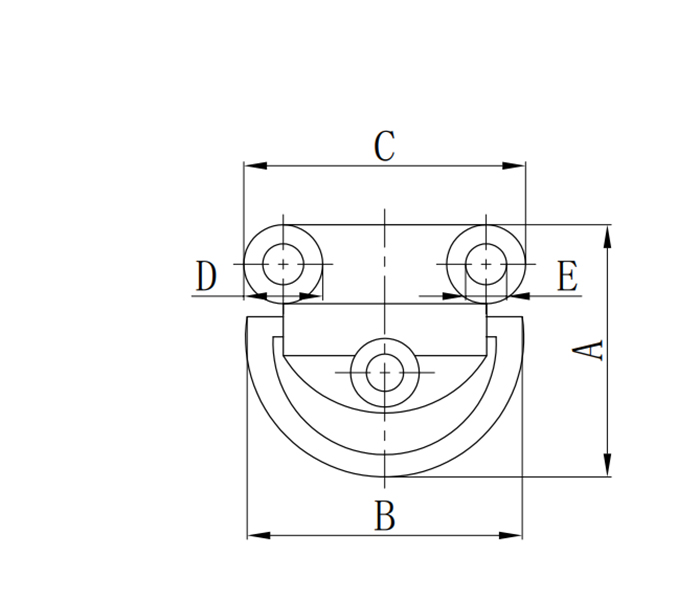

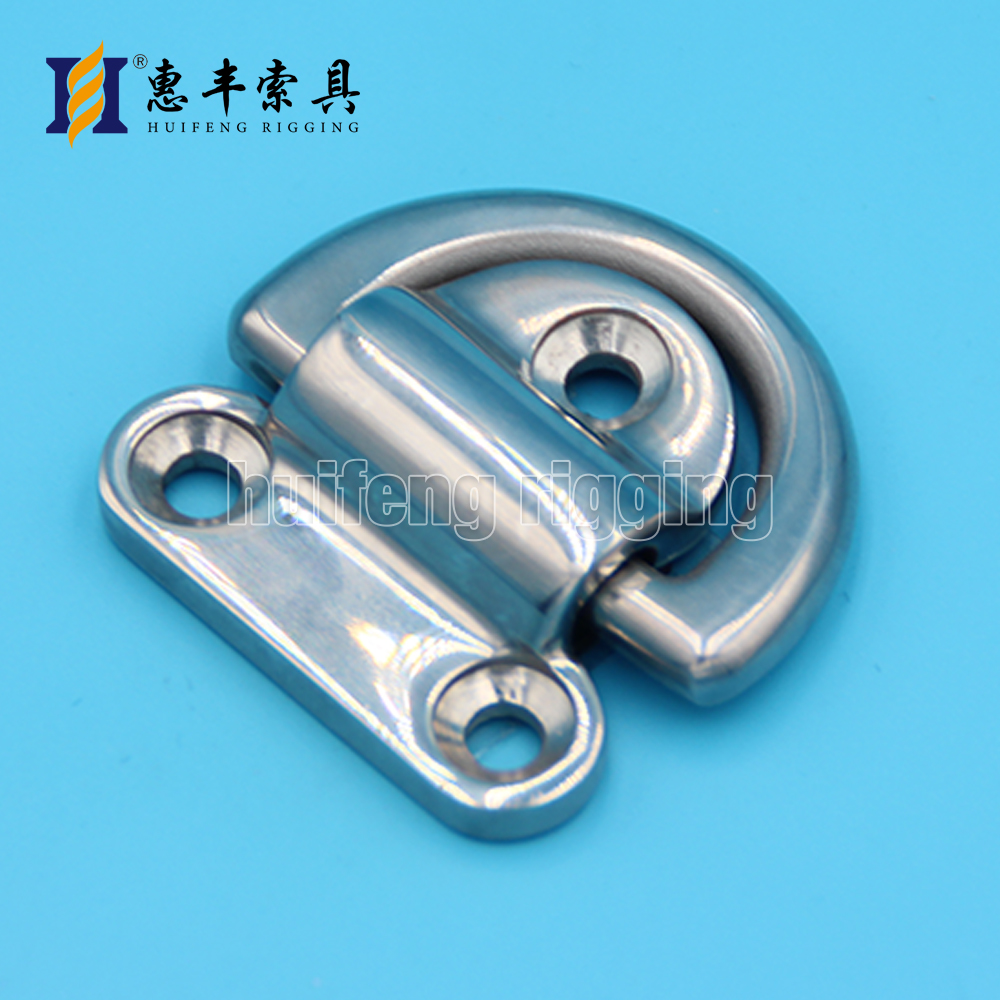

FOLDING PAD EYE
D型环固定扣
FOLDING PAD EYE
ITEM NO A B C D E
mm mm mm mm mm
HF-6011-0047 46 47 43 10 5
HF-6011-0060 58 60 55 12 6
HF-6011-0075 76 75 70 16 8

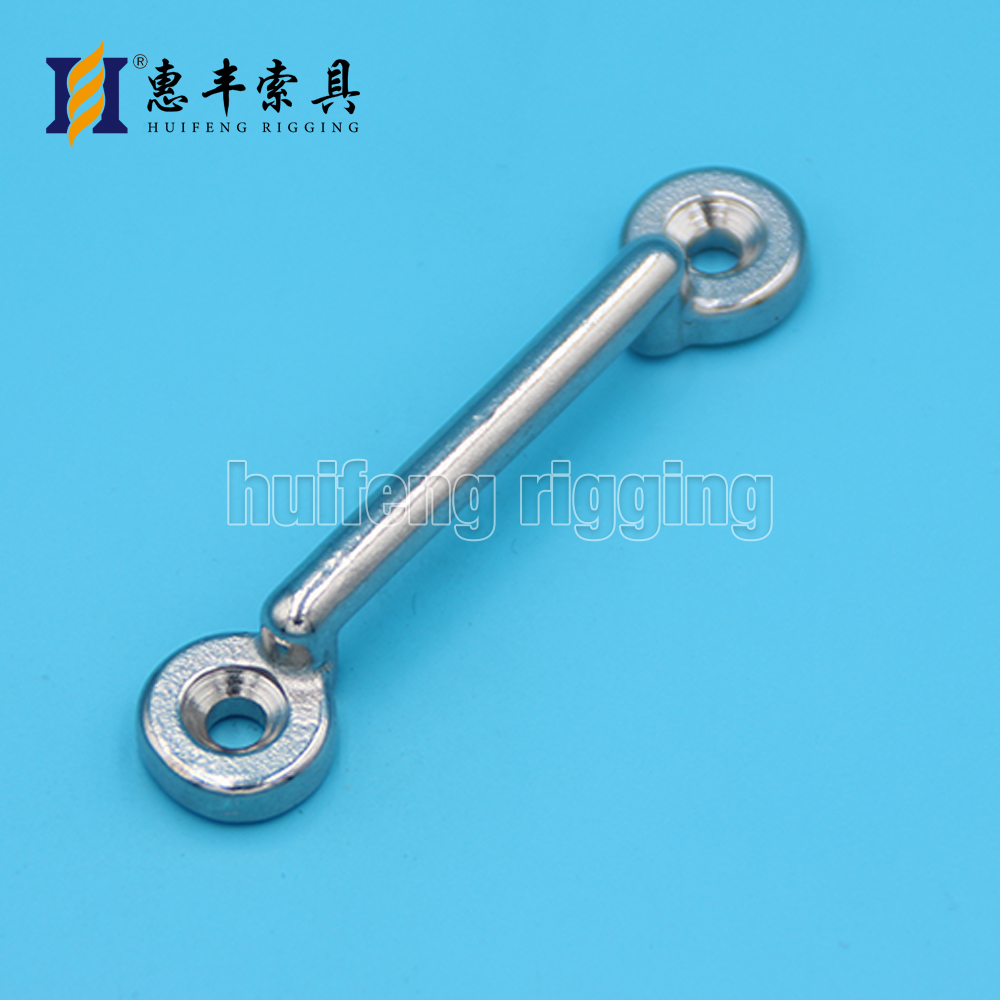

Eye Strap, Casted
铸造骆驼背
Eye Strap, Casted
ITEM NO Size(L*W-mm)
HF-6012 76*38, 68*30

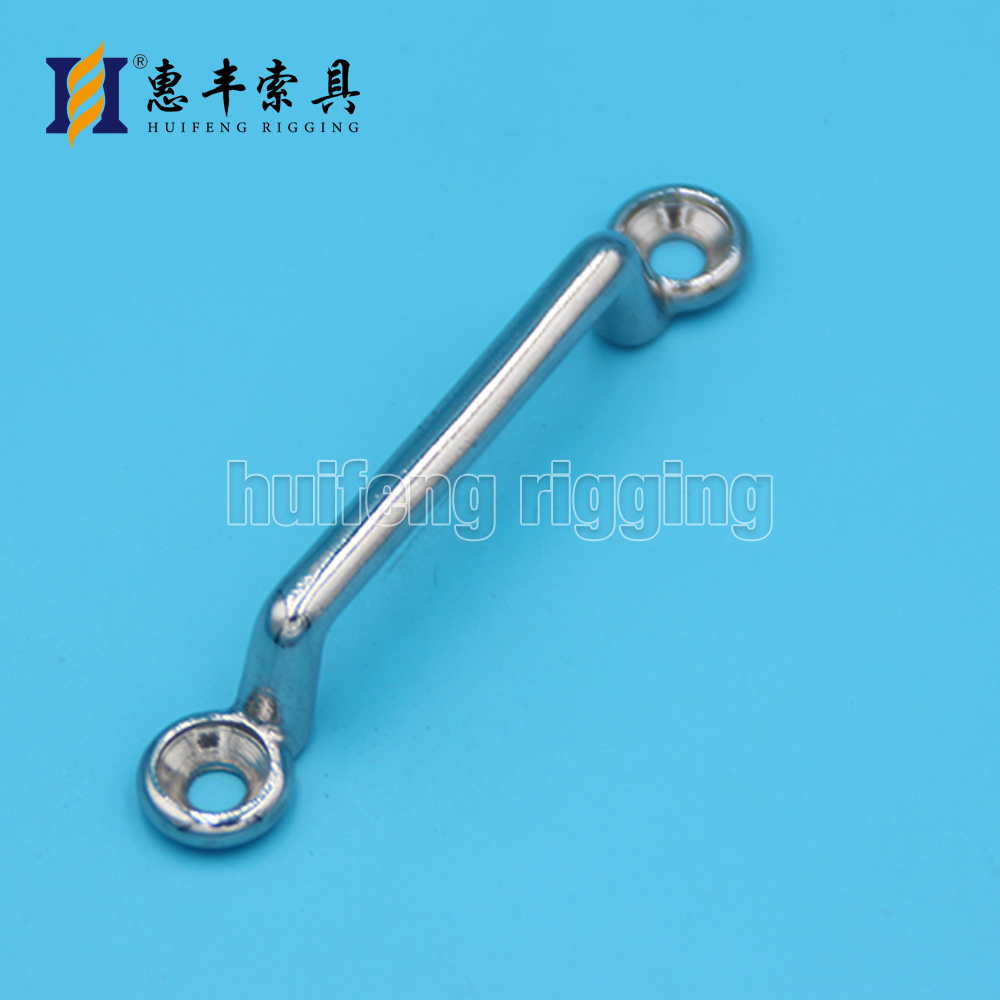

Eye Strap, Casted
铸造骆驼背
Eye Strap, Casted
ITEM NO Size(L*W-mm)
HF-6013 75*39
Eye Strap, Casted
铸造骆驼背
Eye Strap, Casted
ITEM NO Size(L*W-mm)
HF-6014 85*53

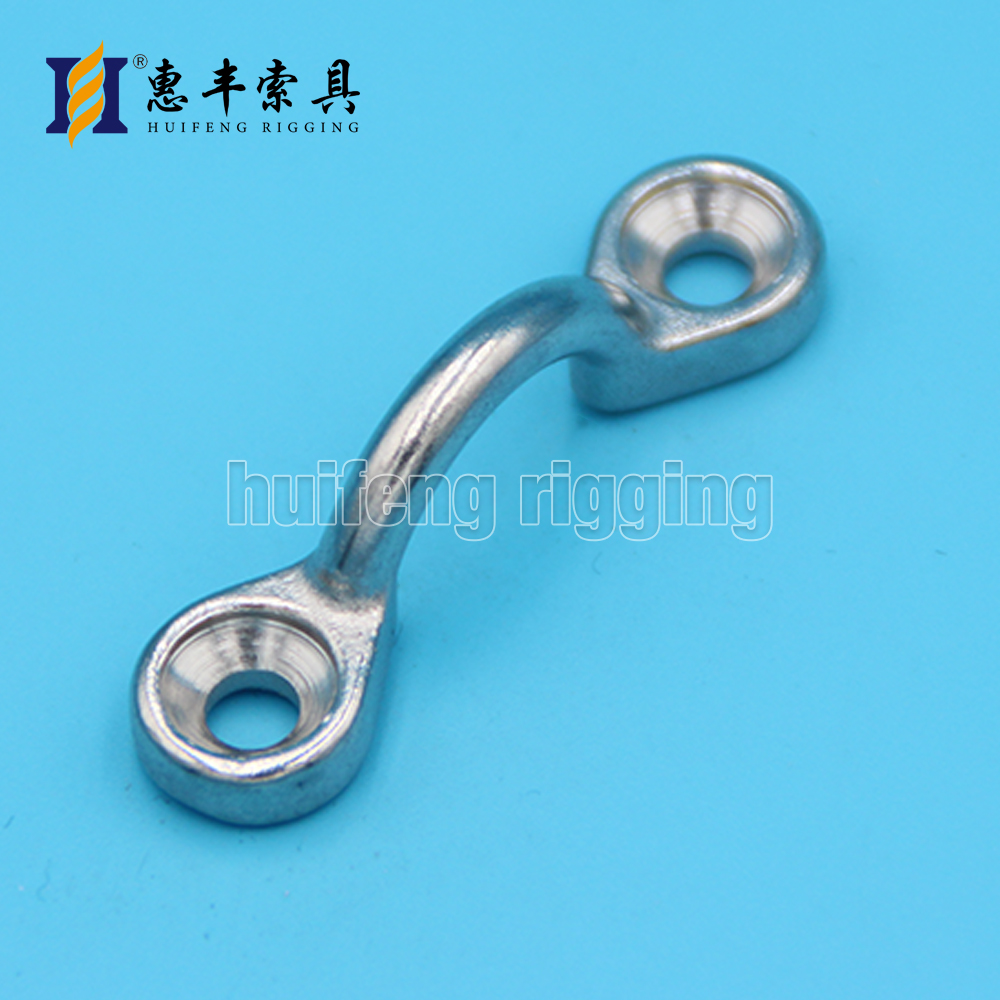

Eye Strap, Casted
铸造骆驼背
Eye Strap, Casted
ITEM NO Size(mm)
HF-6015 4mm, 5mm, 6mm, 8mm, 10mm

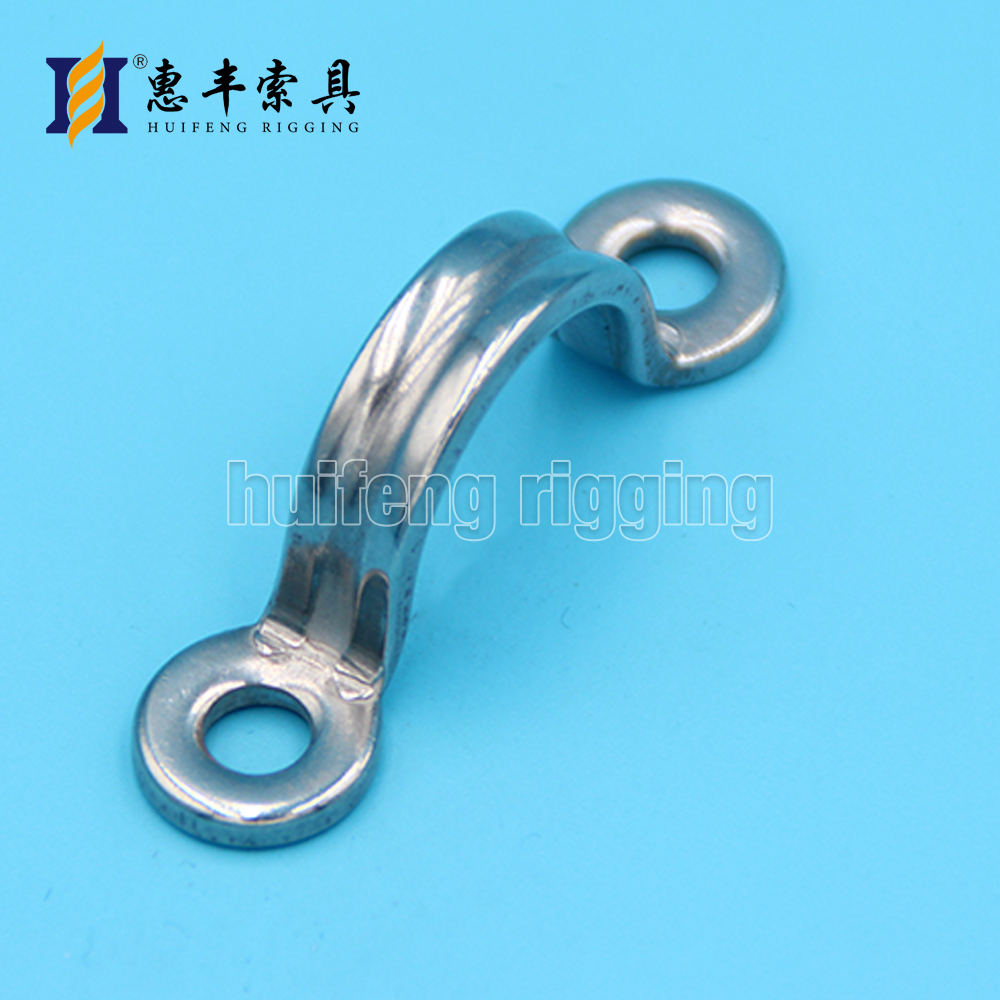

Eye Strap
冲压骆驼背
Eye Strap
ITEM NO Size(mm)
HF-6016 4mm, 5mm, 6mm, 8mm, 10mm

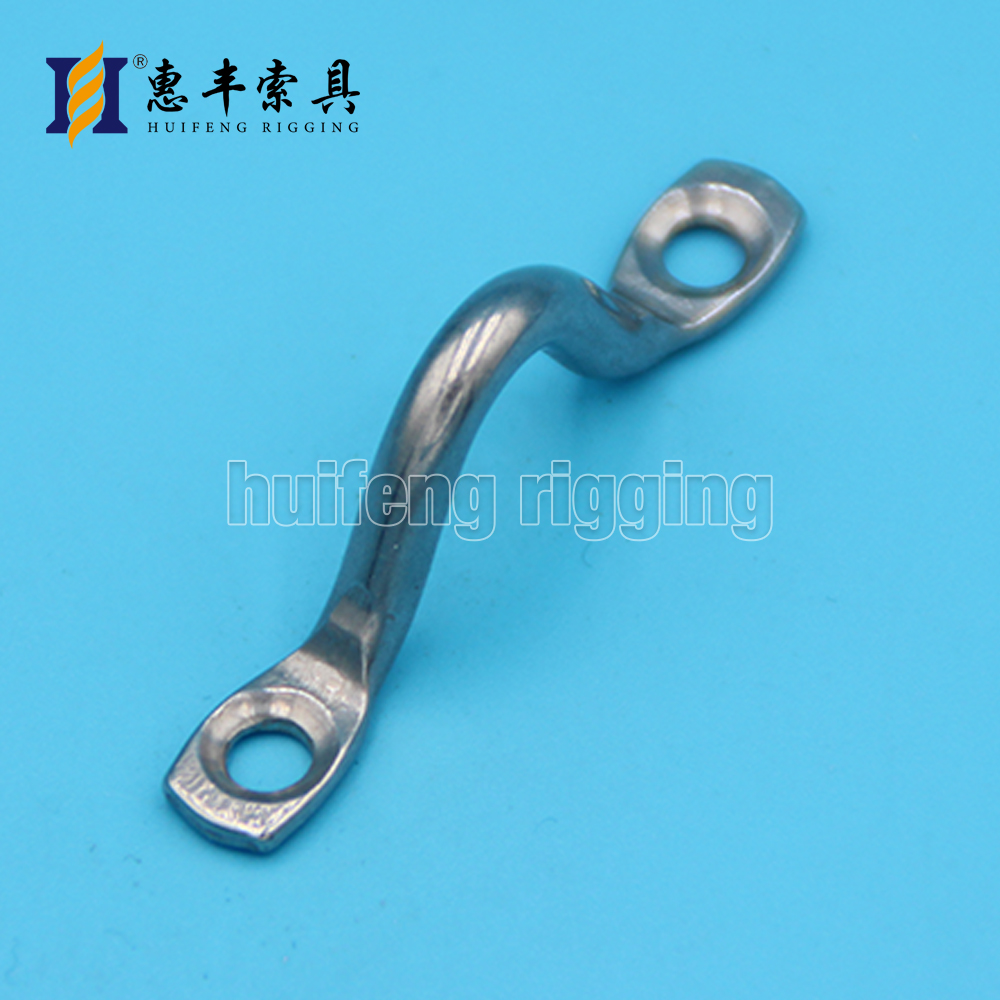

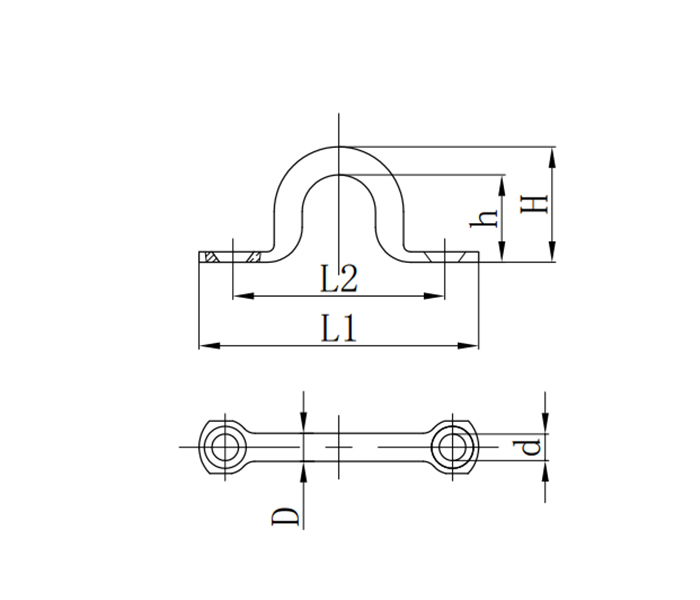

Eye Strap
冲压骆驼背
Eye Strap
ITEM NO D d L2 h H L1 WT
mm mm mm mm mm mm KGS
HF-6017-0004 4 4 35 12 16 46 0.005
HF-6017-0005 5 4 42 13 17 53 0.008
HF-6017-0006 6 5 47 16 22 60 0.013
HF-6017-0008 8 6 49 17 25 63 0.026
HF-6017-0010 10 6.5 63 22 32 80 0.053

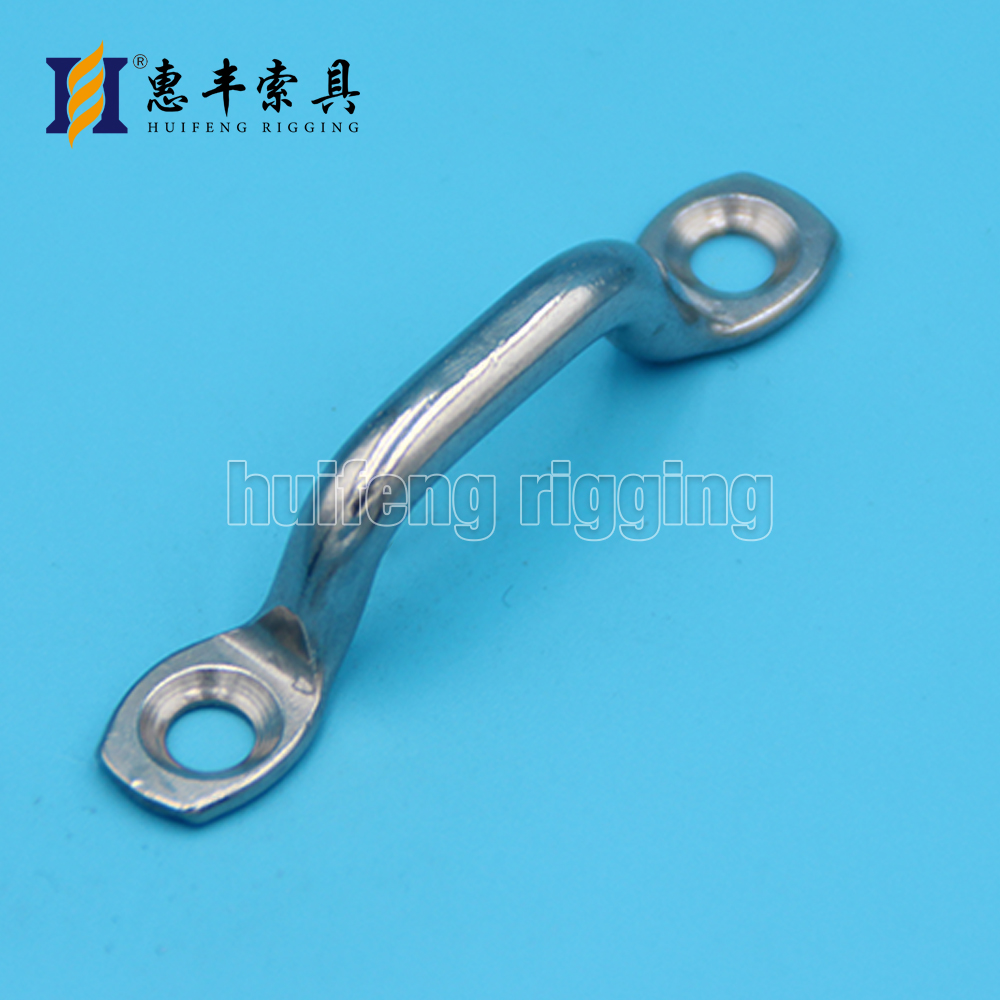

Eye Strap
冲压骆驼背
Eye Strap
ITEM NO Size(L*W-mm)
HF-6018 54*20
Fender Hook
座勾
Fender Hook
ITEM NO L-mm W-mm Hole
HF-6019 36 30 4.5
Fender Eye
闭口式座钩
Fender Eye
ITEM NO L-mm W-mm Hole
HF-6020-0001 35 29 5

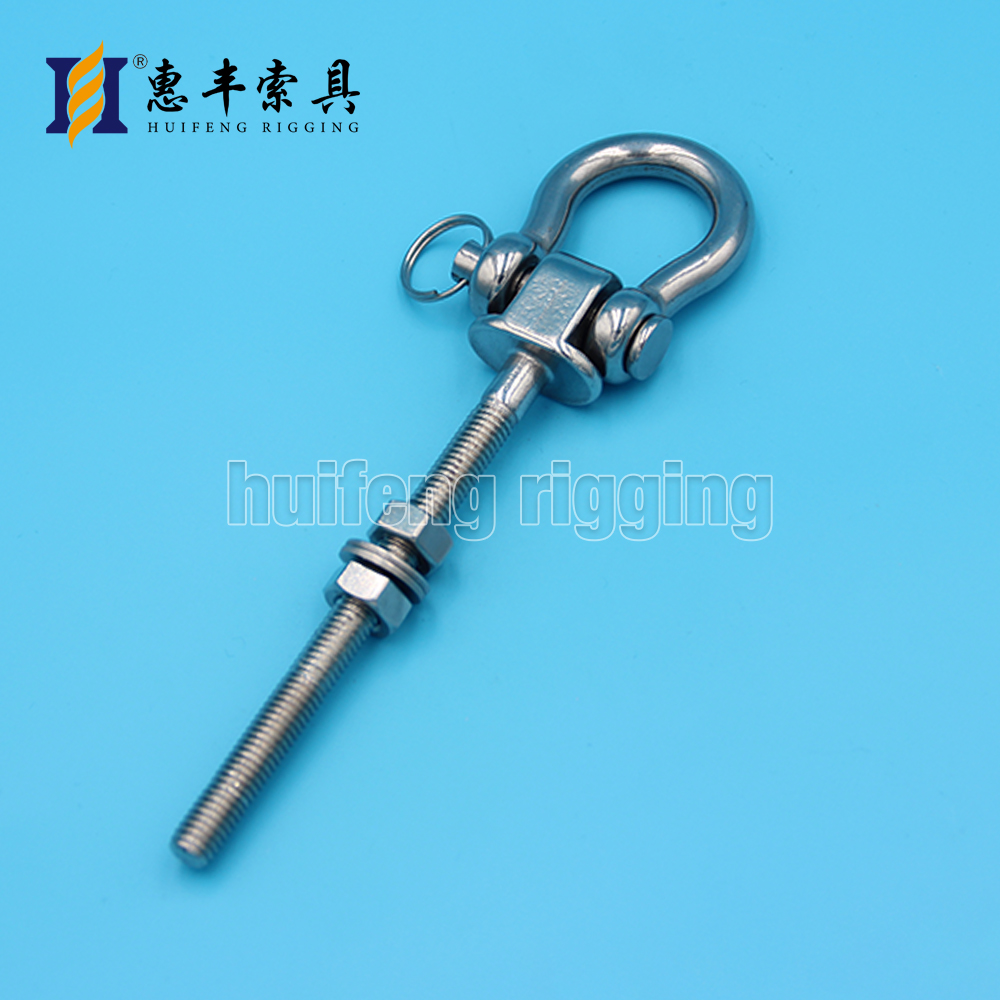

Swing Hanger
秋千钩
Swing Hanger
ITEM NO Size(mm)
HF-6031 8mm*100mm

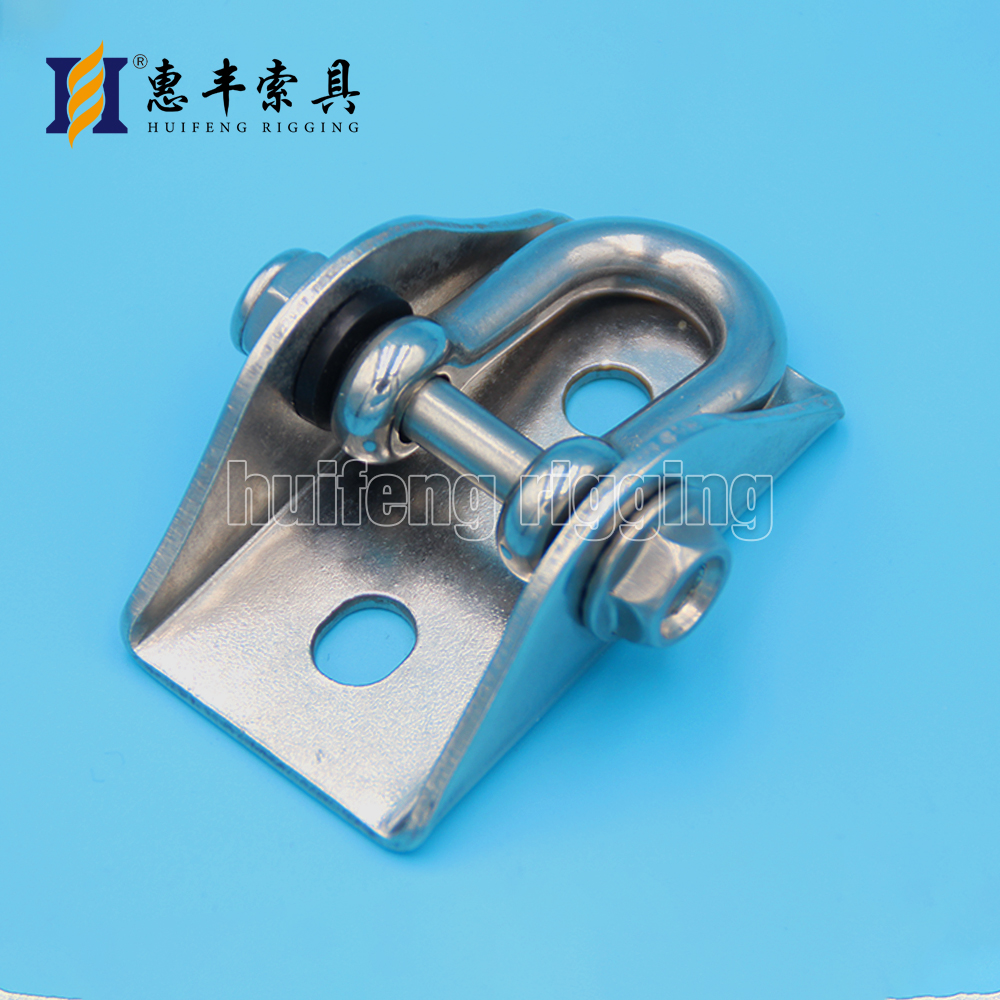

Swing Hanger Dee Shackle Type
D型卸扣秋千扣
Swing Hanger Dee Shackle Type
ITEM NO Size(mm)
HF-6032 8mm
Swing Hanger Bow Shackle Type
弓型卸扣秋千扣
Swing Hanger Bow Shackle Type
ITEM NO Size(mm)
HF-6033 8mm

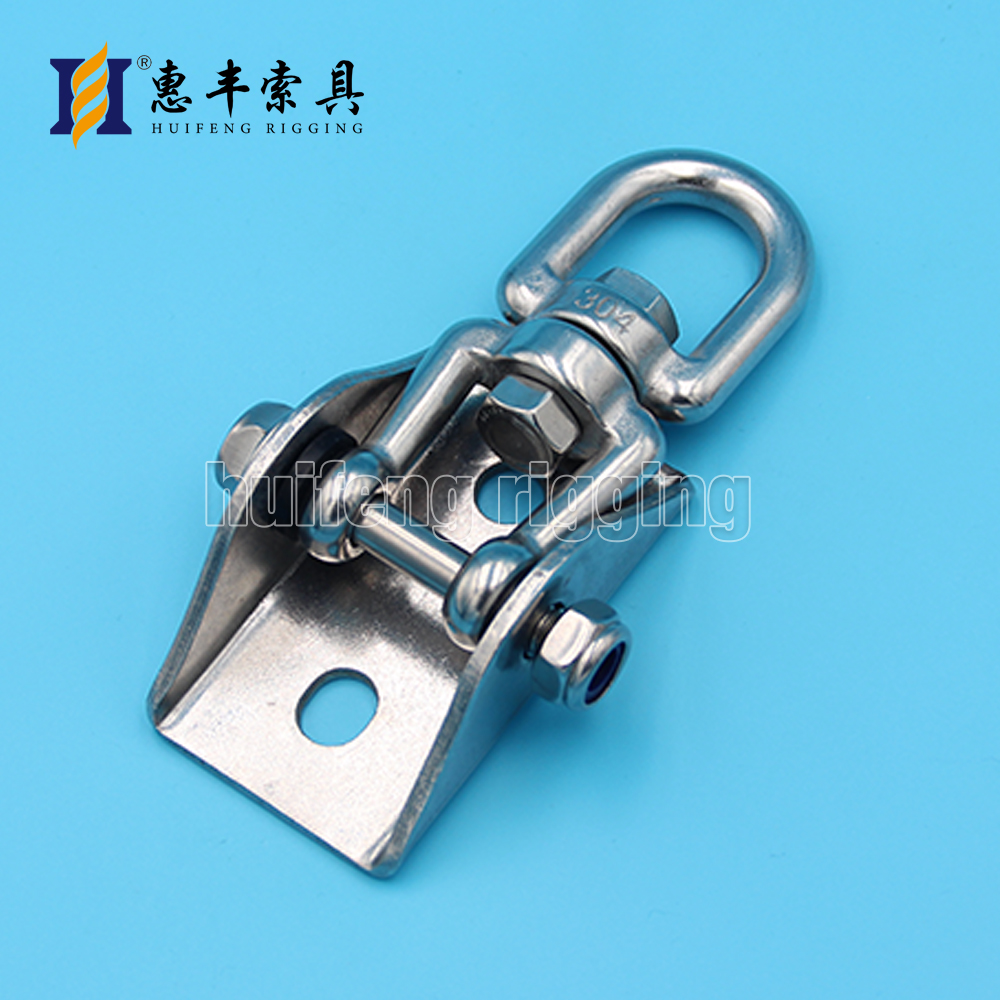

Swing Hanger Swivel Type
O/C转环秋千扣
Swing Hanger Swivel Type
ITEM NO Size(mm)
HF-6034 8mm

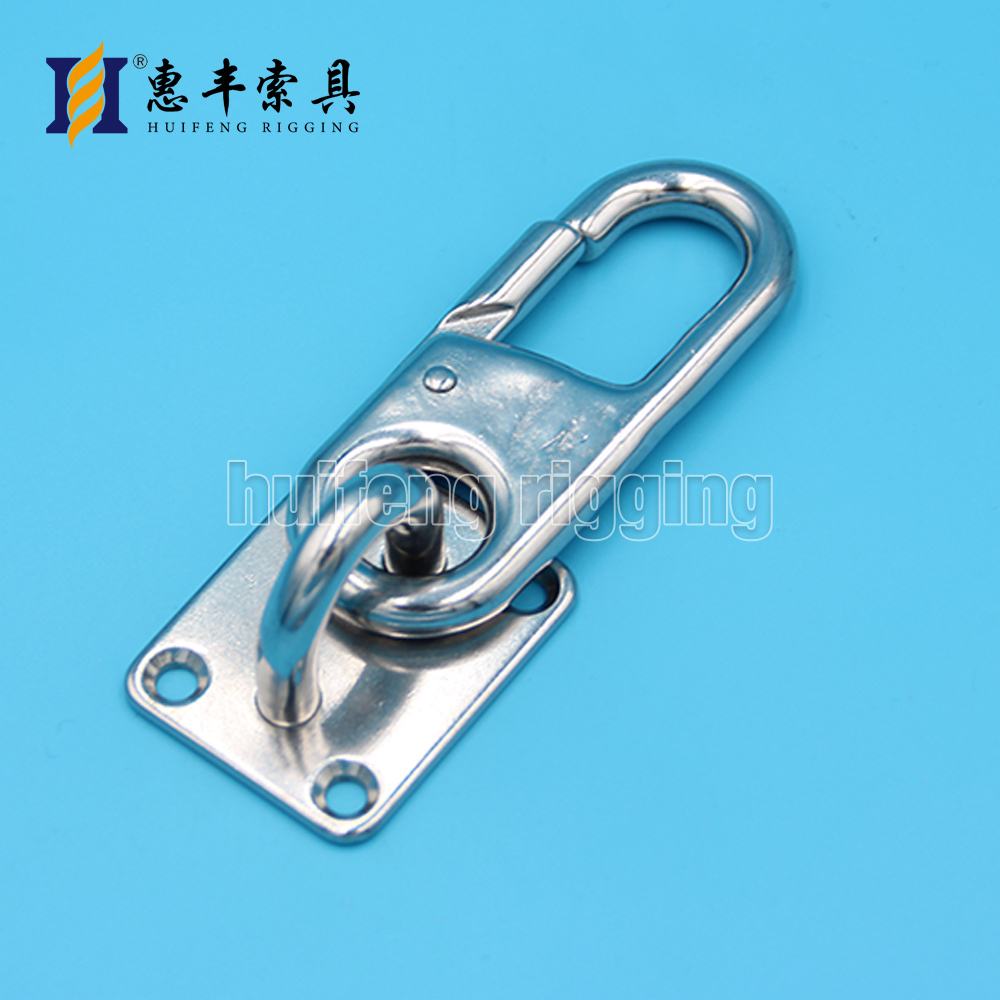

Square Pad Eye with Snap Hook
方形固定扣带弹簧钩
Square Pad Eye with Snap Hook
ITEM NO Size(mm)
HF-6035 8mm

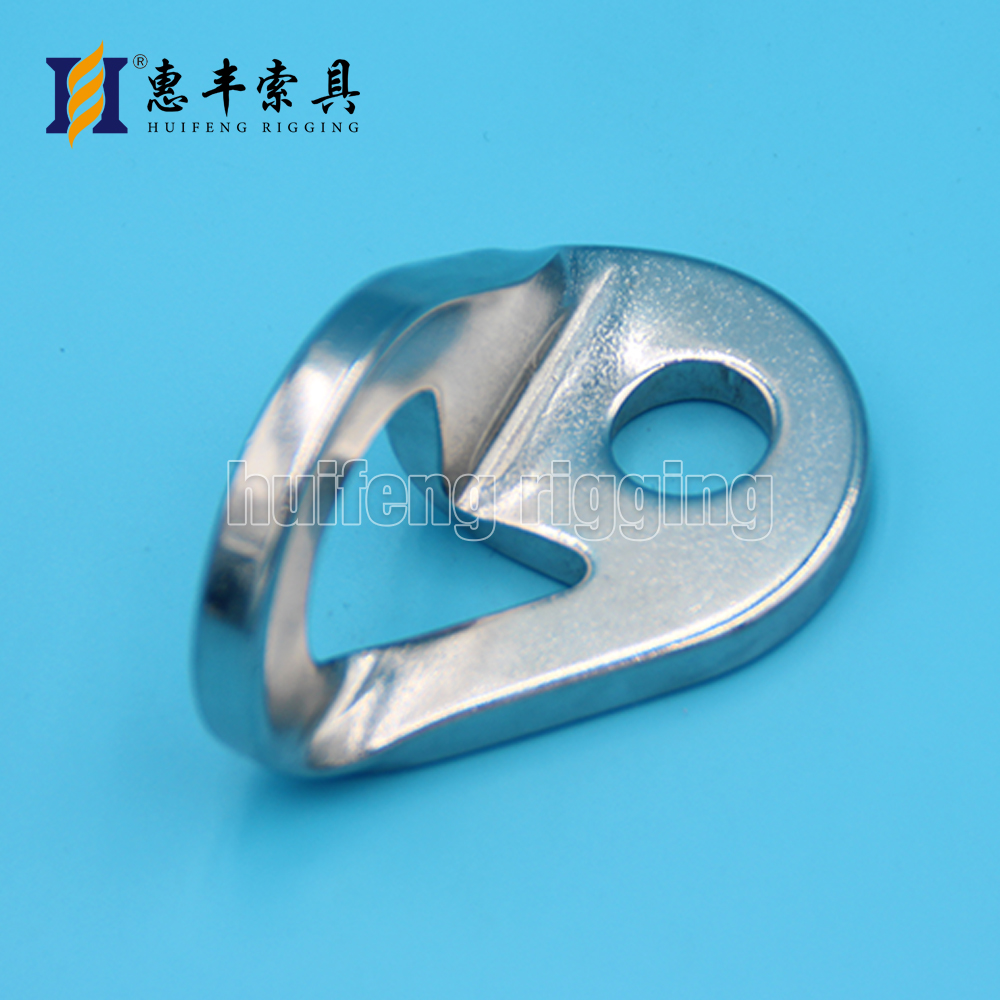

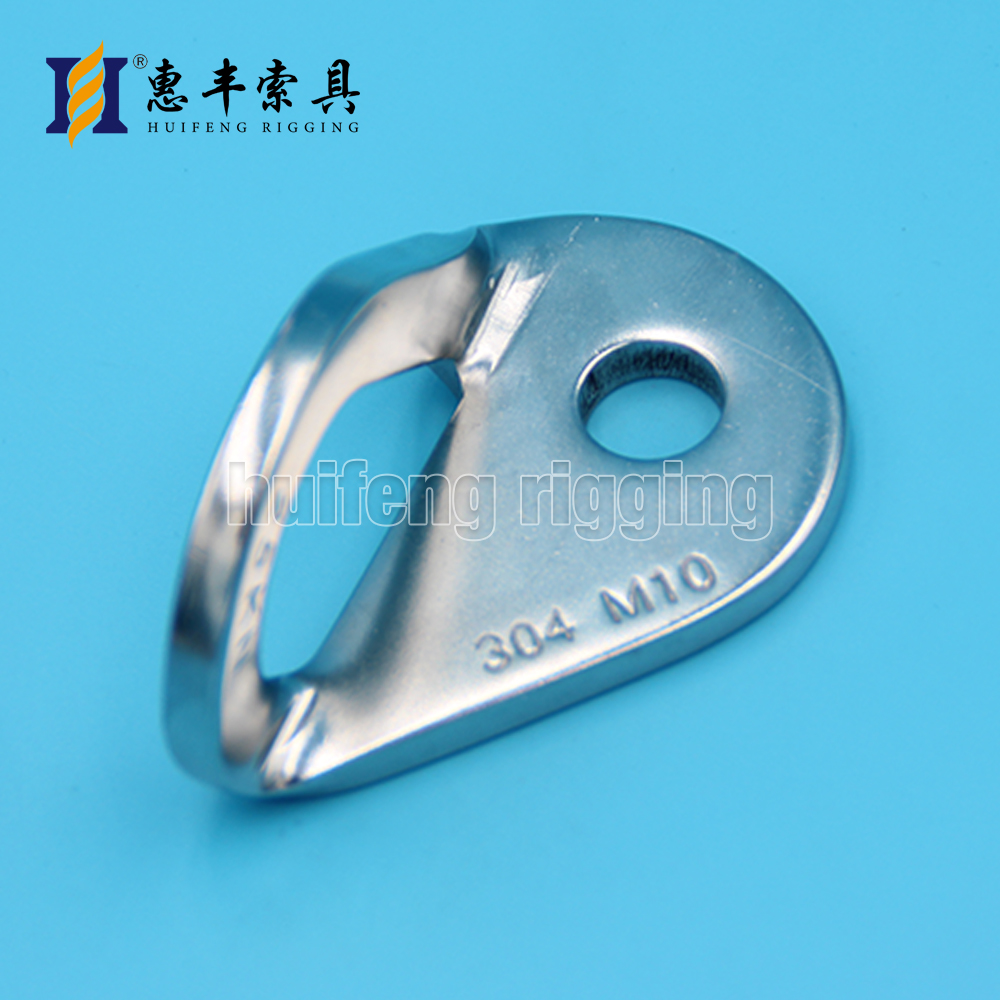

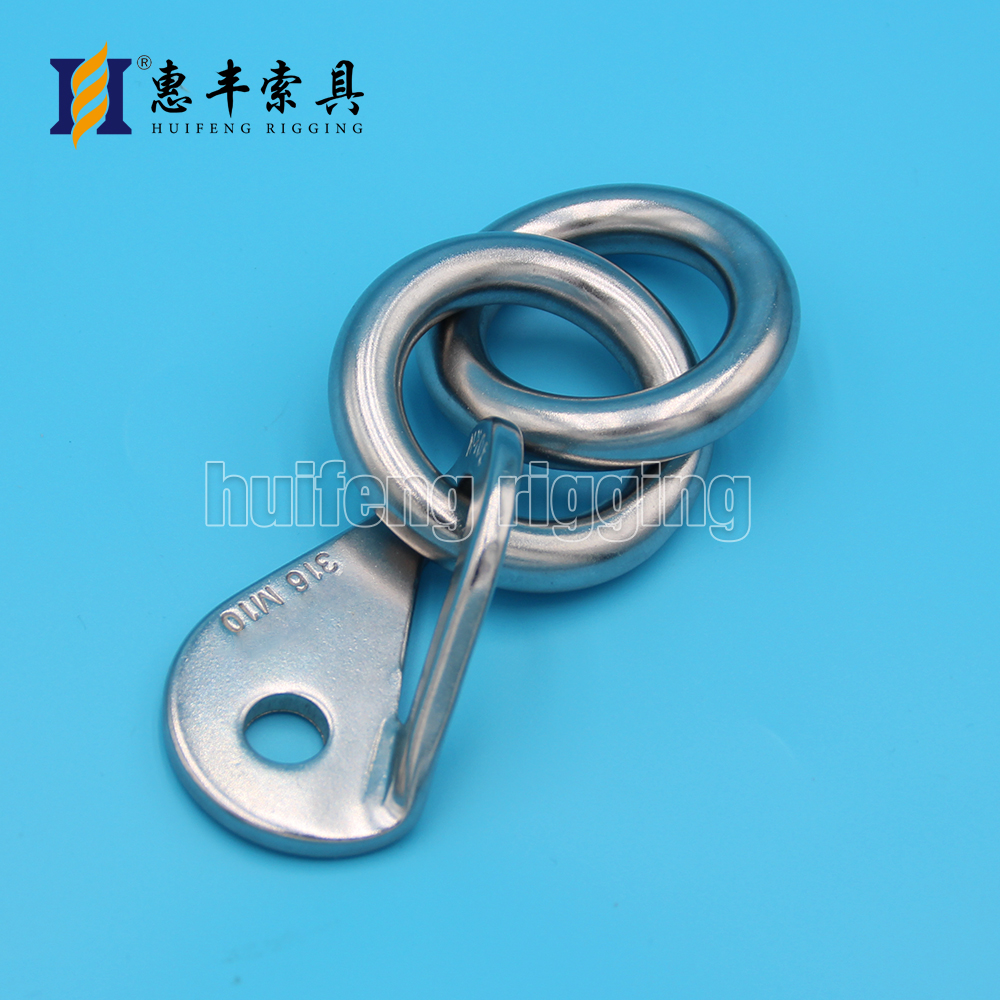

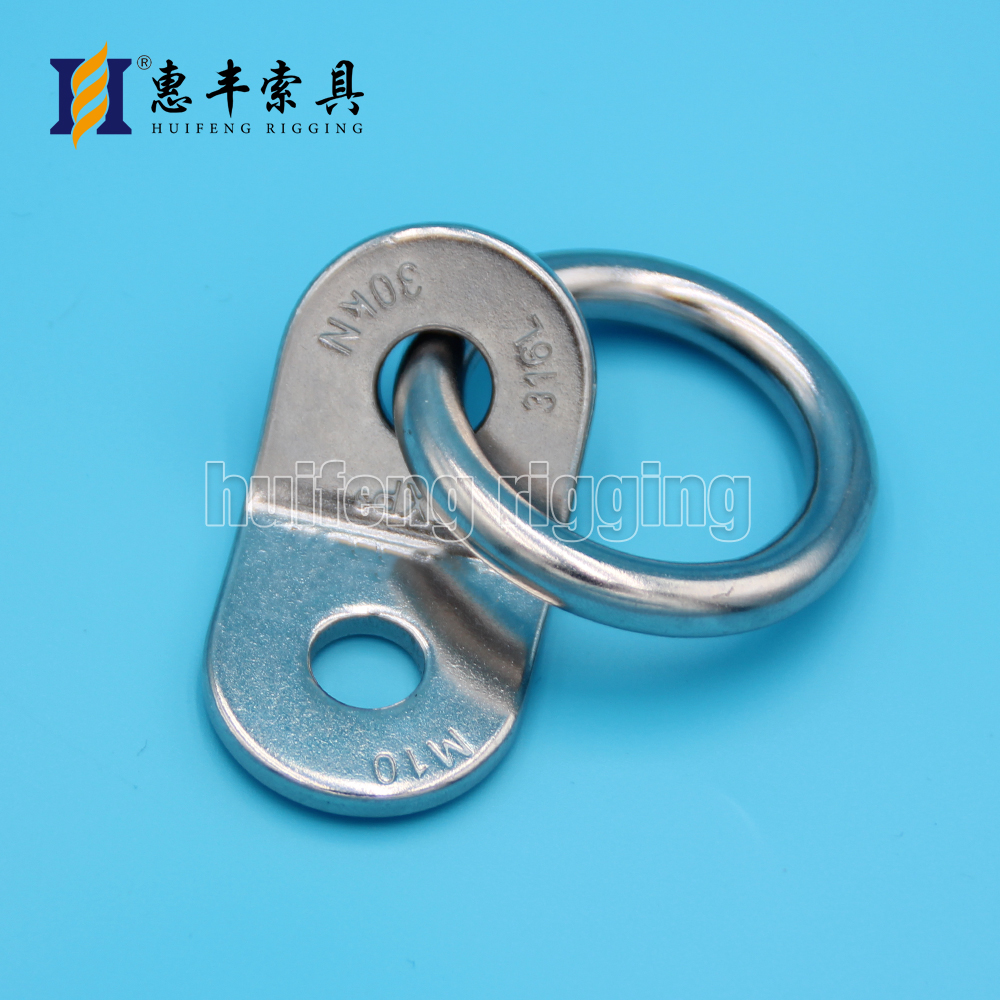

Climbing Anchor Bolt
攀岩挂片
Climbing Anchor Bolt
ITEM NO Size(mm) Thickness(mm)
HF-6036 M10 5mm
Climbing Anchor Bolt
攀岩挂片
Climbing Anchor Bolt
ITEM NO Size(mm) Thickness(mm)
HF-6037 M10 5mm
