RIGGING HARDWARE

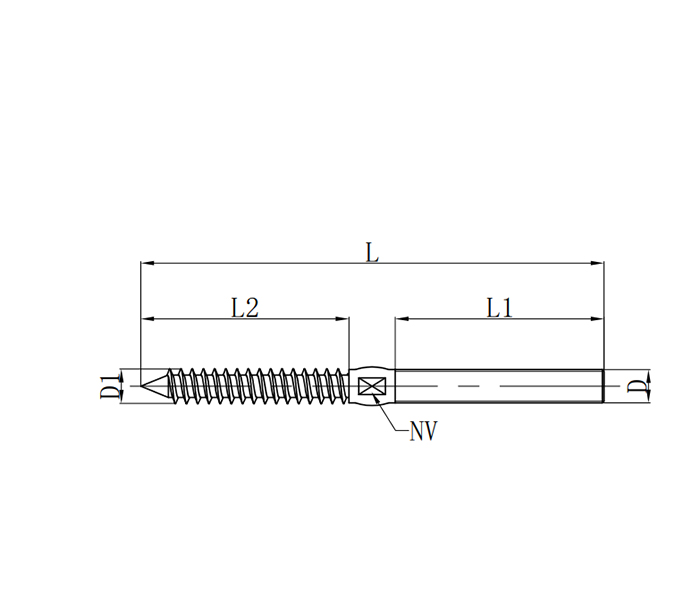

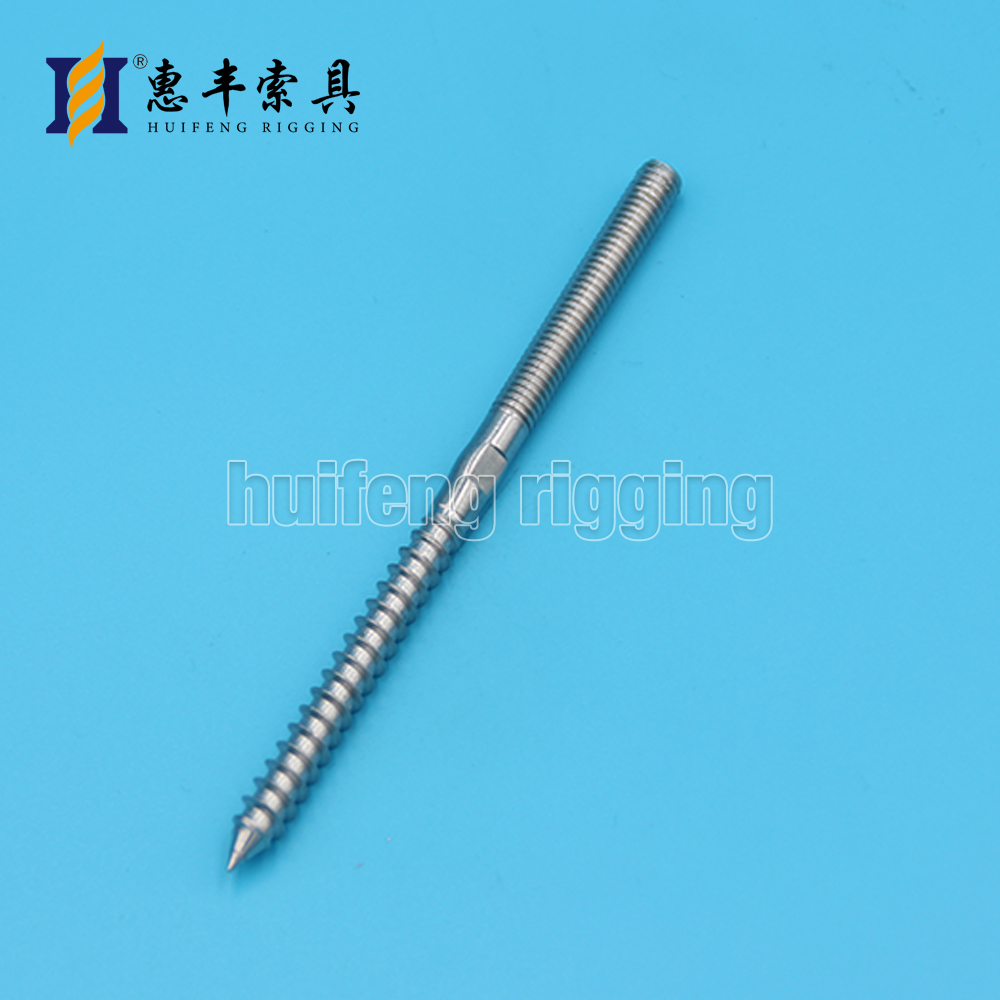

Threaded Dowel Screw
美式丝杆木螺丝
Threaded Dowel Screw
ITEM NO D L L1 L2 D1 NV
in in in in in in
HF-8101-1/4 1/4" 3.75" 1.75" 1.575" 0.25" 0.157"
HF-8101-5/16 5/16" 5.00" 2.25" 2.165" 0.31" 0.196"
HF-8101-3/8 3/8" 5.50" 2.25" 2.560" 0.38" 0.275"

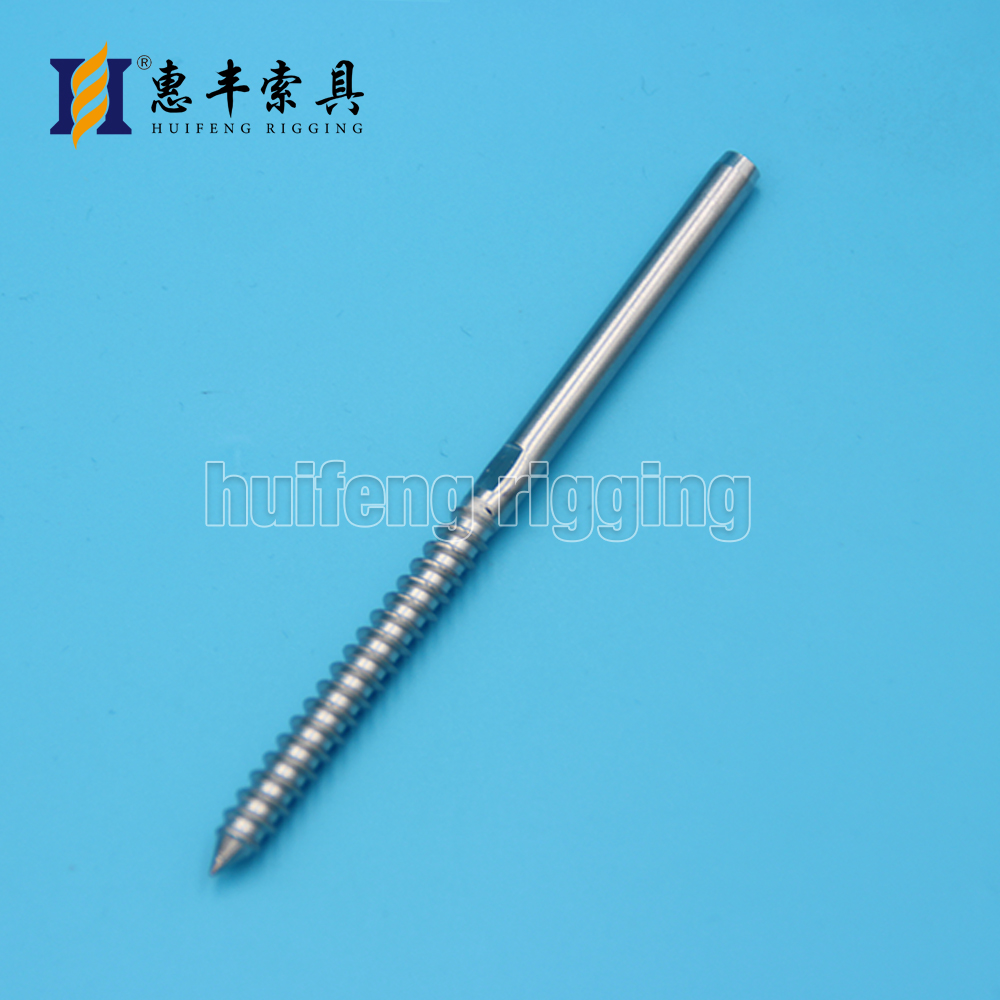

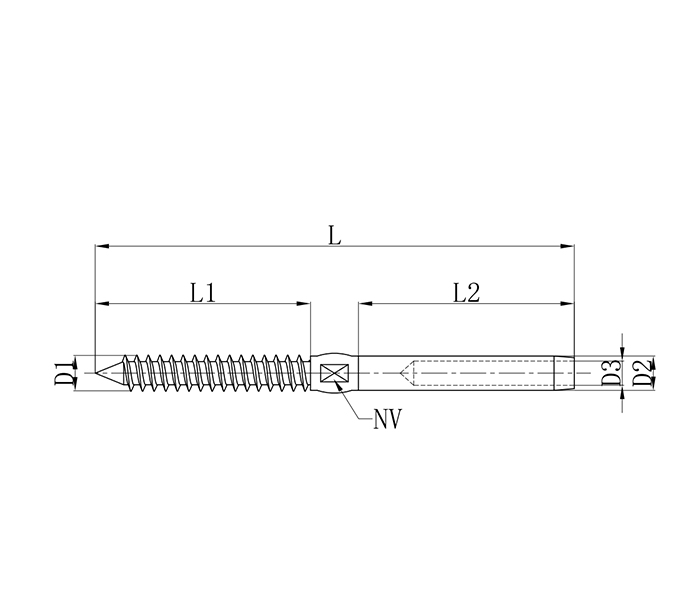

Swage Stud With Dowel Screw
特殊美式木螺纹直杆接线器 AISI316
Swage Stud With Dowel Screw
ITEM NO WireΦ D1 D2 D3 L L1 L2
in in in in in in in
HF-8102-1/8 1/8" 0.25" 0.215"-0.221" 0.14"-0.145" 4" 2" 1.45"
HF-8102-3/16 3/16" 0.25" 0.292"-0.298" 0.201"-0.206" 4.37" 2" 1.9"

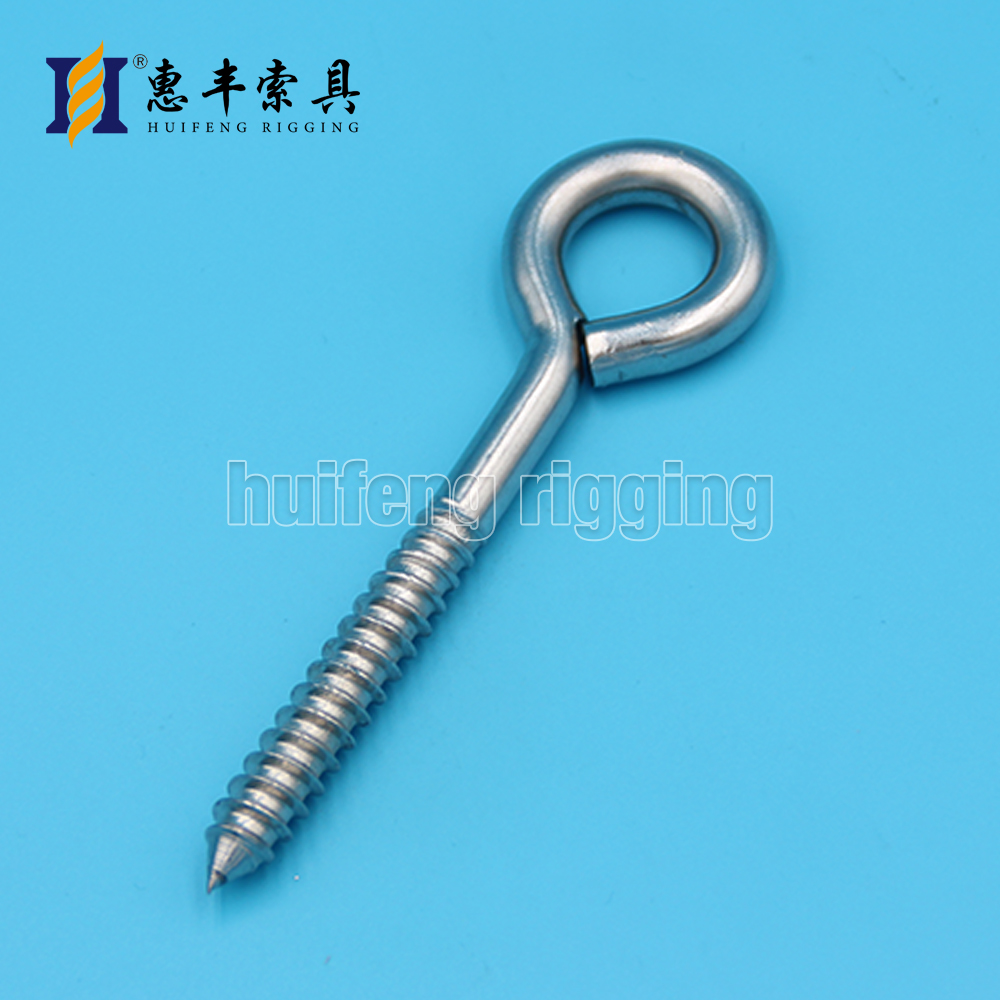

Lag Eye Bolt
吊环木螺丝
Lag Eye Bolt
ITEM NO Φ L L1 A WT
mm mm mm mm KGS
HF-8103-0440 4 40 25 10 0.013
HF-8103-0530 5 30 25 10 0.007
HF-8103-0680 6 80 70 13 0.019
HF-8103-06110 6 110 100 13 0.023
HF-8103-0890 8 90 76 16 0.046
HF-8103-08130 8 130 100 16 0.057
HF-8103-01090 10 90 75 20 0.068
HF-8103-012120 12 120 100 25 0.16

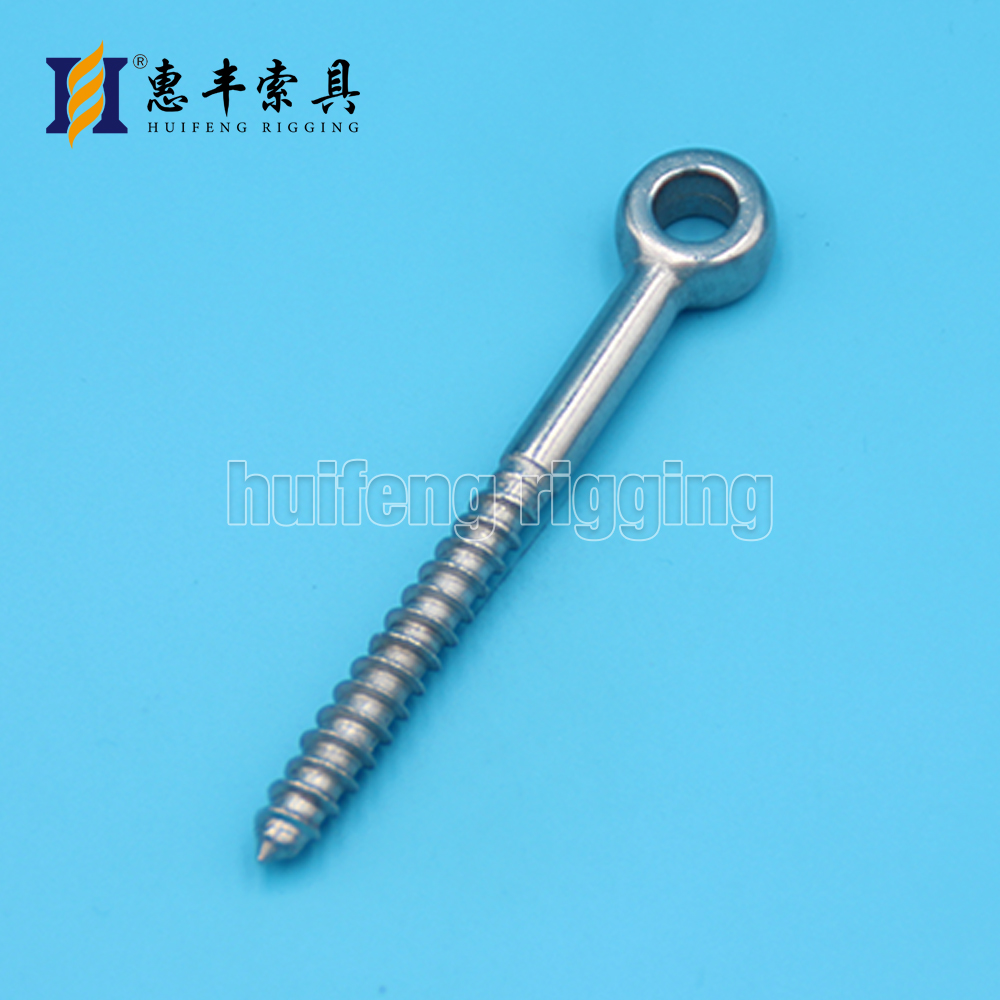

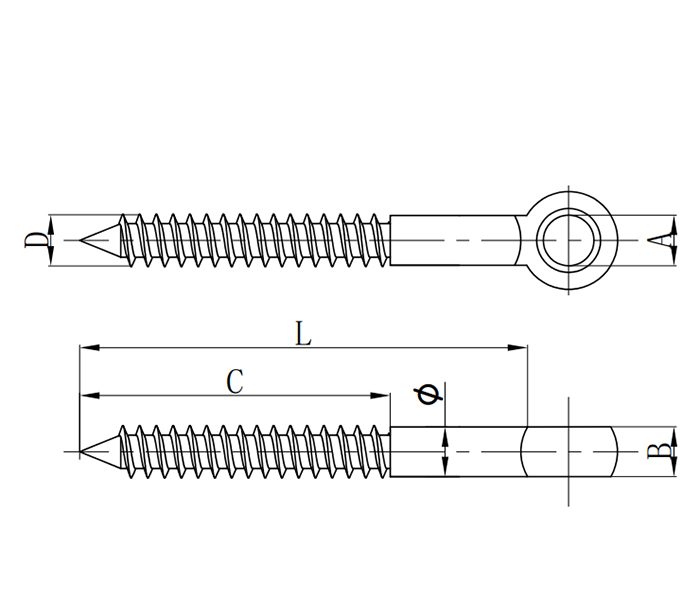

Lag Eye Screw
眼式木螺丝 AISI316
Lag Eye Screw
ITEM NO SIZE Φ A B C D L
mm mm mm mm mm mm mm
HF-8104-0640 6*40 5.6-6 6.3 7 30 6 40
HF-8104-0650 6*50 5.6-6 6.3 7 35 6 50
HF-8104-0655 6*55 5.6-6 6.3 7 40 6 55
HF-8104-0660 6*60 5.6-6 6.3 7 40 6 60
HF-8104-0860 8*60 7.6-8 8.4 9 40 8 60
HF-8104-0875 8*75 7.6-8 8.4 9 50 8 75
HF-8104-0880 8*80 7.6-8 8.4 9 55 8 80
HF-8104-08100 8*100 7.6-8 8.4 9 65 8 100
HF-8104-01085 10*85 9.6-10 10.2 11 60 10 85
HF-8104-010100 10*100 9.6-10 10.2 11 65 10 100
HF-8104-010120 10*120 9.6-10 10.2 11 80 10 120
HF-8104-012100 12*100 11.6-12 12.1 13 65 12 100
HF-8104-012120 12*120 11.6-12 12.1 13 80 12 120

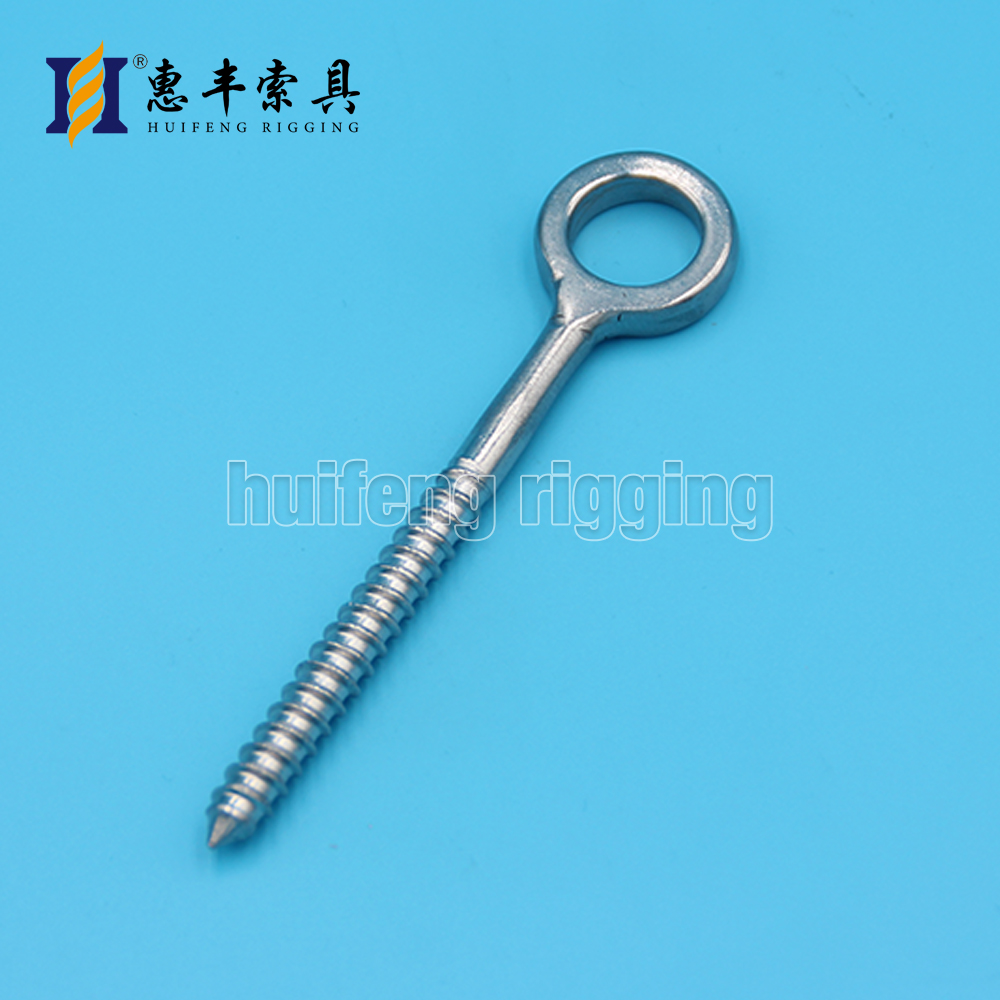

Lag Big Eye Screw
眼式木螺丝
Lag Big Eye Screw
ITEM NO SIZE(mm)
HF-8105 6x80
Wood Screw Lag Thread Eye Bolt
带肩吊环木螺丝
Wood Screw Lag Thread Eye Bolt
ITEM NO A (NOMINAL SIZE) B C D L WT (LB)
HF-8106-1/4 1/4" 1.58" 0.62" 0.20" 2-5/16" 0.064
HF-8106-5/16 5/16" 2.31" 0.78" 0.24" 3-3/16" 0.12
HF-8106-3/8 3/8" 3.12" 1" 0.30" 4" 0.36
HF-8106-1/2 1/2" 3.12“ 1.18" 0.38" 4-3/4" 0.45

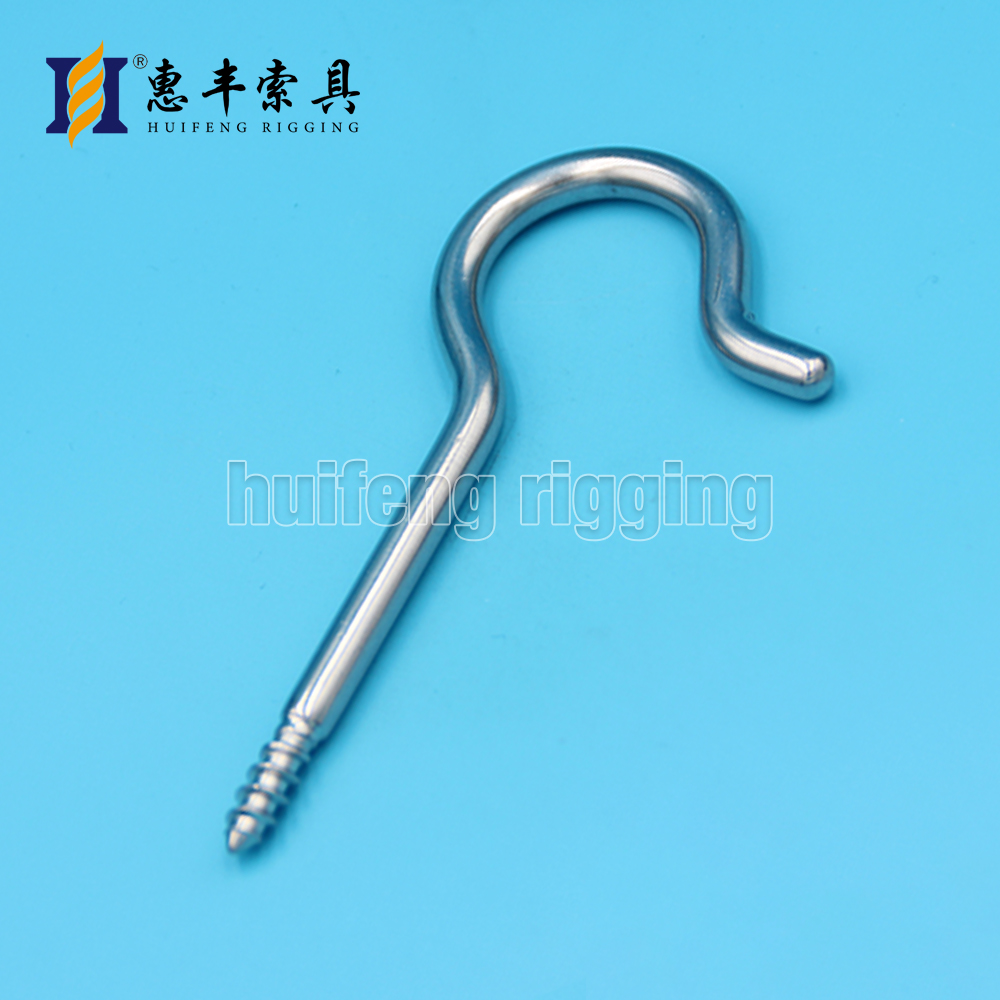

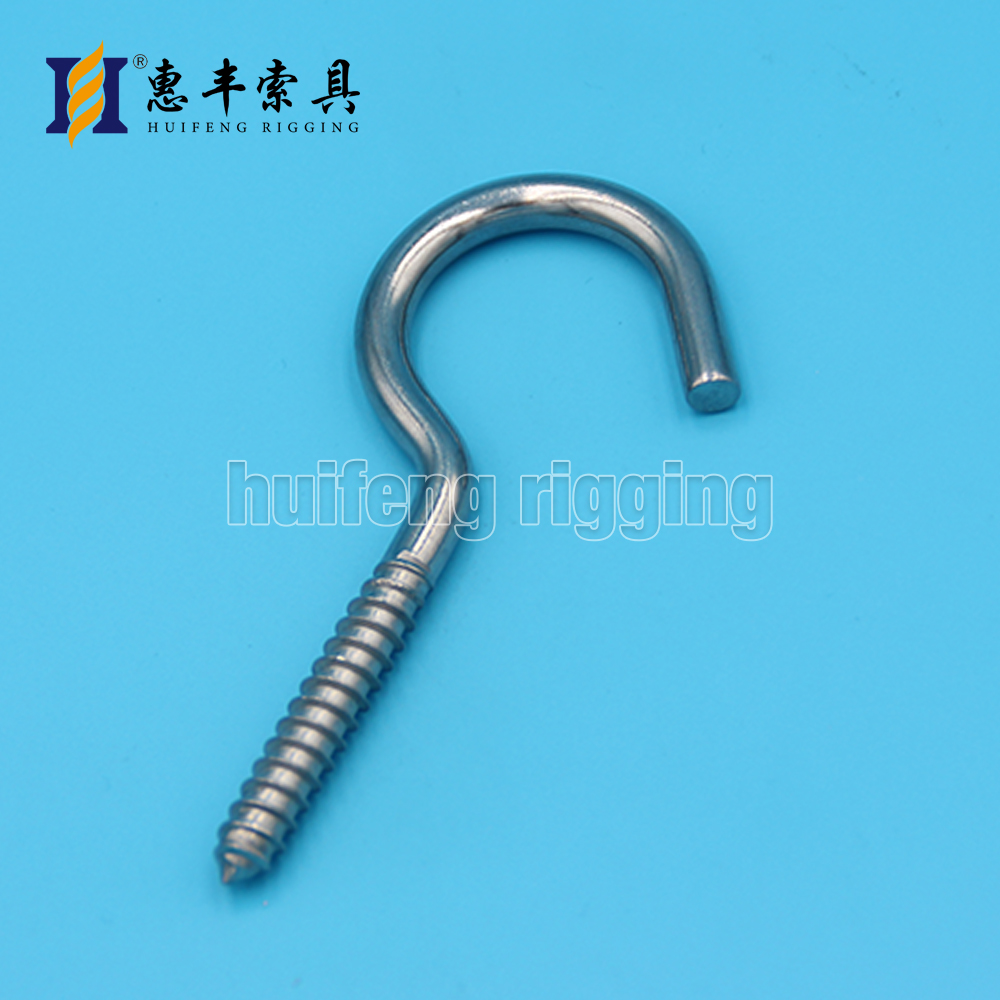

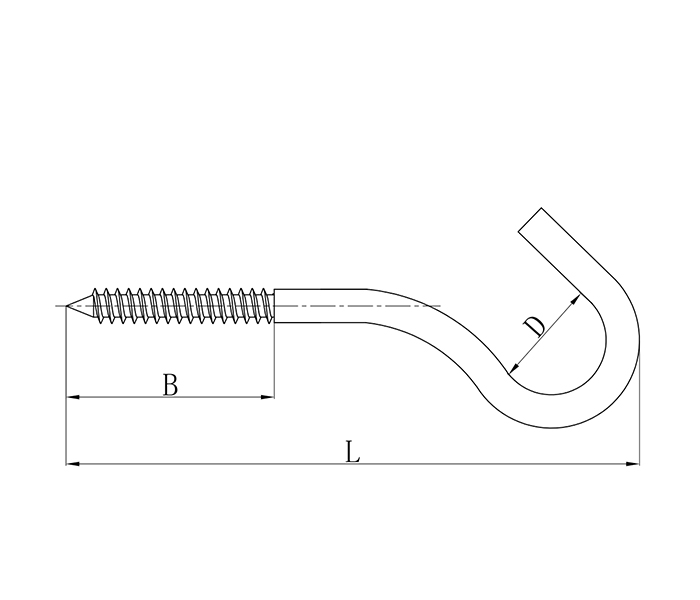

Screw Hook
问号钩木螺丝
Screw Hook
ITEM NO SIZE(mm) L(mm) B(mm) D(mm)
HF-8107-0003 3 40 15 15
HF-8107-0004 4 50 25 15
HF-8107-0008 8 70 30 25
Screw Hook
问号钩木螺丝
Screw Hook
ITEM NO Size(mm)
HF-8108 3mm-8mm

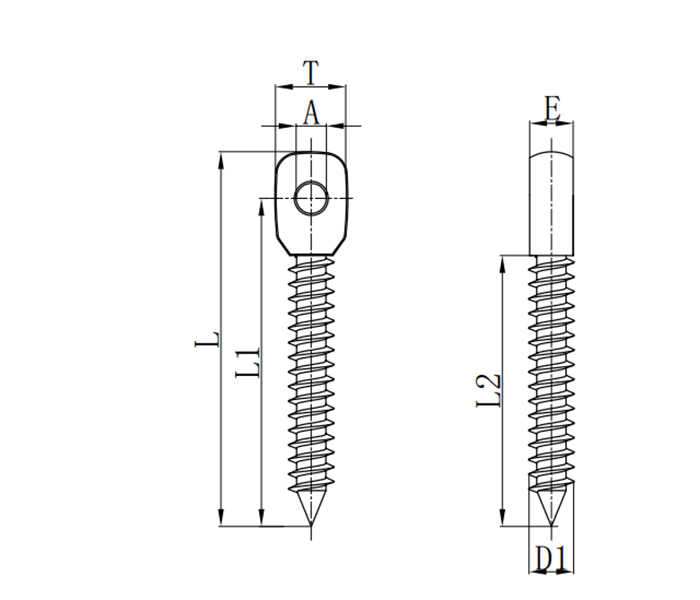

Eye Lag Screw
扁头眼式木螺丝
Eye Lag Screw
ITEM NO WireΦ L L1 L2 E A T
in in in in in in in
HF-8109-5/16 5/16" 2.3" 2" 1.5" 0.23" 0.25" 0.5"

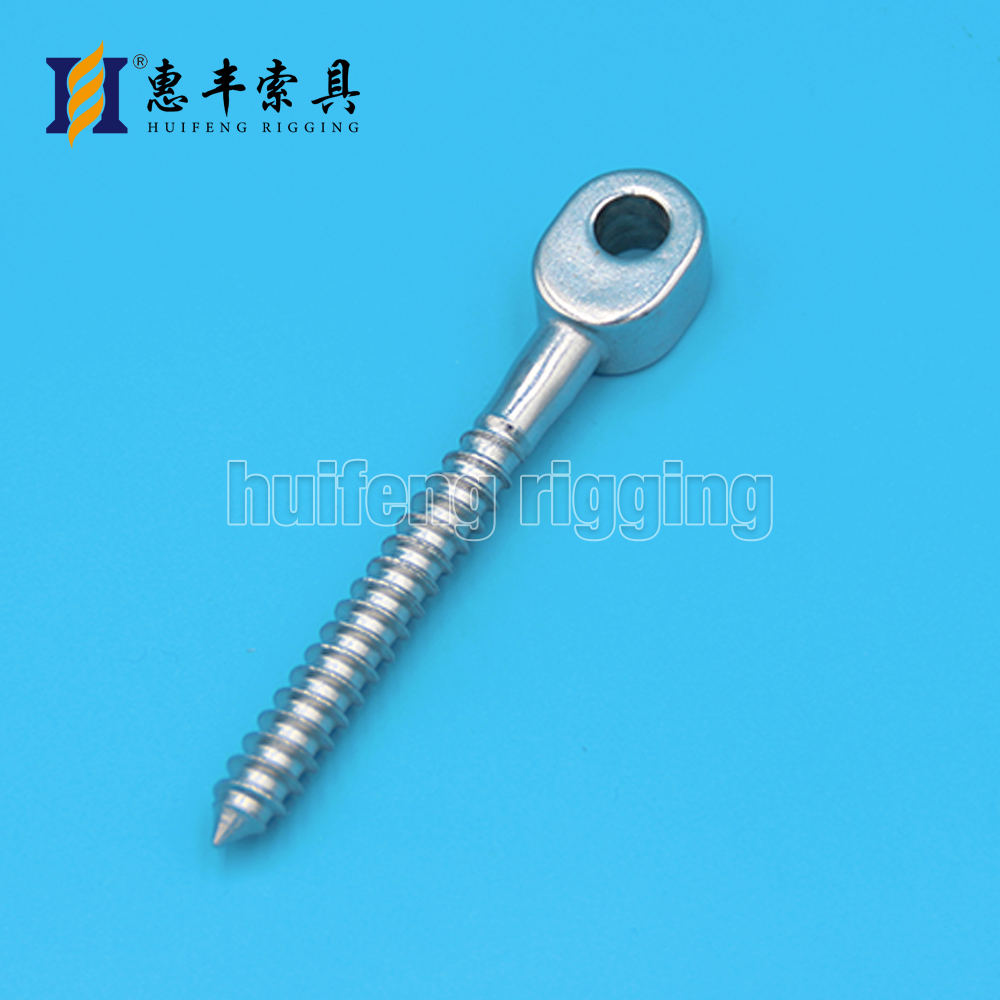

Lag Eye Screw
圆头铸件木螺丝
Lag Eye Screw
ITEM NO SIZE(mm)
HF-8110 8x70

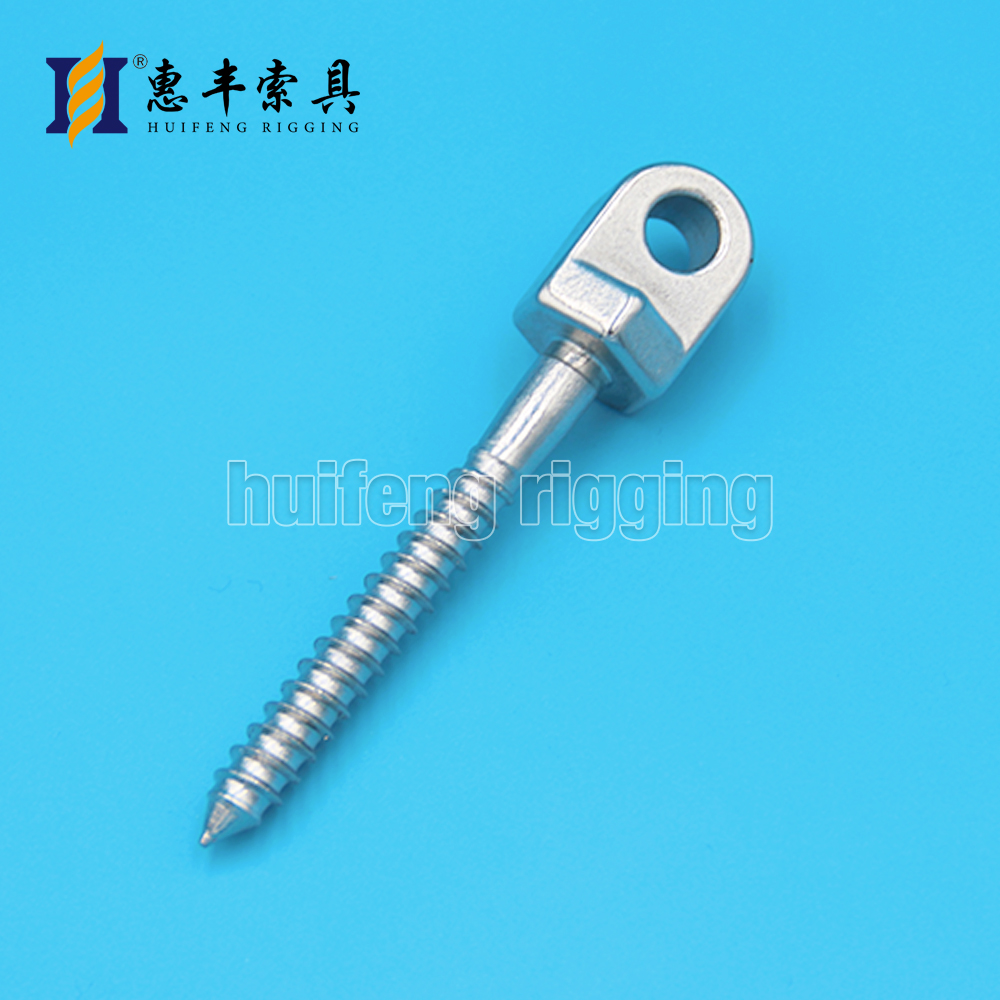

Lag Eye Screw
眼式木螺丝
Lag Eye Screw
ITEM NO SIZE(mm)
HF-8111 8x70

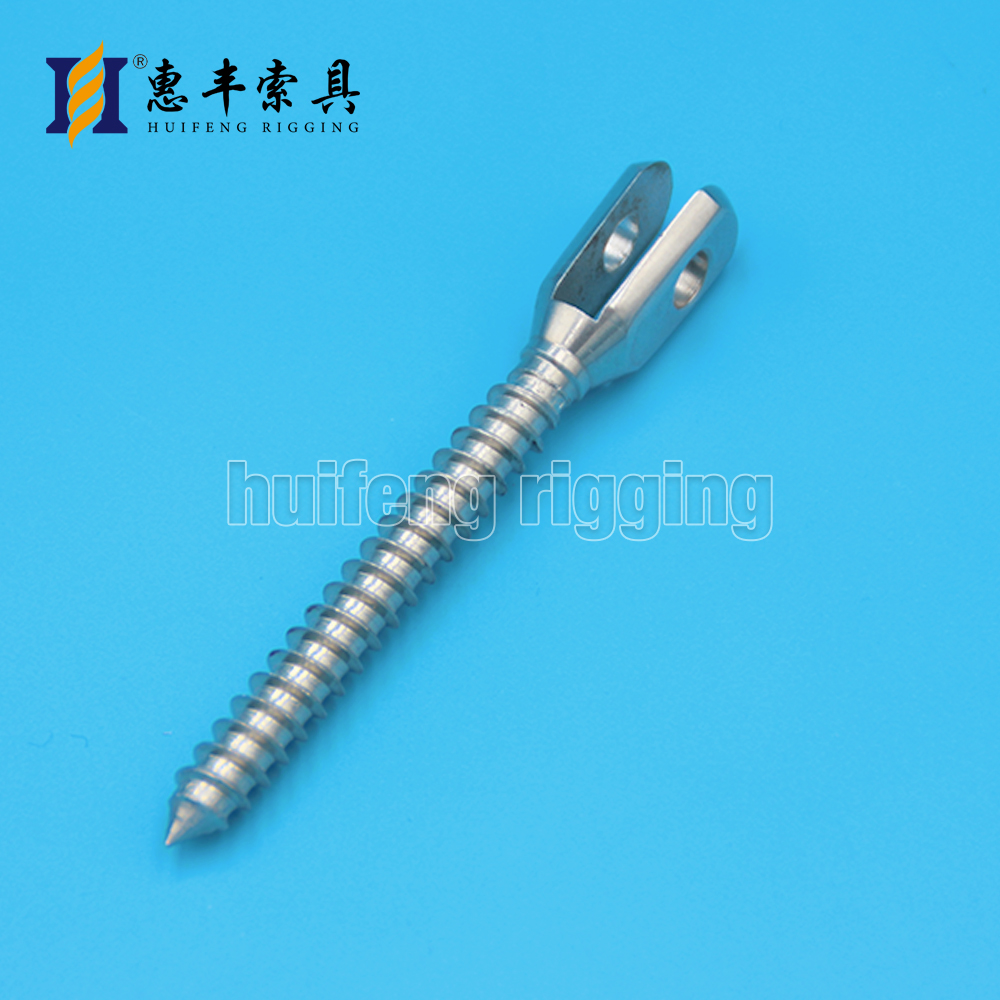

Machined Fork Screw
铣叉木螺丝
Machined Fork Screw
ITEM NO SIZE(mm)
HF-8112 8x65

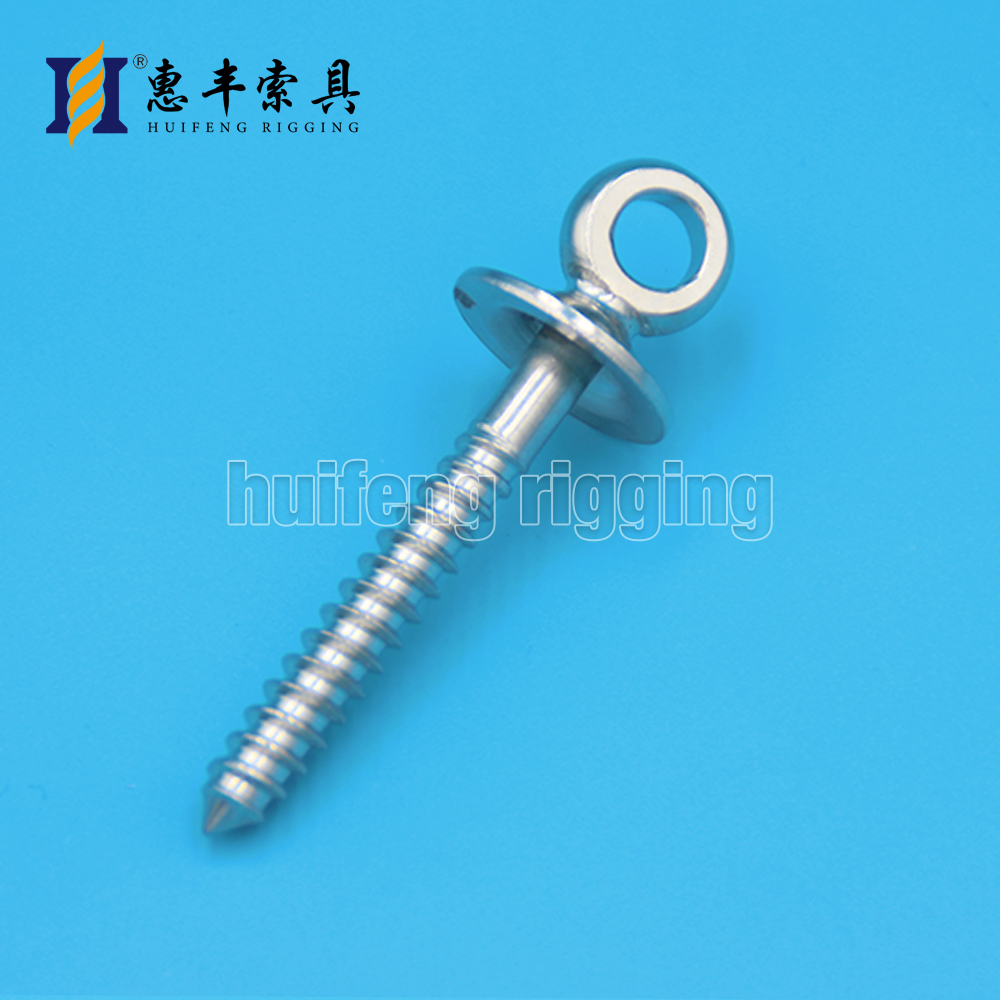

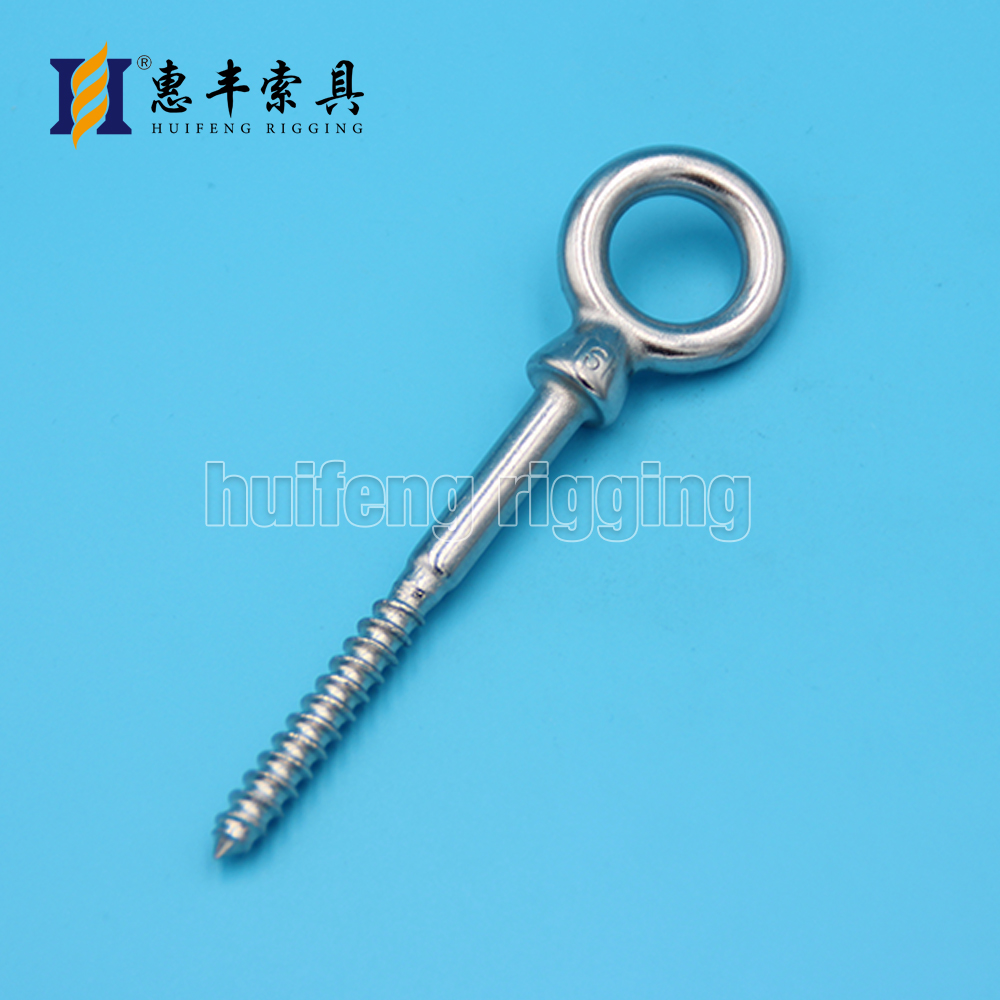

Lag Eye Screw with Shoulder
带肩眼式木螺丝
Lag Eye Screw with Shoulder
ITEM NO A B C D E
mm mm mm mm mm
HF-8113 79 46 17 9 ST8

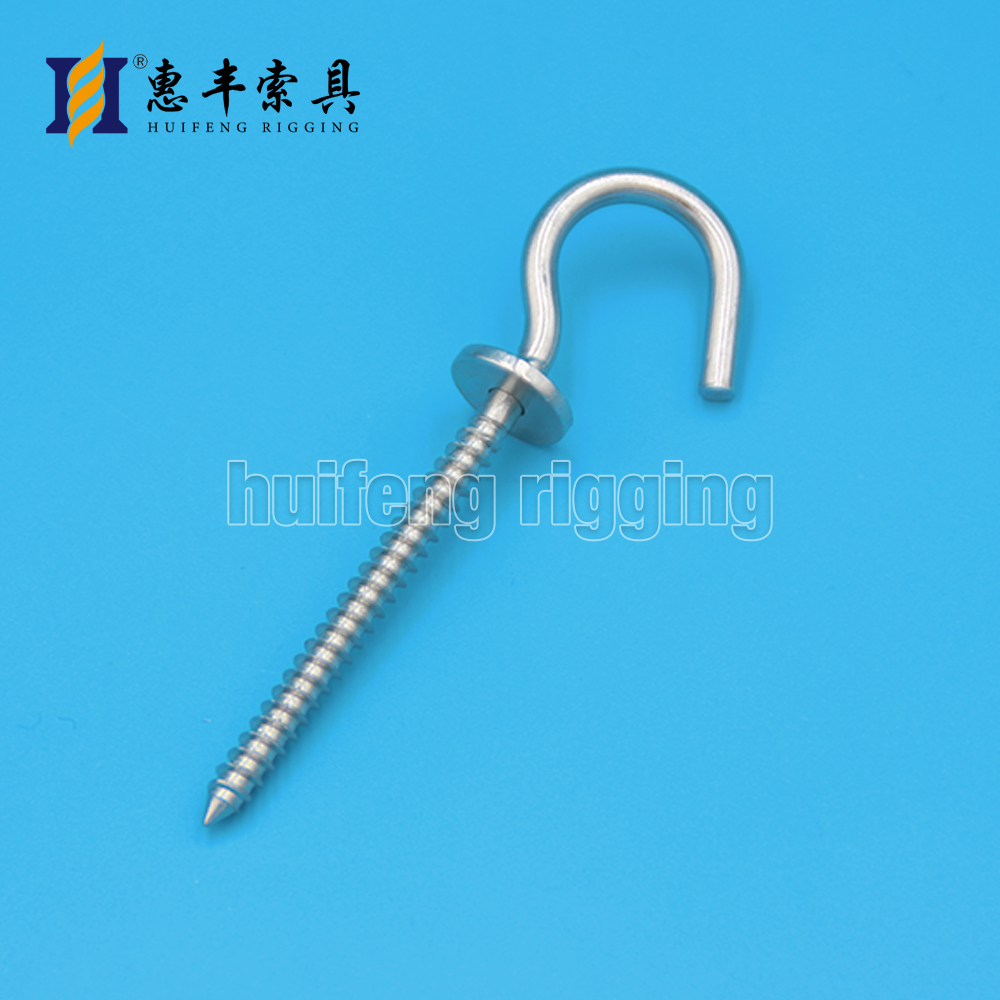

Lag Hook Screw with Shoulder
带肩问号钩木螺丝
Lag Hook Screw with Shoulder
ITEM NO SIZE(mm)
HF-8114 4x55

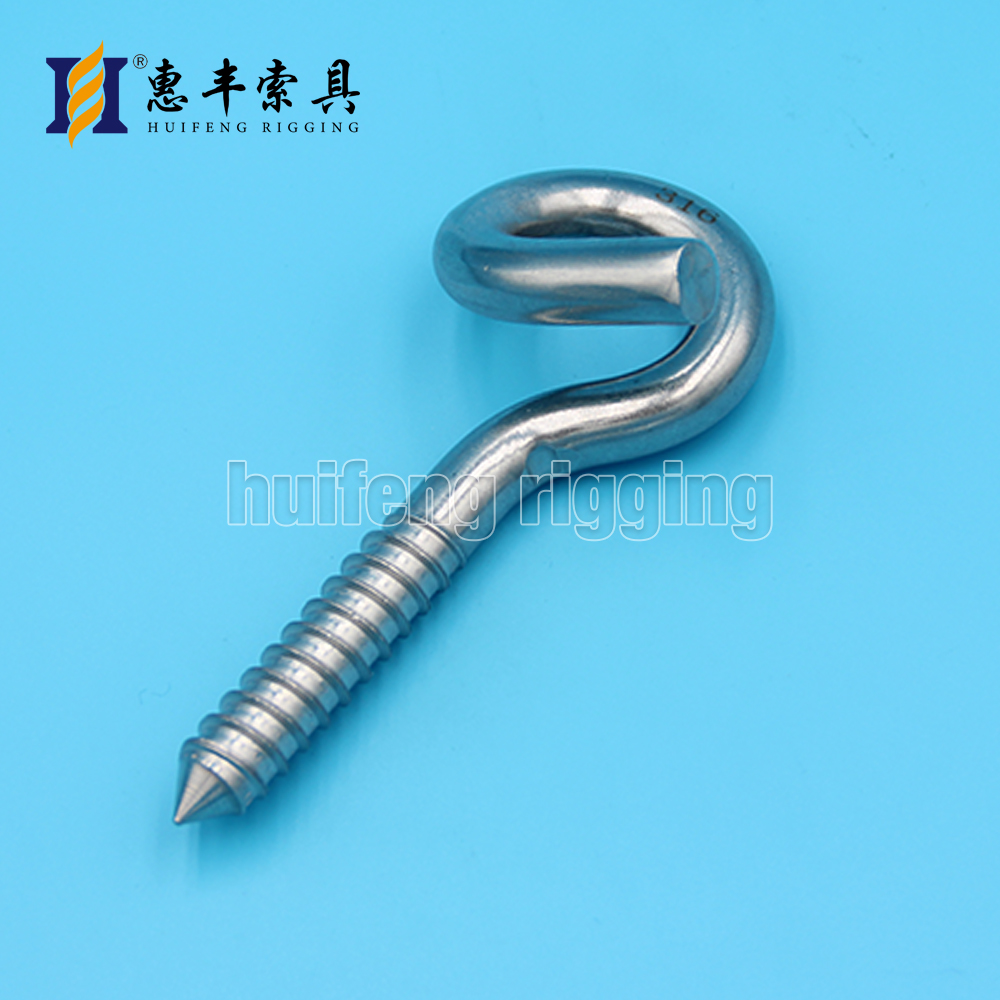

Swing Hook Screw
秋千钩木螺丝
Swing Hook Screw
ITEM NO SIZE(mm)
HF-8115 5mm, 6mm, 8mm, 10mm

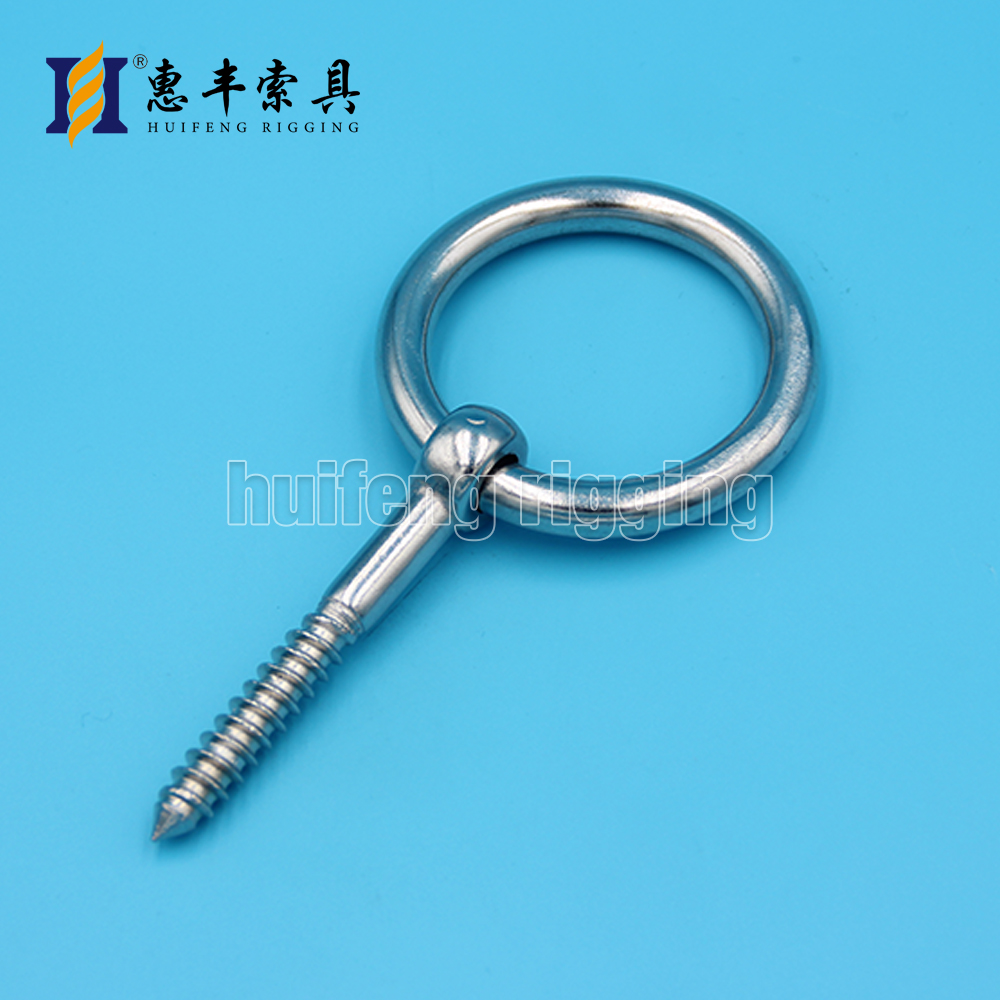

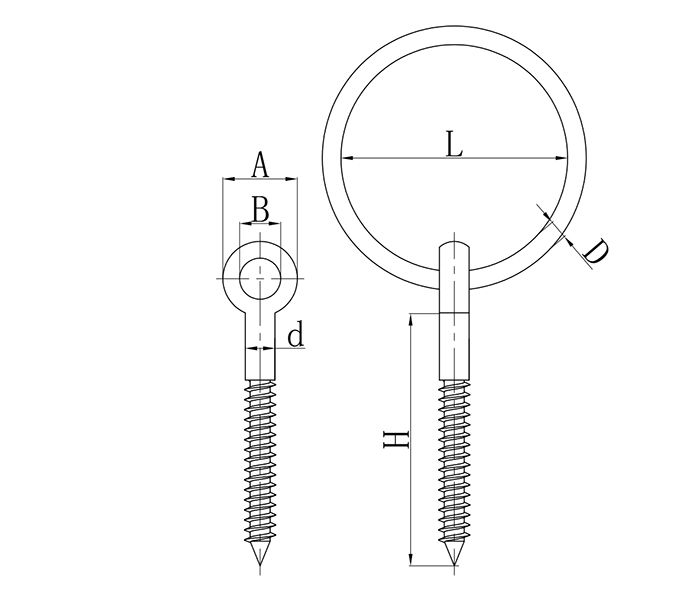

Lag Eye Screw with Ring
带圆环的木螺丝
Lag Eye Screw with Ring
ITEM NO D L H d A B
mm mm mm mm mm mm
HF-8116-0325 3 25 45 4 9 4
HF-8116-0530 5 30 55 6 12 6
HF-8116-0640 6 40 60 6 14 7
HF-8116-0850 8 50 56 8 17 9

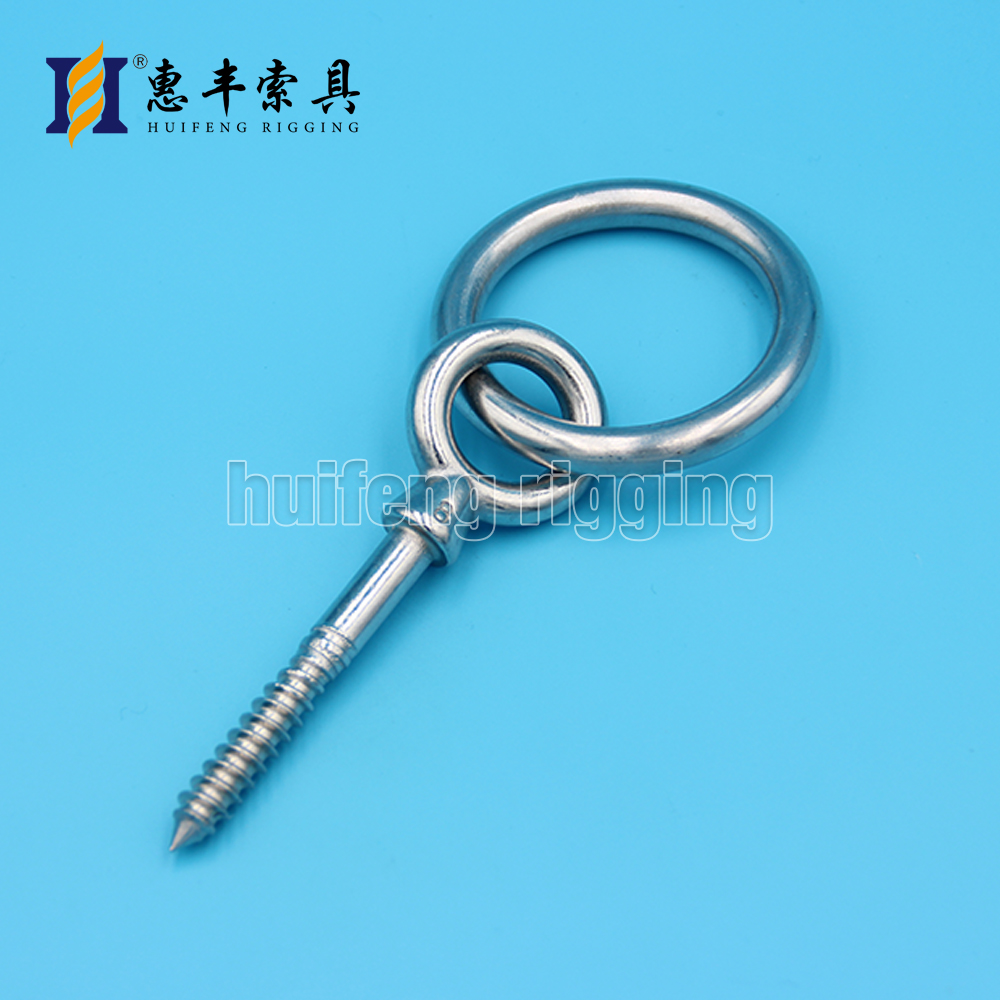

Lag Eye Screw with Ring
带圆环带肩木螺丝
Lag Eye Screw with Ring
ITEM NO SIZE(mm)
HF-8117 8x60

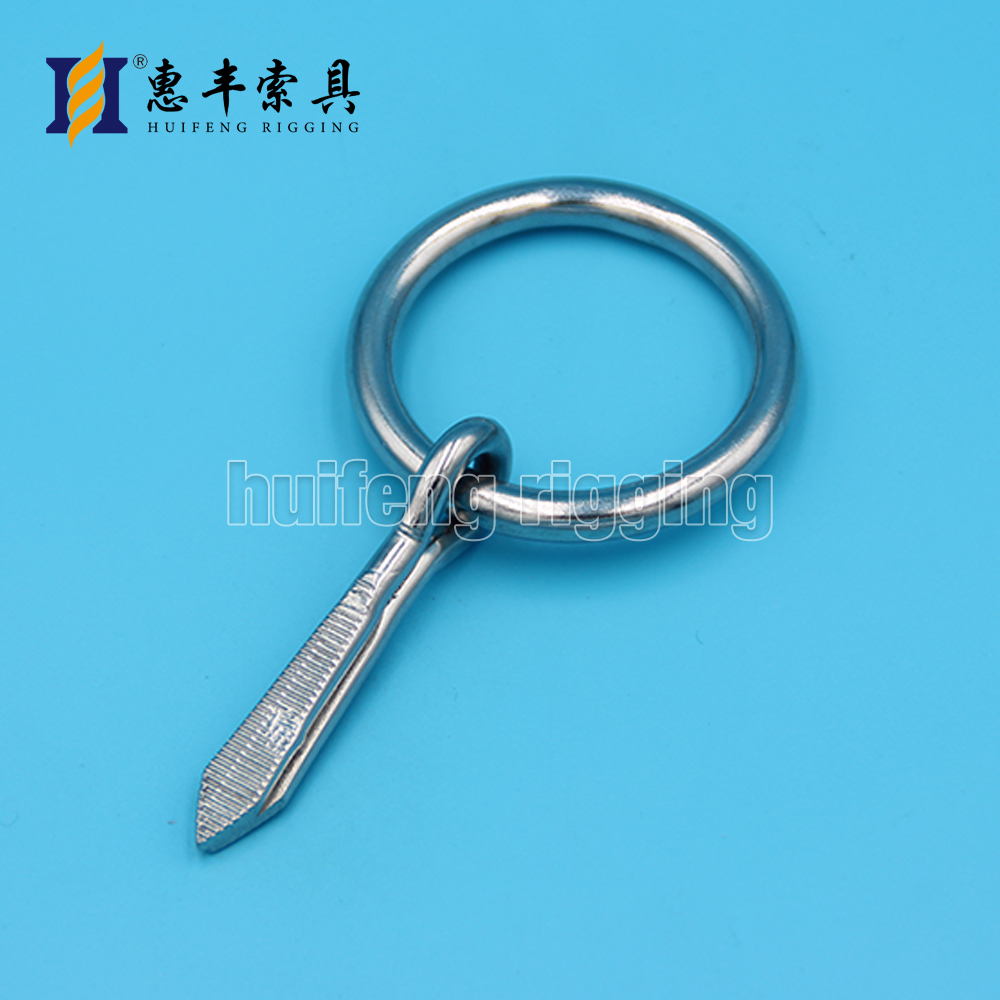

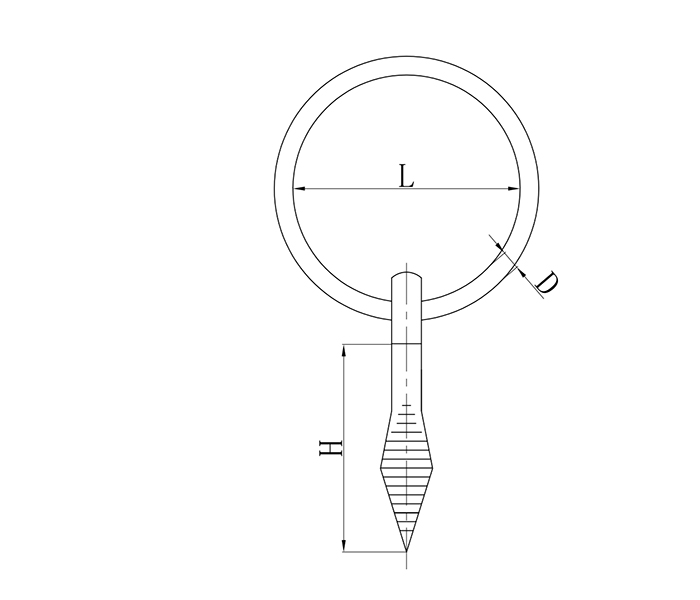

Ring Nail
带圆环镊子钉
Ring Nail
ITEM NO SIZE D L H
mm mm mm mm
HF-8118-0003 3 3 25 30
HF-8118-0004 4 4 30 35
HF-8118-0005 5 5 35 41
HF-8118-0006 6 6 40 43
HF-8118-0008 8 8 45 47

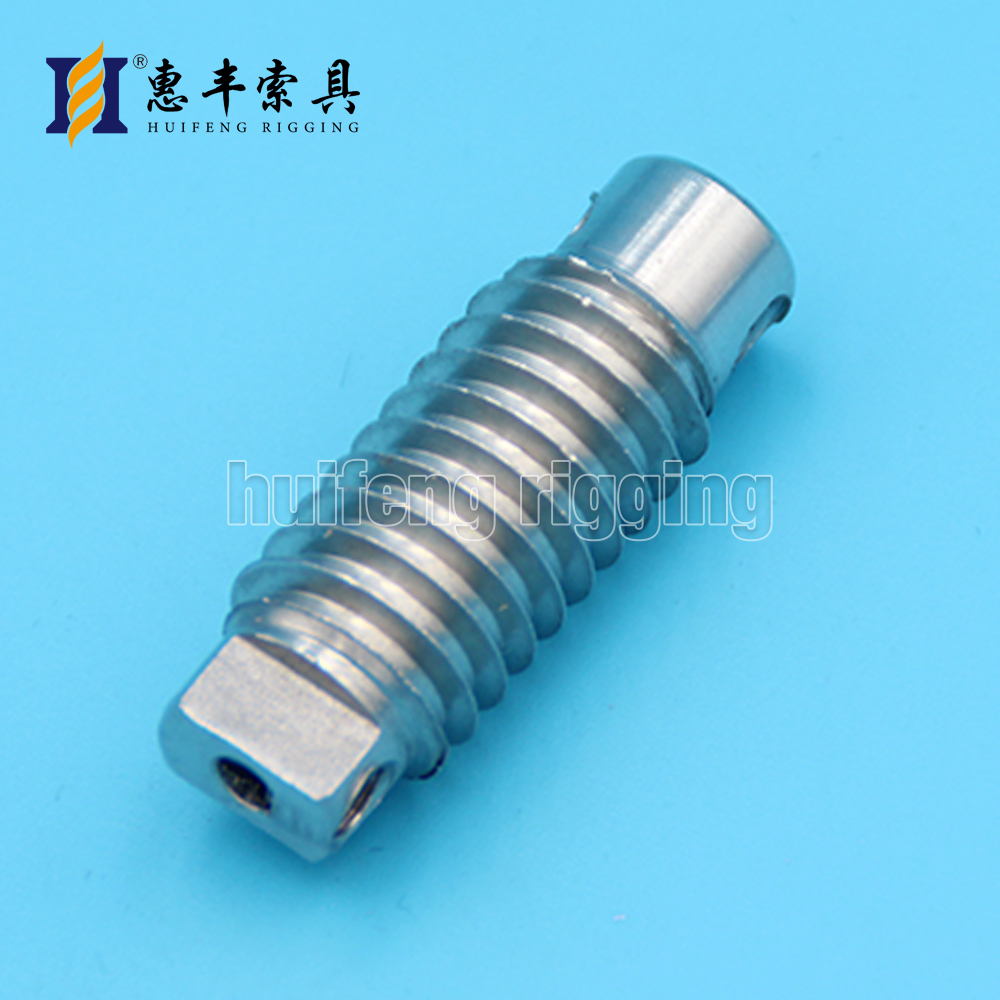

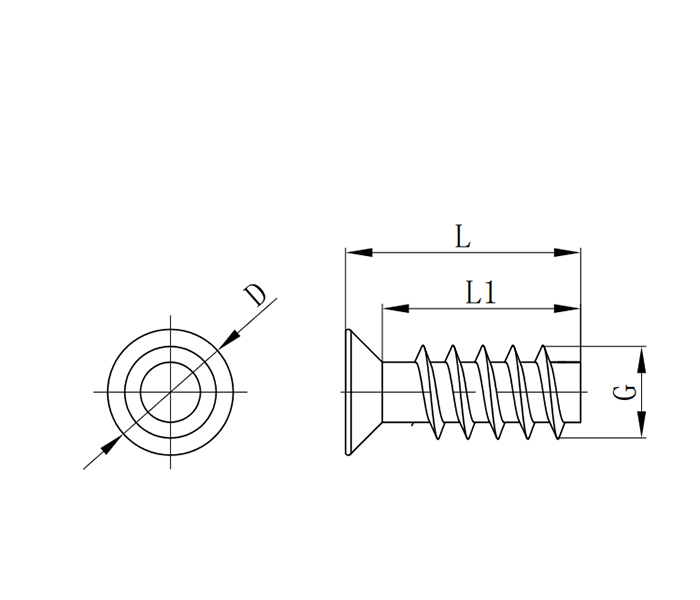

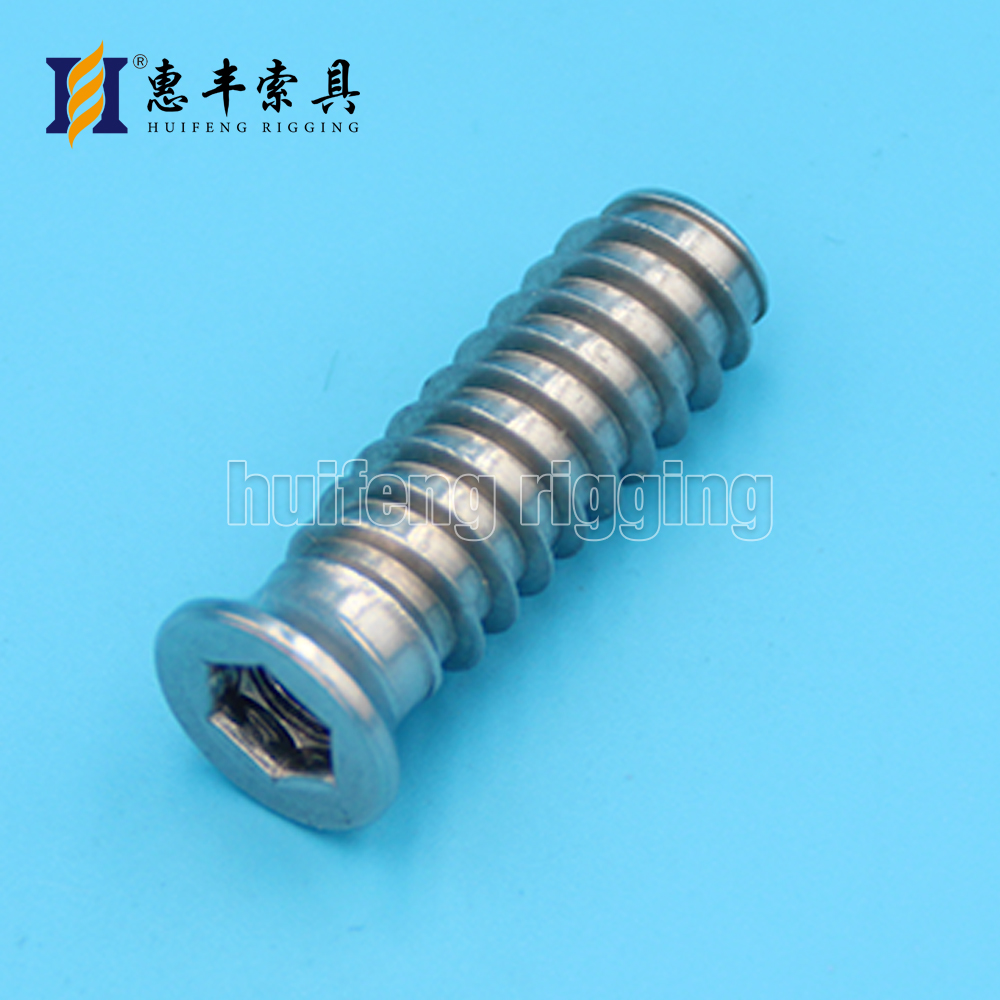

Thread Insert
内螺纹牙套
Thread Insert
ITEM NO G L L1 D
mm mm mm mm
HF-8119-01/8 6-L 32 29 12
HF-8119-01/8 6-R 32 29 12
Invisible Swage Lag Screw
免压套筒
Invisible Swage Lag Screw
ITEM NO SIZE(Inch)
HF-8120 1/8”, 3/16"

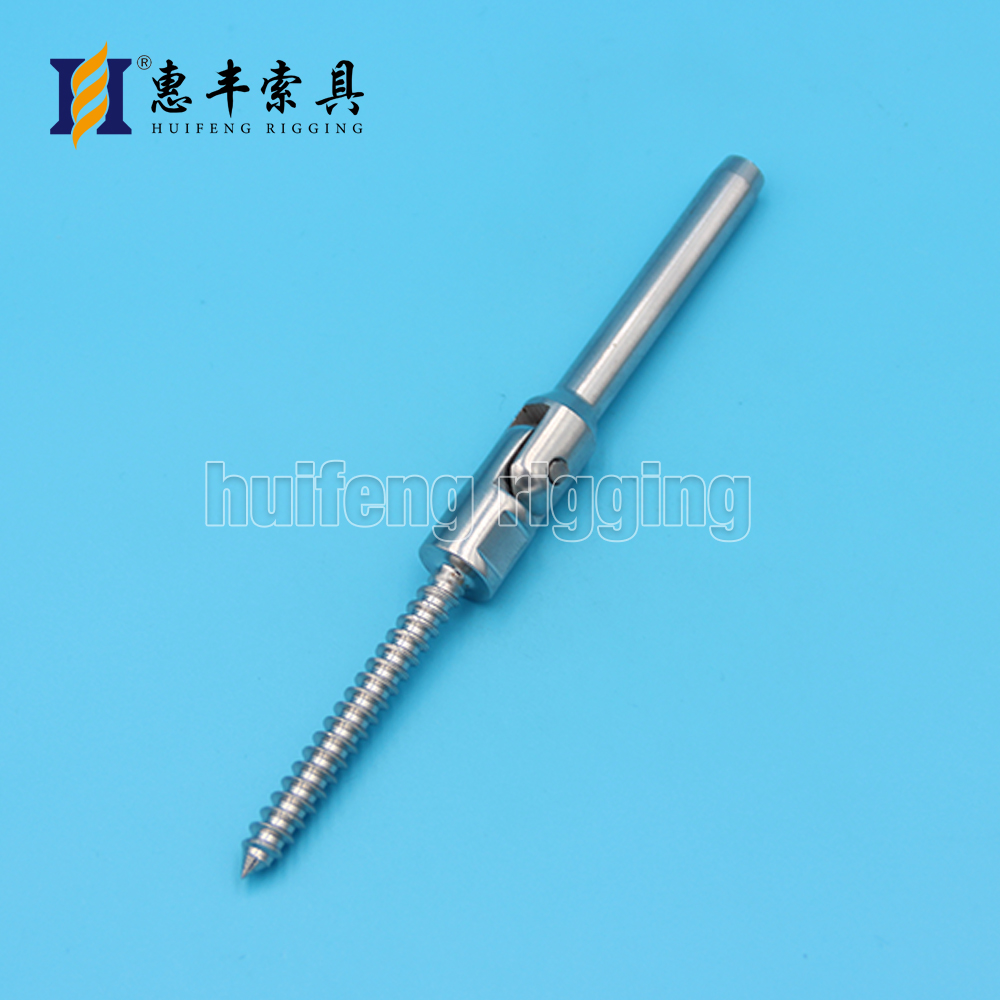

Swageless Terminal Toggle Adjustable Lag Screw
摆动木螺丝接线器
Swageless Terminal Toggle Adjustable Lag Screw
ITEM NO Size(inch)
HF-8121 1/8”, 3/16"

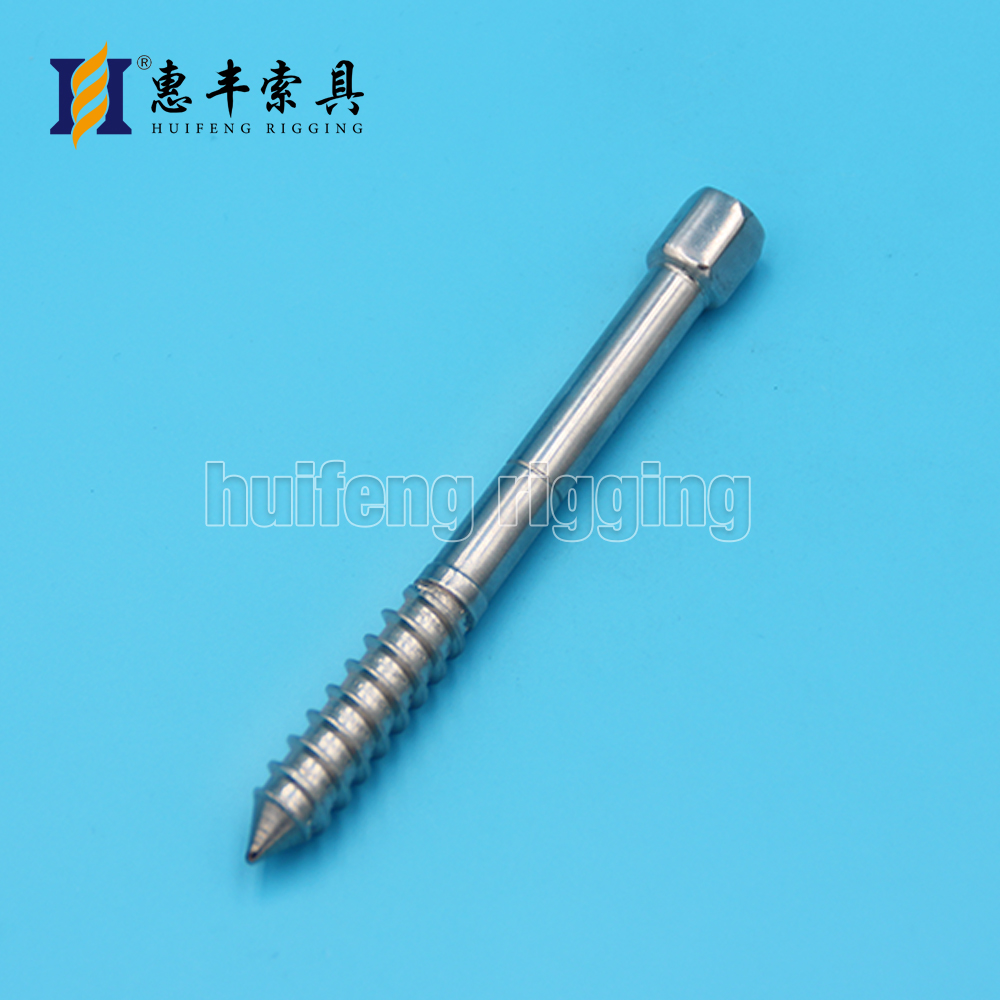

Dowel screw terminal with hexagon head
外六角木螺丝接线器
Dowel screw terminal with hexagon head
ITEM NO Size(inch)
HF-8122 1/8''

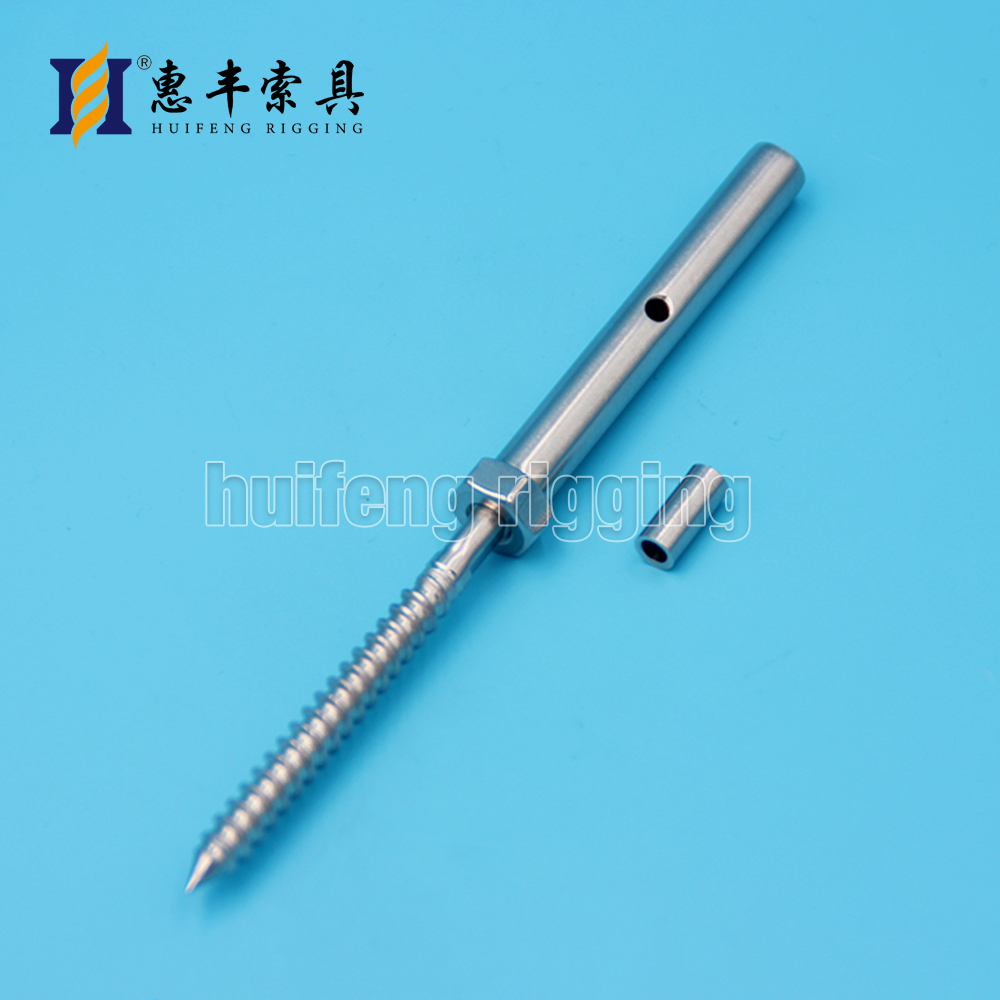

Dowel screw with Invisible Swage Terminal
木螺丝带隐形压制接线器
Dowel screw with Invisible Swage Terminal
ITEM NO Size(inch)
HF-8123 1/8''

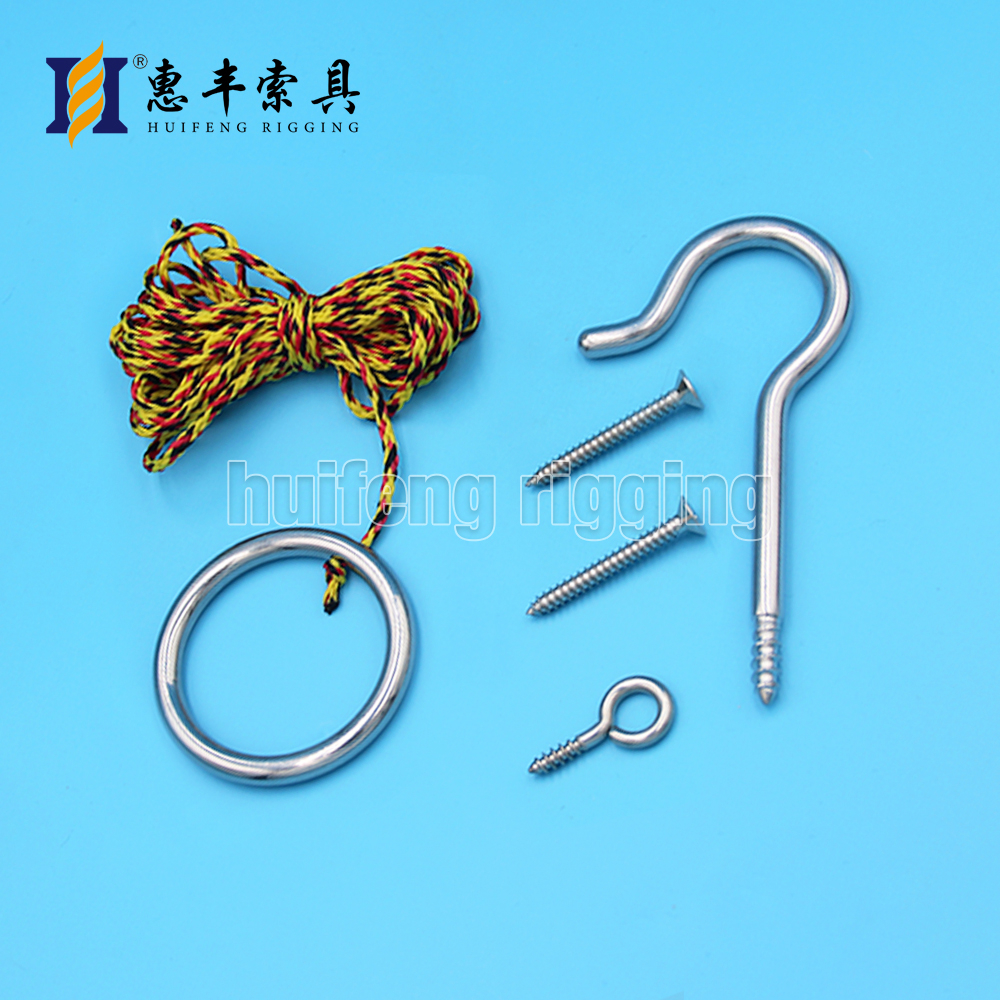

hook ring game
抛环游戏
hook ring game
ITEM NO Size(inch)
HF-8124 1/8''
