RIGGING HARDWARE

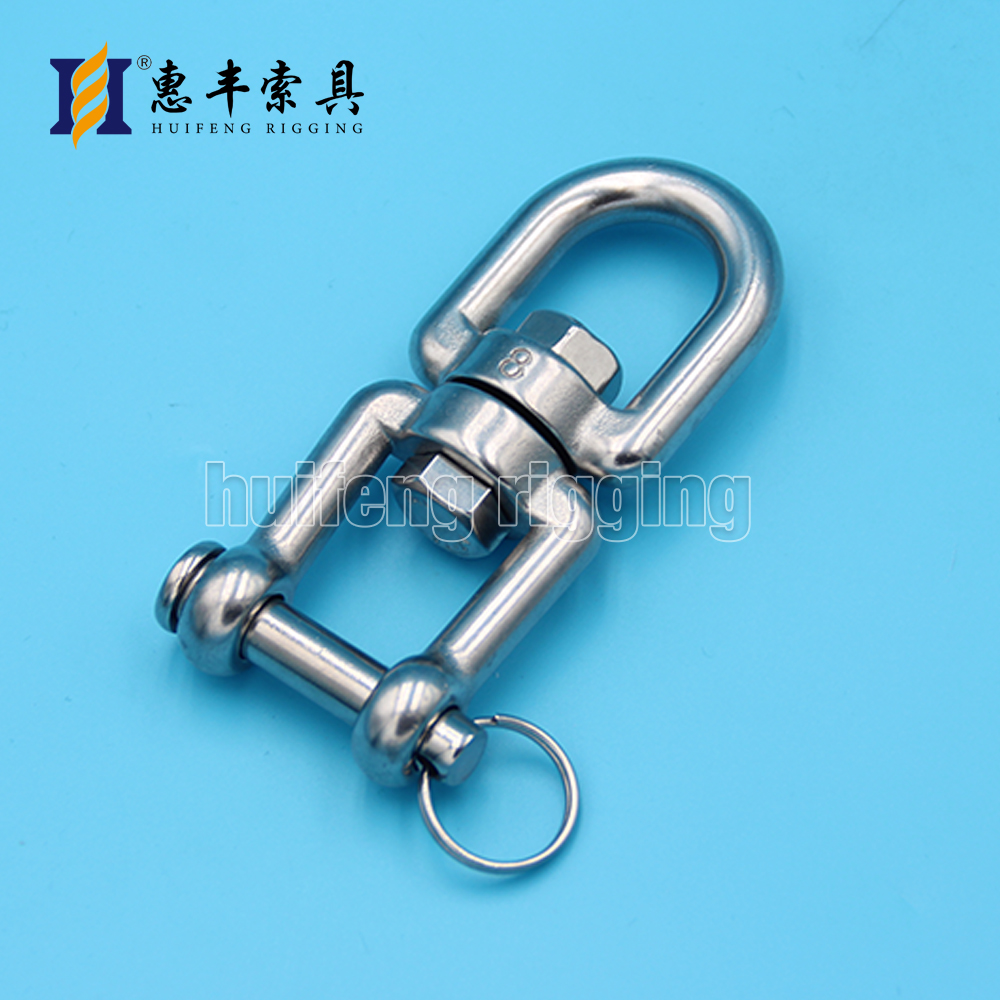

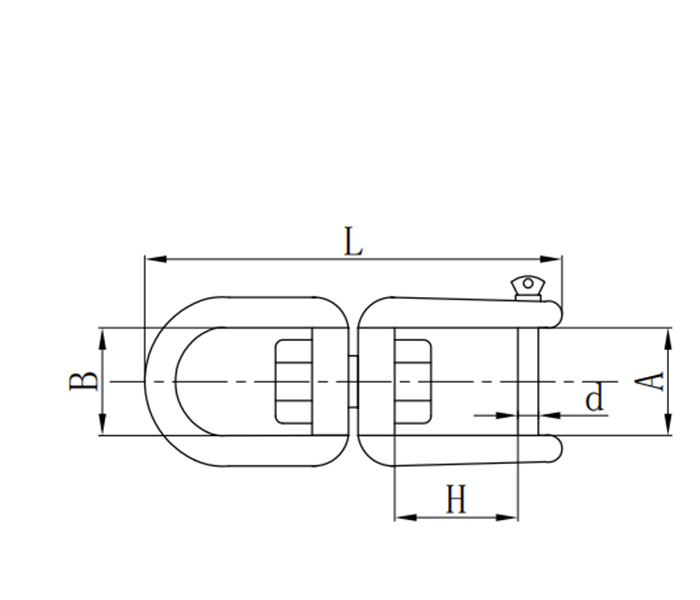

Swivel with Clevis Pin, Eye & Jaw
转环-OC型 带平头销
Swivel with Clevis Pin, Eye & Jaw
ITEM NO Size(mm)
HF-6996 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm

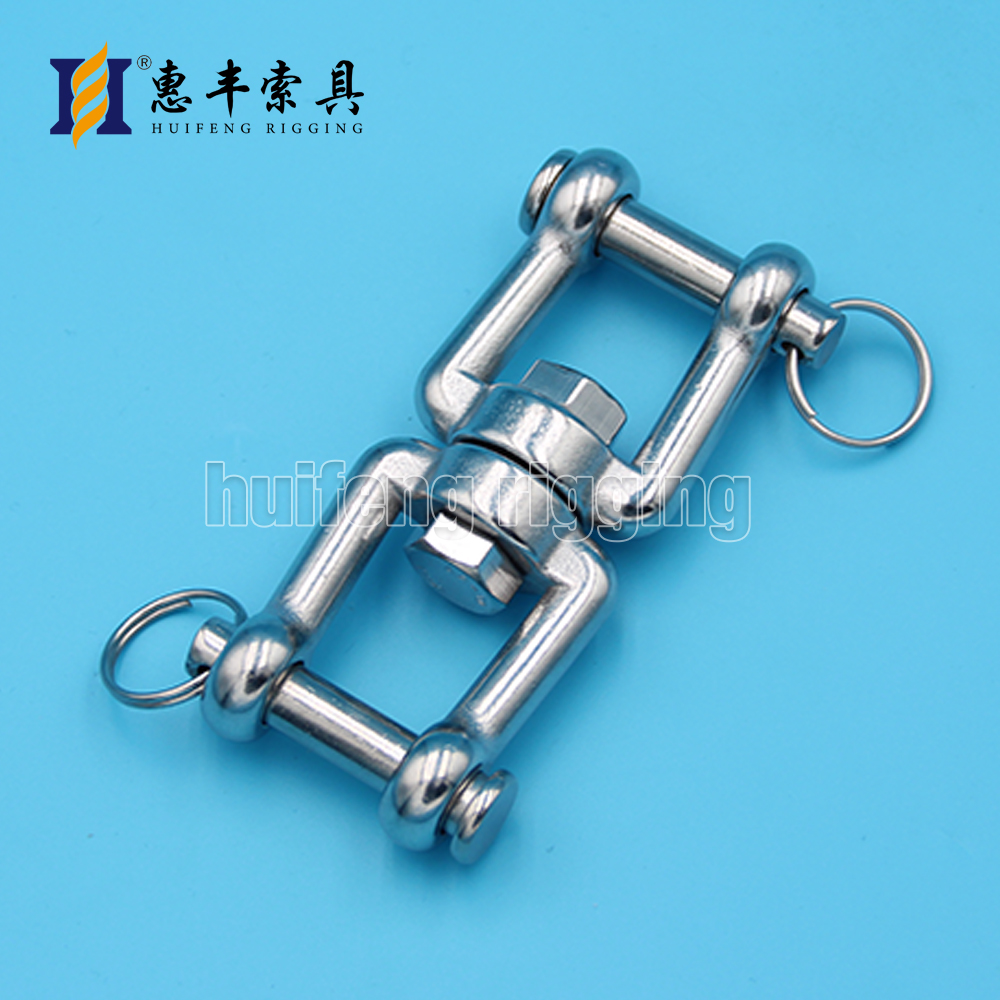

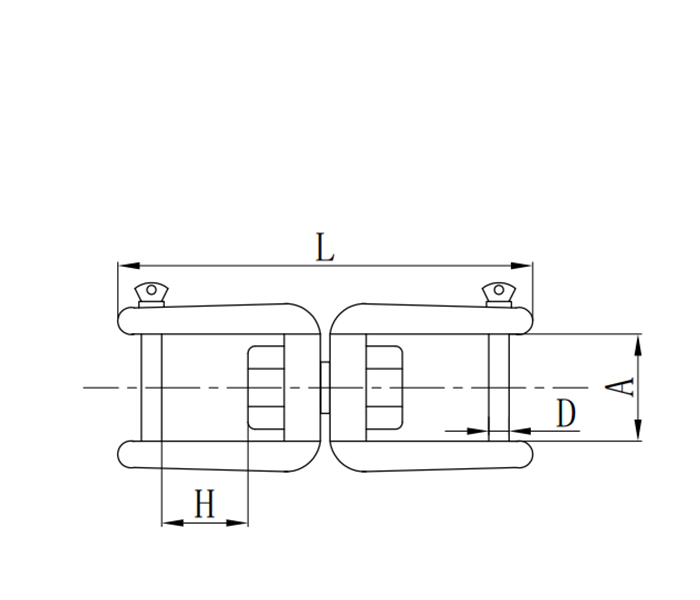

Swivel with Clevis Pin, Jaw & Jaw
转环-CC型 带平头销
Swivel with Clevis Pin, Jaw & Jaw
ITEM NO Size(mm)
HF-6997 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm

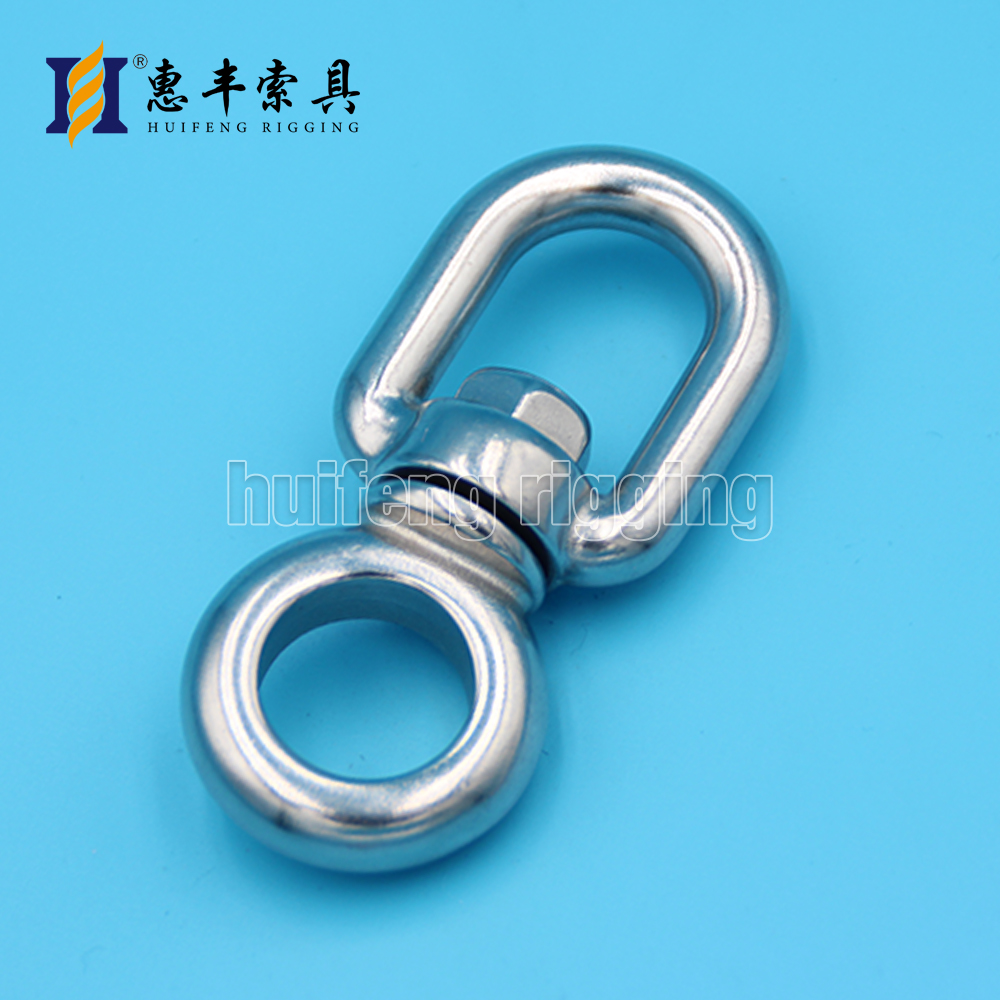

Chain Swivel
静音转环
Chain Swivel
ITEM NO Size(mm)
HF-6998 8mm

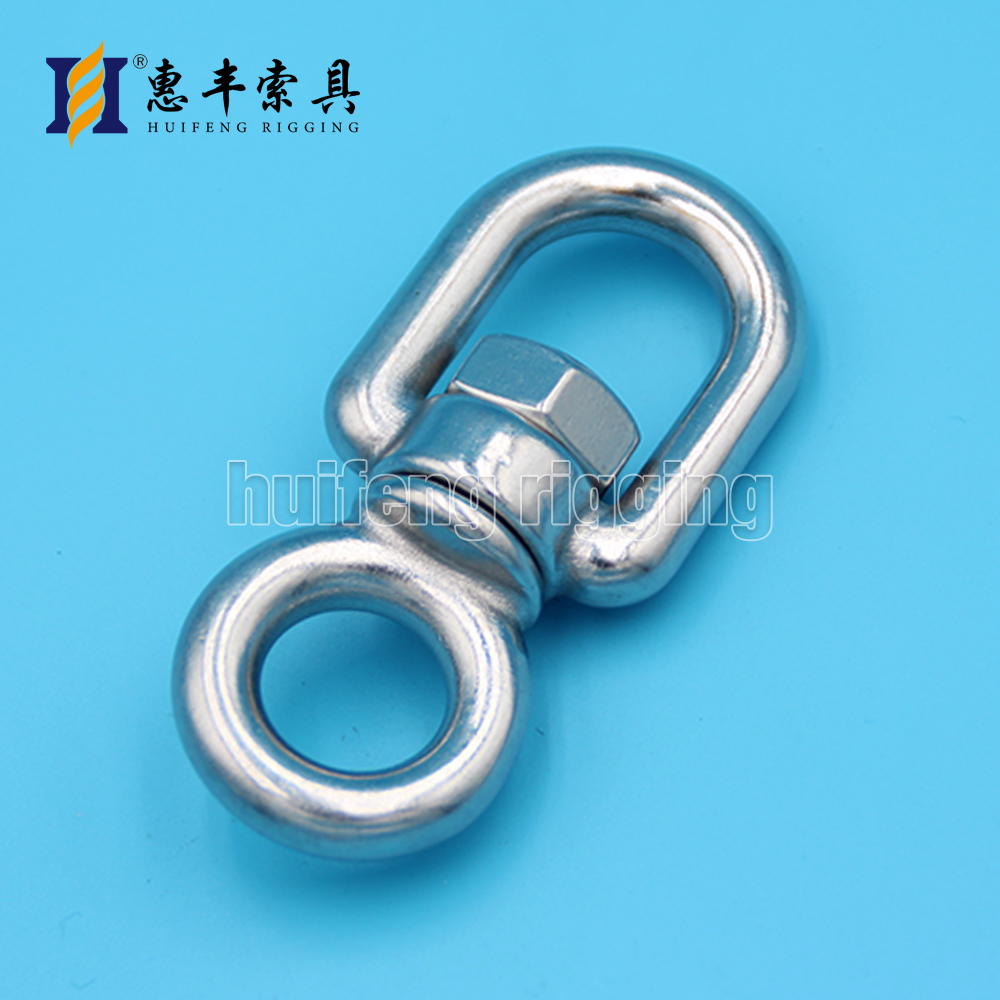

Chain Swivel With Big Eye & Small Eye
大小眼转环
Chain Swivel With Big Eye & Small Eye
ITEM NO Size(mm)
HF-6999 3/16"-1"

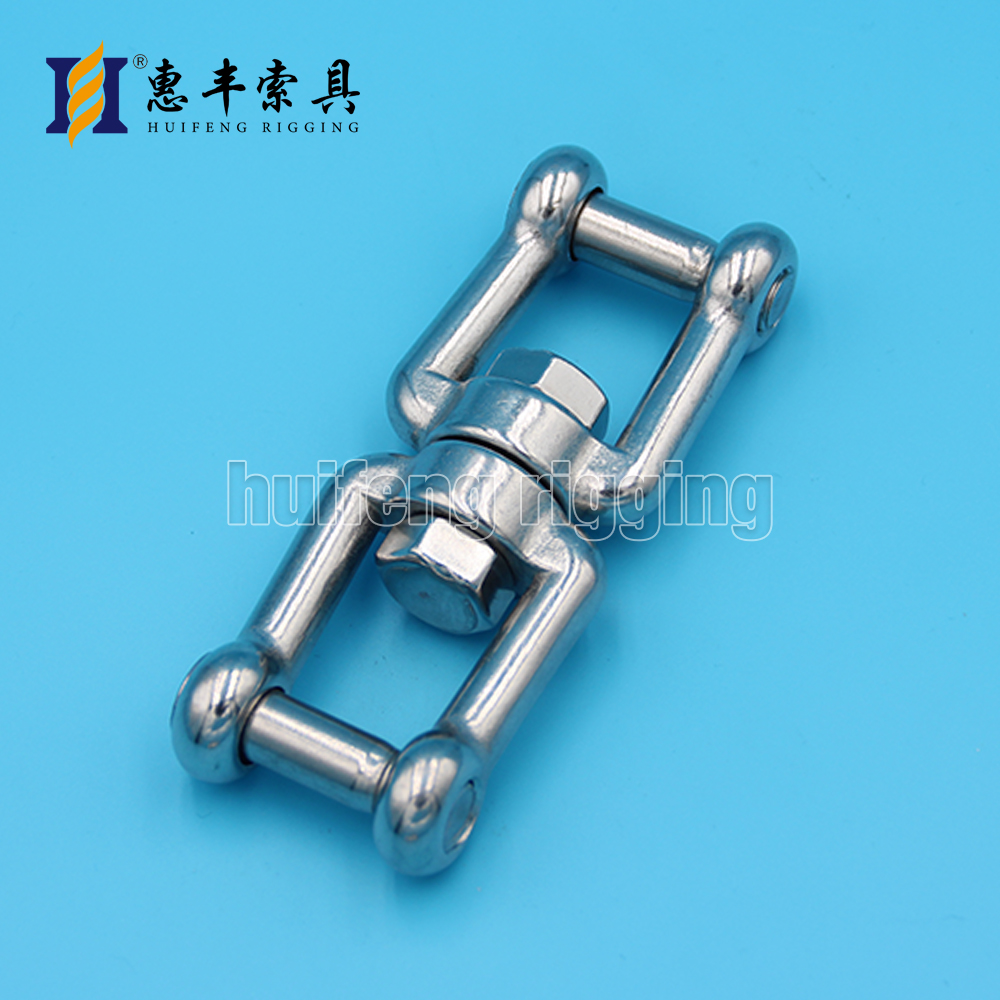

Swivel, Jaw & Jaw with Hexagon Socket
转环-CC型 带内六角销
Swivel, Jaw & Jaw with Hexagon Socket
ITEM NO Size(mm)
HF-7000 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm

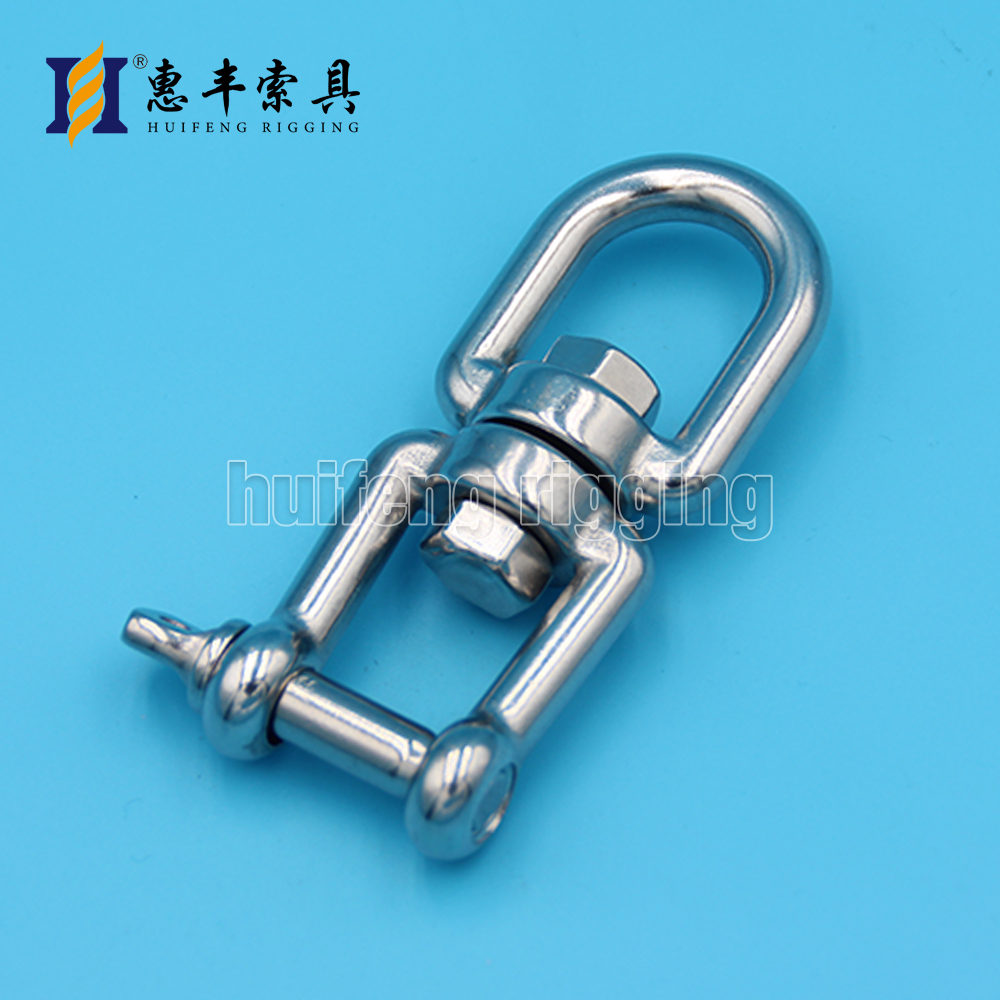

Swivel, Eye & Jaw
转环-OC型
Swivel, Eye & Jaw
ITEM NO d L H B A WT
mm mm mm mm mm KGS
HF-7001-0005 5 60 11.5 13 10 0.039
HF-7001-0006 6 66 12 15 12 0.054
HF-7001-0008 8 92 16 20 16 0.133
HF-7001-0010 10 118 22 24 20 0.253
HF-7001-0013 13 152 28 32 26 0.615
HF-7001-0016 16 188 37 39 32 1.03
HF-7001-0019 19 229 44 41 38 2.07

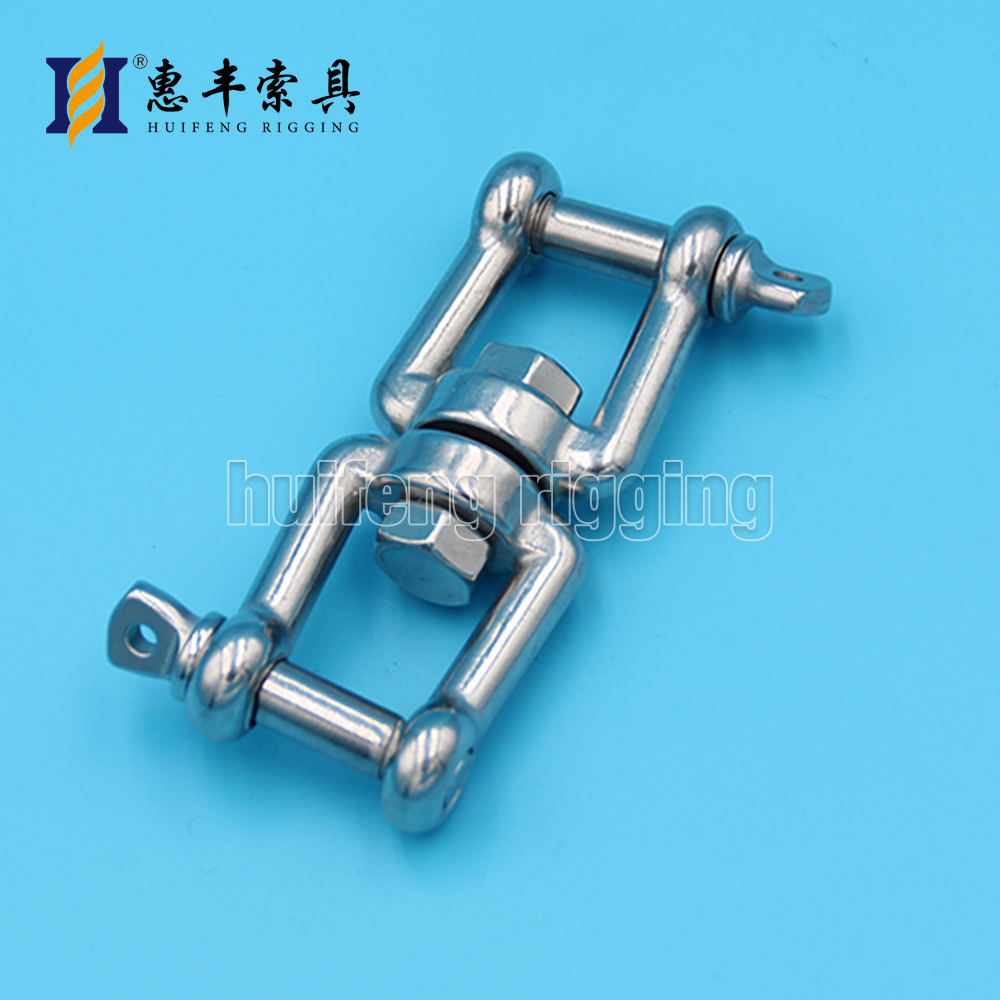

Swivel, Jaw & Jaw
转环-CC型
Swivel, Jaw & Jaw
ITEM NO D L H A WLL WT
mm mm mm mm mm KGS
HF-7002-0005 5 60 11.5 10 0.1 0.041
HF-7002-0006 6 66 12 12 0.15 0.058
HF-7002-0008 8 94 16 16 0.3 0.145
HF-7002-0010 10 118 22 20 0.5 0.275
HF-7002-0013 13 152 28 26 1 0.684
HF-7002-0016 16 188 37 32 1.5 1.12
HF-7002-0019 19 229 44 38 2 2.21

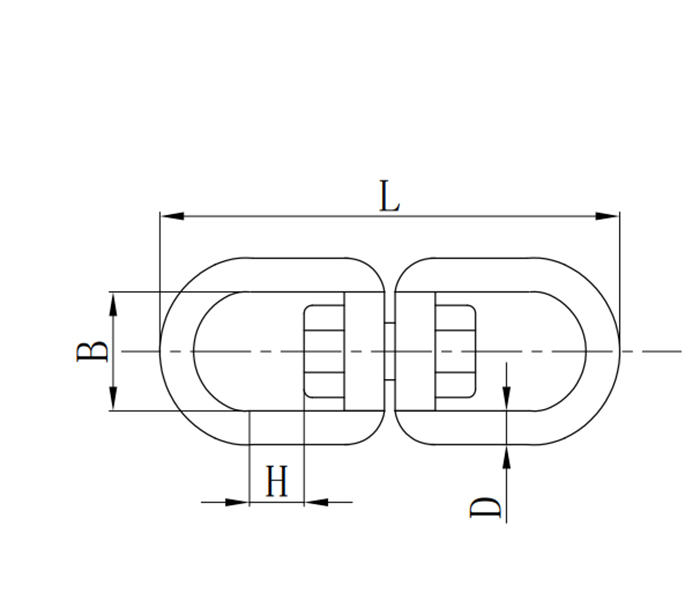

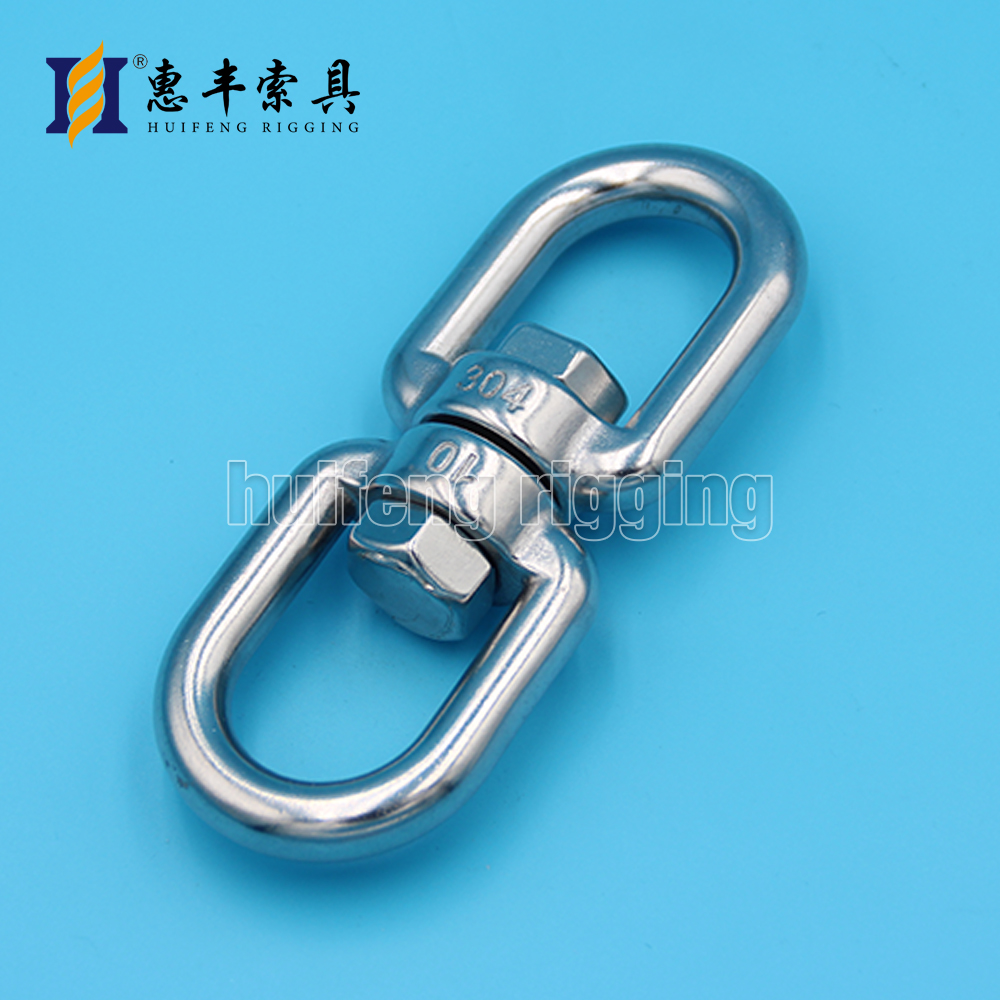

Swivel Eye & Eye
转环-OO型
Swivel Eye & Eye
ITEM NO D L H B WT
mm mm mm mm KGS
HF-7003-0004 4 47 9 11.5 0.019
HF-7003-0005 5 61 15 13.5 0.03
HF-7003-0006 6 63.5 15 15 0.05
HF-7003-0008 8 88 21 20 0.114
HF-7003-0010 10 111 27 24 0.223
HF-7003-0012 12 126 26 25 0.353
HF-7003-0013 13 147 35 31 0.446
HF-7003-0016 16 186 45 38 0.977
HF-7003-0019 19 225 54 40 1.48
