RIGGING HARDWARE

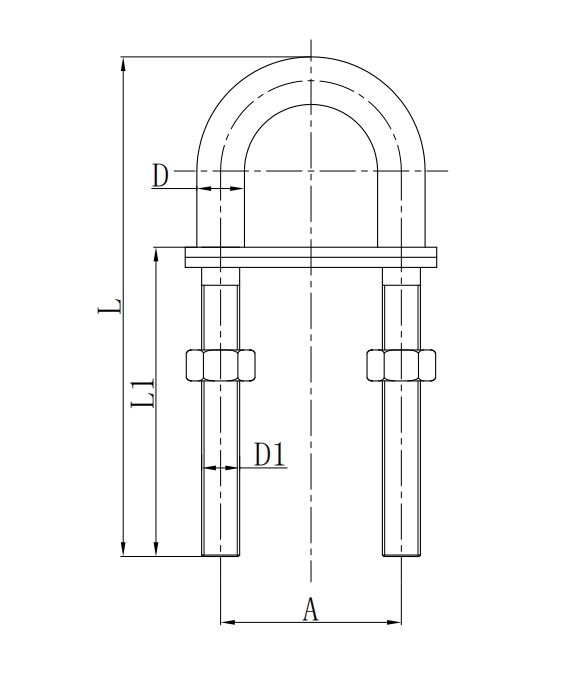

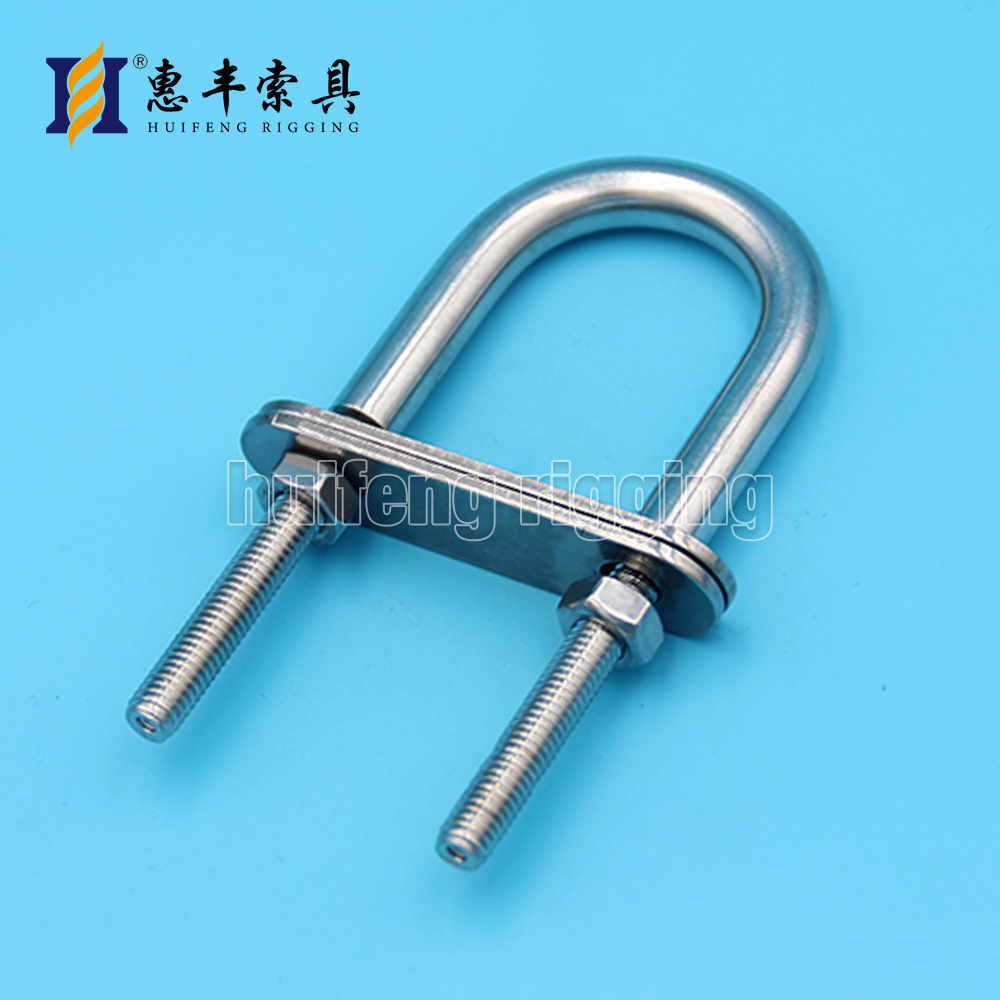

U Blot Oversized Head
粗车细U型栓
U Blot Oversized Head
ITEM NO D1 L1 L D A WT
mm mm mm mm mm KGS
HF-7041-0430 M4 30 62 5 30 0.035
HF-7041-0548 M5 48 78 6 36 0.048
HF-7041-06421 M6 42 80 8 36 0.072
HF-7041-06422 M6 42 90 8 36 0.08
HF-7041-0840 M8 40 80 10 35 0.114
HF-7041-0852 M8 52 100 10 45 0.133
HF-7041-10351 M10 35 90 12 50 0.199
HF-7041-10352 M10 55 110 12 50 0.219
HF-7041-1080 M10 80 135 12 50 0.243
HF-7041-1265 M12 65 130 14 60 0.34
HF-7041-1285 M12 85 150 14 60 0.38

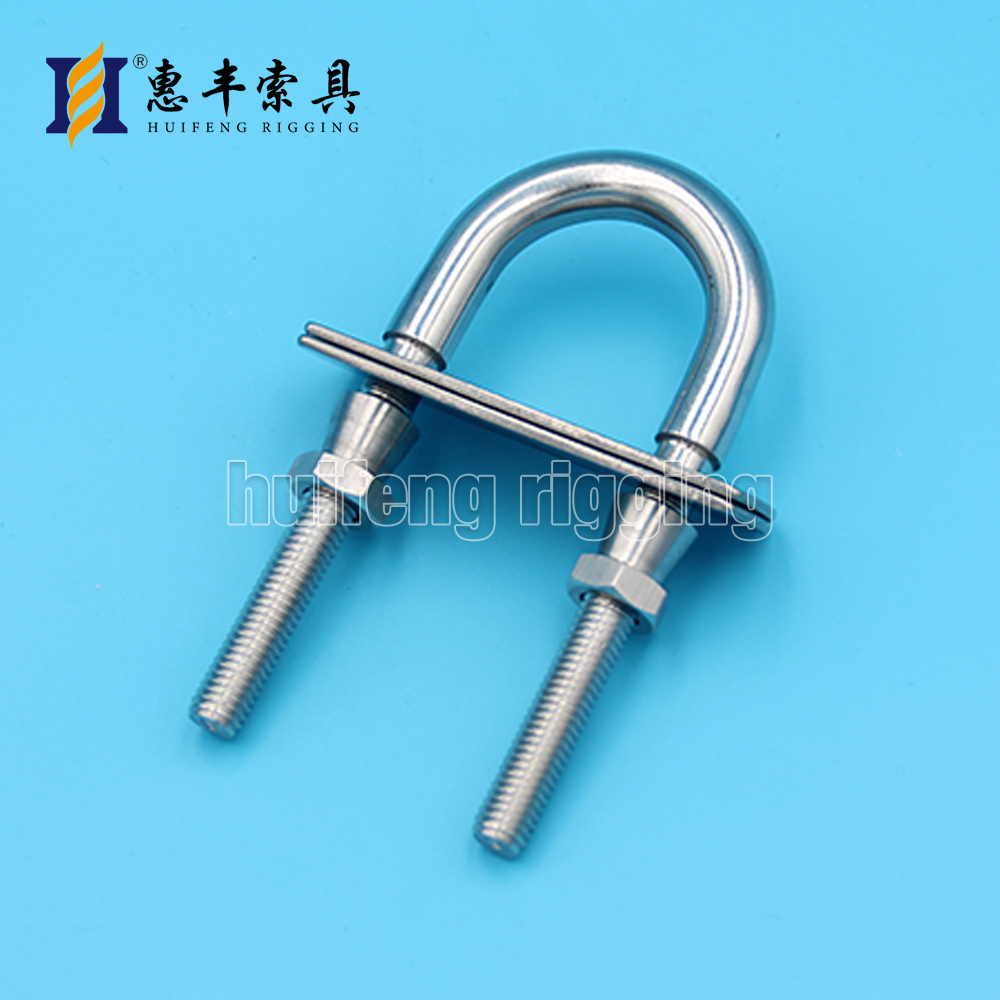

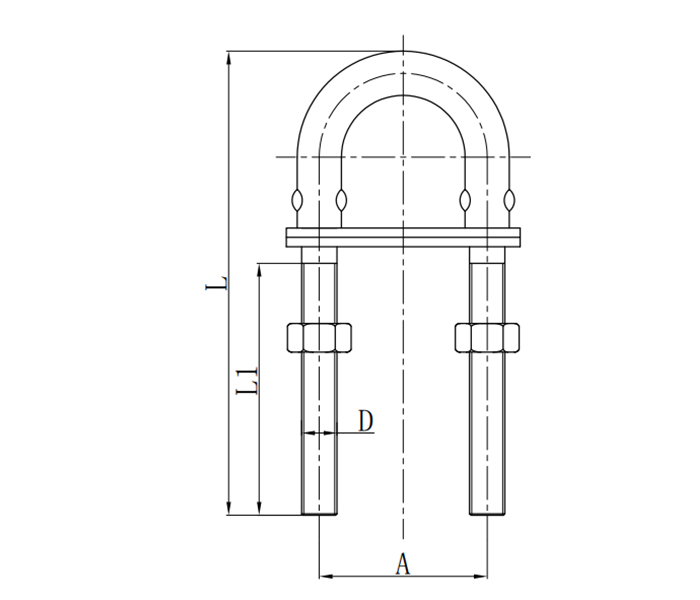

U Blot Bow Eye
U型栓带耳朵
U Blot Bow Eye
ITEM NO D L L1 A WT
mm mm mm mm KGS
HF-7042-0430 M4 64 30 30 0.021
HF-7042-0540 M5 80 40 35 0.033
HF-7042-06401 M6 80 40 35 0.046
HF-7042-06402 M6 90 40 35 0.049
HF-7042-0825 M8 60 25 35 0.034
HF-7042-0840 M8 80 40 35 0.077
HF-7042-08501 M8 90 50 35 0.0835
HF-7042-08502 M8 100 50 35 0.088
HF-7042-1040 M10 90 40 50 0.098
HF-7042-1055 M10 130 55 50 0.196
HF-7042-1265 M12 150 65 60 0.295

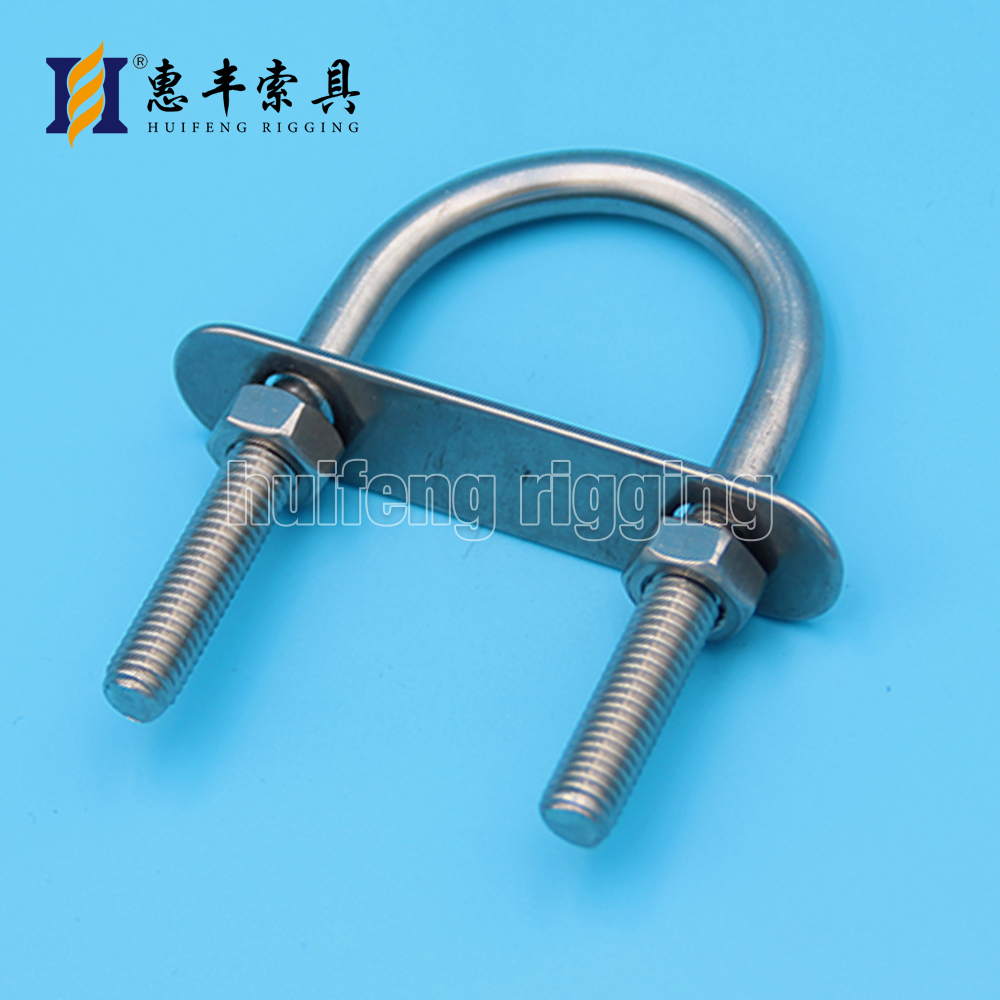

U Bolt with Washer & Nuts
U型栓
U Bolt with Washer & Nuts
ITEM NO SIZE
HF-7043 4mm-12mm

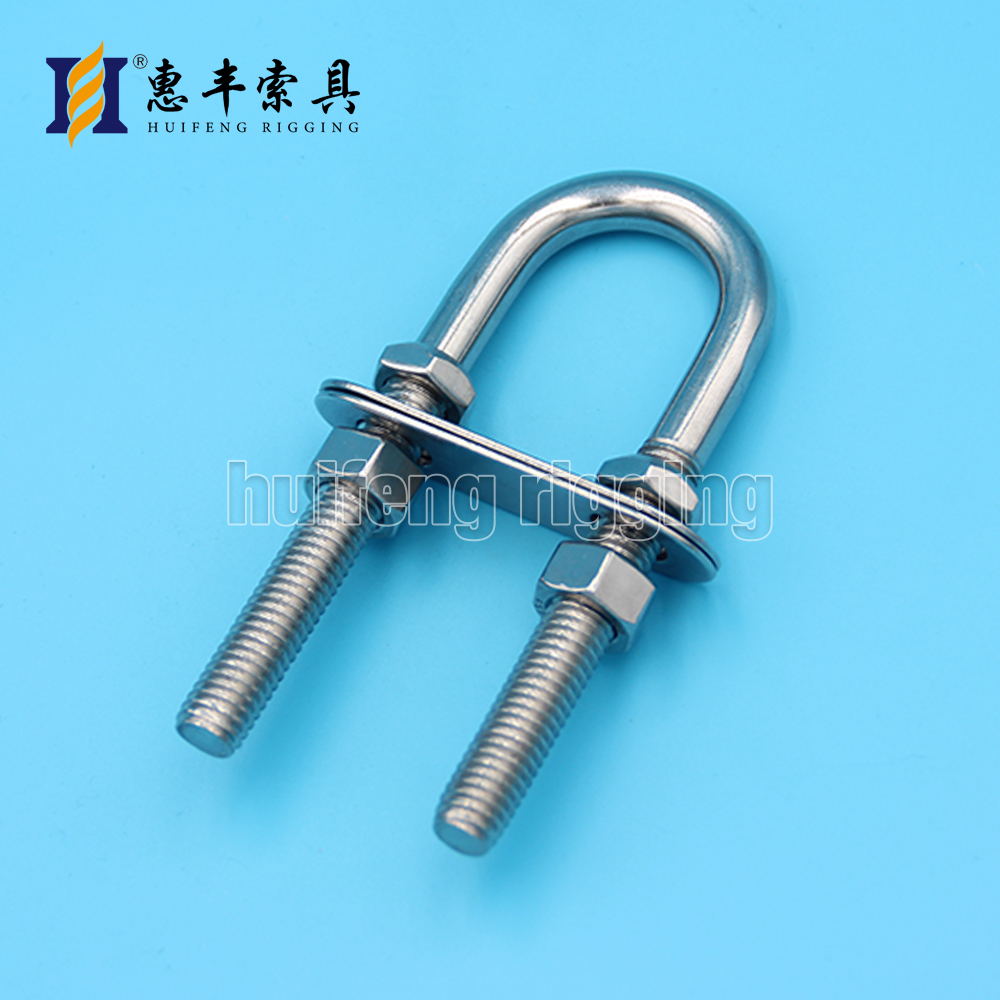

U Bolt with Double Washers & Nuts
U型栓
U Bolt with Double Washers & Nuts
ITEM NO SIZE
HF-7044 4mm-12mm

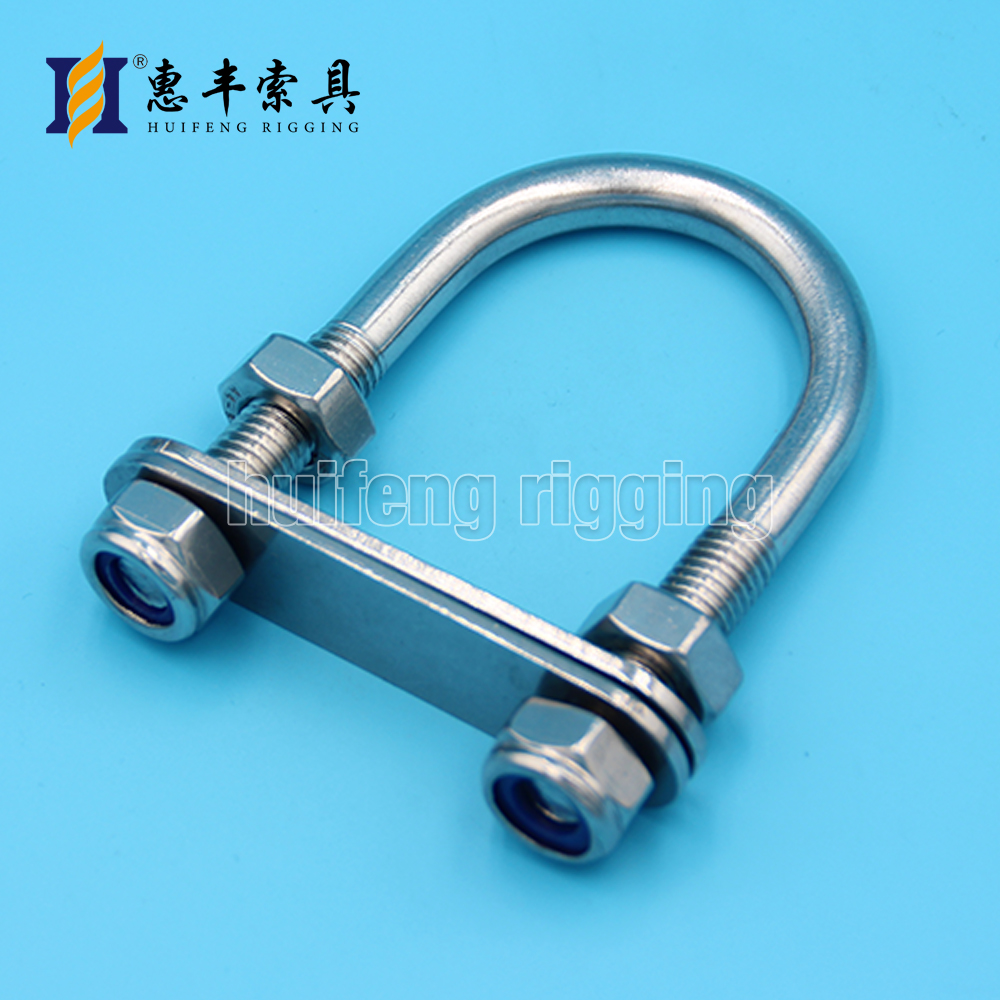

U Bolt with Double Washers & Lock Nuts
U型栓
U Bolt with Double Washers & Lock Nuts
ITEM NO SIZE
HF-7045 4mm-12mm

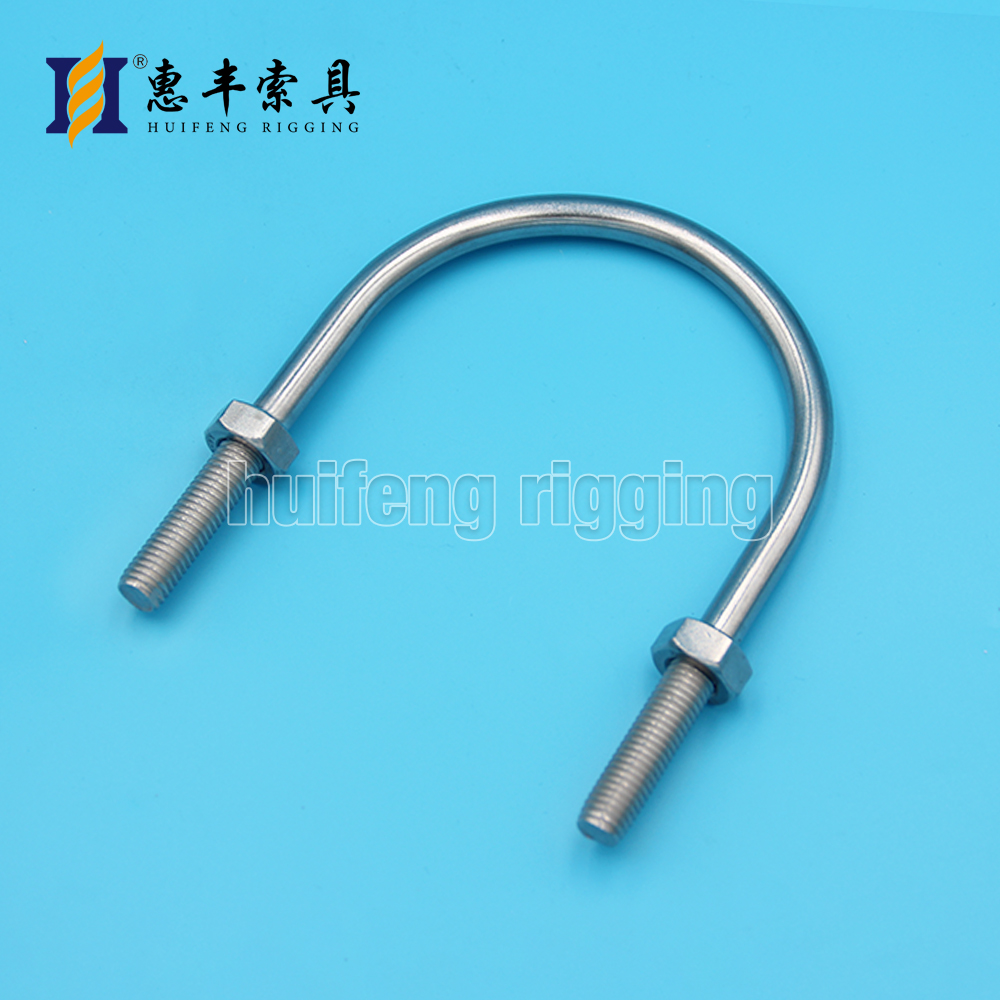

U Bolt with Nuts
U型栓
U Bolt with Nuts
ITEM NO SIZE
HF-7046 4mm-12mm

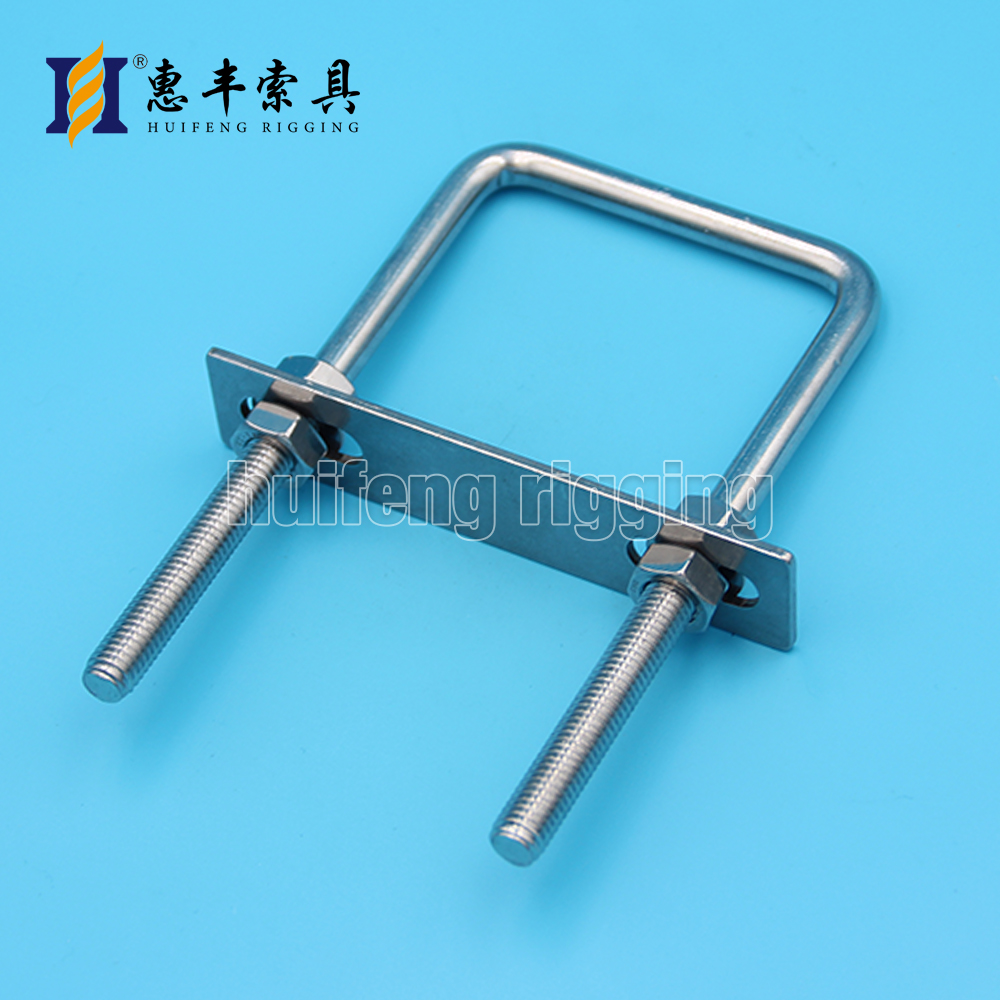

Square U Bolt with Washer & Nuts
U型栓
Square U Bolt with Washer & Nuts
ITEM NO SIZE
HF-7047 5mm-10mm
U Bolt with Self-gripping Safety Nuts
自抓螺母U型栓
U Bolt with Self-gripping Safety Nuts
ITEM NO SIZE(mm)
HF-7048-0008 8
HF-7048-0010 10
HF-7048-0012 12
