RIGGING HARDWARE

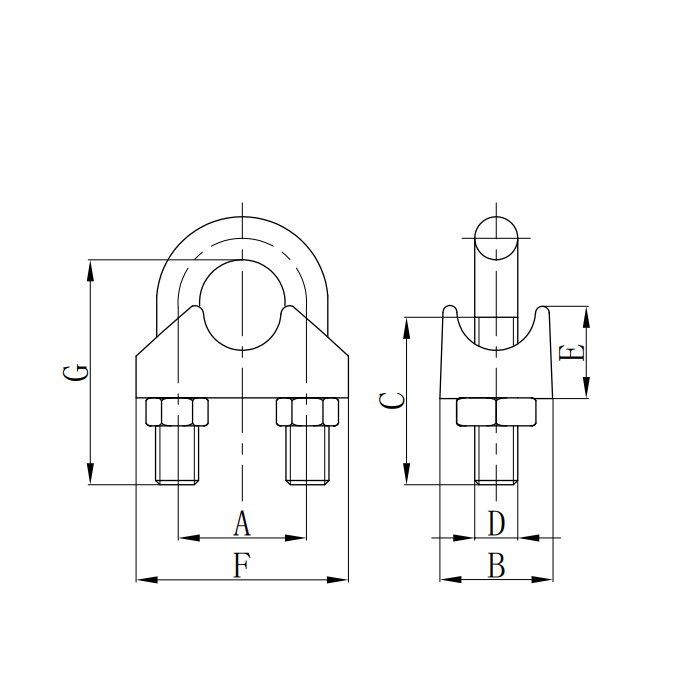

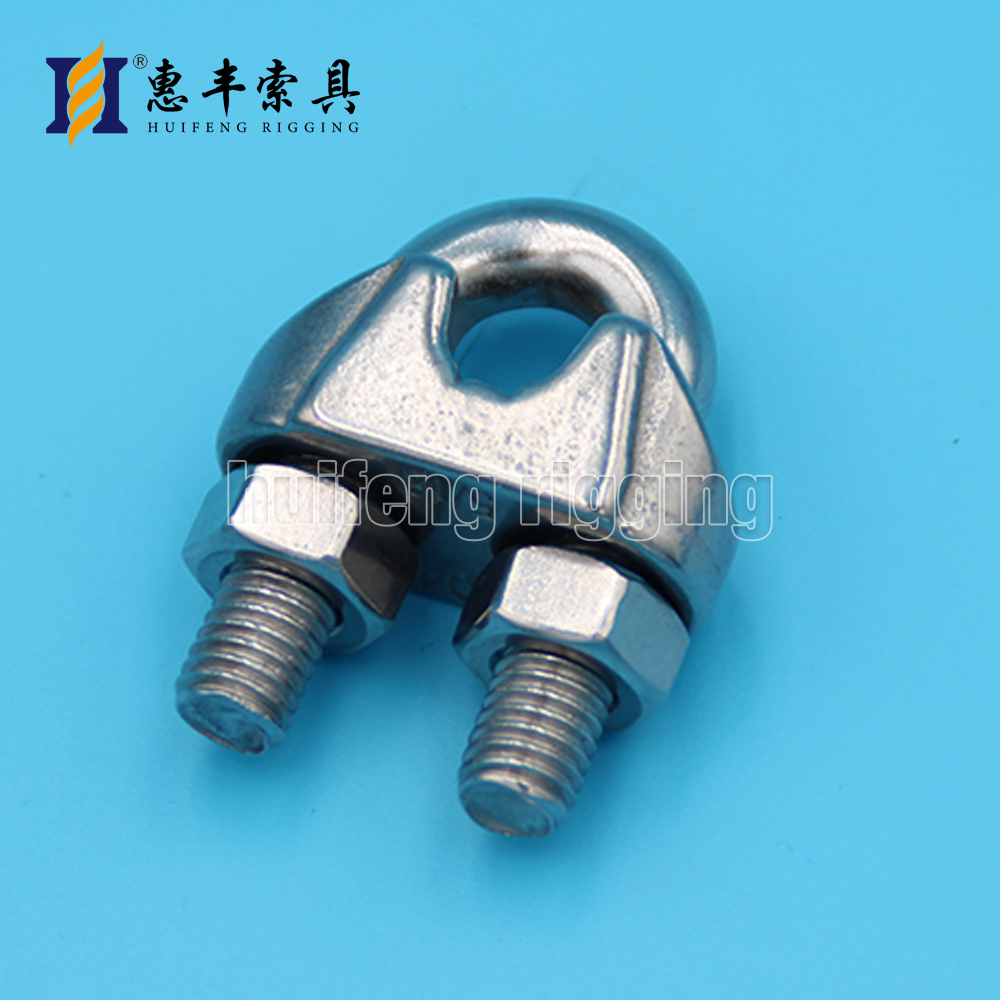

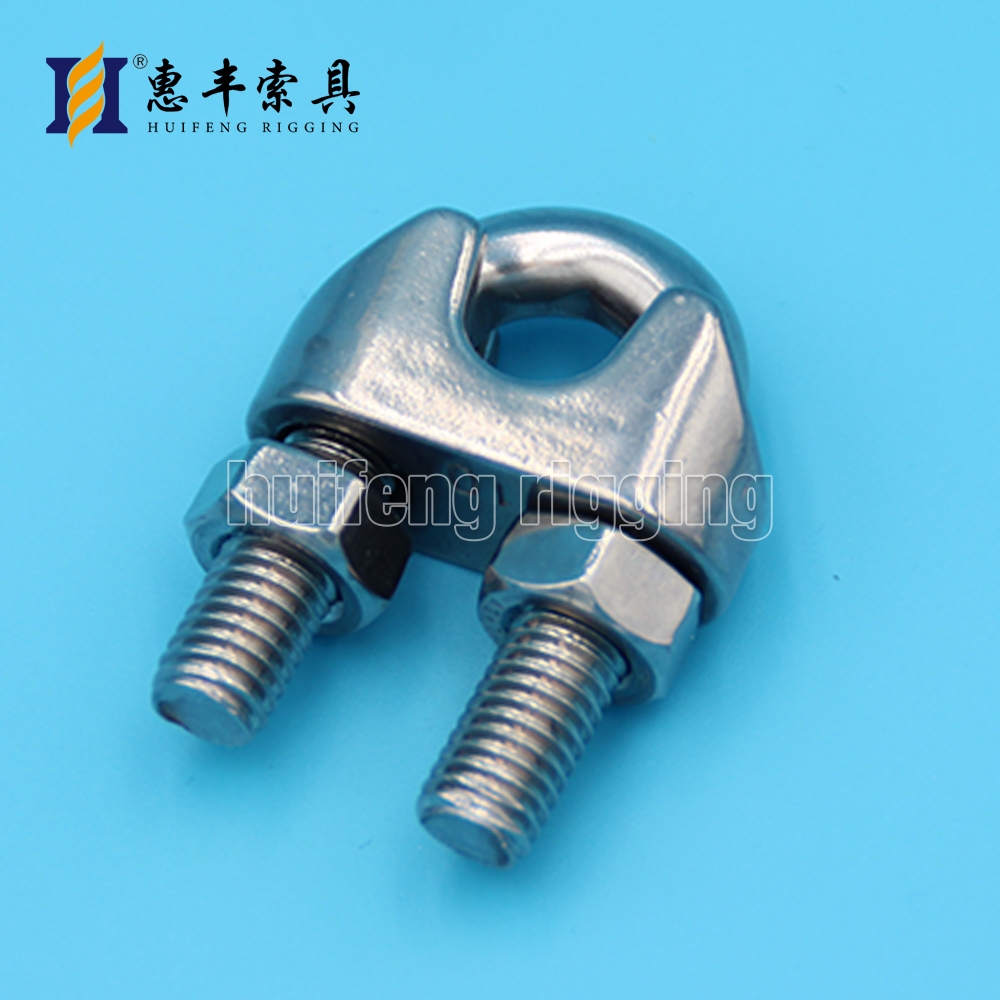

DIN741 Wire Rope Clip
DIN741卡头
DIN741 Wire Rope Clip
ITEM NO SIZE A B C D E F G
mm mm mm mm mm mm mm mm
HF-8201-0003 3 9 10 12 4 10 21 16
HF-8201-0005 5 11 11 13 5 10 23 19
HF-8201-0006 6 13 12 15 5 11 26 23
HF-8201-0008 8 16 14 19 6 15 30 28
HF-8201-0010 10 19 18 22 8 17 34 34
HF-8201-0011 11 20 18 22 8 18 36 36
HF-8201-0013 13 24 23 30 10 21 42 45
HF-8201-0014 14 25 23 30 10 22 44 47
HF-8201-0016 16 29 26 33 12 26 50 51
HF-8201-0019 19 32 29 38 12 30 54 63
HF-8201-0022 22 37 33 44 14 34 61 71
HF-8201-0026 26 41 35 45 14 37 65 81
JIS Type Wire Rope Clip
日式卡头
JIS Type Wire Rope Clip
ITEM NO SIZE A B C D E F G Φ
mm mm mm mm mm mm mm mm mm
HF-8202-0002 2 19 11 7.5 14 10 13 3.5 2
HF-8202-0003 3 21 11 8 14 10 14 4.5 3
HF-8202-0004 4 24 13 9 19 12.5 18 5.5 4
HF-8202-0005 5 25 15 13 25 13.5 20 6 5
HF-8202-0006 6 32 19 14 27 17 20.5 8 6
HF-8202-0008 8 42 21 18 33 19 26 10 8
HF-8202-0010 10 51 28 22 45 21 33.5 12 10
HF-8202-0012 12 61 35 26 51 23 37 14 12
HF-8202-0016 16 76 44 33 59 33 47 18 16
HF-8202-0022 22 104 58 44 71 44 61 23.5 22

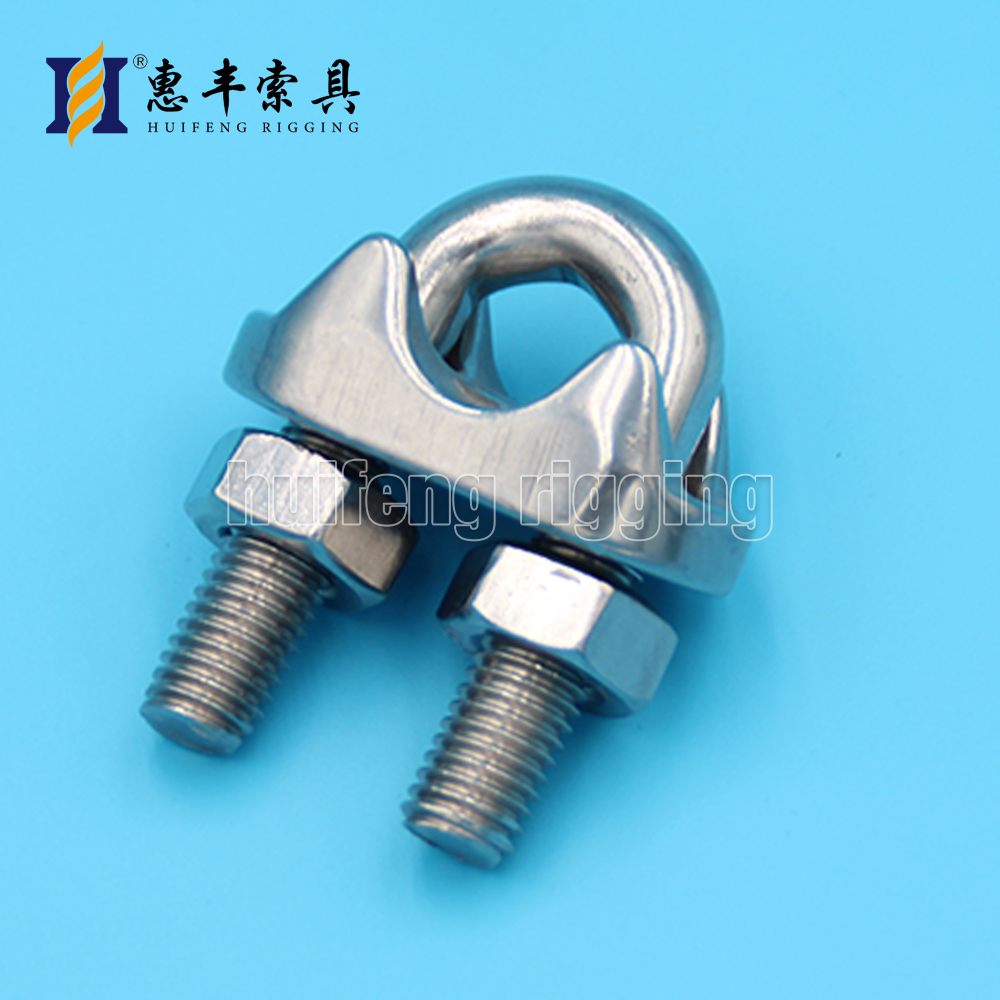

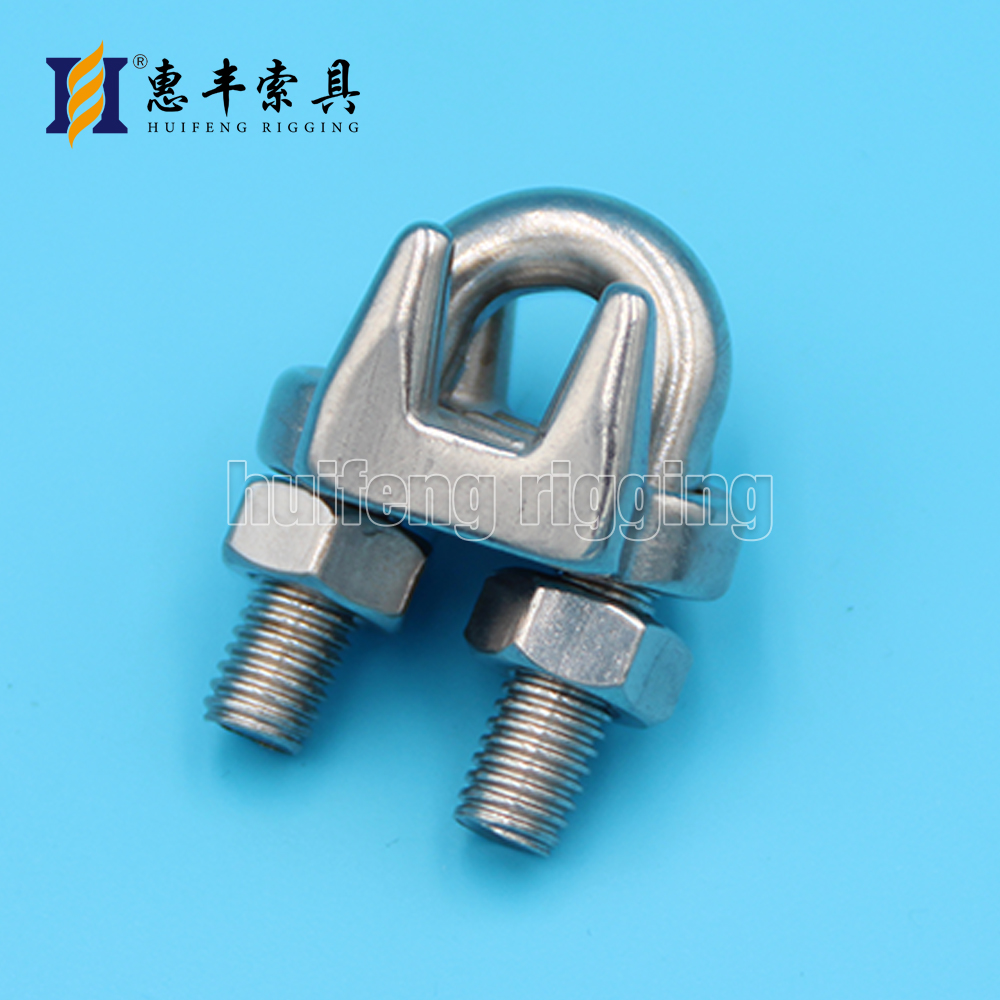

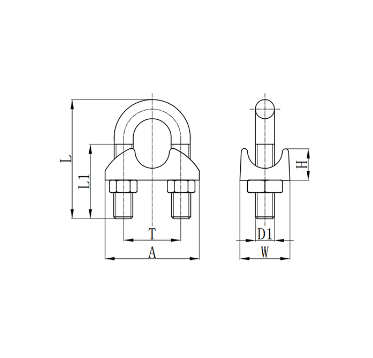

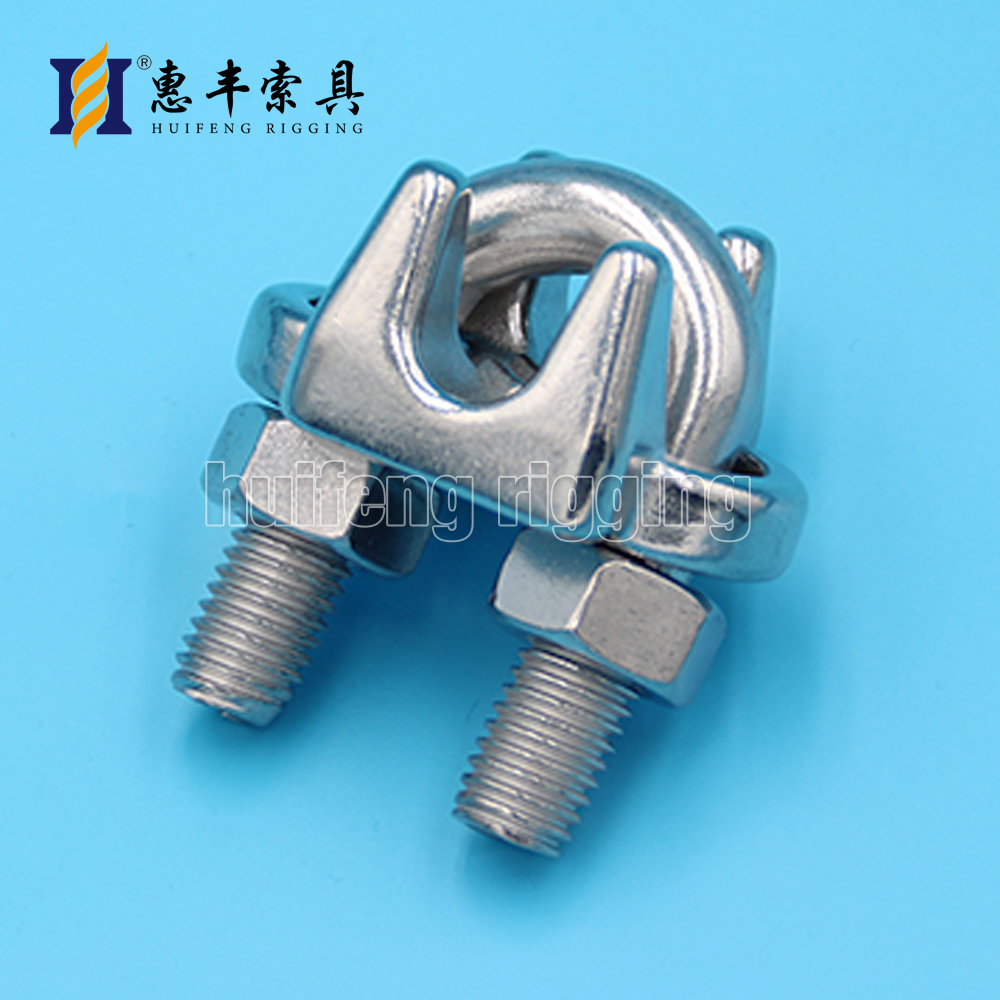

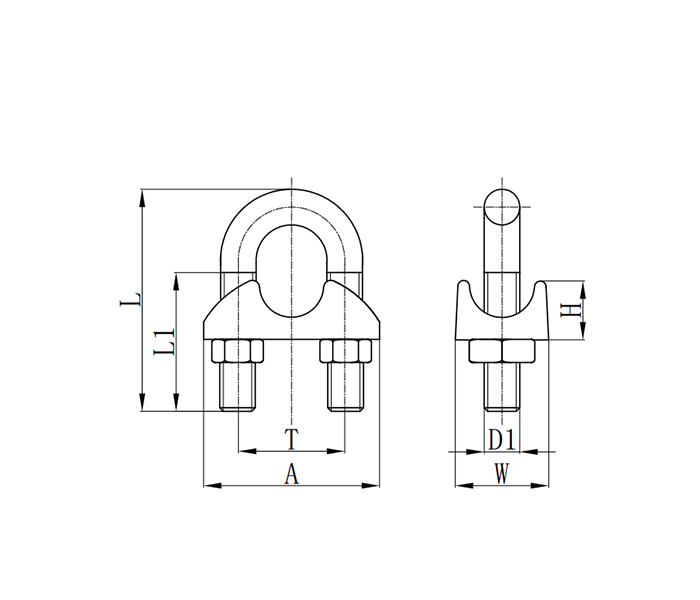

Italian Type Wire Rope Clip
意式高体卡头
Italian Type Wire Rope Clip
ITEM NO SIZE D1 L L1 A H T W
mm mm mm mm mm mm mm mm
HF-8203-0002 2 3 18 11 15.5 9.7 7 9.2
HF-8203-0003 3 3 19 11 17.5 10.7 8 9.2
HF-8203-0004 4 4 22 12 21 13 10 10
HF-8203-0005 5 5 28 15 24.5 14.5 12 11.7
HF-8203-0006 6 6 34 18 27.5 16.5 14 14.6
HF-8203-0008 8 6 38 18 30.5 19.5 15 16.5
HF-8203-0010 10 8 45 22 37.5 22.5 19 18.5
HF-8203-0012 12 10 56 30 44 23 23 22
HF-8203-0013 13 10 56 30 46.5 25 25 24.5
HF-8203-0016 16 10 68 34 54 32 27 27
HF-8203-0019 19 12 85 36 62 38 33 29
HF-8203-0022 22 12 85 40 64 43.5 36 31

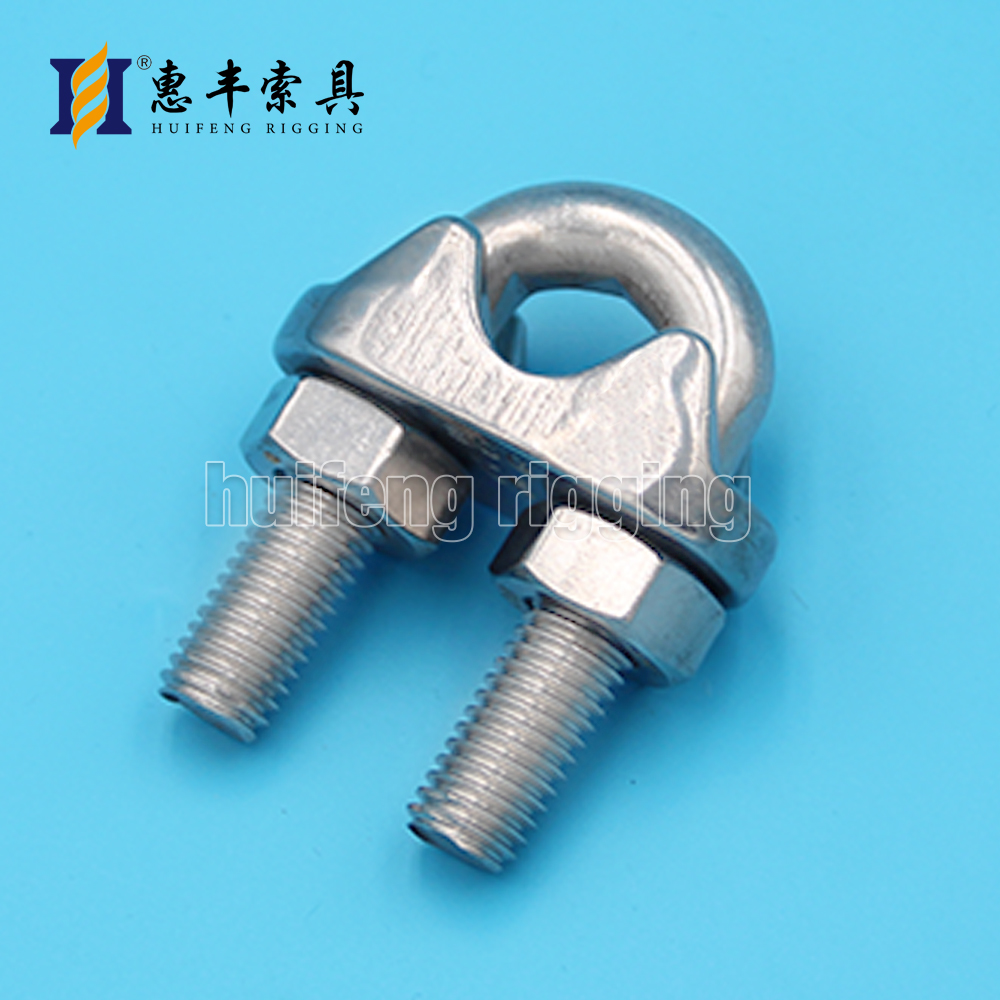

Italian Type Wire Rope Clip
意式矮体卡头
Italian Type Wire Rope Clip
ITEM NO SIZE D1 L L1 A H T W
HF-8203A-0002 2 3 18 11 16 10 7 9.5
HF-8203A-0003 3 3 19 11 18 11 8 9.5
HF-8203A-0004 4 4 22 12 21 13 10 10
HF-8203A-0005 5 5 28 15 25 15 12 12
HF-8203A-0006 6 6 30 18 30 10 14 17
HF-8203A-0008 8 6 38 18 31 20 15 17
HF-8203A-0010 10 8 43 22 38 14 19 22
HF-8203A-0012 12 10 56 30 44 23 23 22
HF-8203A-0013 13 10 56 30 47 25.5 25 25
HF-8203A-0016 16 10 68 34 54 32 27 27
HF-8203A-0019 19 12 85 36 62 38 33 29
HF-8203A-0022 22 12 85 40 64 43.5 36 31

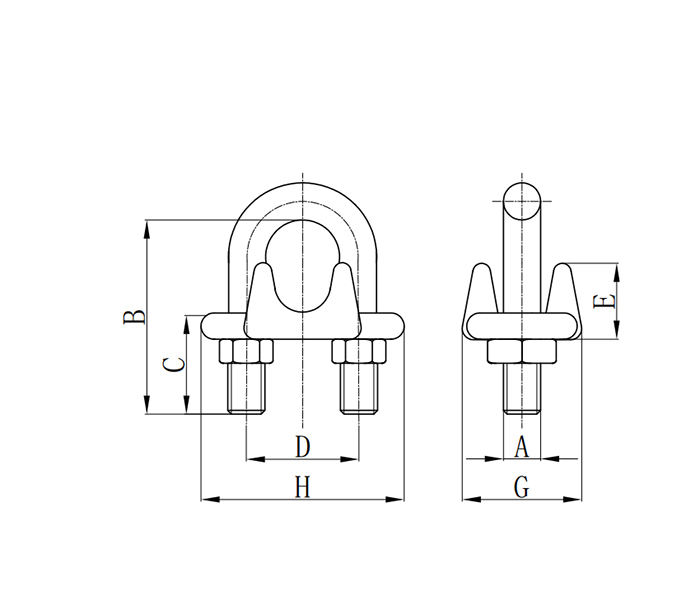

US Forged Type Wire Rope Clip
美式模锻卡头
US Forged Type Wire Rope Clip
ITEM NO SIZE A B C D E G H
in in in in in in in in
HF-8204-0003 1/8 3/16 18 11 12 10 20 23
HF-8204-0005 3/16 1/4 24 14 15 12 23 29
HF-8204-0006 1/4 5/16 26 15 19 16 30 36
HF-8204-0008 5/16 3/8 35 19 22 18 33 43
HF-8204-0010 3/8 7/16 38 19 25 23 41 49
HF-8204-0011 7/16 1/2 47 25 30 26 46 58
HF-8204-0012 1/2 1/2 47 25 30 28 48 58
HF-8204-0014 9/16 9/16 57 32 33 31 52 63
HF-8204-0016 5/8 9/16 60 32 33 34 52 63
HF-8204-0020 3/4 5/8 70 36 38 35 57 72
HF-8204-0022 7/8 3/4 79 41 44 40 62 80
HF-8204-0024 1 3/4 89 46 47 45 66 88
HF-8204-0028 1 1/8 3/4 98 51 51 48 71 91
HF-8204-0030 1 1/4 7/8 108 54 59 56 80 105
HF-8204-0034 1 3/8 7/8 118 59 60 59 80 106
HF-8204-0036 1 1/2 7/8 125 60 66 62 87 113
HF-8204-0040 1 5/8 1 135 60 70 68 92 121
HF-8204-0044 1 3/4 1 1/8 149 70 78 73 95 133
HF-8204-0050 2 1 1/4 165 76 84 86 113 148
HF-8204-0056 2 1/4 1 1/4 181 84 98 97 114 160
HF-8204-0062 2 1/2 1 1/4 197 86 105 108 114 164
HF-8204-0070 2 3/4 1 1/4 211 89 111 127 127 171
HF-8204-0072 3 1 1/2 233 98 121 133 175 192

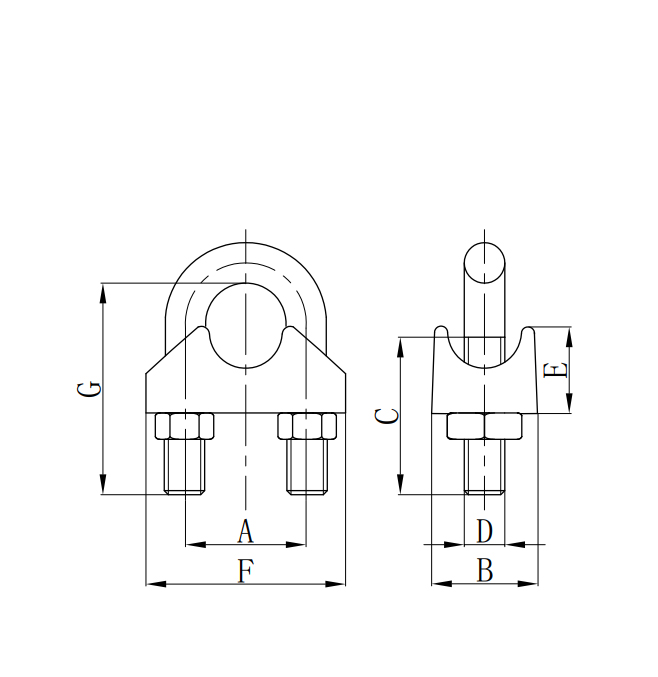

US Malleable Type Wire Rope Clip
美式玛钢卡头
US Malleable Type Wire Rope Clip
ITEM NO SIZE A B C D E F G
in in in in mm in in in
HF-8205-0003 1/8 11 14 14 M5 10.8 22 20
HF-8205-0005 3/16 13.5 15 16 M6 13 26 24
HF-8205-0006 1/4 17 18.5 20 M8 15 32 31.5
HF-8205-0008 5/16 18.3 20 22 M8 16 35 34
HF-8205-0010 3/8 22.5 22 27 M10 22 40.5 41.8
HF-8205-0011 7/16 24 23 30 M10 22 43 42.8
HF-8205-0012 1/2 27 26 35 M12 3.3 49 53.9
HF-8205-0014 9/16 30 26.5 40 M12 27 52.5 54.7
HF-8205-0016 5/8 33 28.5 40 M15 28 57.5 59.2
HF-8205-0020 3/4 34.5 32 42 M15 34 61 68.7
HF-8205-0022 7/8 41 37 46 M16 38 71 78
HF-8205-0025 1 45.5 42 55 M16 43 77.5 87.5

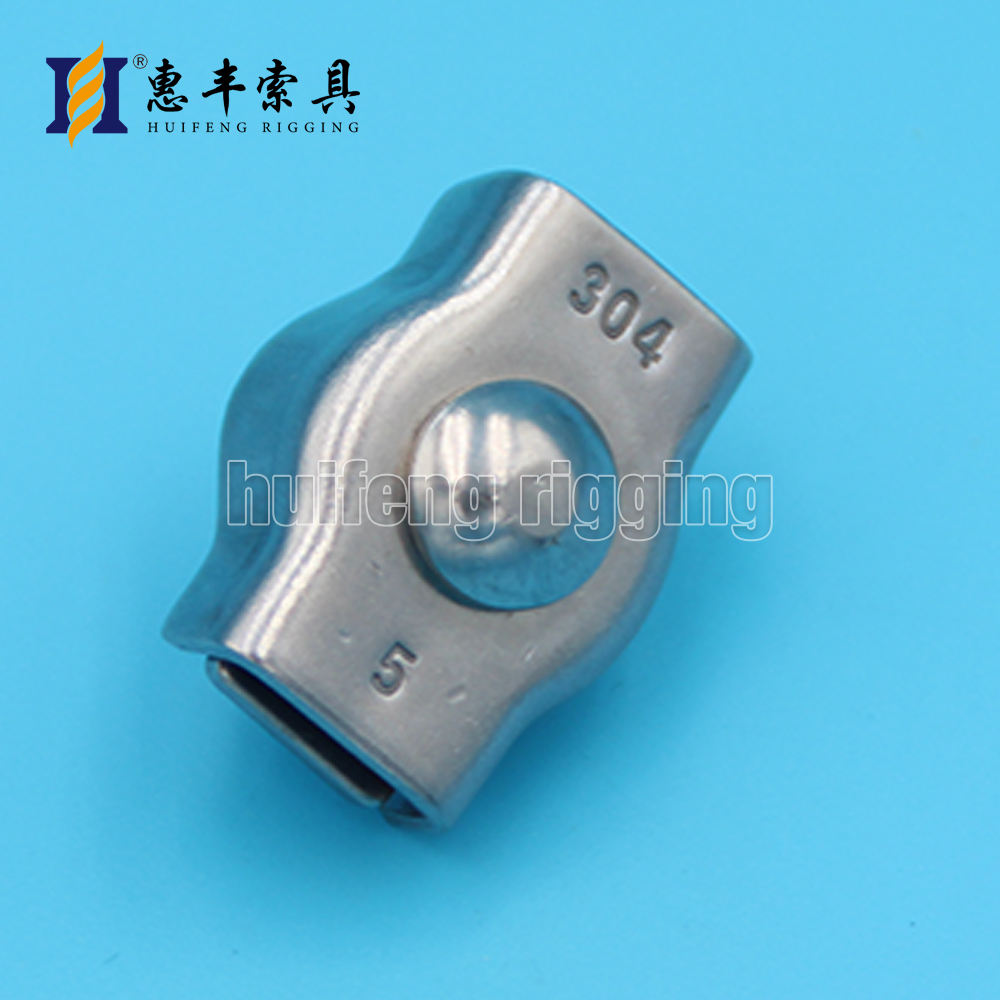

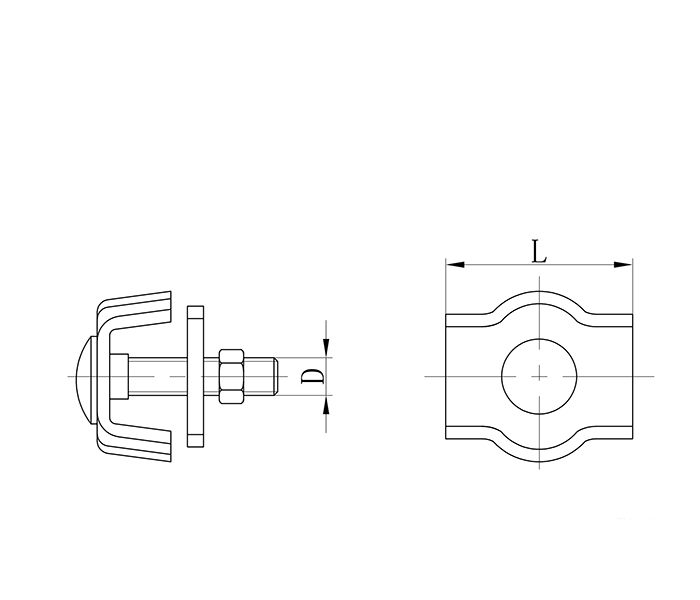

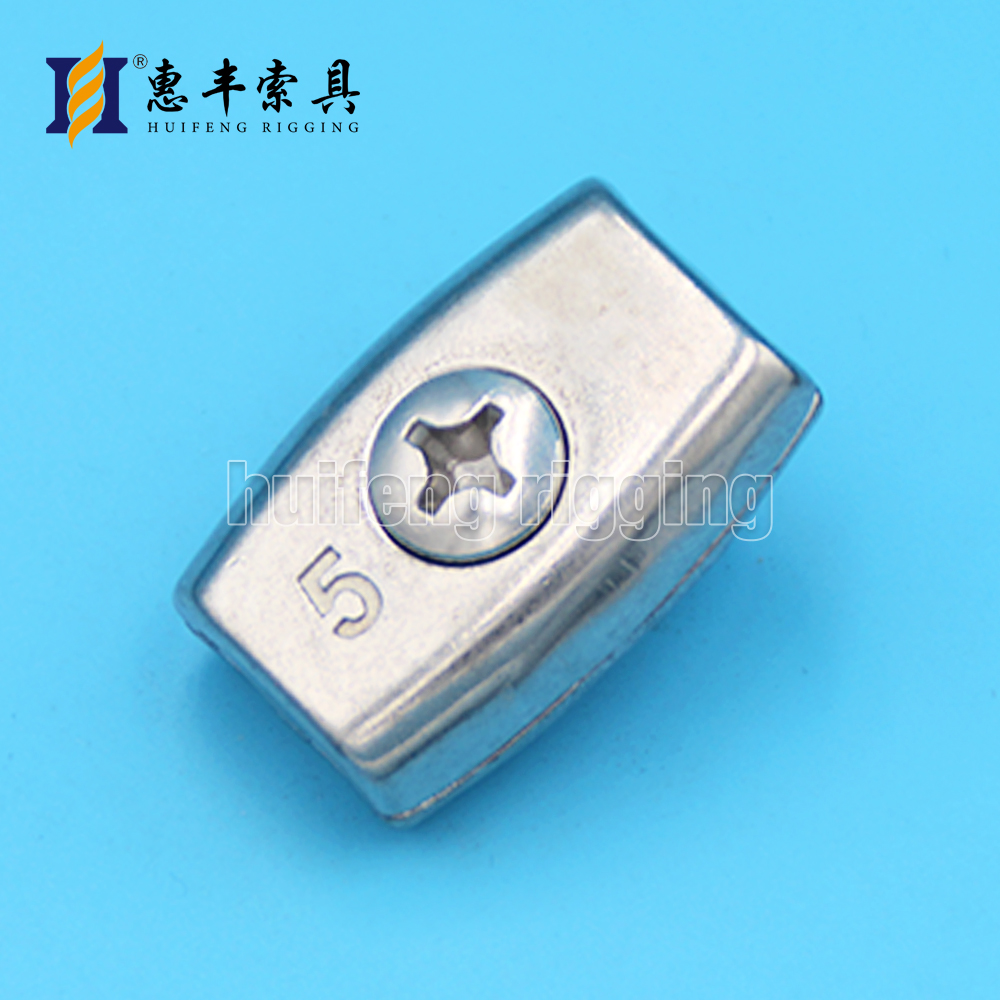

Simplex Wire Rope Clip
单元宝卡头
Simplex Wire Rope Clip
ITEM NO SIZE(mm) L(mm) D(mm)
HF-8206-A/B0002 2 15 4
HF-8206-A/B0003 3 18 4
HF-8206-A/B0004 4 20 5
HF-8206-A/B0005 5 25 5
HF-8206-A/B0006 6 30 6
HF-8206-A/B0008 8 37 8
HF-8206-A/B00010 10 47 10

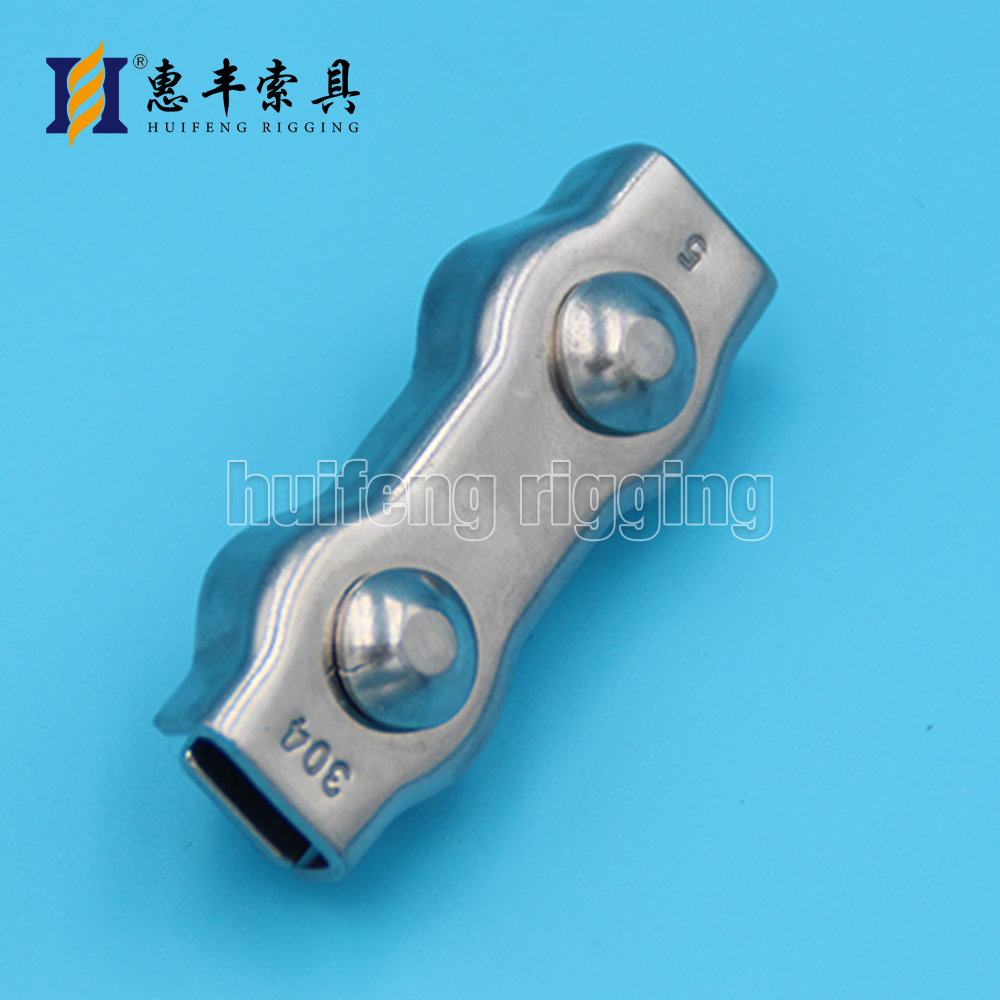

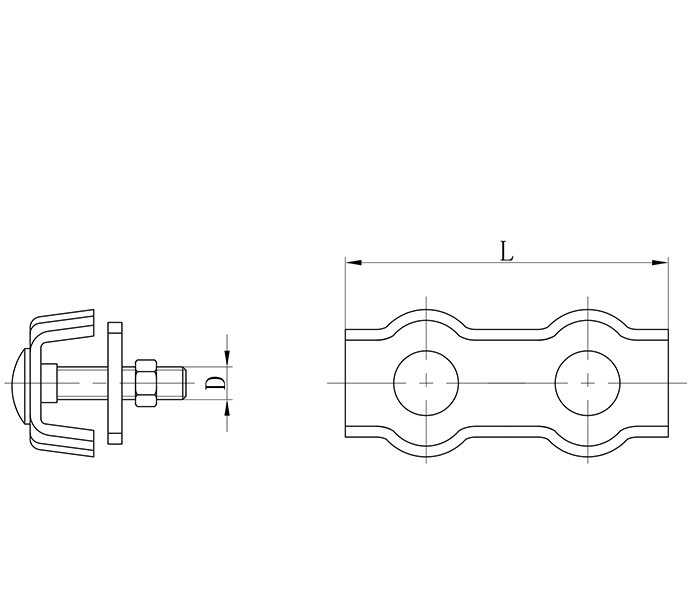

Duplex Wire Rope Clip
双元宝卡头
Duplex Wire Rope Clip
ITEM NO SIZE(mm) L(mm) D(mm)
HF-8207-A/B0002 2 30 4
HF-8207-A/B0003 3 36 4
HF-8207-A/B0004 4 40 5
HF-8207-A/B0005 5 50 5
HF-8207-A/B0006 6 60 6
HF-8207-A/B0008 8 75 8
HF-8207-A/B00010 10 95 10

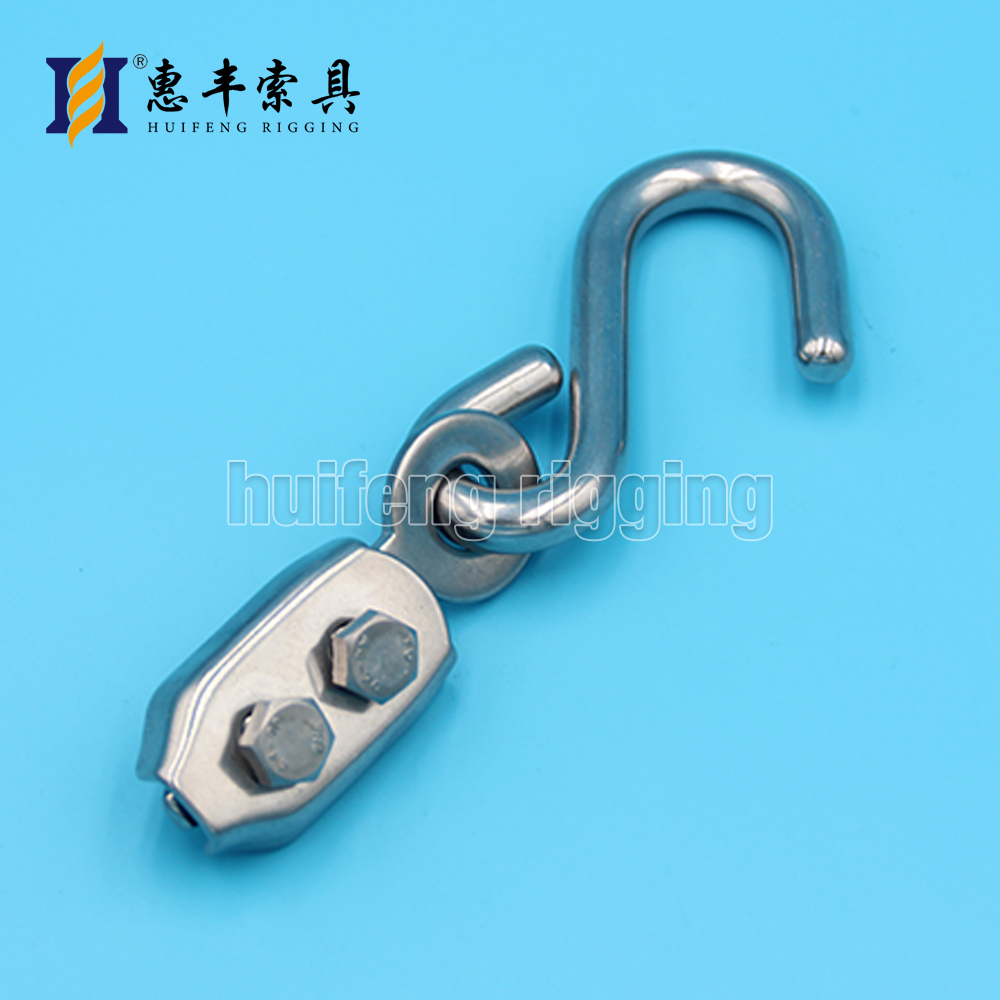

Long Clamp With S Hook
长卡头带S钩
Long Clamp With S Hook
ITEM NO Size(mm)
HF-7027A 5mm

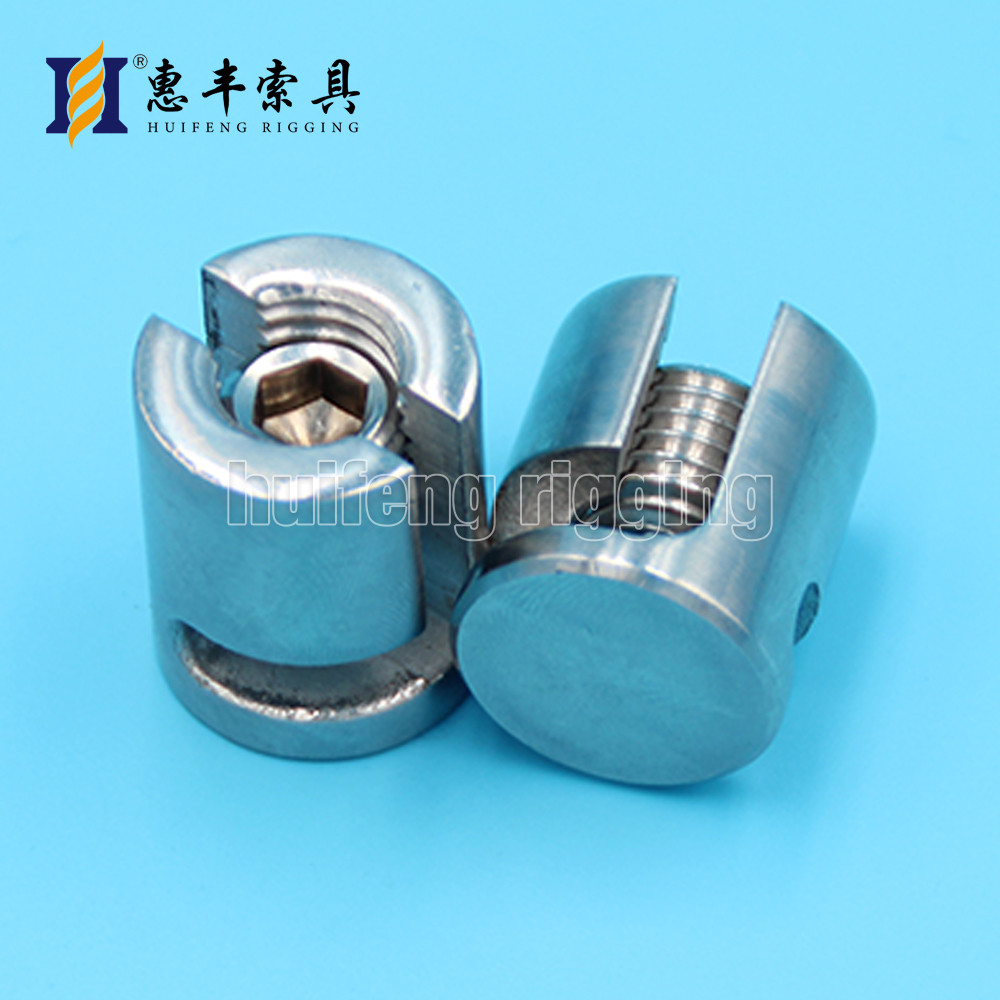

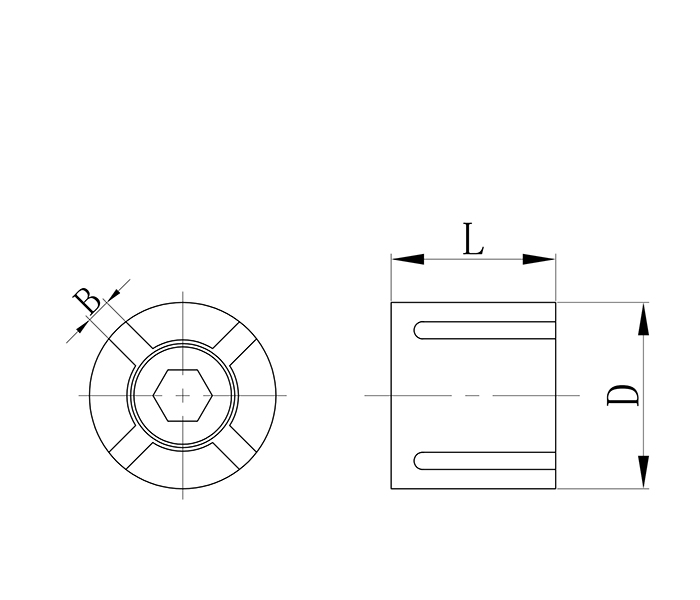

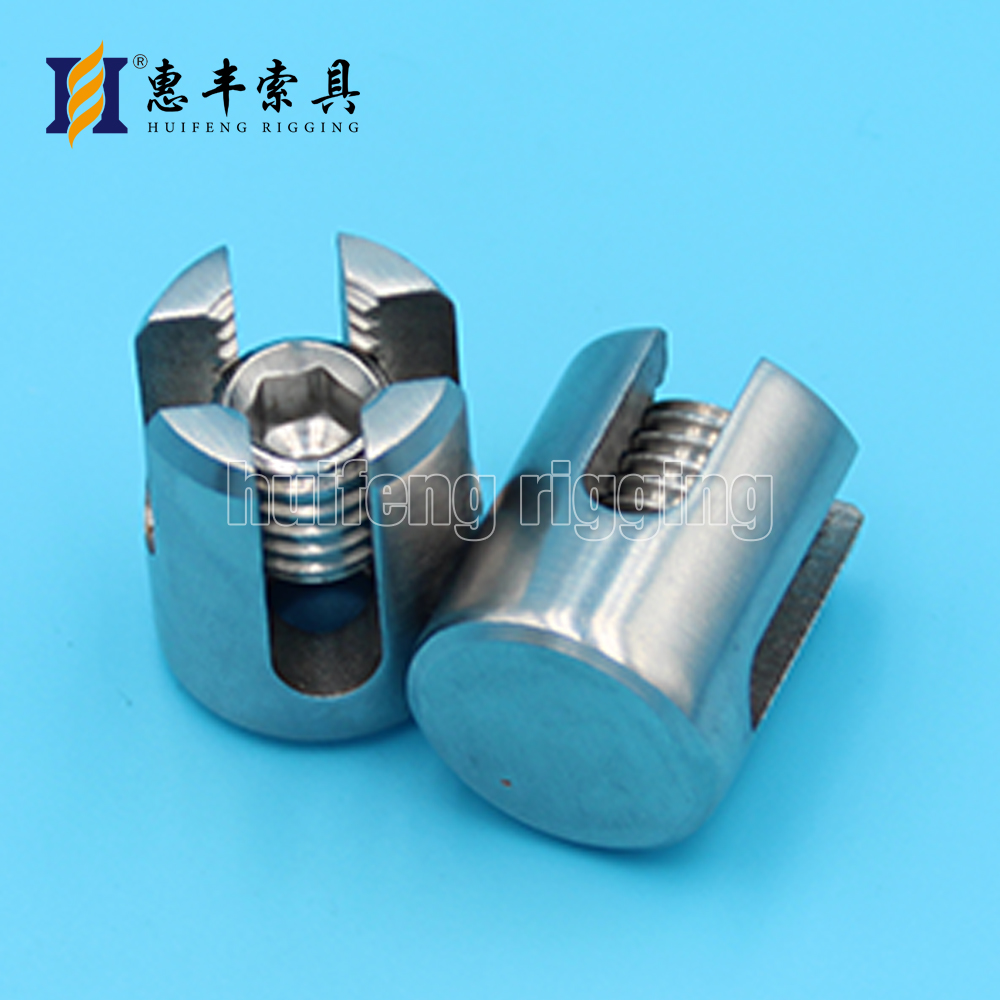

Wire Rope Cross Clip
十字卡头
Wire Rope Cross Clip
ITEM NO SIZE WIREΦ L D B
mm mm mm mm mm
HF-8208-0002 2 2 18 17 2.2
HF-8208-0003 3 3 19 17 3.2
HF-8208-0004 4 4 21 20 4.2
HF-8208-0005 5 5 23 20 5.2
HF-8208-0006 6 6 25 20 6.2
HF-8208-0008 8 8 36 24 8.3
HF-8208-0010 10 10 46 36 10.5
HF-8208-0012 12 12 60 55 13

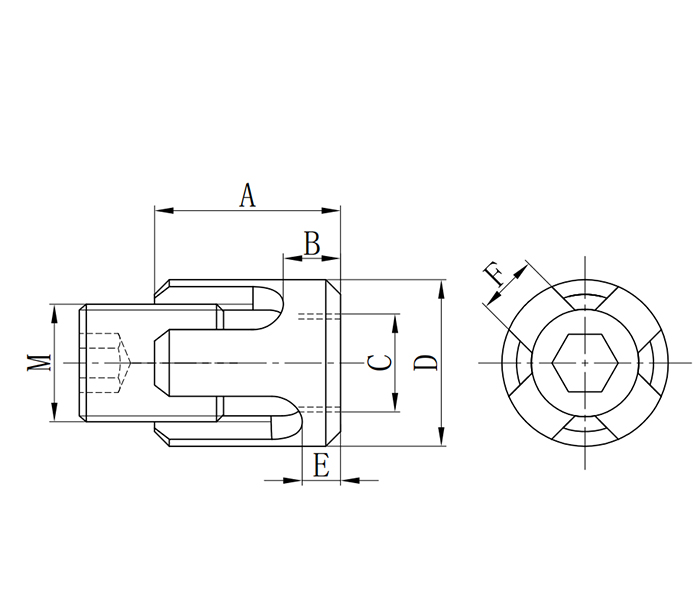

Wire Rope Cross Clip
十字卡头+螺纹孔
Wire Rope Cross Clip
ITEM NO SIZE WIRE A B C D(Φ) E F
mm mm mm mm mm mm mm mm
HF-8209-0010 M10 3 19 8 M10 17 5 3.2
HF-8209-0012 M12 4 21 8 M10 20 5 4.2
Flexible Net Clip
L型线切割卡头
Flexible Net Clip
ITEM NO Size(mm)
HF-8210 2mm, 3mm, 4mm, 5mm, 6mm

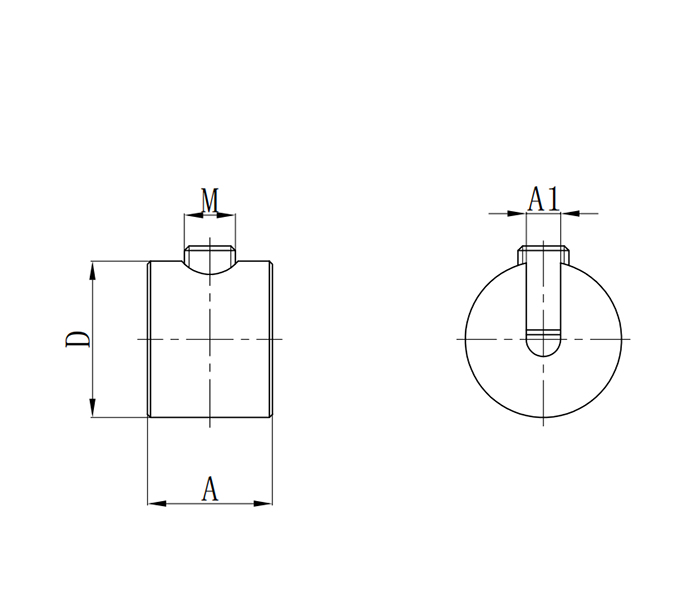

Stopper on Wire Rope
一字钢丝绳卡AISI316
Stopper on Wire Rope
ITEM NO SIZE A1 D M A
(mm) (mm) (mm) (mm) (mm)
HF-8211-0002 1.5-2 2.2 10 M4 8
HF-8211-0003 3-4 4.3 15 M8 12
HF-8211-0005 5-6 6.3 20 M10 15

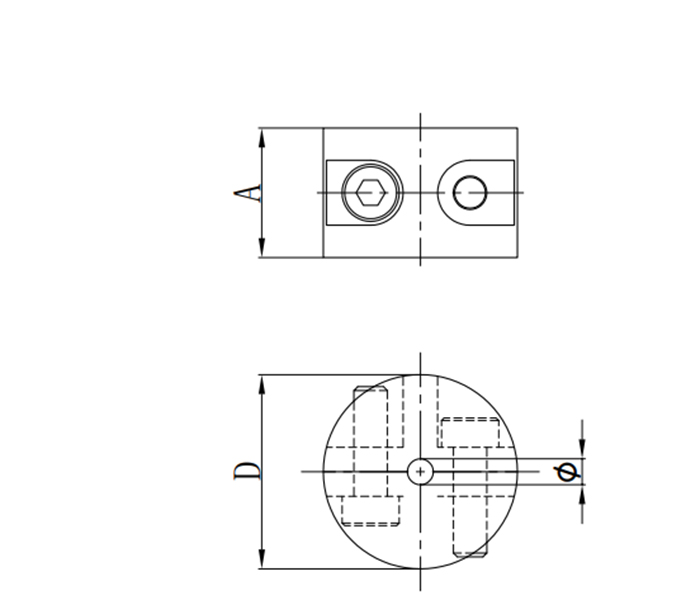

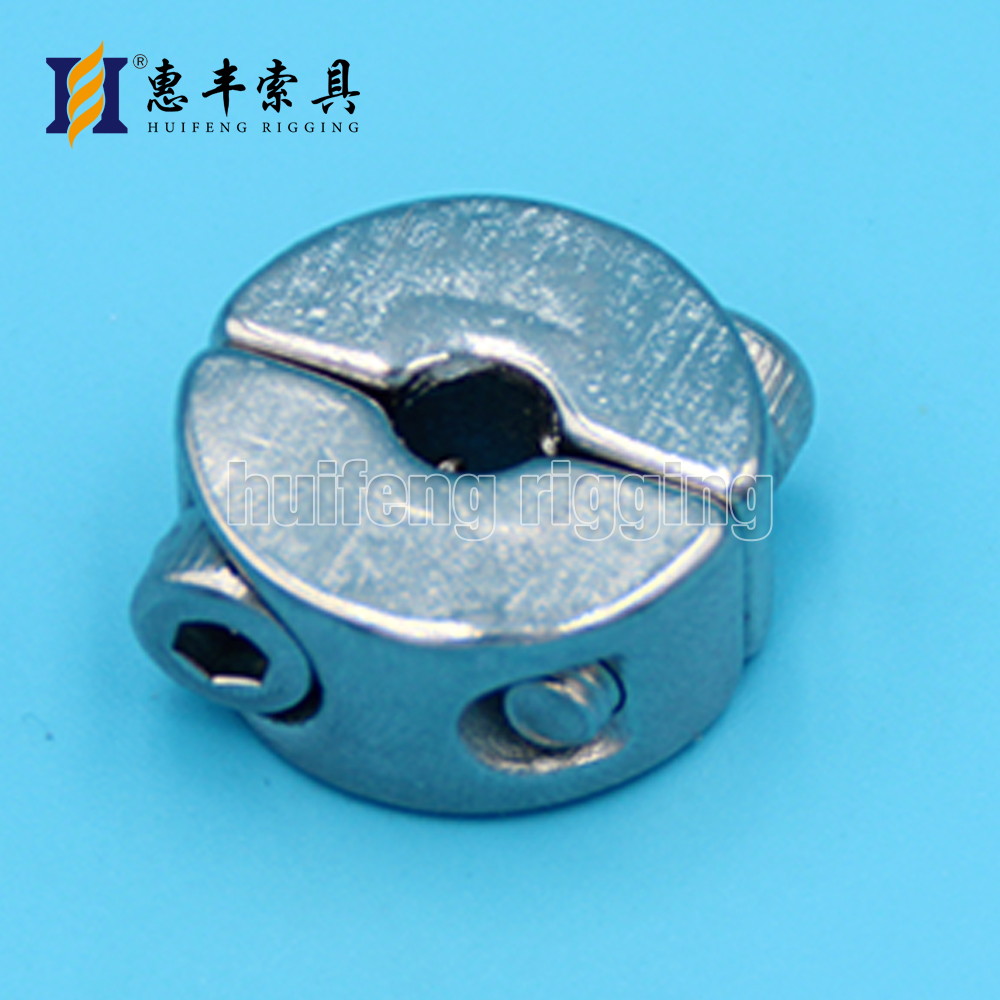

Stopper on Wire Rope
圆卡头制动器
Stopper on Wire Rope
ITEM NO SIZE ∅ A D
mm mm mm mm
HF-8212-0002 2 2 10 15
HF-8212-0003 3 3 10 15
HF-8212-0004 4 4 10 15
HF-8212-0005 5 5 10 20
HF-8212-0006 6 6 10 20
HF-8212-0007 8 8 10 23

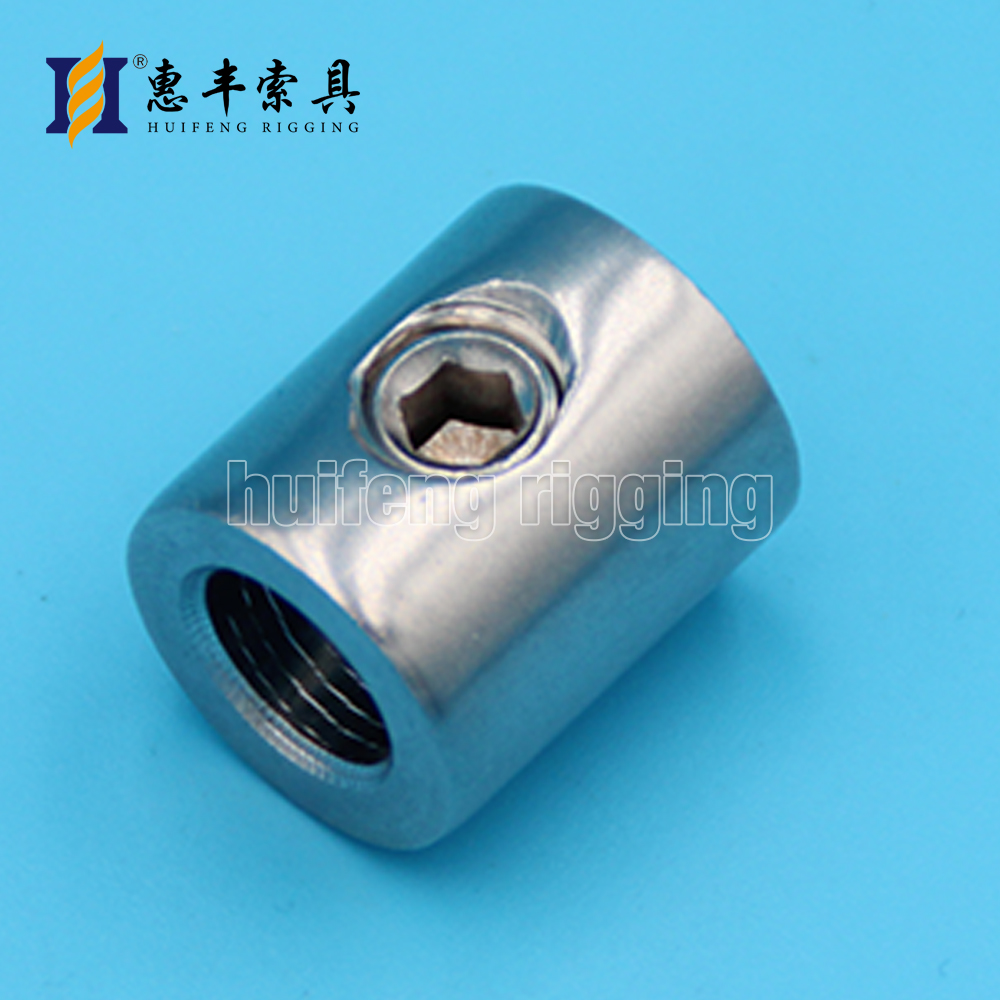

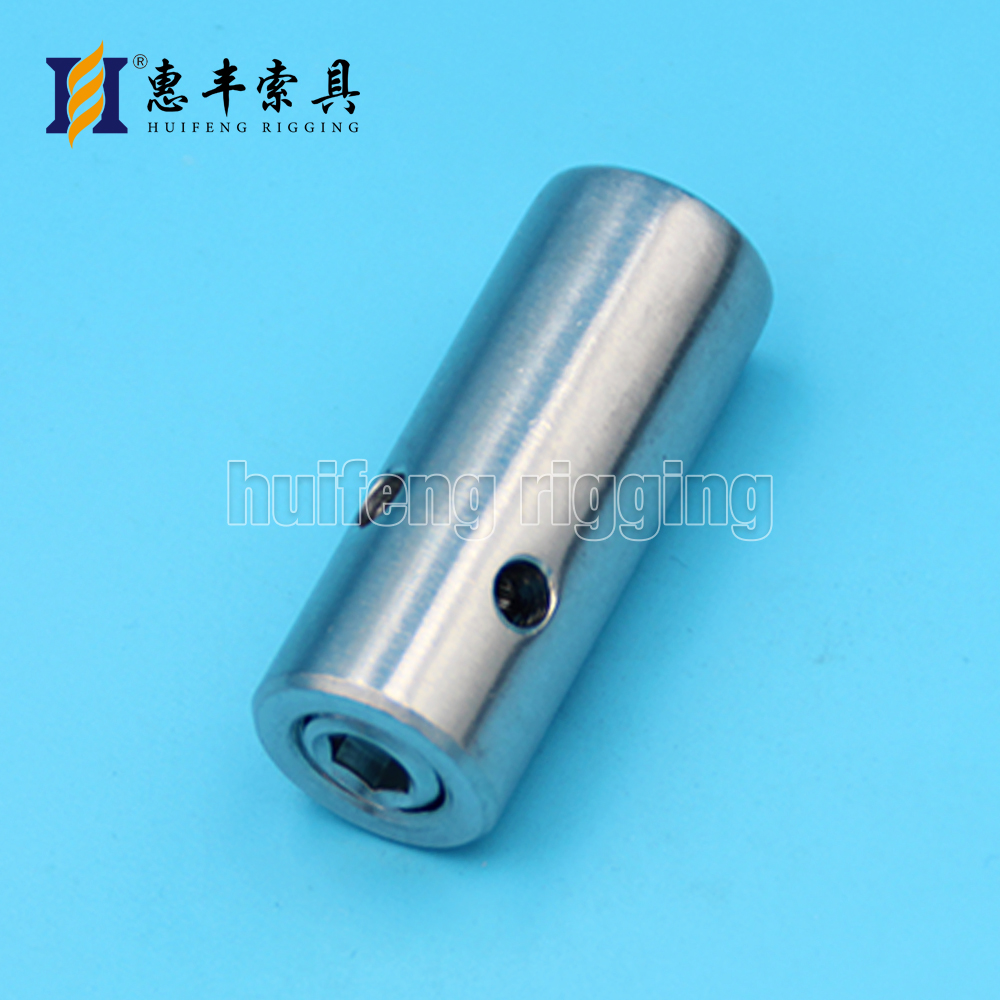

Wire Rope Stopper
圆套筒带顶丝
Wire Rope Stopper
ITEM NO WireΦ L L1 D1 D2 D3
in in in in in mm
HF-8213-3/16 3/16" 0.25" 0.12" 0.19" 0.42" M4
HF-8213-1/4 1/4" 0.283" 0.20" 0.25" 0.5" M5
HF-8213-5/16 5/16" 0.311" 0.2" 0.31" 0.61" M5
HF-8213-3/8 3/8" 0.375" 0.20" 0.38" 0.75" M6

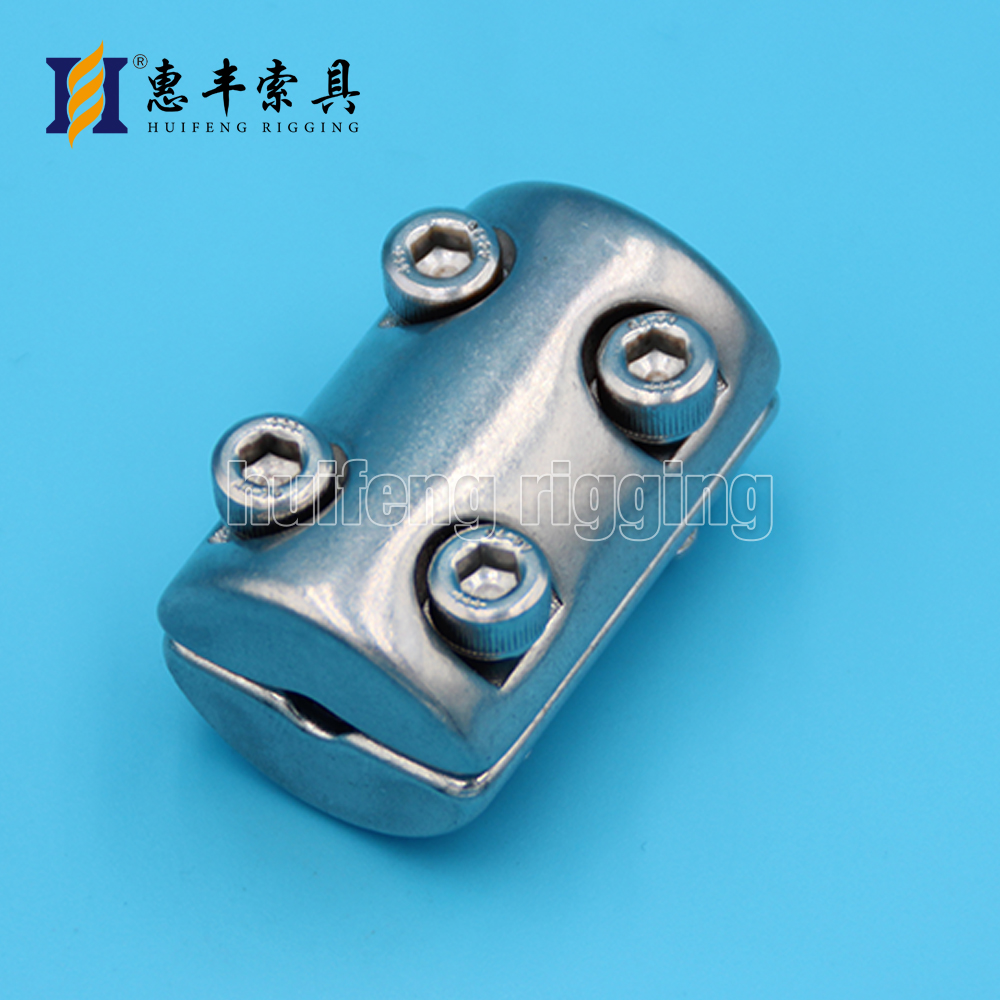

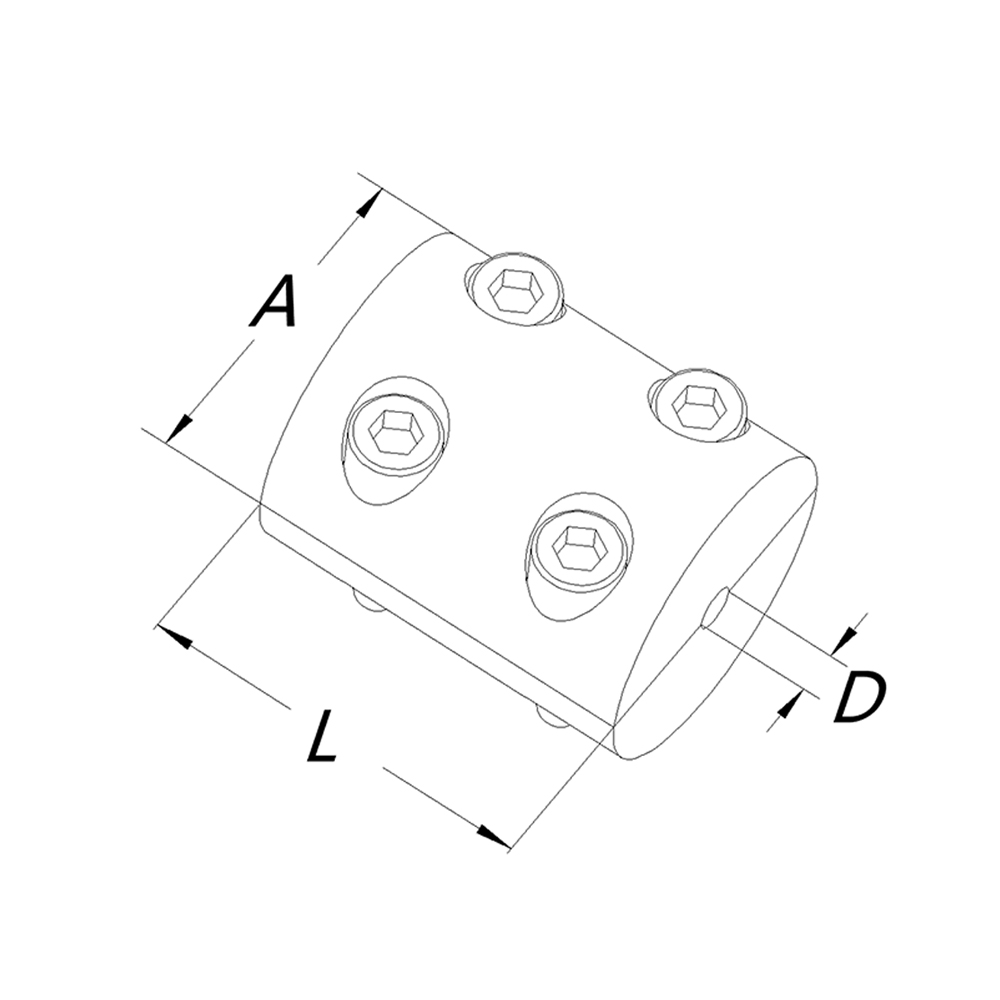

Heavy Duty Wire Rope Stopper
重型圆头制动器
Heavy Duty Wire Rope Stopper
ITEM NO D L A Thread
mm mm mm M
HF-8214-0003 3 27 22 M4
HF-8214-0004 4 27 22 M4
HF-8214-0005 5 42 28 M5
HF-8214-0006 6 42 28 M5
HF-8214-0008 8 42 28 M5

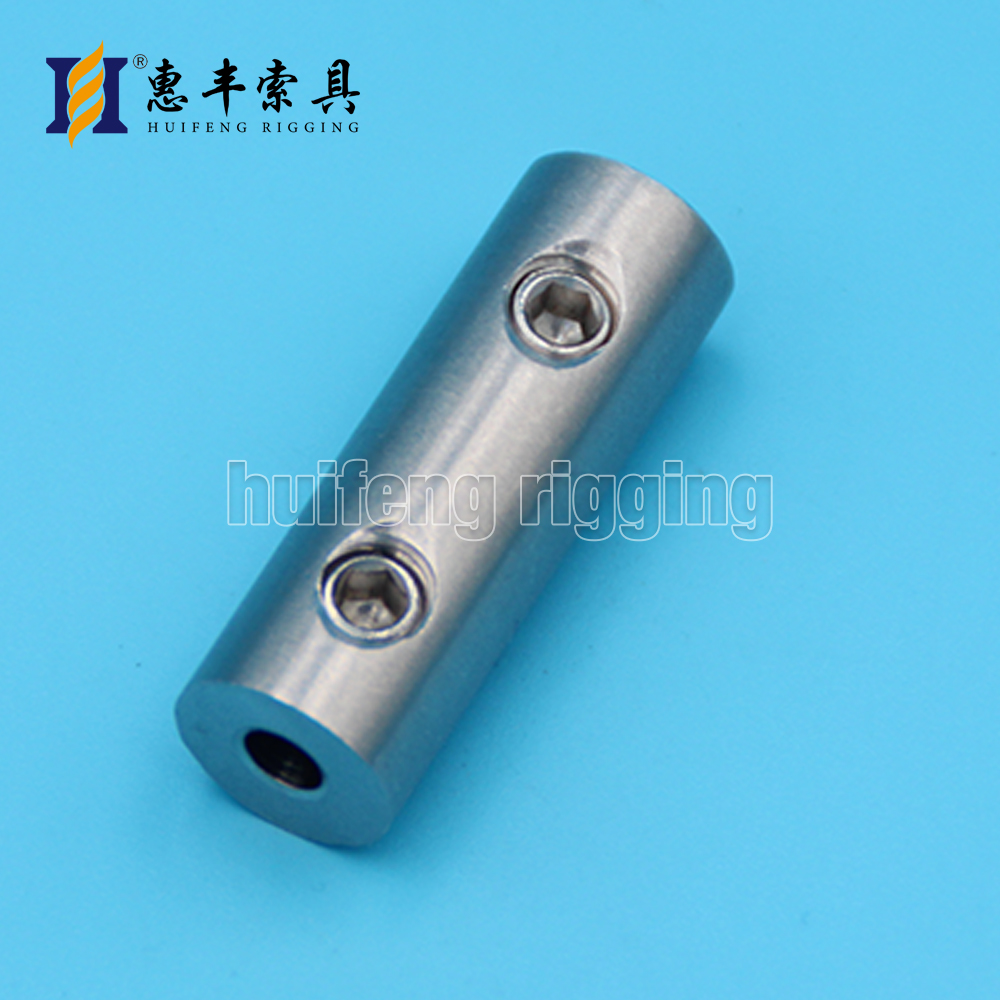

Wire Rope Stopper
圆套筒带顶丝
Wire Rope Stopper
ITEM NO Size(in)
HF-8215 3/16”, 1/4”, 5/16”, 3/8”
Stainless Steel DIN3093 Sleeve
钢套
Stainless Steel DIN3093 Sleeve
ITEM NO Wire(∅) A(in) B(in) C(in)
HF-8216-001 1/16" 0.22" 0.15" 0.38"
HF-8216-002 3/32" 0.27" 0.17" 0.38"
HF-8216-003 1/8" 0.39" 0.26" 0.38"
HF-8216-004 5/32" 0.49" 0.32" 0.72"
HF-8216-005 3/16" 0.57" 0.37" 1"
HF-8216-006 7/32" 0.63" 0.4" 1.07"
HF-8216-007 1/4" 0.73" 0.47" 1.13"
HF-8216-008 5/16" 0.95" 0.6" 1.38"

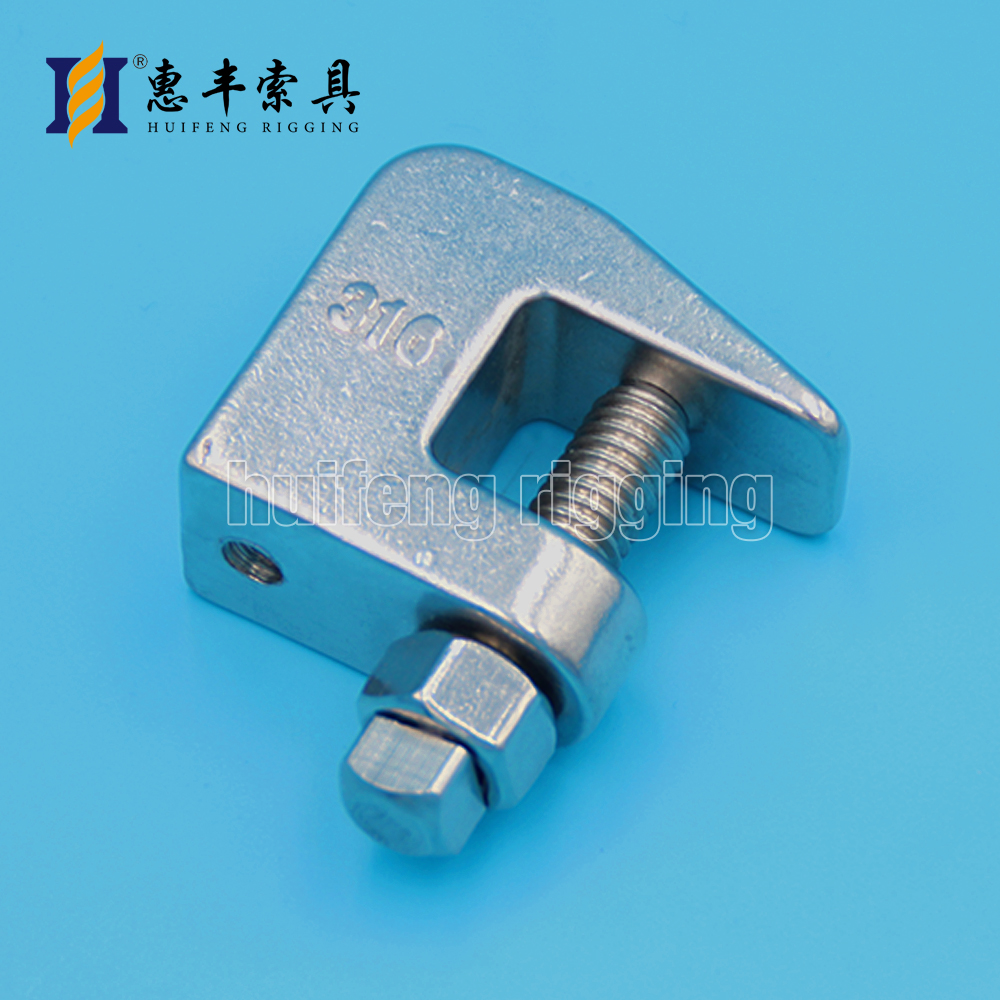

Beam Clamp
快速夹子
Beam Clamp
ITEM NO Size(mm)
HF-8217 6mm, 8mm, 10mm
Egg Shape Wire Rope Clip
蛋形卡头
Egg Shape Wire Rope Clip
ITEM NO Size(mm)
HF-8218 2mm, 3mm, 4mm, 5mm, 6mm
Green Wall Hubs
绿植十字卡头
Green Wall Hubs
ITEM NO Size(inch)
HF-8219 1/8'', 3/16''

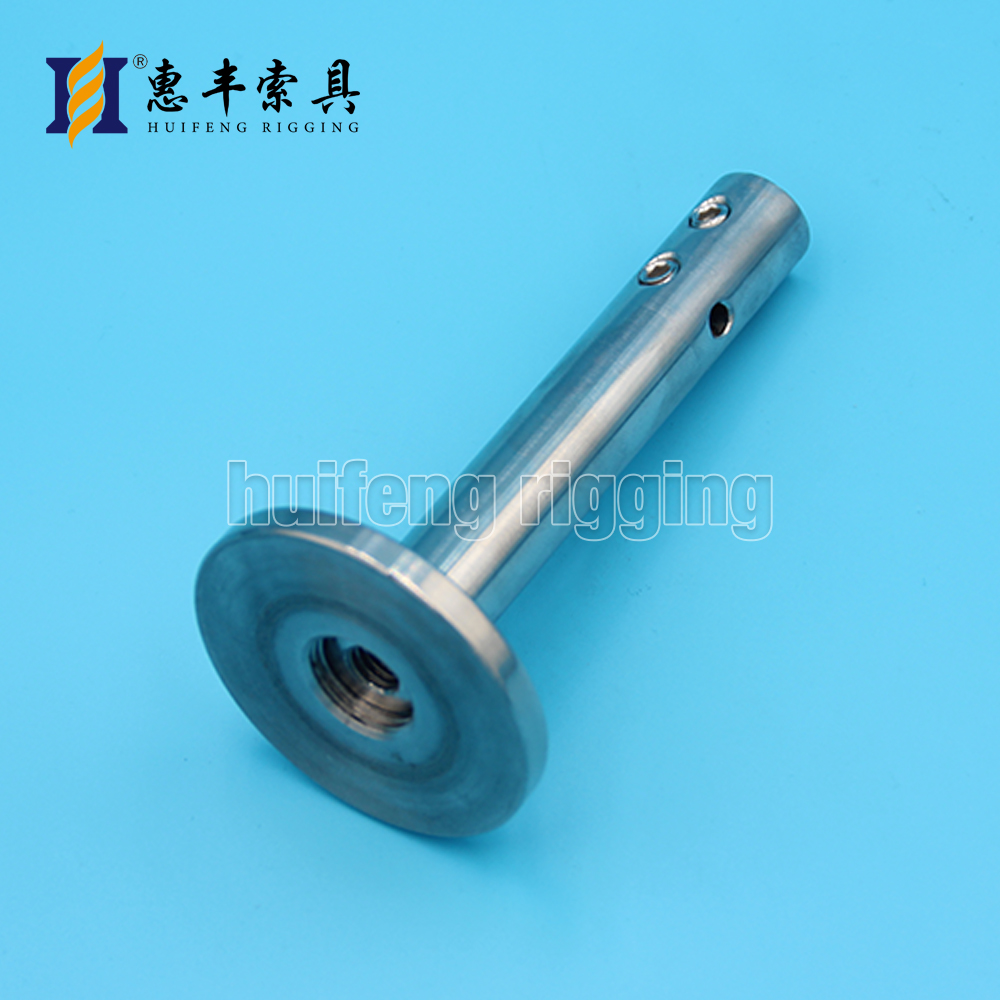

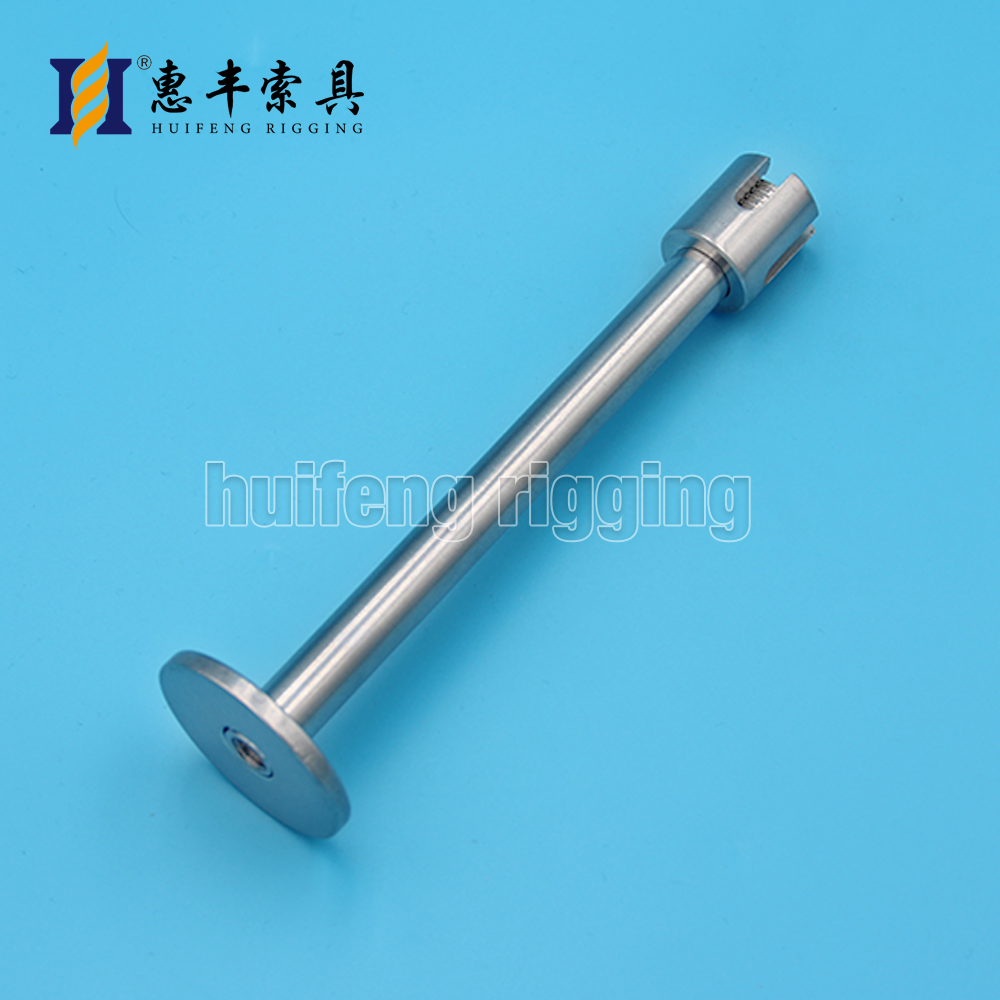

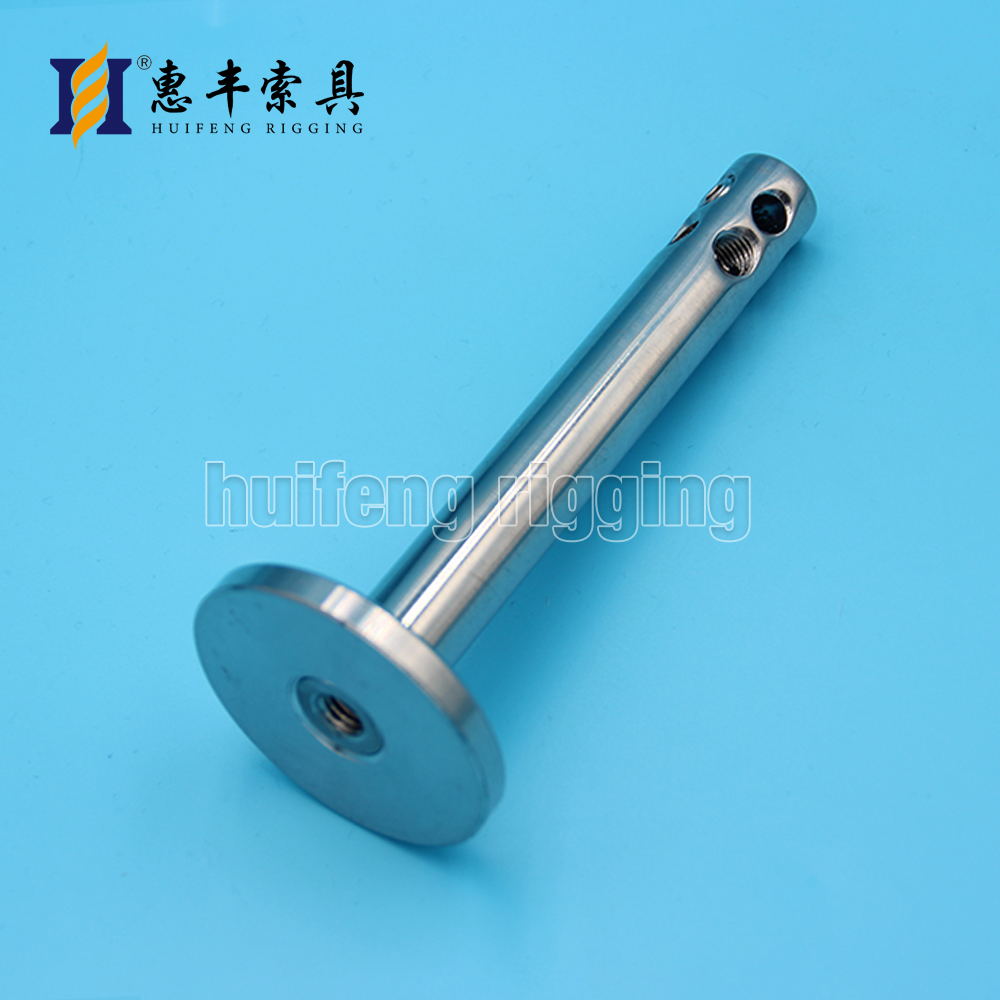

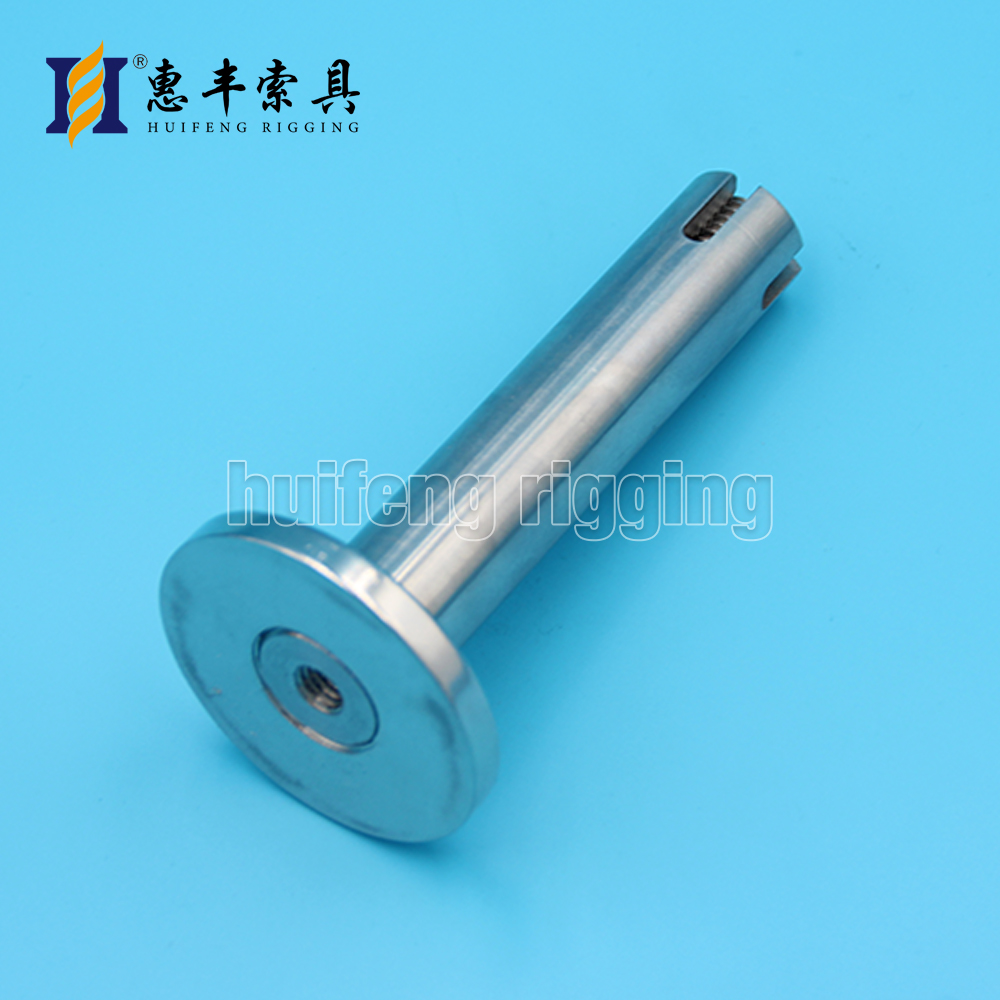

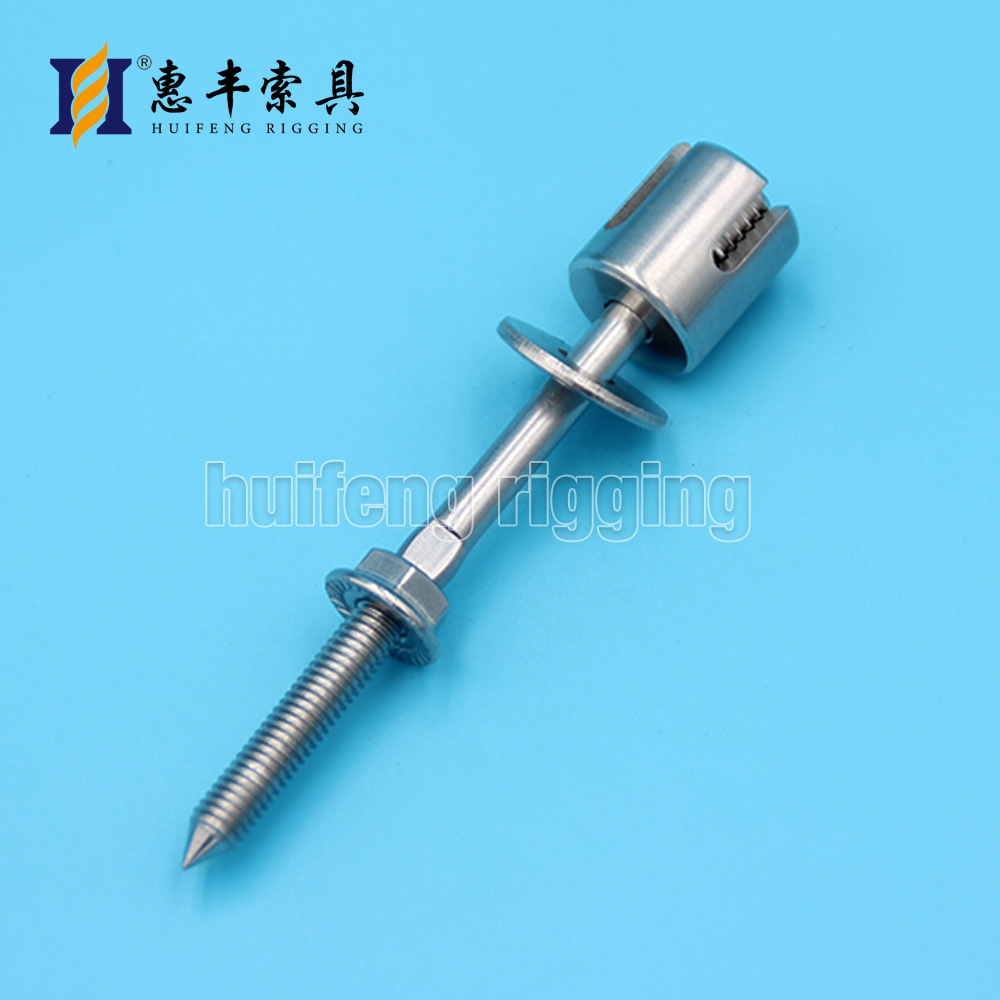

Green Wall Post
绿植立柱底座
Green Wall Post
ITEM NO Size(mm)
HF-G0001 3mm, 4mm, 5mm
Green Wall Post
绿植立柱底座
Green Wall Post
ITEM NO Size(mm)
HF-G0002 3mm, 4mm, 5mm
Green Wall Hub Bracket
攀爬器
Green Wall Hub Bracket
ITEM NO Size(mm)
HF-G0003 3mm, 4mm, 5mm
Green Wall Hub Bracket
攀爬器
Green Wall Hub Bracket
ITEM NO Size(mm)
HF-G0004 3mm, 4mm, 5mm
Green Wall Post
绿植立柱底座
Green Wall Post
ITEM NO Size(mm)
HF-G0005 3mm, 4mm, 5mm
Green Wall Post
绿植立柱底座
Green Wall Post
ITEM NO Size(mm)
HF-G0006 3mm, 4mm, 5mm
Green Wall Hub Bracket
攀爬器
Green Wall Hub Bracket
ITEM NO Size(mm)
HF-G0007 3mm, 4mm, 5mm
