WIRE ROPE FITTINGS

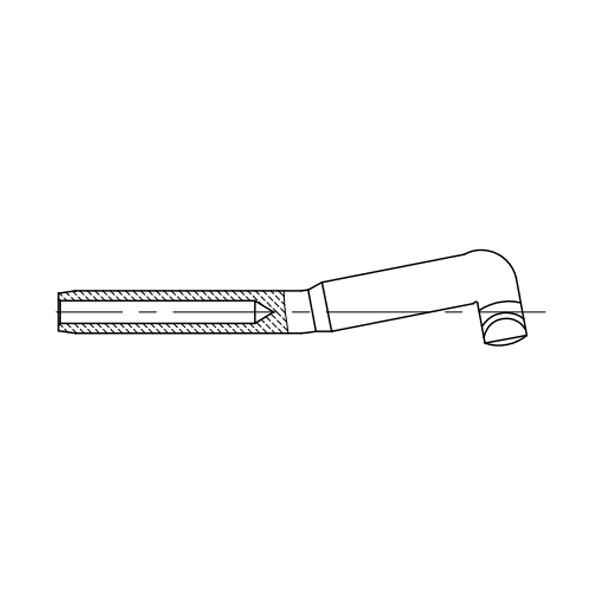

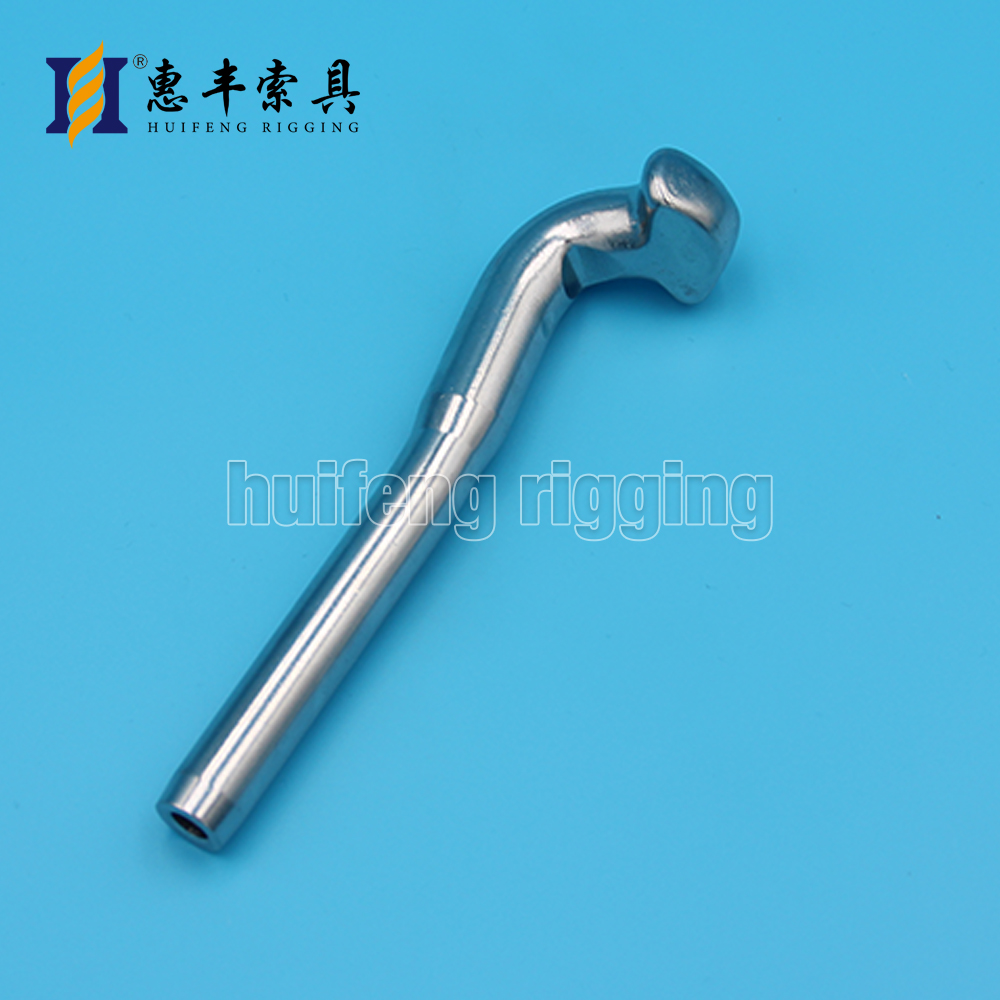

T Terminal

烟斗接线器

T Terminal

ITEM NO

Size(mm)

HF-2000

3mm-10mm

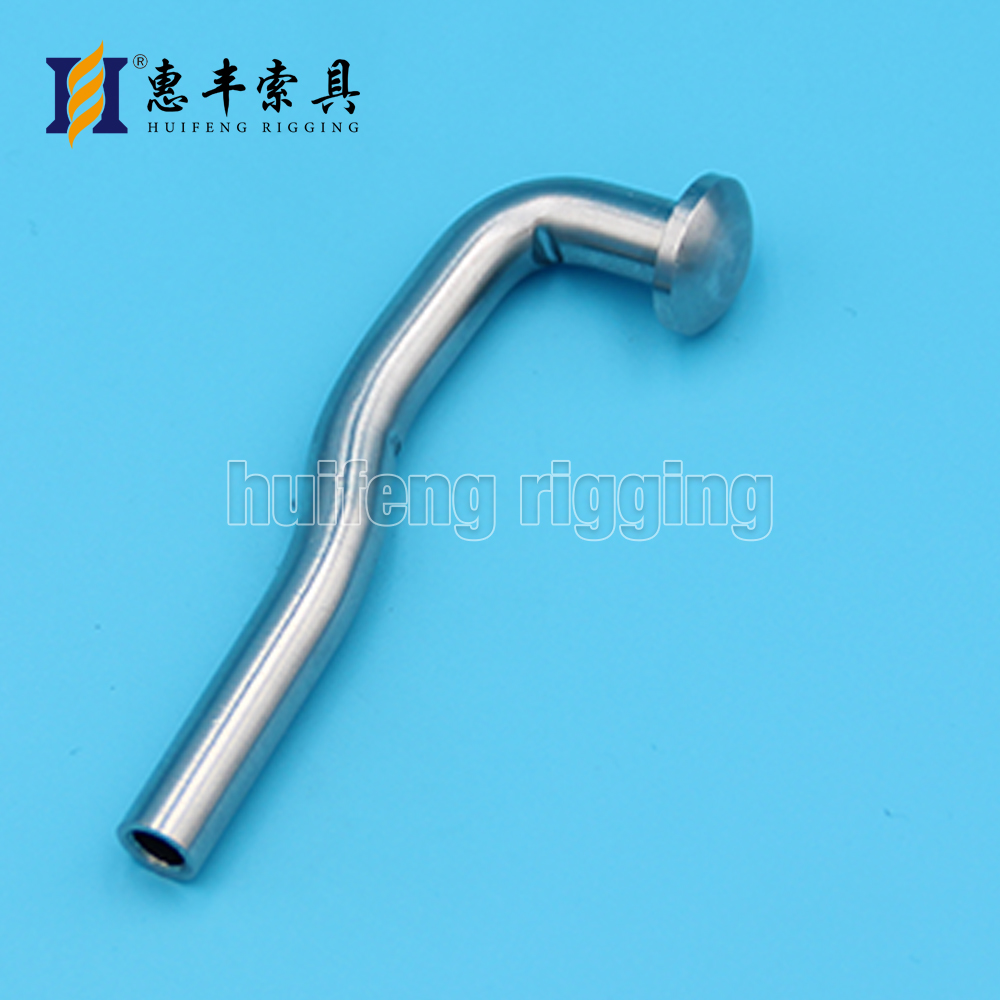

Dome Head T Terminal

圆头烟斗接线器

Dome Head T Terminal

ITEM NO

Size(mm)

HF-2000A

3mm-10mm

Eye Terminal, US Type

美式眼式接线器

Eye Terminal, US Type

ITEM NO

Wire

HF-2001-3/32

3/32"

1.91"

1.18"

0.12"

0.21"

0.218"

0.1"

0.51"

HF-2001-1/8

1/8"

2.17"

1.42"

0.16"

0.26"

0.25"

0.14"

0.55"

HF-2001-5/32

5/32"

2.56"

1.54"

0.24"

0.33"

0.295"

0.165"

0.71"

HF-2001-3/16

3/16"

3.15"

1.97"

0.28"

0.39"

0.354"

0.201"

0.87"

HF-2001-1/4

1/4"

3.7"

2.44"

0.31"

0.49"

0.496"

0.265"

1.10"

HF-2001-9/32

9/32"

4.13"

2.68"

0.35"

0.5"

0.559"

0.297"

1.10"

HF-2001-5/16

5/16"

4.86"

3.35"

0.39"

0.57"

0.63"

0.328"

1.26"

HF-2001-3/8

3/8"

5.59"

3.54"

0.47"

0.65"

0.709"

0.395"

1.42"

HF-2001-1/2

1/2"

6.3"

4.13"

0.63"

0.76"

0.842"

0.524"

1.57"

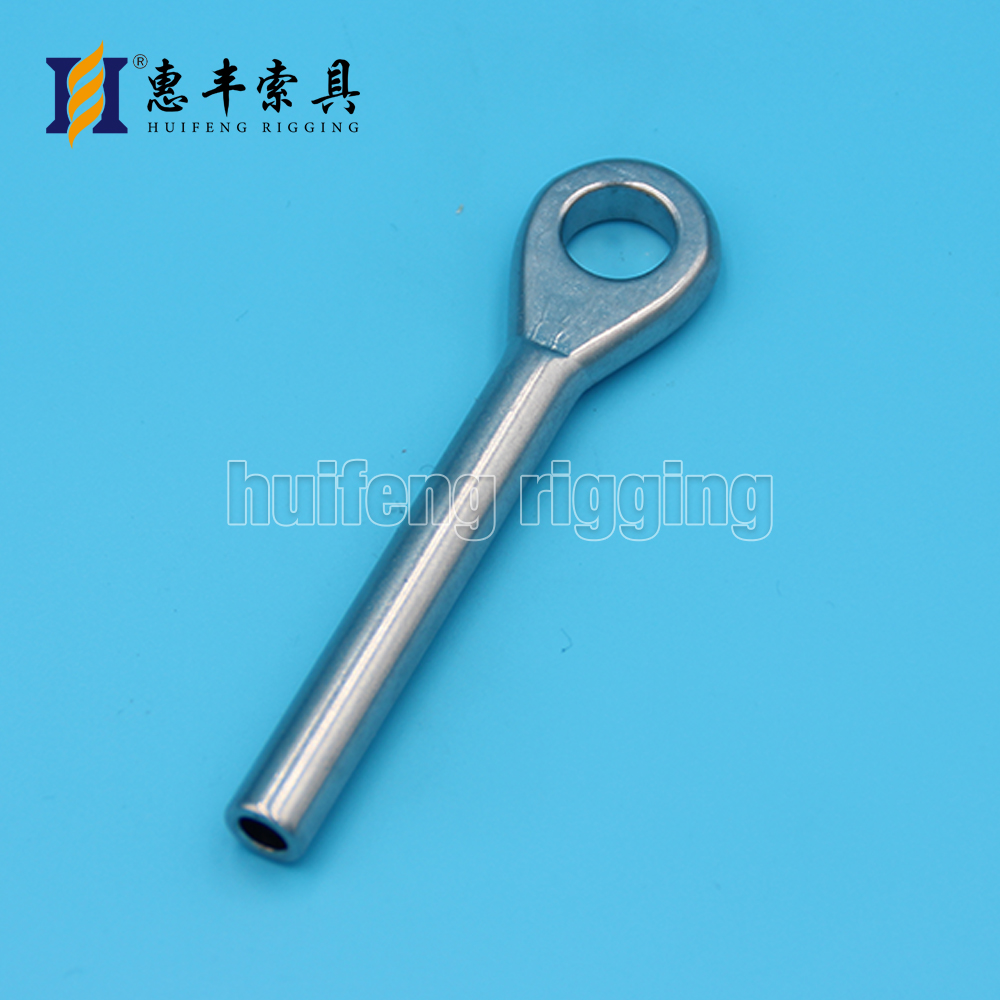

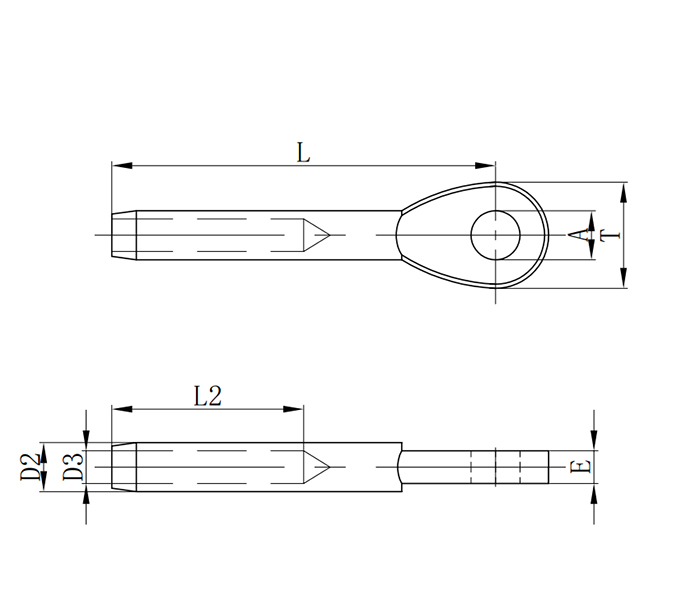

Swage Eye Terminal

眼式接线器
Swage Eye Terminal
ITEM NO	WIRE (mm)	A (mm)	T(mm)	D2 (mm)	D3 (mm)	E(mm)	L2 (mm)	L (mm)
HF-2002-0003	3	6.5	14	6.35	3.3	4	36	55
HF-2002-0004	4	8.5	18	7.5	4.3	5	39	65
HF-2002-0005	5	10.5	22	9	5.5	6	50	80
HF-2002-0006	6	12.5	28	12.6	6.4	8	62	94
HF-2002-0007	7	12.5	28	16	7.4	9	68	105
HF-2002-0008	8	14.5	32	16	8.4	10	85	124
HF-2002-0010	10	16.4	36	18	10.5	11	90	142
HF-2002-0012	12	19.3	40	20	12.6	15	105	160
HF-2002-0016	16	25	53	28	16.8	15.5	165	222
HF-2002B-0016	16	25	53	28	16.8	15.5	195	262

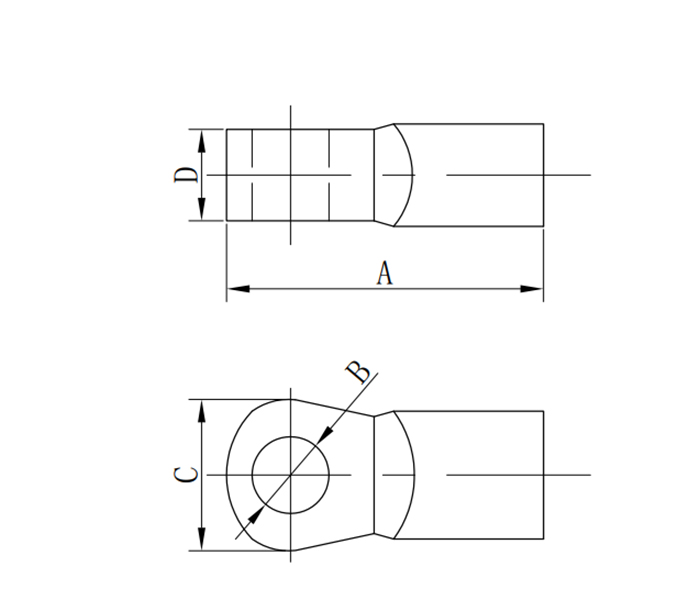

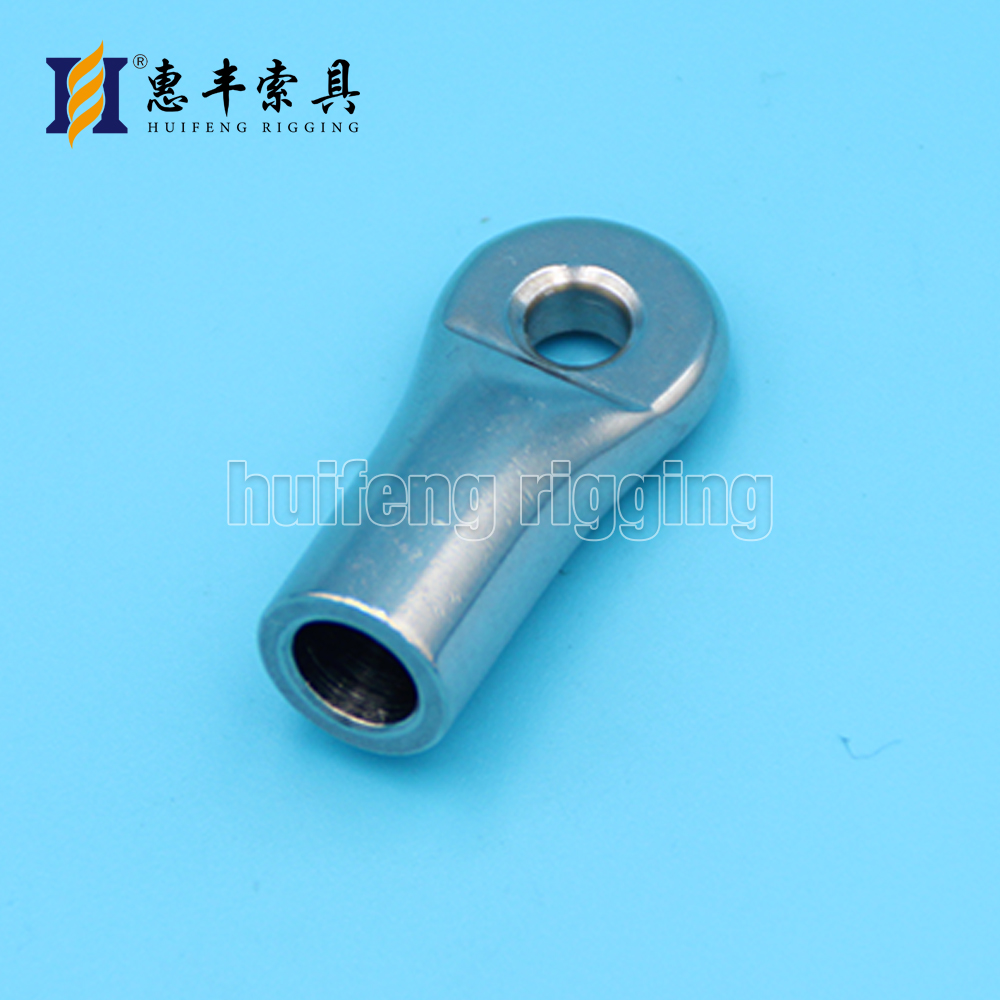

Mini Swage Eye

迷你眼式接线器
Mini Swage Eye
ITEM NO	Size（mm）	A(mm）	B(mm）	C(mm）	D(mm)
HF-2003-0100	1	13	2	5	2.5
HF-2003-0101	1.5	16	3	8.3	3
HF-2003-0102	2	20	4.5	10	3
HF-2003-0103	3	30	5	14	5

Swage Fork, US Type

美式叉式拉具

Swage Fork, US Type

ITEM NO

WireΦ

HF-2004-1/8

1/8"

2.56"

1.26"

0.39"

0.55"

0.3"

0.24"

0.25"

0.14"

0.39"

0.12"

HF-2004-5/32

5/32"

3.03"

1.57"

0.47"

0.73"

0.43"

0.31"

0.295"

0.165"

0.43"

0.12"

HF-2004-3/16

3/16"

3.46"

2.24"

0.53"

0.83"

0.47"

0.35"

0.354"

0.201"

0.55"

0.16"

HF-2004-1/4

1/4"

4.17"

2.48"

0.73"

1.02"

0.55"

0.47"

0.496"

0.265"

0.79"

0.2"

HF-2004-9/32

9/32"

4.57"

2.76"

0.81"

1.04"

0.59"

0.47"

0.559"

0.297"

0.87"

0.2"

HF-2004-5/16

5/16"

5.71"

3.35"

0.96"

1.42"

0.67"

0.63"

0.328"

1.02"

0.24"

HF-2004-3/8

3/8"

5.91"

3.54"

1.16"

1.79"

0.79"

0.75"

0.709"

0.395"

1.18"

0.24"

HF-2004-1/2

1/2”

7.68"

4.13"

1.16"

1.79"

0.91"

0.75"

0.842"

0.524"

1.38"

0.24"

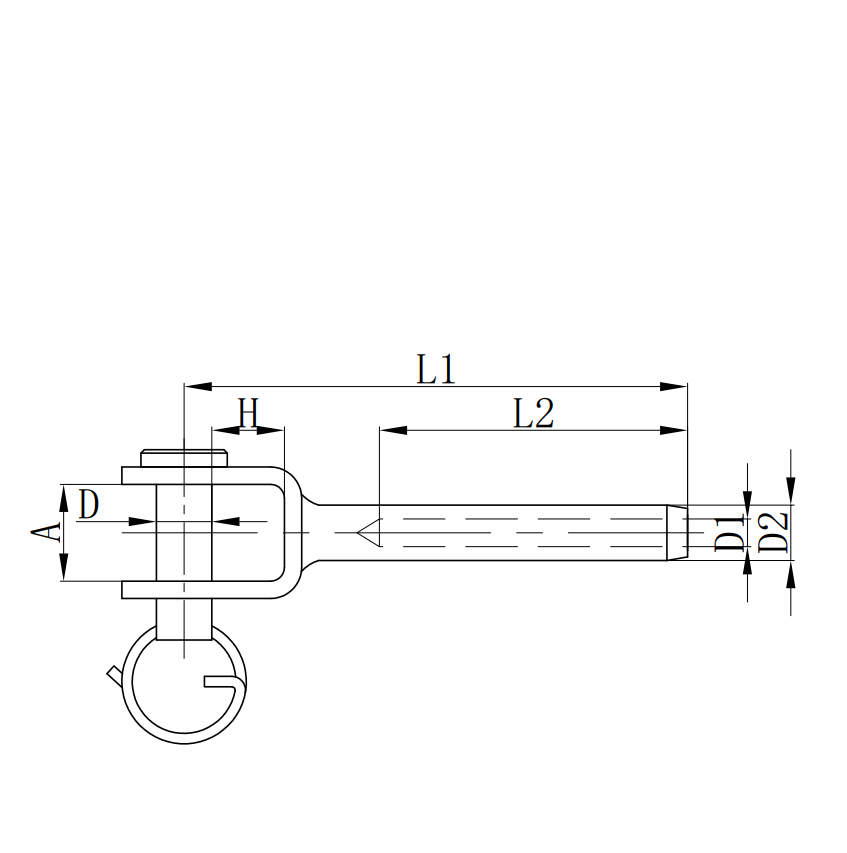

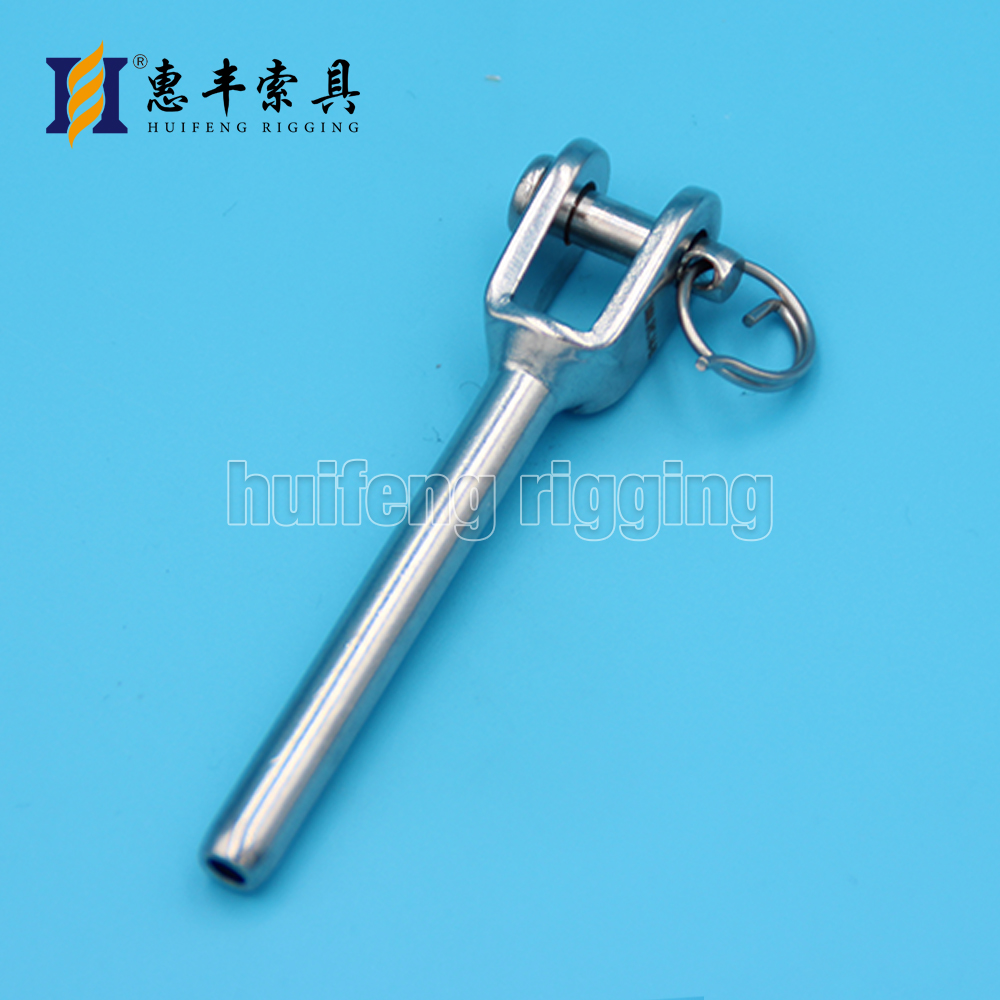

Swage Fork Terminal

叉式接线器
Swage Fork Terminal
ITEM NO	WIRE Φ	A (mm)	D (mm)	H (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
HF-2005-0002	2.5	6.5	5	10	2.7	5.5	55	24
HF-2005-0003	3	7.5	6	10	3.3	6.35	65	32
HF-2005-0004	4	11	8	11	4.3	7.5	77	40
HF-2005-0005	5	12	9	14	5.3	9	88	57
HF-2005-0006	6	14	12	20	6.4	12.6	106	63
HF-2005-0007	7	15	12	22	7.4	14.2	116	70
HF-2005-0008	8	17	16	26	8.4	16	145	85
HF-2005-0010	10	20	19	30	10.5	18	150	90
HF-20050012	12	23	19	35	12.6	20	195	105
HF-2005-0014	14	30	22	48	14.7	25	235	143
HF-2005-0016	16	32	22	50	16.5	28	260	160
HF-2005-0019	19	32	28	52	19.5	34.5	310	205
HF-2005-0025	25	44	36	65	25.5	46	430	285

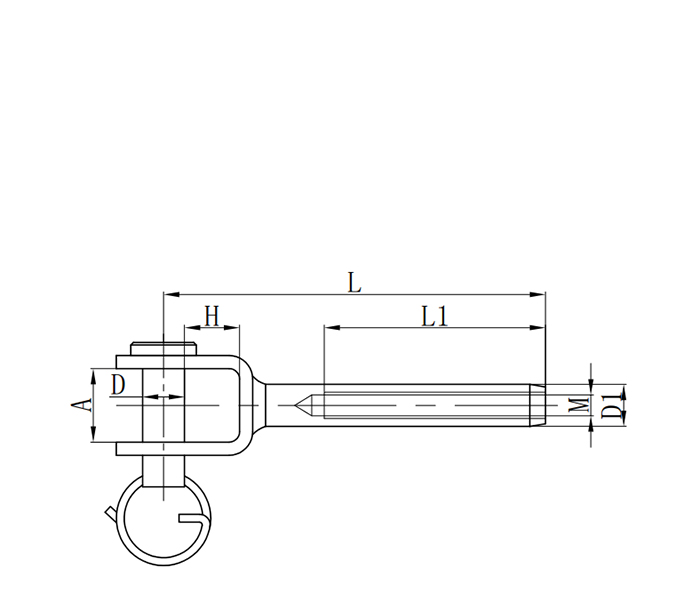

Swage Fork Terminal with Internal Thread

带内丝叉式接线器
Swage Fork Terminal with Internal Thread
ITEM NO	M (mm)	A (mm)	D (mm)	H (mm)	D1 (mm)	L1 (mm)	L (mm)
HF-2006-0005	M5	8	5	10	7.5	27	55
HF-2006-0006	M6	9	6	10	8	30	60
HF-2006-0008	M8	13	8	12	12	31	65
HF-2006-0010	M10	16	10	14	14	40	75

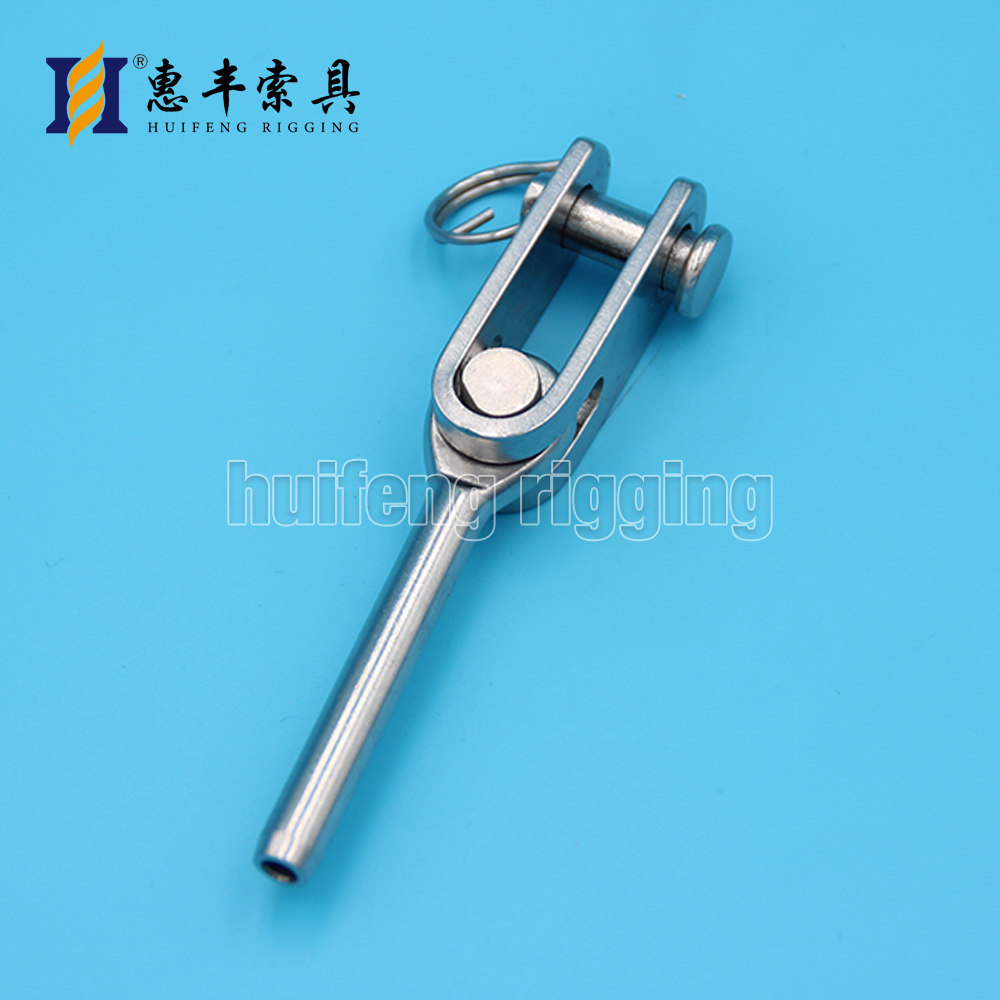

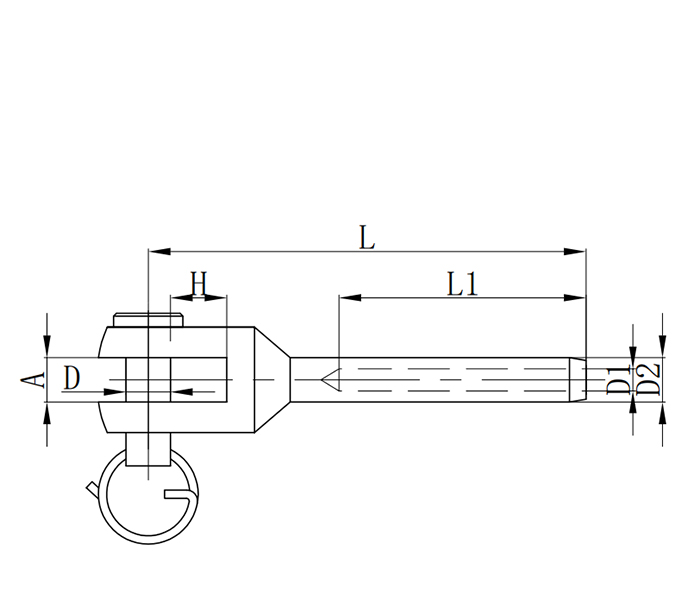

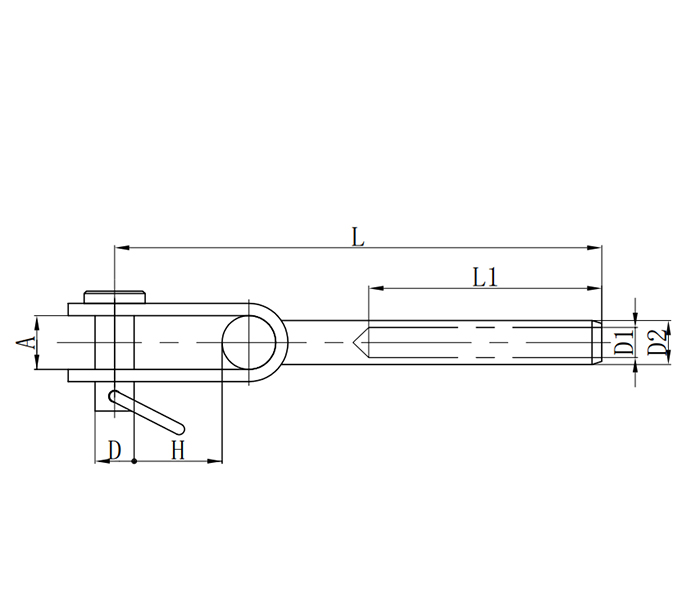

Machined Fork Swage Terminal

铣制叉式接线器
Machined Fork Swage Terminal
ITEM NO	Wire（mm）	A (mm)	D (mm)	H (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L (mm)
HF-2007-0003	3	7.5	6	10	3.3	6.5	39	73
HF-2007-0004	4	11	8	11	4.3	7.5	45	86
HF-2007-0005	5	12	9	14	5.3	9	52	100
HF-2007-0006	6	14	12	20	6.4	12.5	64	128
HF-2007-0007	7	15	12	22	7.4	14.2	70	135
HF-2007-0008	8	17	16	26	8.4	16	80	155
HF-2007-0010	10	20	19	30	10.5	18	90	174
HF-2007-0012	12	20	19	30	12.6	20	105	197
HF-2007-0014	14	22	22	35	14.7	25	140	239
HF-2007-0016	16	25	25	38	16.9	28	160	271
HF-2007-0019	19	30	28	41	20	34.5	200	327
HF-2007-0022	22	35	32	52	23.2	40.5	230	377
HF-2007-0026	26	35	35	52	27.5	46	280	434

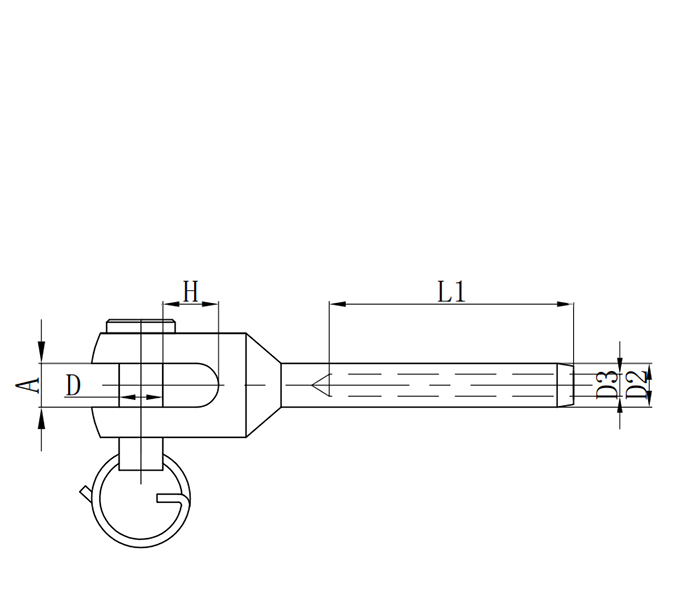

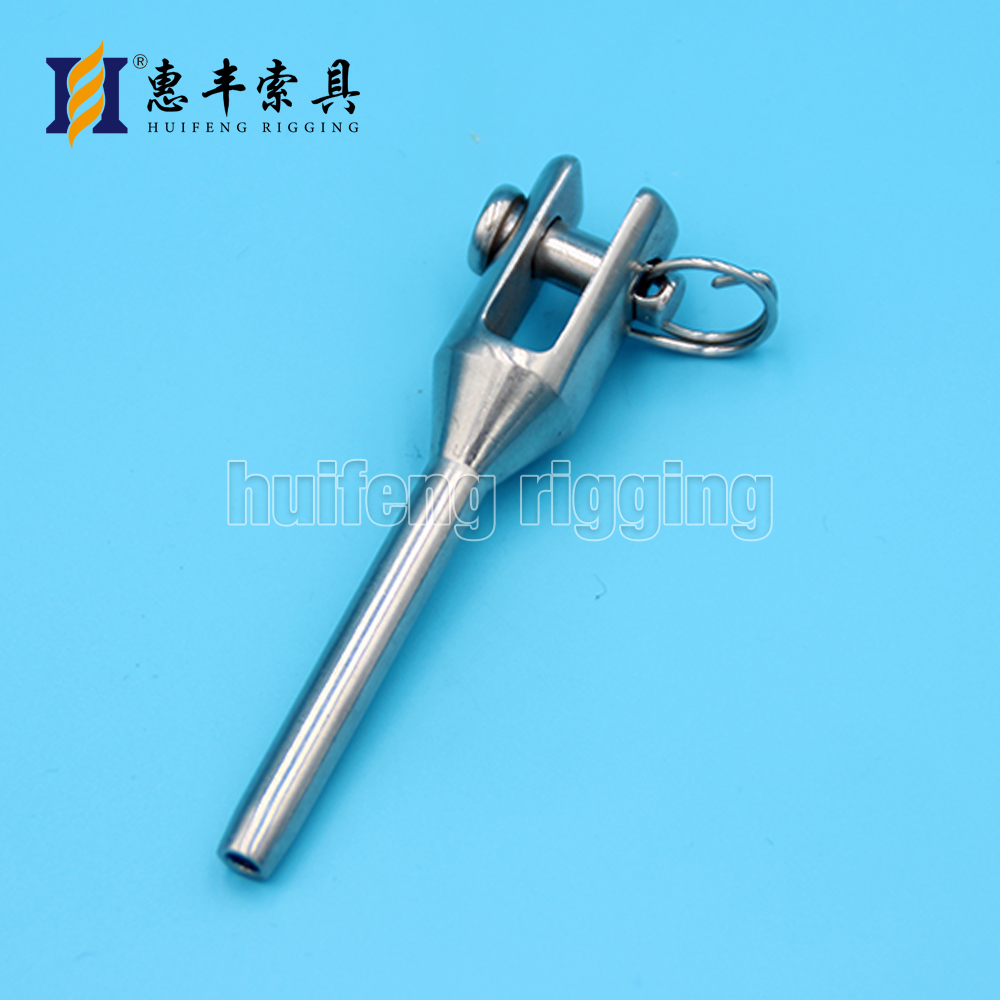

Machined Fork Swage Terminal

铣制叉式接线器
Machined Fork Swage Terminal
ITEM NO	A (mm)	D (mm)	H (mm)	D2 (mm)	D3 (mm)	L1 (mm)
HF-2008-0004	11	8	8	7.5	4.3	45
HF-2008-0005	12	10	9	9	5.3	55
HF-2008-0006	14	12	12	12.5	6.4	65
HF-2008-0008	17	14	16	16	8.4	90
HF-2008-0010	20	16	16	18	10.2	110
HF-2008-0012	20	18	18	16.9	28	150

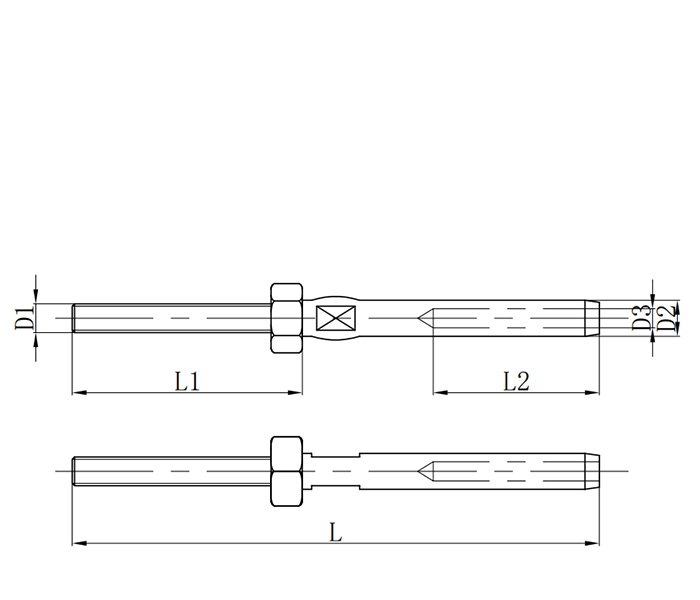

Swage Stud Terminal, US Type

美式直杆

Swage Stud Terminal, US Type

ITEM NO

Wire

HF-2009-1/4*1/8

1/4"

1/8"

3.94"

1.89"

1.54"

0.25"

0.14"

HF-2009-1/4*5/32

1/4"

5/32"

4.33"

1.89"

1.77"

0.295"

0.165"

HF-2009-5/16*5/32

5/16"

5/32"

4.61"

2.24"

1.77"

0.295"

0.165"

HF-2009-5/16*3/16

5/16"

3/16"

4.88"

2.24"

2.05"

0.354"

0.201"

HF-2009-3/8*3/16

3/8"

3/16"

5.12"

2.48"

2.05"

0.354"

0.201"

HF-2009-3/8*1/4

3/8"

1/4"

5.71"

2.48"

2.52"

0.496"

0.265"

HF-2009-1/2*1/4

1/2"

1/4"

6.38"

3.15"

2.52"

0.496"

0.265"

HF-2009-1/2*5/16

1/2"

5/16"

7.09"

3.15"

0.63"

0.328"

HF-2009-9/16*9/32

9/16"

9/32"

7.09"

3.54"

2.76"

0.559"

0.297"

HF-2009-5/8*5/16

5/8"

5/16"

7.87"

3.94"

3.15"

0.63"

0.328"

HF-2009-5/8*3/8

5/8"

3/8"

8.27"

3.94"

3.54"

0.709"

0.395"

HF-2009-3/4*3/8

3/4"

3/8"

9.06"

4.69"

3.54"

0.709"

0.395"

HF-2009-3/4*1/2

3/4"

1/2"

9.65"

4.72"

4.13"

0.842"

0.524"

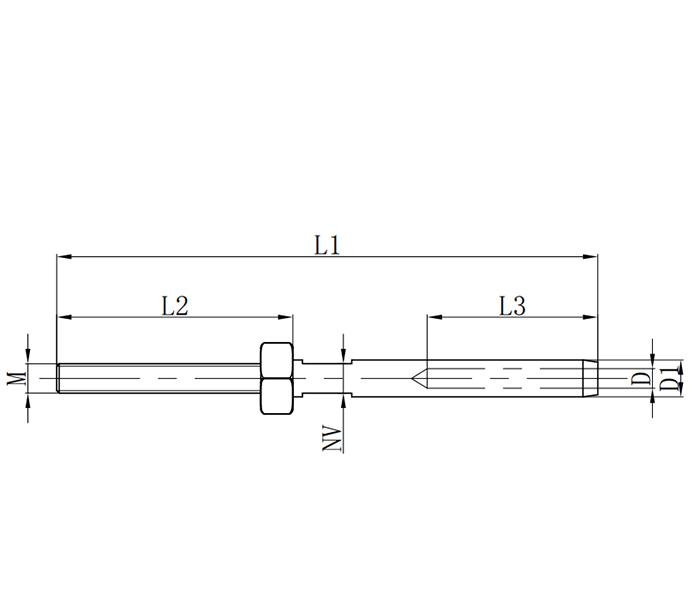

Swage Stud Terminal

直杆接线器
Swage Stud Terminal
ITEM NO	M (mm)	Wire（mm）	D(mm)	D1 (mm)	L3 (mm)	L2 (mm)	L1 (mm)	NV (mm)
HF-2010-0402	M4	2	2.2	4.8	24	38	73	3
HF-2010-0502	M5	2	2.2	5.5	32	40	86	4
HF-2010-0525	M5	2.5	2.7	5.5	32	40	86	4
HF-2010-0532	M5	3.2	3.5	6.35	38	40	90	5
HF-2010-0603	M6	3	3.3	6.35	39	48	100	5
HF-2010-0632	M6	3.2	3.5	6.35	39	48	100	5
HF-2010-0604	M6	4	4.3	7.5	45	48	110	6
HF-2010-0804	M8	4	4.3	7.5	45	57	117	6
HF-2010-0805	M8	5	5.3	9	52	57	124	7
HF-2010-1005	M10	5	5.3	9	52	63	130	7
HF-2010-1006	M10	6	6.4	12.6	64	63	145	10
HF-2010-1206	M12	6	6.4	12.6	64	80	162	10
HF-2010-1208	M12	8	8.4	16	80	80	180	14
HF-2010-1407	M14	7	7.4	14.2	70	90	180	12
HF-2010-1608	M16	8	8.4	16	80	100	200	14
HF-2010-1610	M16	10	10.5	18	90	100	210	15
HF-2010-2010	M20	10	10.5	18	90	119	230	15
HF-2010-2012	M20	12	12.6	20	105	120	245	17
HF-2010-2214	M22	14	14.7	25	140	140	308	23
HF-2010-2416	M24	16	16.9	28	160	170	363	25
HF-2010-2719	M27	19	20	34.5	200	180	425	30
HF-2010-3022	M30	22	23.2	40.5	230	200	480	36
HF-2010-3626	M36	26	27.5	46	280	220	550	41

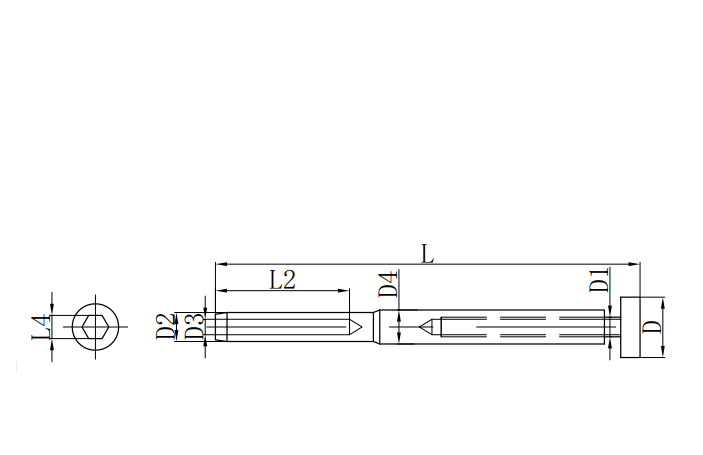

Dome Swage, Adjustable

可调节内丝杆式接线器

Dome Swage, Adjustable

ITEM NO

WireΦ

HF-2011-1/8H

1/4"

1/8"

3.5"

1.54"

0.19"

0.55"

0.218"

0.14"

0.354"

HF-2011-3/16H

1/4"

3/16"

2.06"

0.19"

0.55"

0.295"

0.201"

0.354"

HF-2011-1/4H

5/16"

1/4"

4.625"

2.58"

0.19"

0.65"

0.425"

0.265"

0.496"

HF-2011-1/8M

1/4"

1/8"

3.5"

1.54"

0.19"

0.55"

0.218"

0.14"

0.354"

HF-2011-3/16M

1/4"

3/16"

2.06"

0.19"

0.55"

0.295"

0.201"

0.354"

HF-2011-1/4M

5/16"

1/4"

4.625"

2.58"

0.19“

0.65”

0.425“

0.265”

0.496“

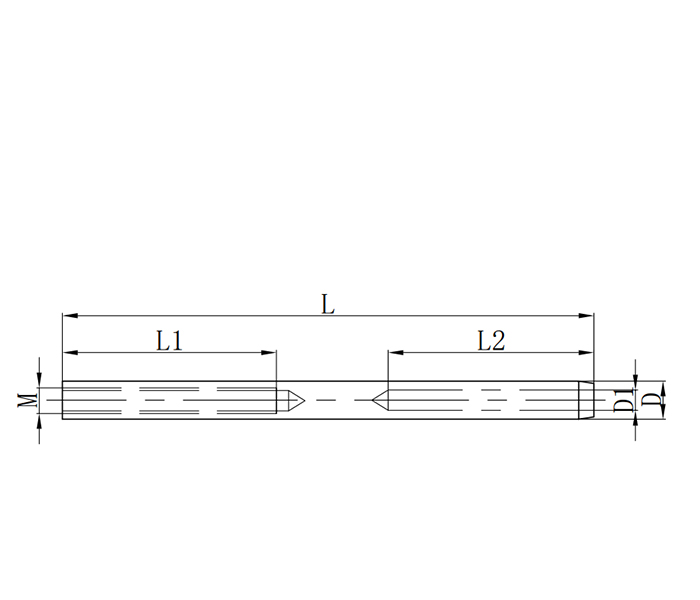

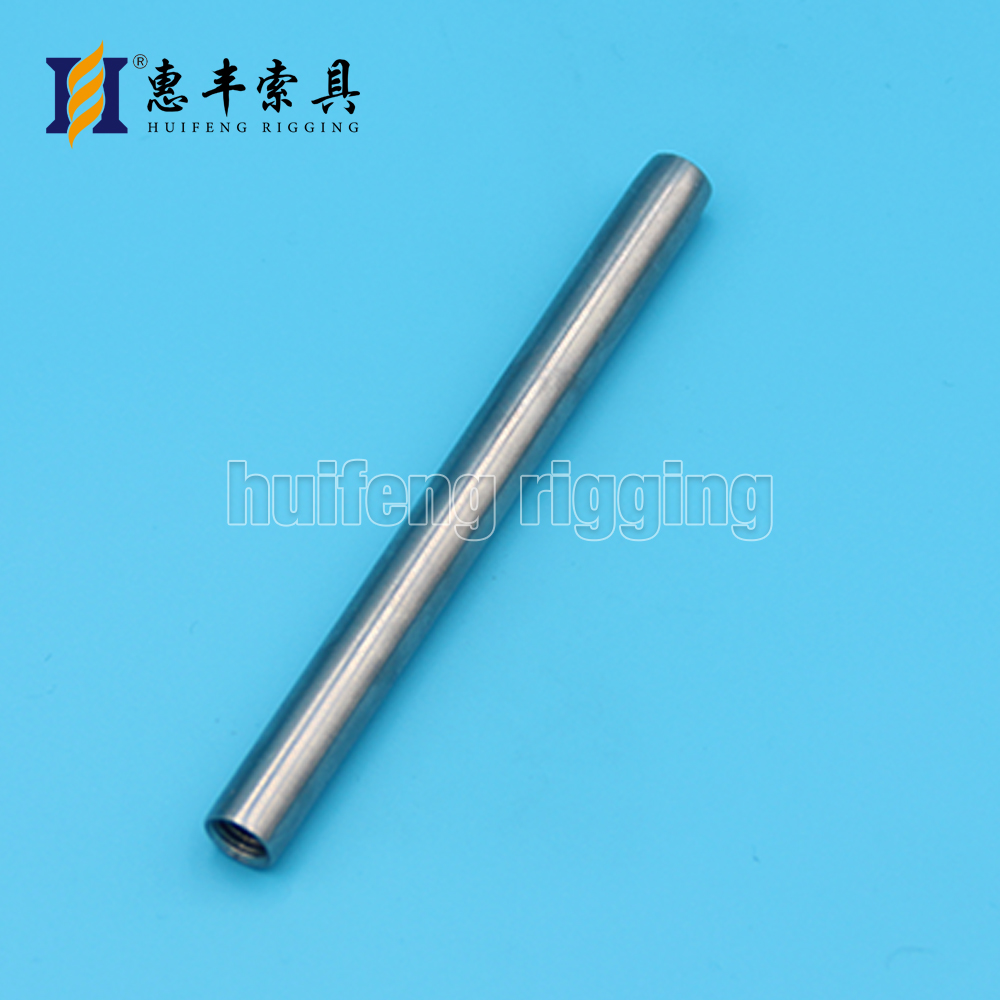

Swage with Internal Thread

带内丝接线器
Swage with Internal Thread
ITEM NO	M (mm)	Wire（mm）	D (mm)	D1 (mm)	L1 (mm)	L2 (mm)	L (mm)
HF-2012-0503	M5	3	6.35	3.3	20	28	55
HF-2012-0604	M6	4	7.5	4.3	22	36	65
HF-2012-0605	M6	5	9	5.3	22	41	70
HF-2012-0806	M8	6	12.6	6.4	25	53	85
HF-2012-1008	M10	8	16	8.4	40	60	106

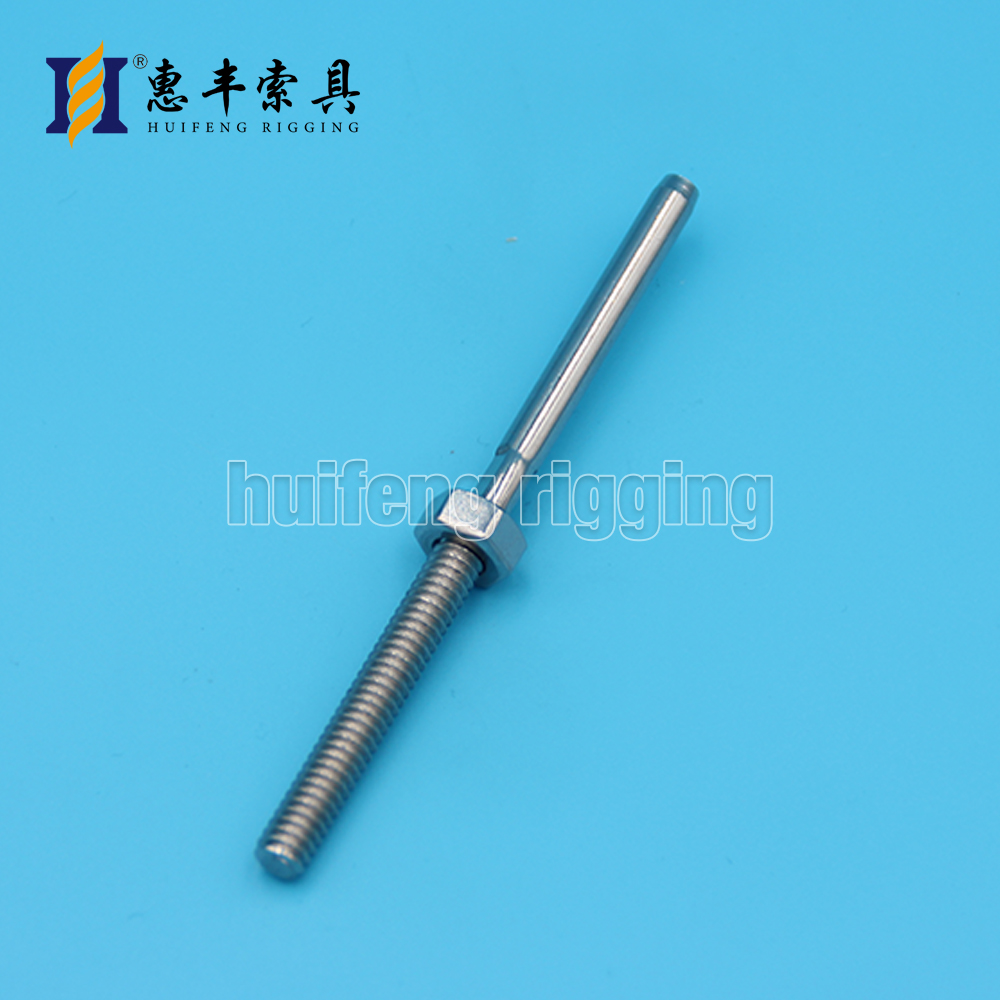

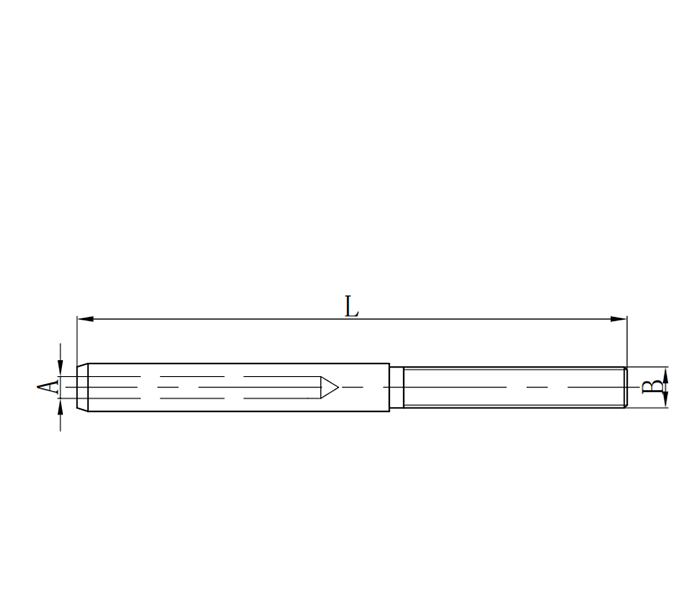

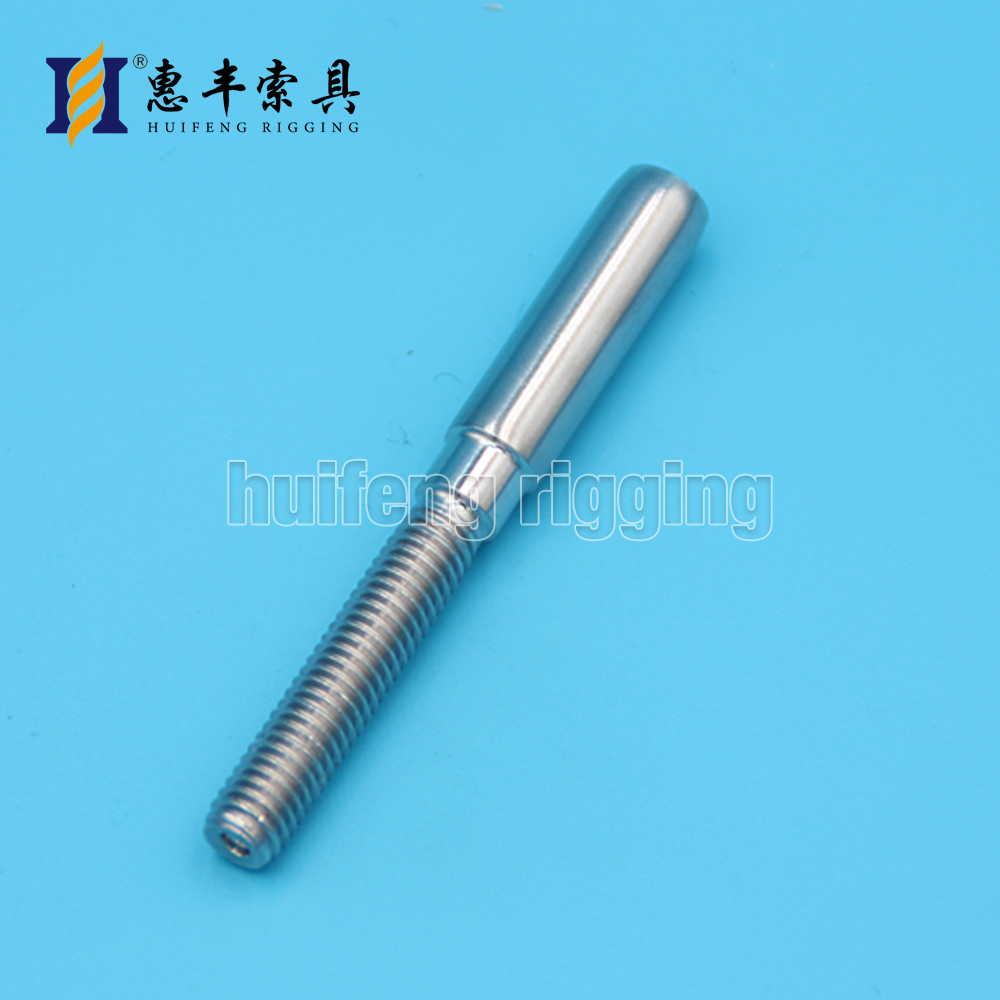

Swage Stud with External Thread

车台直杆接线器

Swage Stud with External Thread

ITEM NO

B(THREADxLENGTH)

CABLE

AFTER SWAGE

HF-2013-1/8"

1/4”-20 x 2-1/2"

1/8”

4-1/4”

0.215"

0.14”

HF-2013-1/8"-L

1/4”-20 x 2-1/2" LH

1/8”

4-1/4”

0.215"

0.14”

HF-2013-3/16"

1/4”-20 x 2-1/2"

3/16”

4-1/4”

0.31"

0.201”

HF-2013-3/16"L

1/4”-20 x 2-1/2" LH

3/16”

4-1/4”

0.31"

0.201”

HF-2013-1/4"

5/16”-18 x 2-1/2"

1/4”

4-3/4”

0.432"

0.265”

HF-2013-1/4"-L

5/16”-18 x 2-1/2" LH

1/4”

4-3/4”

0.432"

0.265”

HF-2013-3/8"

3/8”-16 x 3

1/4”

5-1/4”

0.432"

0.265”

HF-2013-3/8"L

3/8”-16 x 3 LH

1/4”

5-1/4”

0.432"

0.265”

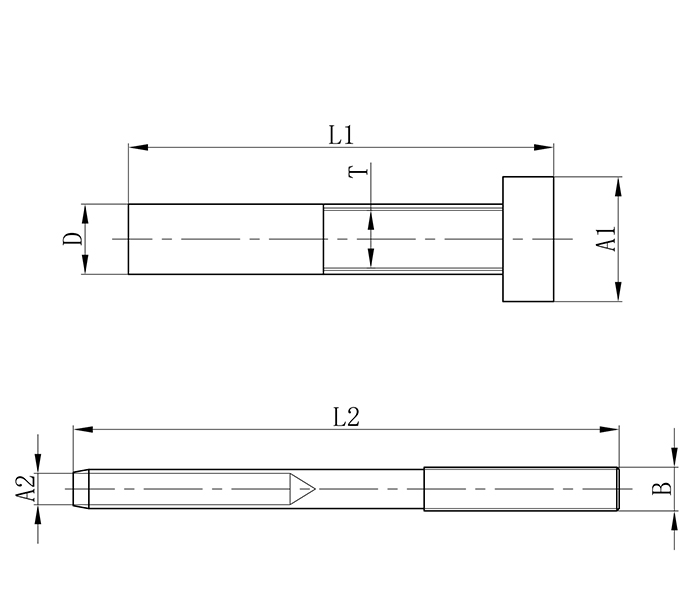

Invisible Receiver and Swage Stud

隐形内六角套件

Invisible Receiver and Swage Stud

ITEM NO

SIZE

HF-2014-1/4-18

1/8"

1/4"-20

0.70"

0.38"

2-3/16"

0.14"

1/4"-20

2-3/4"

HF-2014-1/4-316

3/16"

1/4"-20

0.70"

0.38"

2-3/16"

0.201"

1/4"-20

2-3/4"

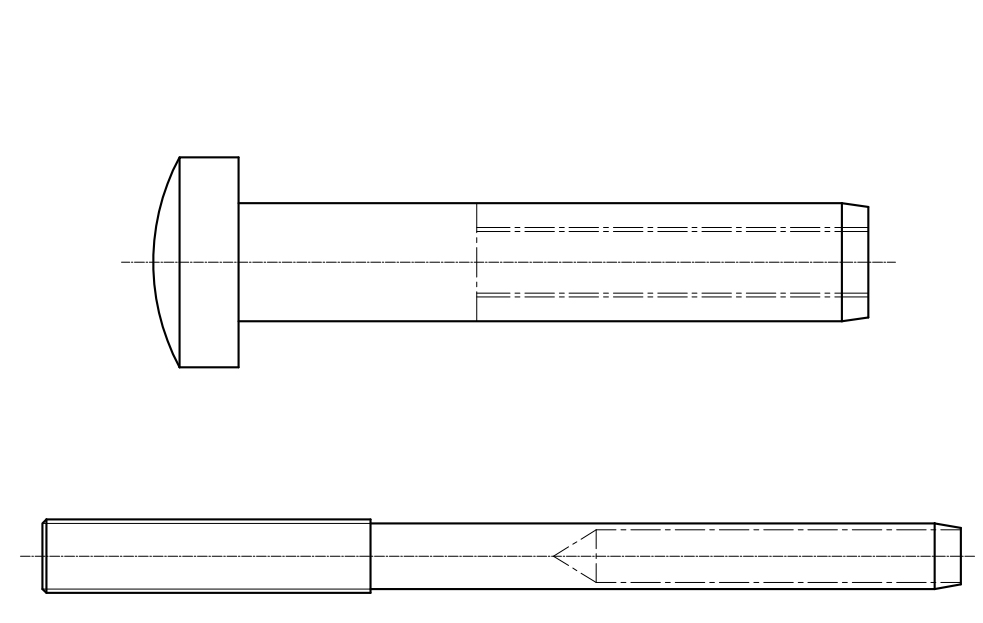

Dome Head Invisible Receiver and Swage Stud

圆头隐形内六角套件

Dome Head Invisible Receiver and Swage Stud

ITEM NO

Size(inch)

HF-2015

1/8”, 3/16”

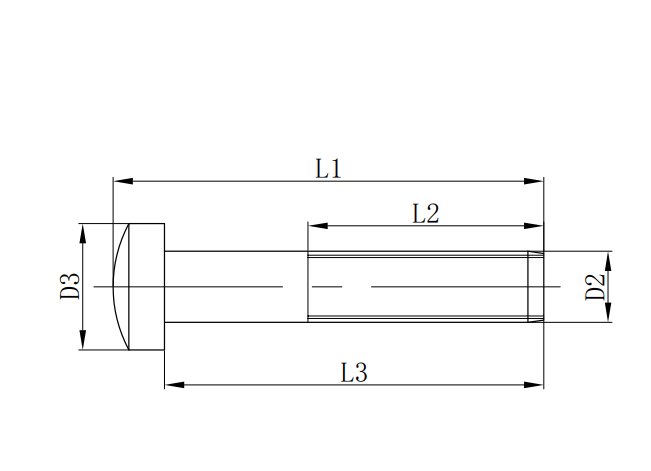

Dome Head Terminal

圆头波波头
Dome Head Terminal
ITEM NO	WIRE	L1	L2	L3	D2	D3
ITEM NO	mm	mm	mm	mm	mm	mm
HF-2016-0003	3	35	25	32	5.5	8
HF-2016-0004	4	35	25	32	6.35	10
HF-2016-0005	5	41	30	36	7.5	11.5
HF-2016-0006	6	52	40	47	9	14
HF-2016-0008	8	66	50	60	12.58	18
HF-2016-0010	10	77	60	70	16	22

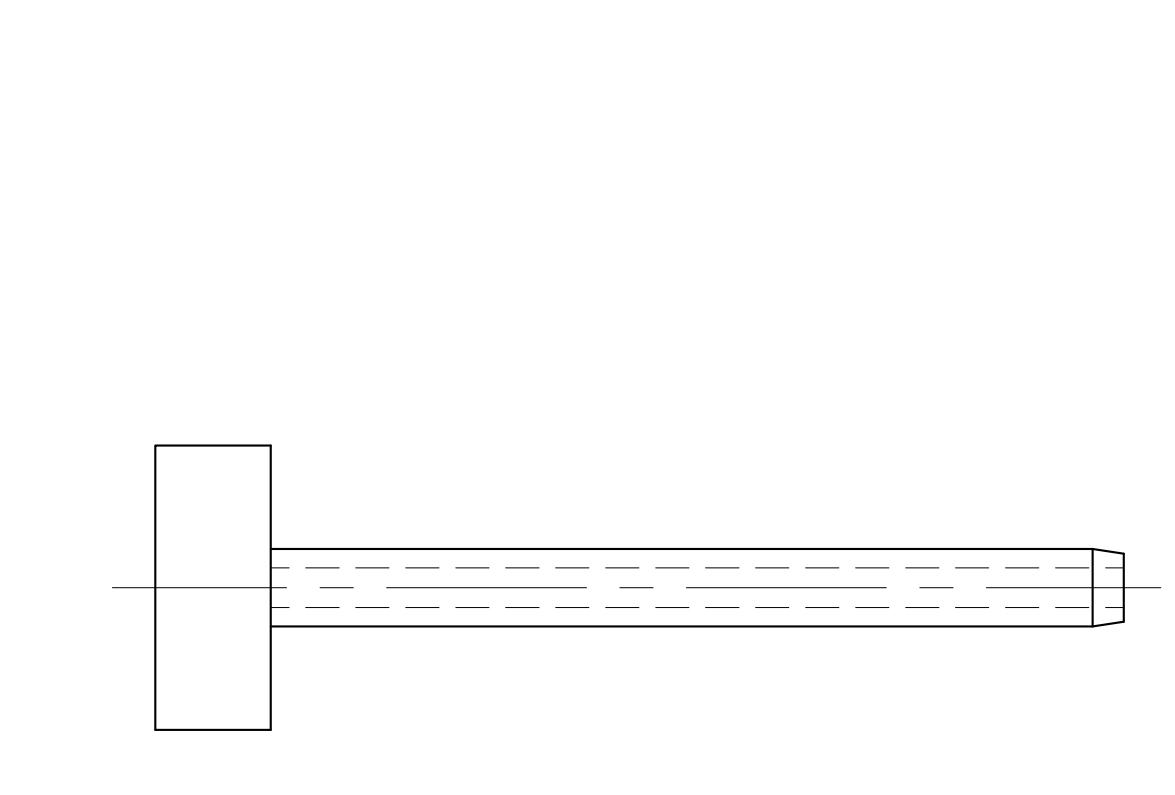

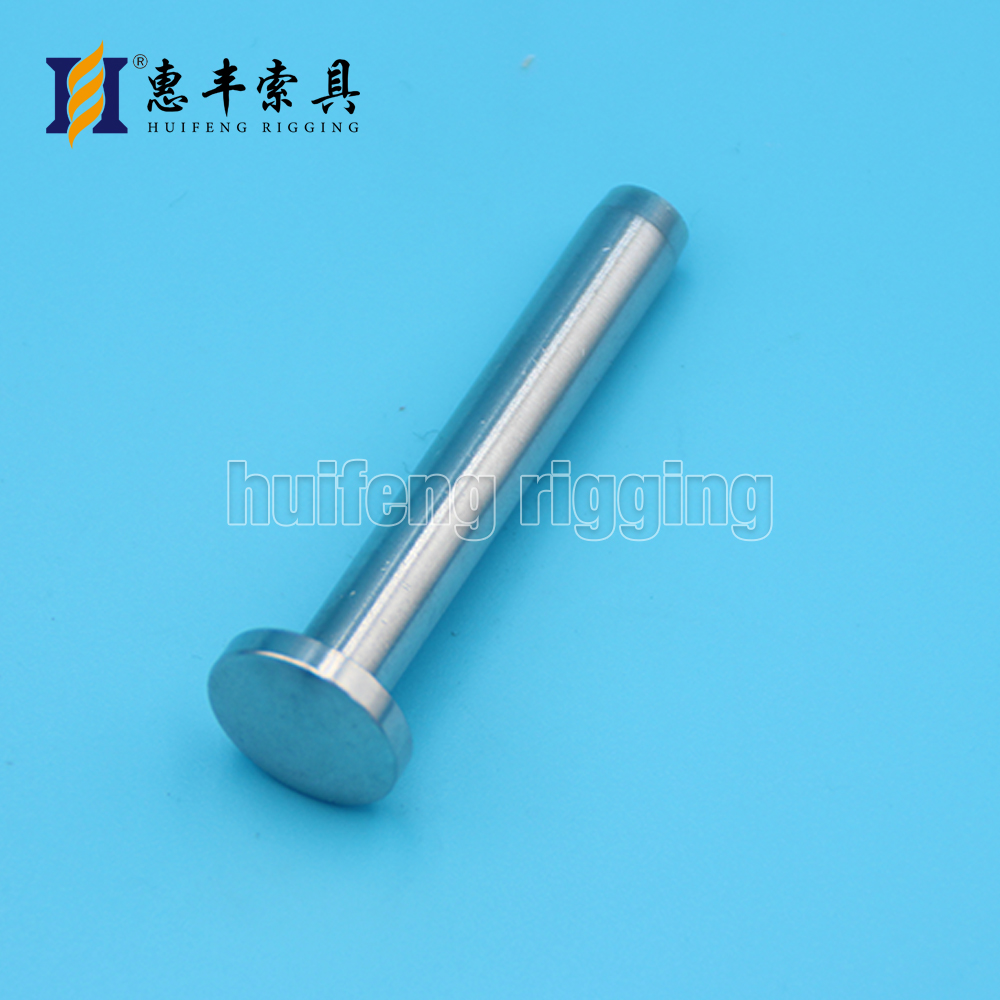

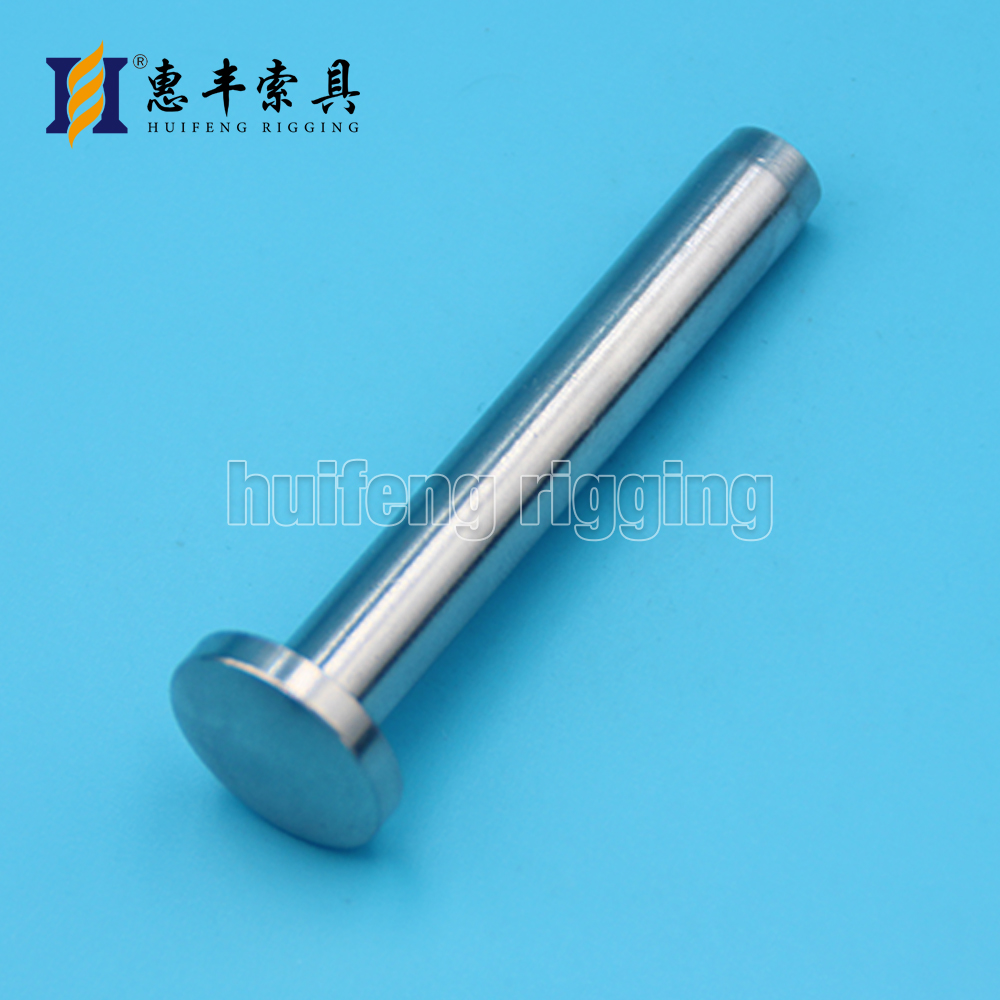

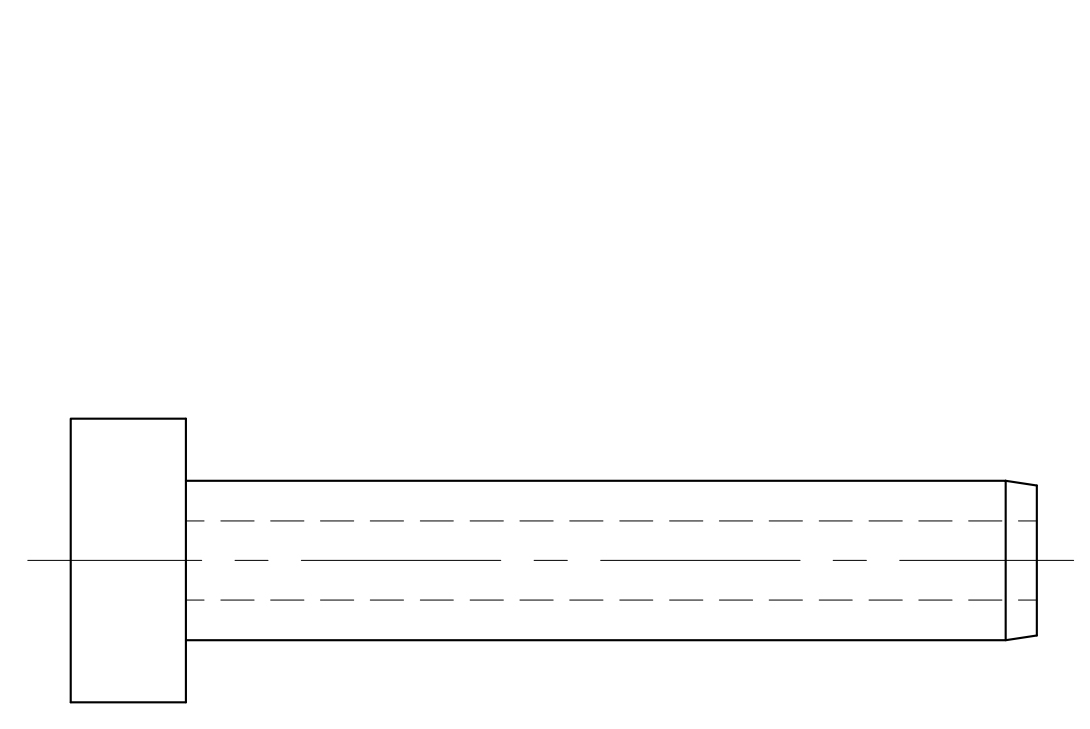

Flat Head Terminal

平头波波头

Flat Head Terminal

ITEM NO

Size(mm)

HF-2017

3mm-10mm

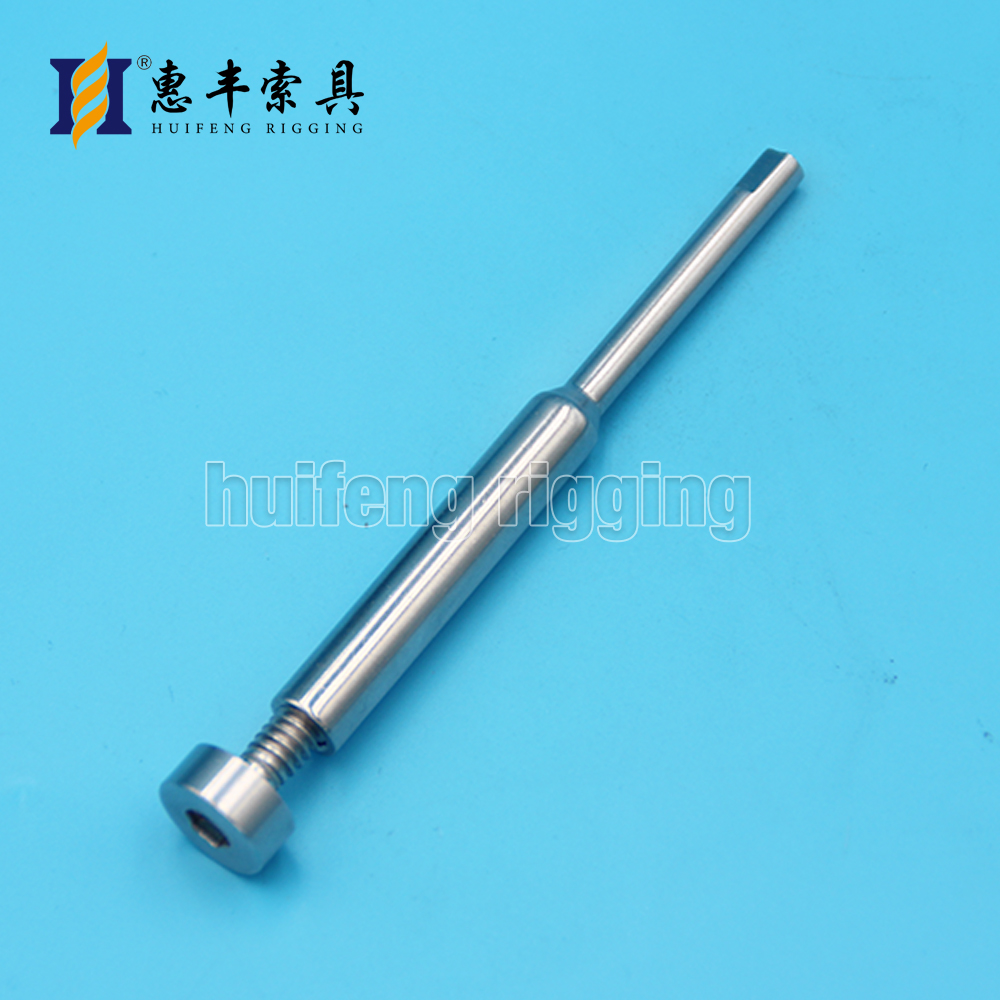

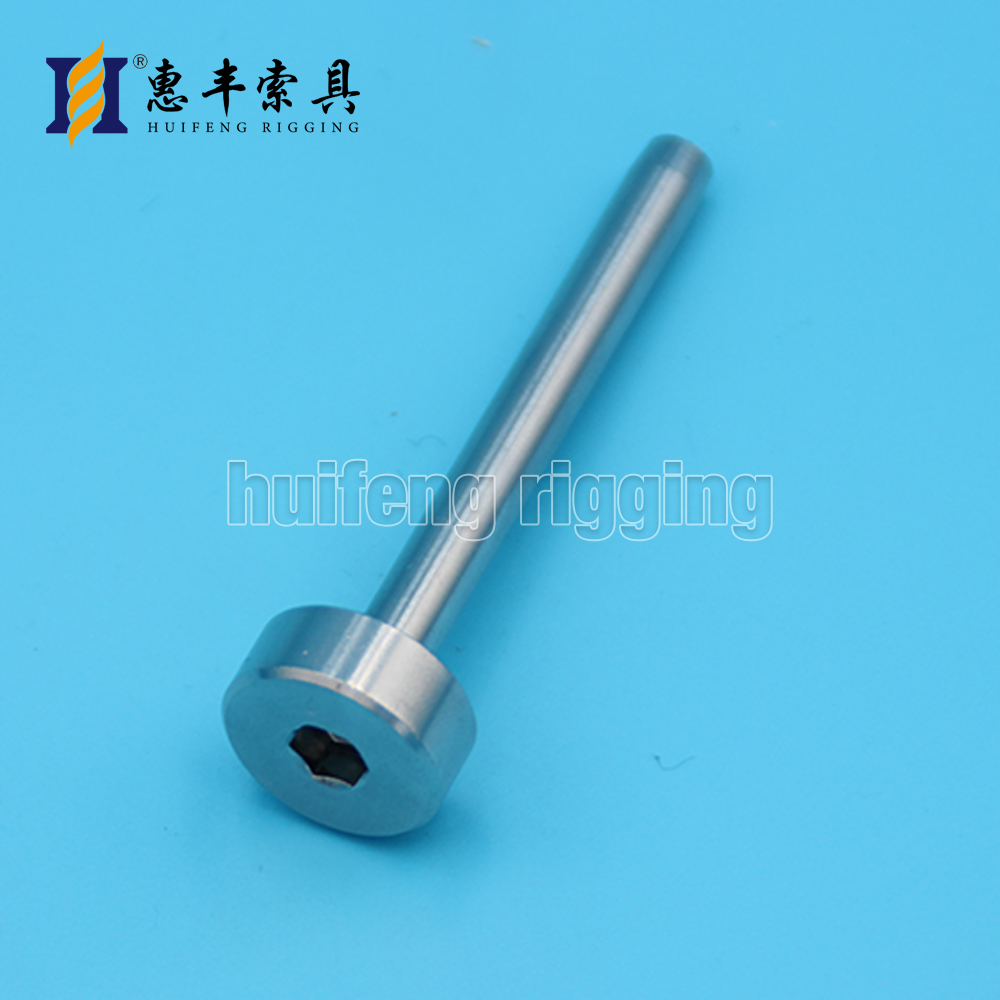

Receiver Head Terminal

内六角接线器

Receiver Head Terminal

ITEM NO

Size(inch)

HF-2018

1/8”, 3/16"

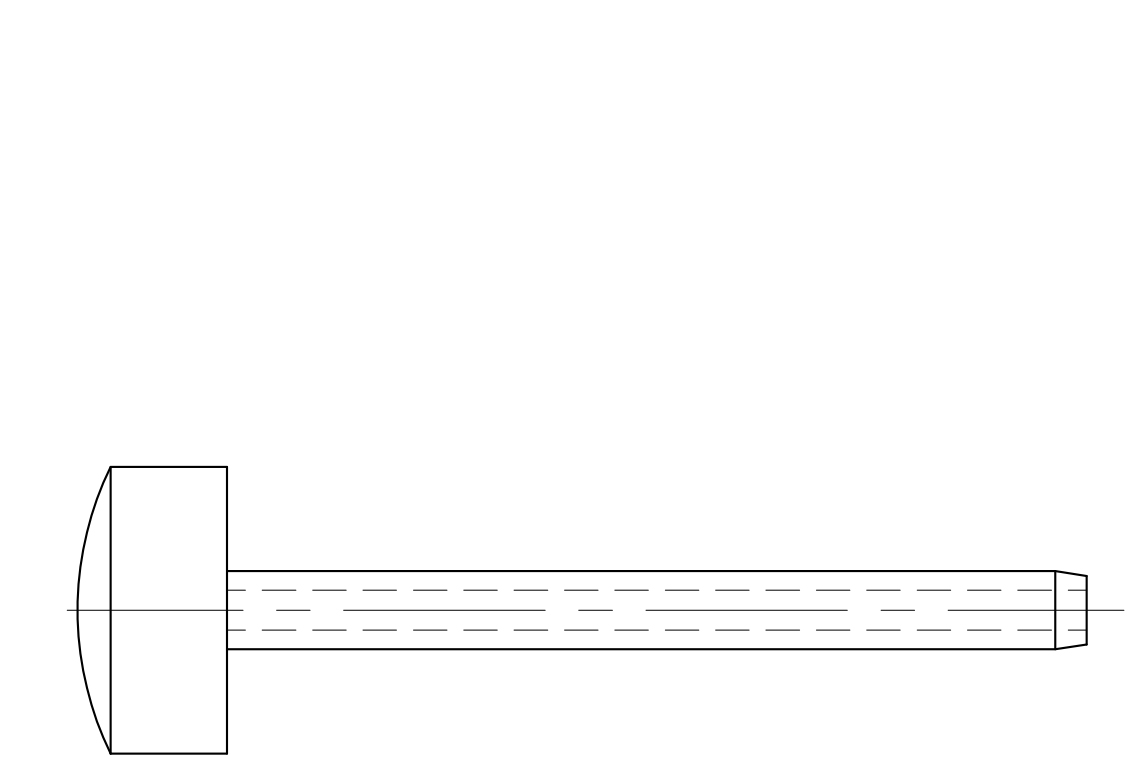

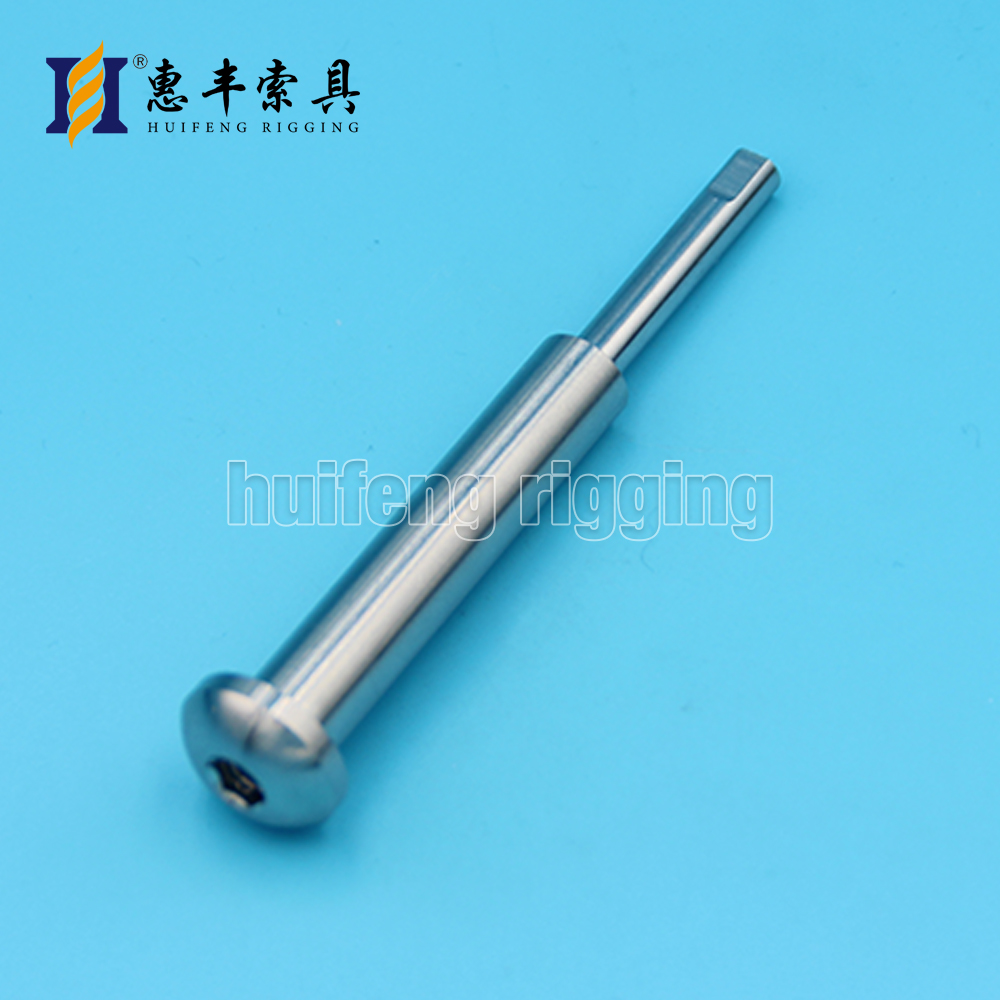

Dome Receiver Head Terminal

圆头内六角接线器

Dome Receiver Head Terminal

ITEM NO

Size(inch)

HF-2018A

1/8”, 3/16”

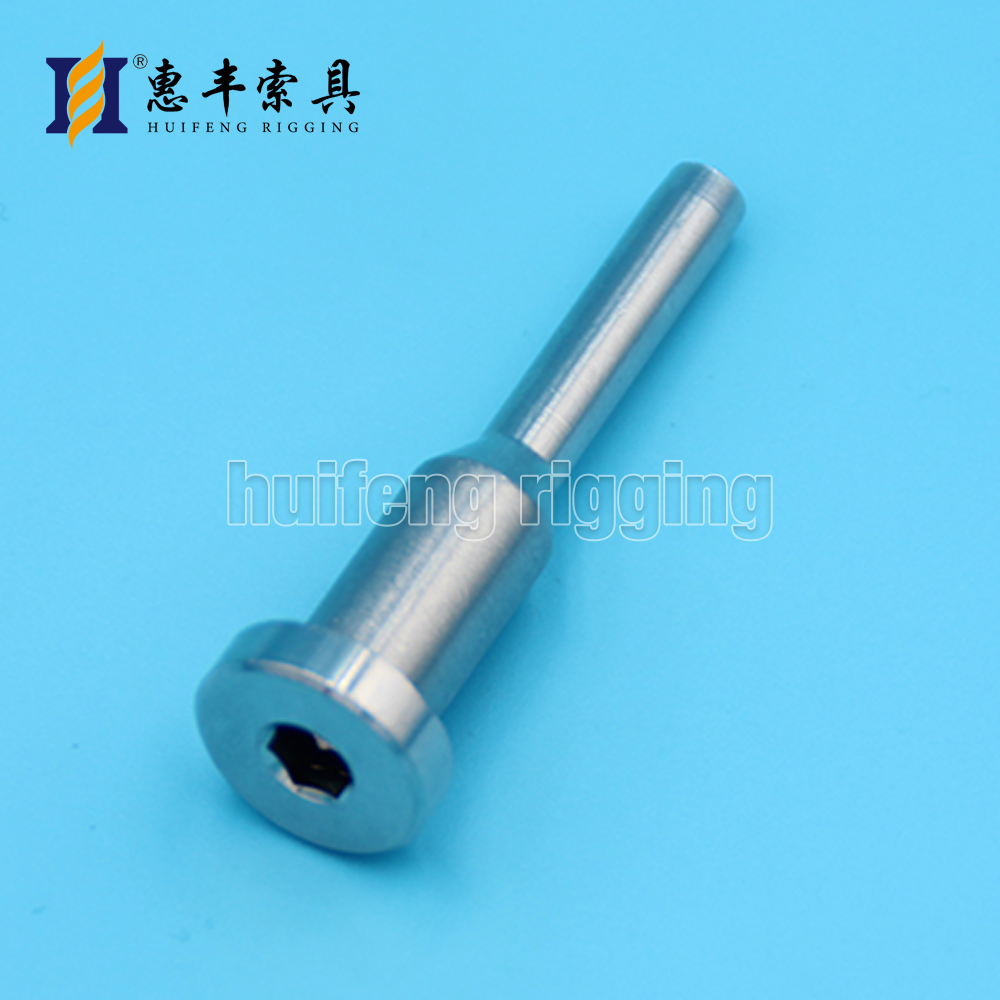

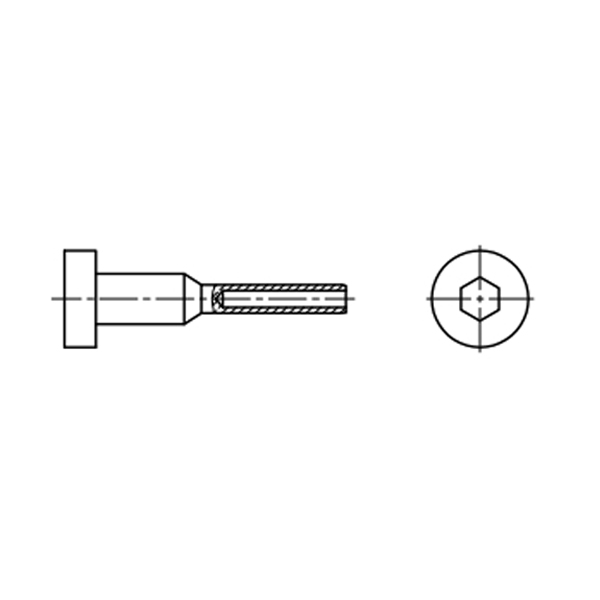

Reiver Head Terminal

平头带锥度内六角拉具

Reiver Head Terminal

ITEM NO

Size(inch)

HF-2018B

1/8”, 3/16"

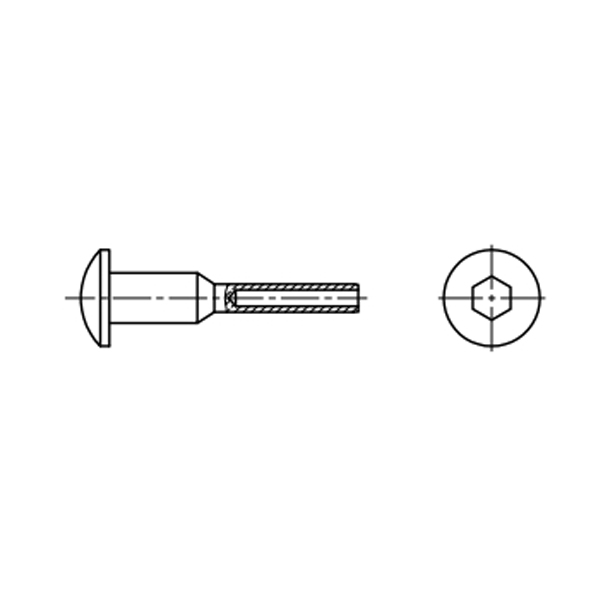

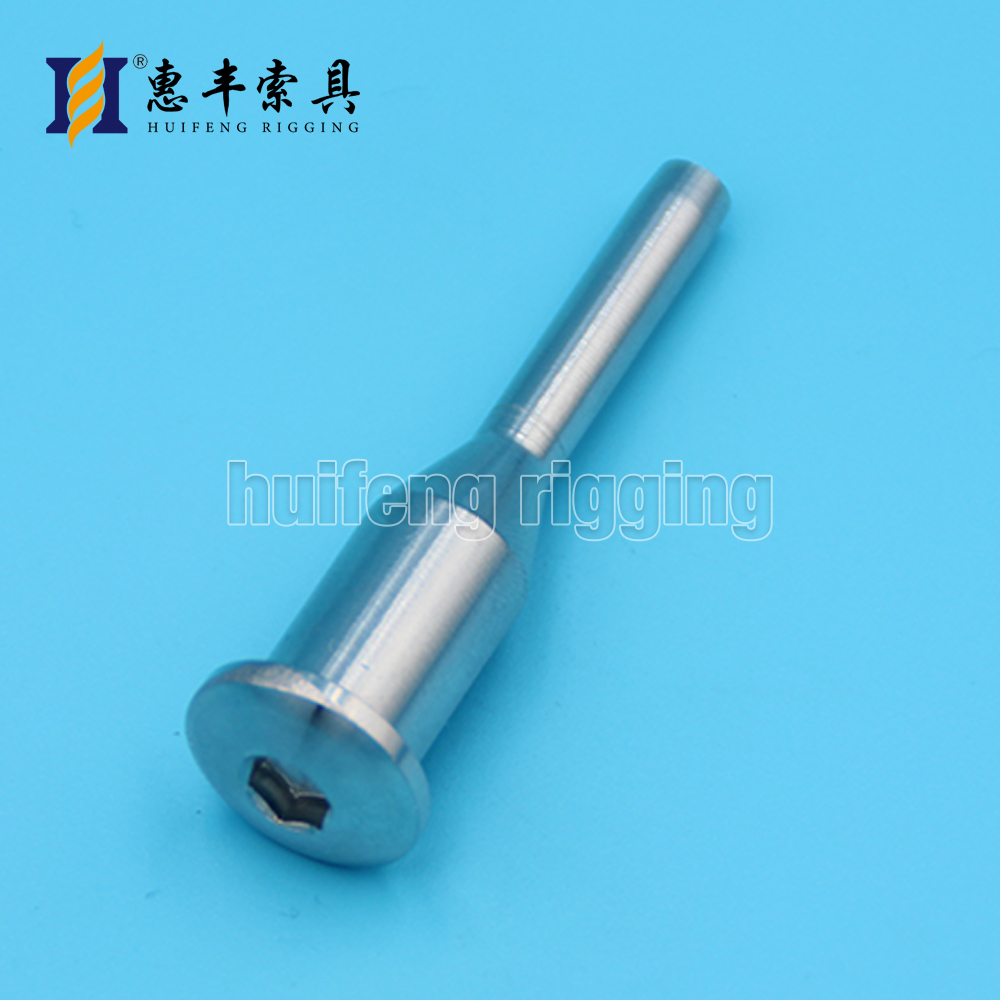

Reiver Dome Head Terminal

圆头带锥度内六角拉具

Reiver Dome Head Terminal

ITEM NO

Size(inch)

HF-2018C

1/8”, 3/16"

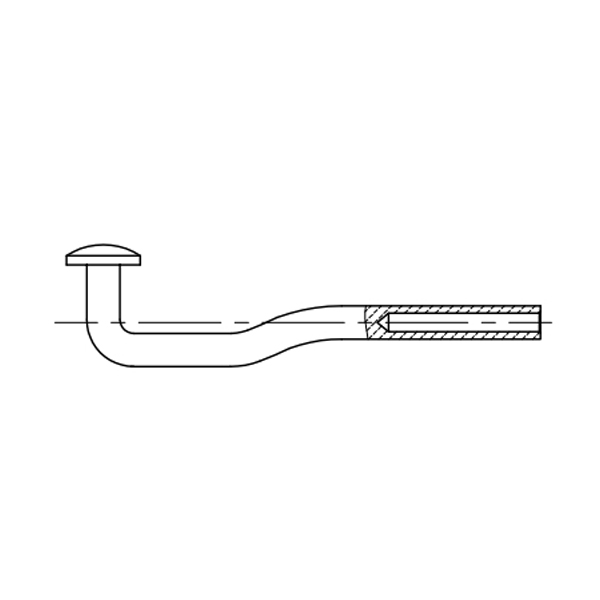

Swage Angle Stud

开槽式接线器

Swage Angle Stud

ITEM NO

Wire

HF-2019-1/8

1/8"

1.5"

0.846"

0.75"

0.25"

0.218"

0.14"

0.138"

HF-2019-3/16

3/16"

1.5"

0.846"

0.75"

0.354"

0.295"

0.201"

0.198"

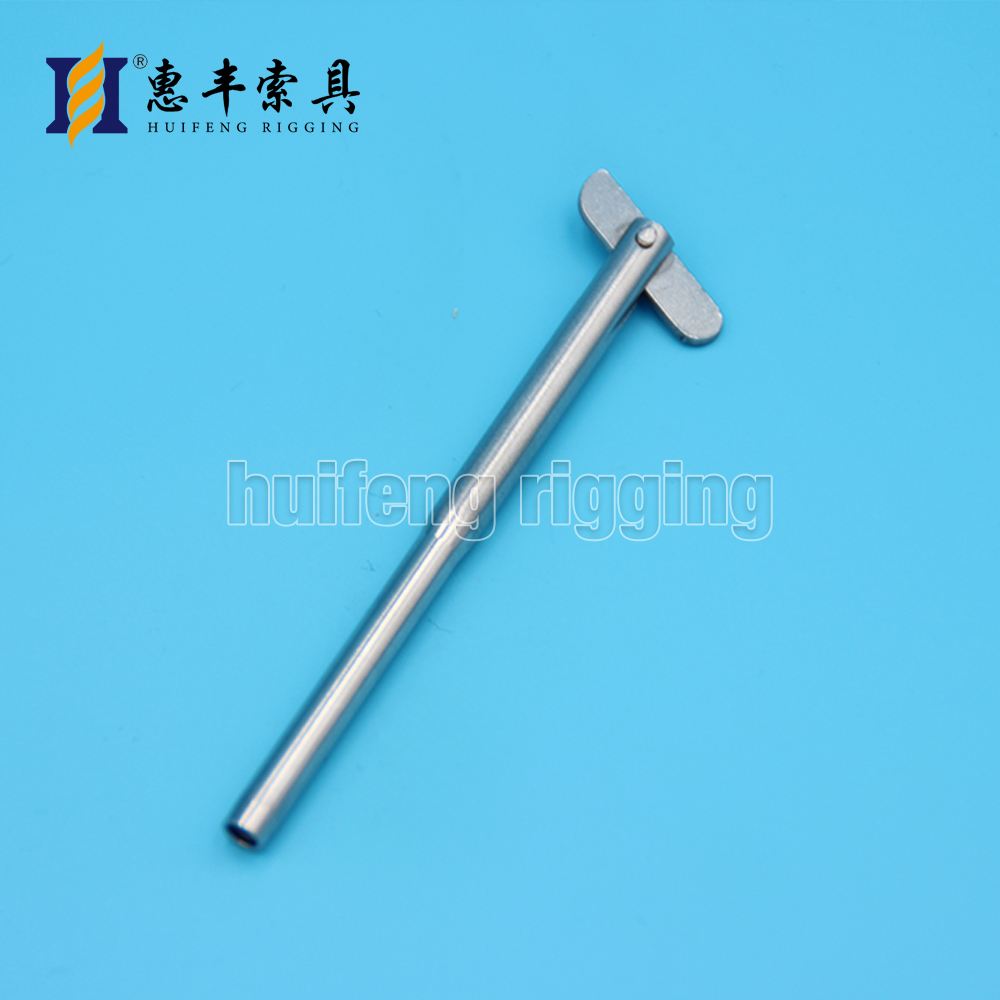

Drop Pin Swage Stud

美式刀片式拉具

Drop Pin Swage Stud

ITEM NO

WIREΦ

HF-2020-H1/8

1/8"

3.74"

1.7"

1.535"

0.265"

0.14"

0.25"

0.059"

HF-2020-H3/16

3/16"

3.94"

1.7"

1.535"

0.295"

0.201"

0.25"

0.059"

HF-2020-M1/8

1/8"

3.74"

1.7"

1.535"

0.265"

0.14"

0.25"

0.059"

HF-2020-M3/16

3/16"

3.94"

1.7"

1.535"

0.295"

0.201"

0.25"

0.059"

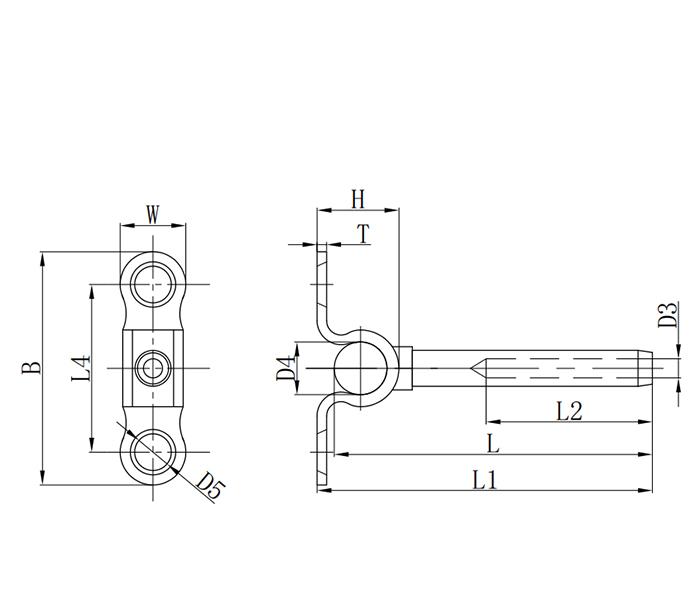

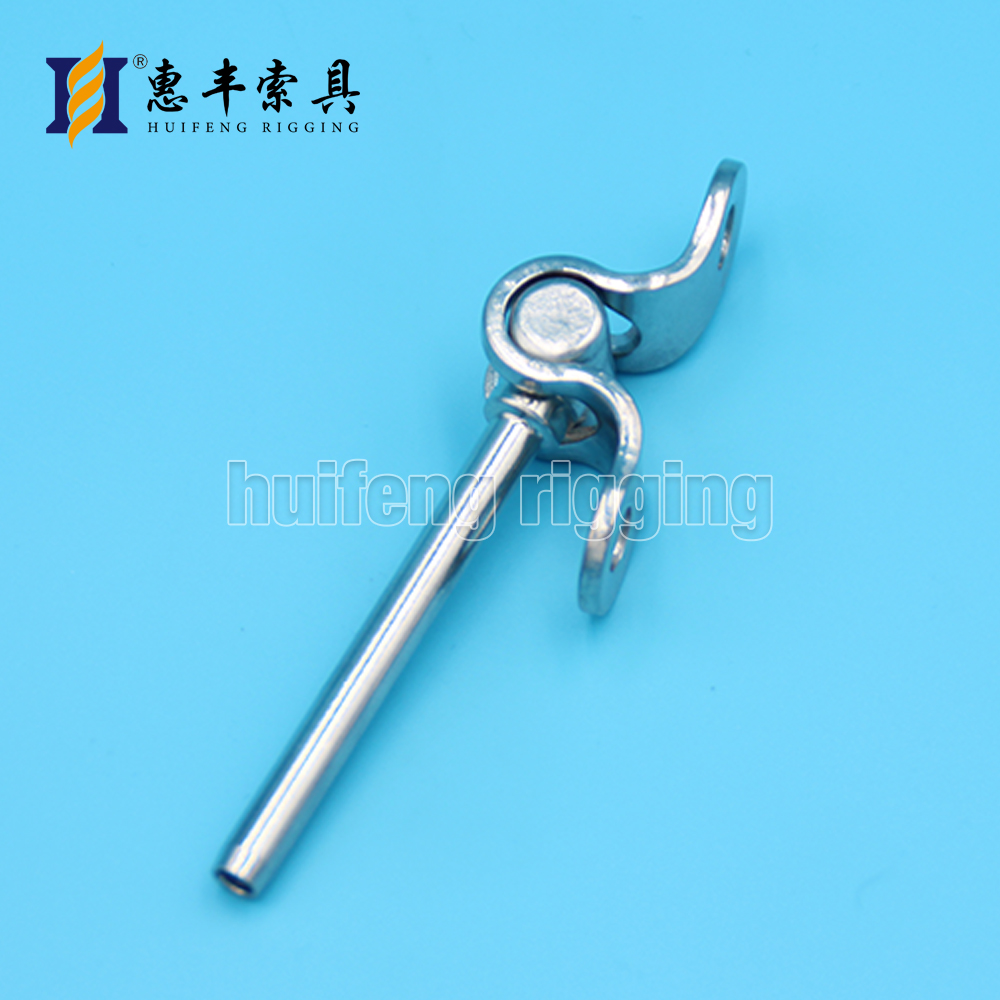

Swage Deck Toggle, U.S.Type

平面抱紧摆头接线器

Swage Deck Toggle, U.S.Type

ITEM NO

WIREΦ

HF-2021-1/8

1/8"

2.7"

2.93"

1.25"

1.29"

1.87"

0.59"

0.08"

0.71"

0.14"

0.39"

0.26"

HF-2021-3/16

3/16"

2.6"

2.85"

1.56"

1.29"

1.87"

0.59"

0.08"

0.71"

0.201"

0.39"

0.26"

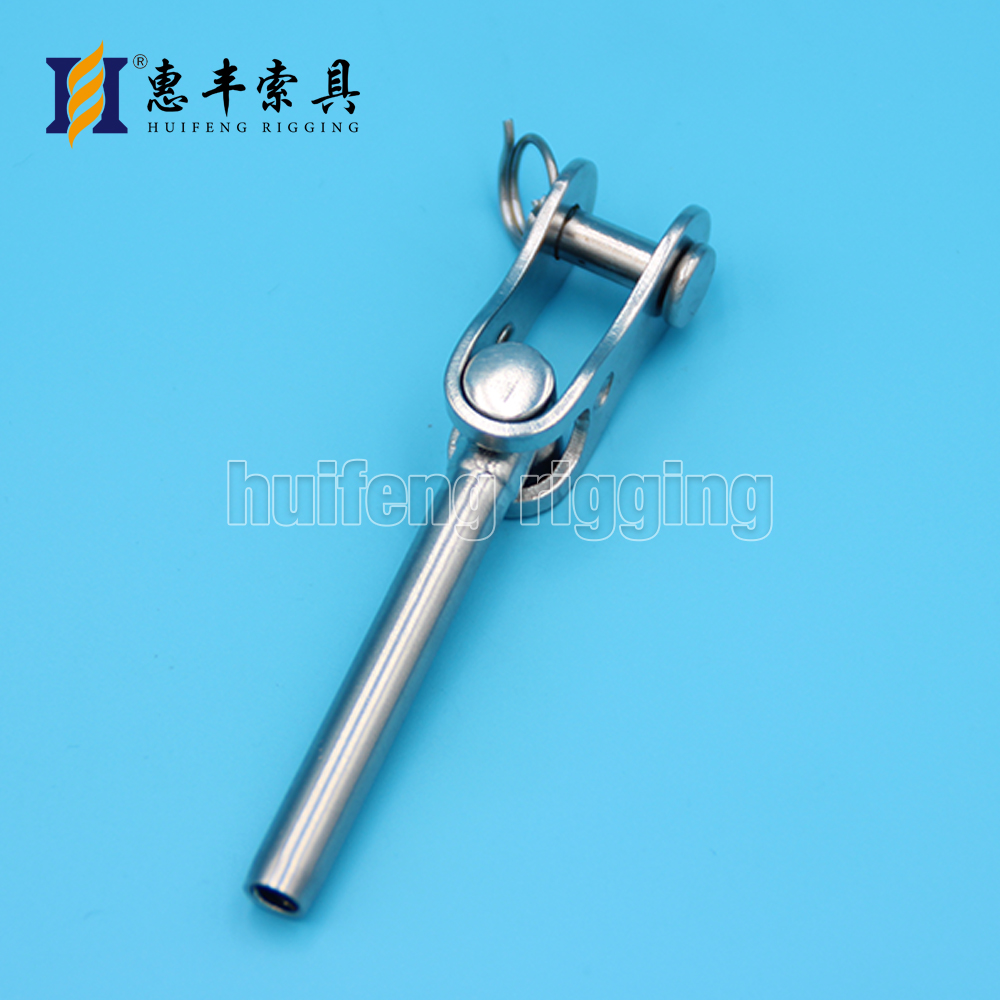

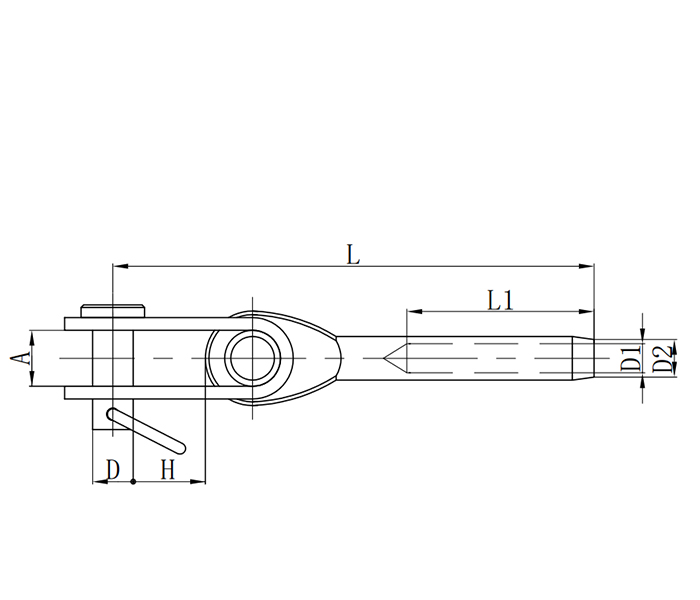

Swage Toggle Terminal, US Type

美式摆头接线器

Swage Toggle Terminal, US Type

ITEM NO

WIREΦ

KGS

HF-2022-H1/8

1/8"

2.4"

3.2"

1.25"

0.23"

0.218"

0.14"

0.39"

0.4"

0.65"

0.685"

0.08"

0.035

HF-2022-H3/16

3/16"

2.6"

3.4"

1.56"

0.23"

0.295"

0.201"

0.39"

0.4"

0.65"

0.685"

0.08"

0.039

HF-2022-H1/4

1/4"

2.63"

3.8"

1.8"

0.31"

0.425"

0.265"

0.5"

0.51"

0.83"

0.71"

0.11"

0.048

HF-2022-M1/8

1/8"

2.4"

3.2"

1.25"

0.23"

0.218"

0.14"

0.39"

0.4"

0.65"

0.685"

0.08"

0.038

HF-2022-M3/16

3/16"

2.6"

3.4"

1.56"

0.23"

0.295"

0.201"

0.39"

0.4"

0.65"

0.685"

0.08"

0.04

HF-2022-M1/4

1/4"

2.95"

3.8"

1.8"

0.31"

0.425"

0.265"

0.5"

0.51"

0.83"

0.71"

0.11"

0.107

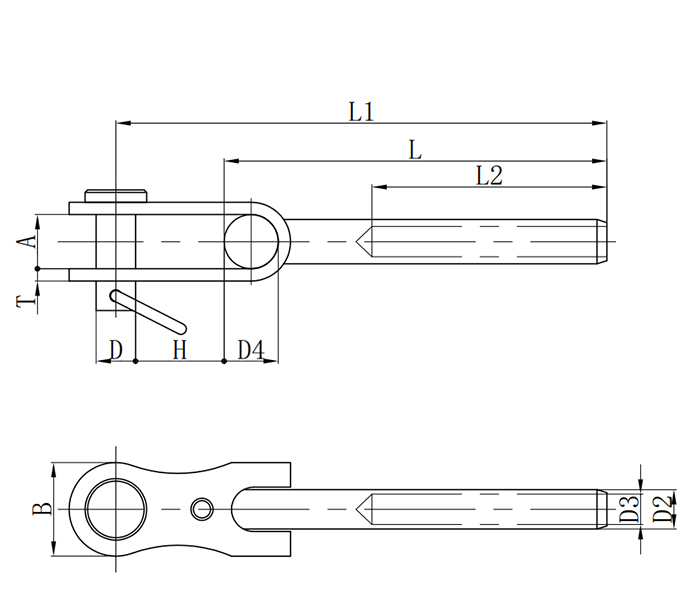

Swage Toggle terminal, 'T' Type

T式摆头接线器
Swage Toggle terminal, 'T' Type
ITEM NO	Wire(mm）	A (mm)	D (mm)	H (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L (mm)
HF-2023-0003	3	7	6	15	3.3	6.35	38	75
HF-2023-0004	4	10	8	20	4.3	7.5	45	89
HF-2023-0005	5	12	9	28	5.3	9	51	104
HF-2023-0006	6	13	12	30	6.4	12.6	64	127
HF-2023-0008	8	17	16	40	8.4	16	76	163
HF-2023-0010	10	20	19	45	10.5	18	89	184

Swage Toggle Terminal, Eye Type

眼式摆头接线器
Swage Toggle Terminal, Eye Type
ITEM NO	Wire（mm）	A (mm)	D (mm)	H (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L (mm)
HF-2024-0003	3	8	6	13	3.3	6.35	36	81
HF-2024-0004	4	10	8	13	4.3	7.5	39	94
HF-2024-0005	5	12	9	20	5.3	9	50	116
HF-2024-0006	6	18	12	25	6.4	12.6	62	135
HF-2024-0007	7	18	12	25	7.4	14.2	68	157
HF-2024-0008	8	18	16	29	8.4	16	85	170
HF-2024-0010	10	20	19	30	10.5	18	90	192
HF-2024-0012	12	26	22	35	14.7	25	140	277
HF-2024-0014	14	26	22	35	14.7	25	140	277
HF-2024-0016	16	29	25	40	16.9	28	160	313
HF-2024-0019	19	34	28	46	20	34.5	200	399
HF-2024-0022	22	40	32	54	23.2	40.5	230	463
HF-2024-0026	26	44	36	62	27.5	46	280	518

WIRE ROPE FITTINGS

Email:

Phone:
